hvls big ceiling fan motor solar air cooling large industrial hvls ceiling fans big ass hvls fan 18ft 6.1m
- Category: Ventilation Fans >>>
- Supplier: Zhejiang Bichen Environmental Technology Co. Ltd.
Share on (1600599153231):
Product Overview
Description
Product Overview
Industrial Ceiling Fan
This industrial ceiling fan in operation, the use of aerodynamic principles and advanced technology made of streamlined ultra-long fan blades, can be transported outward a large amount of airflow, the formation of a large range of airflow layer, running to produce a dead-end all-round wind function, large ceiling fan downward transport with a feeling similar to the nature wind. Large area blowing to every corner of the human body, all-round three-dimensional blowing wind, so that the human body by the wind area to the maximum.
FEATURES AT A GLANCE
1. Large indoor space, poor ventilation and poor air circulation
2. The environment is hot and uncomfortable, and employees are in high mood
3. Traditional air conditioning costs a lot and consumes a lot of power
4. Adverse reactions caused by long-term air conditioning by personnel
5. Heat and humidity cause mildew of raw materials
2. The environment is hot and uncomfortable, and employees are in high mood
3. Traditional air conditioning costs a lot and consumes a lot of power
4. Adverse reactions caused by long-term air conditioning by personnel
5. Heat and humidity cause mildew of raw materials
Extra large air volume coverage
In operation, the streamlined ultra-long fan blade made by the aerodynamic principle and advanced technology can transport a large amount of air flow outward and form a super-large range of air flow layer.
Full coverage natural wind
Operation to produce full coverage of the full range of air supply function, large ceiling fan downward transport with a feeling similar to the natural wind. Large area blowing to every corner of the human body, a full range of three-dimensional blowing wind, so that the human body by the wind area to the maximum.
PRODUCT CONFIGURATION
Permanent magnet motor
●High torque permanent magnet synchronous motor, the motor is integrally installed on the axle to form
an overall direct drive system, that is, one axle is one drive unit. to maintenance-free.
an overall direct drive system, that is, one axle is one drive unit. to maintenance-free.
Variable-frequency drive
● The integrated frequency conversion control system can effectively prevent the impact. And built-in
overload and overcurrent protection, automatically cut off the power output in the event of an accident, improving the safety
factor. The operation is simple, the control system only needs to turn the speed control button to meet the needs of different
wind conditions, the protection of the inverter and the cooling fan is more reliable, the control box is safe, and the service
life is longer.
overload and overcurrent protection, automatically cut off the power output in the event of an accident, improving the safety
factor. The operation is simple, the control system only needs to turn the speed control button to meet the needs of different
wind conditions, the protection of the inverter and the cooling fan is more reliable, the control box is safe, and the service
life is longer.
●Support customization: centralized control, WAIfan, 4G connection, smart phone monitoring control.
Aluminium alloy blade
●The enlarged alloy aluminum alloy fan blade is used, and the built-in reinforcing ribs are supported
up and down to ensure the strength and hardness of the fan blade, and the safety factor is significant. The surface is oxidized.
up and down to ensure the strength and hardness of the fan blade, and the safety factor is significant. The surface is oxidized.
●Fan leaves after complex oxidation and then paint secondary treatment (adhesion is 0), no cleaning, no deformation.
Fan blade connection system
● Connecting the chassis and the fan blades, safety here is very important. Bichen uses the outer clip
aviation hard aluminum material. Tested and certified by authoritative organizations. The ultra-high hardness ensures that the fan
blade does not fall off when it operates for a long time, ensuring the safety of the product.
aviation hard aluminum material. Tested and certified by authoritative organizations. The ultra-high hardness ensures that the fan
blade does not fall off when it operates for a long time, ensuring the safety of the product.
PRODUCT SPECIFICATIONS
model | BC-D5-32YC45 | BC-D5-32YC50 | BC-D5-32YC55 | ||||
The fan diameter | 14.8ft/4.5m | 16.4ft/5m | 18ft/5.5m | ||||
Air volume | ≤8700m3/min | ≤10200m3/min | ≤11000m3/min | ||||
speed | 78rpm | 73rpm | 68rpm | ||||
fan blade number | 6 | 6 | 6 | ||||
Weight | 68kg | 70kg | 73kg | ||||
power | 1.1kw | 1.1kw | 1.1kw | ||||
voltage | 380v | 380v | 380v | ||||
Personnel to cool
When the fan is running, it can produce a large area of natural and soft air, blow the body three-dimensional in all directions, promote the evaporation of sweat to take away the body heat, and the human body feels the temperature to drop 3-5°
Doesn't take up interior space
Installed at the top of the room, will not occupy the indoor ground space, at the same time to avoid the use of traditional fans placed too much impact on the indoor appearance, wiring complex security risks, not only save space and achieve practical and beautiful.

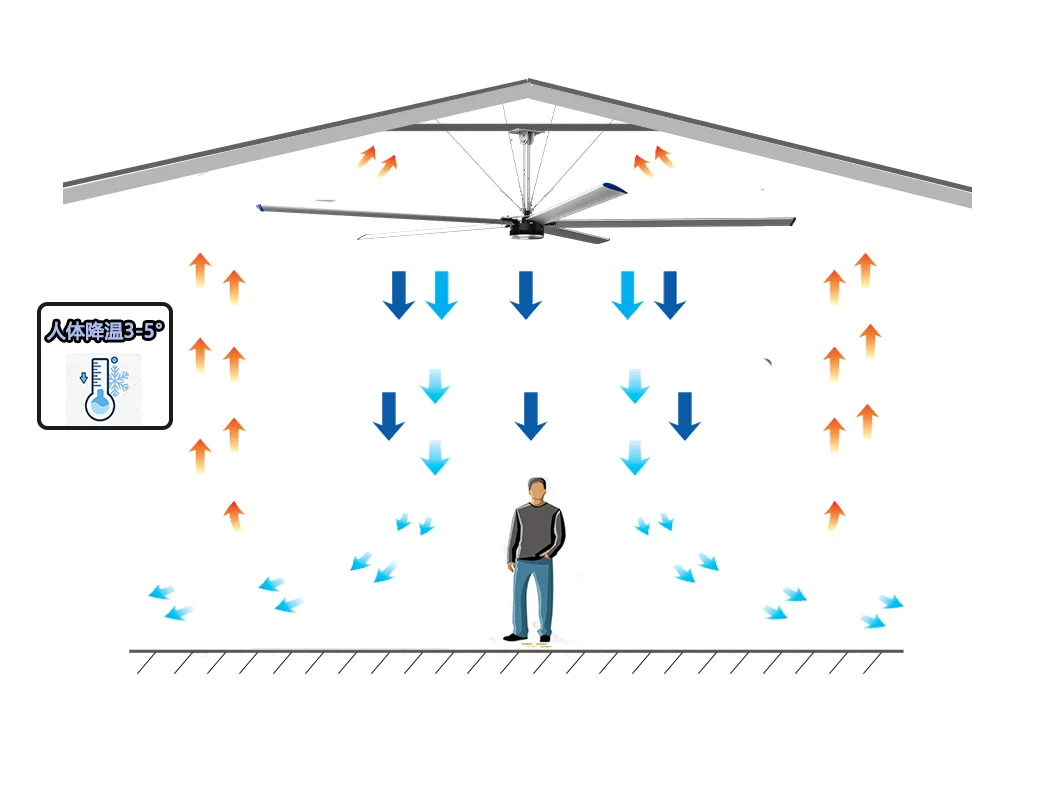

Air flow diagram
◆Open indoor use promotes air renewal;
◆Enclosed indoor use to form air circulation circulation;
◆Enclosed indoor use to form air circulation circulation;
Five lines of security

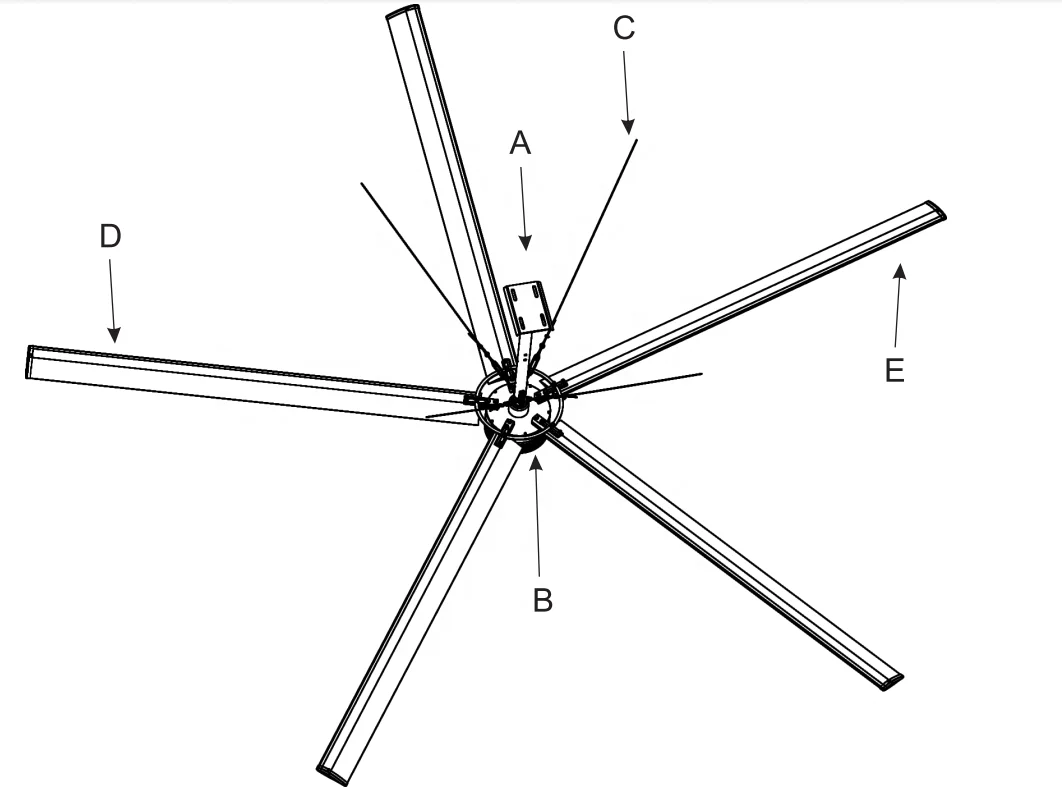

Fan diagram
A： hanging board: install the hanging board to the top.
B ： Host: connect the host to the derrick and install it on the hanging board
C ： Wire rope: the fan four sides are fixed with wire rope.
D ： blades: install the blades on the main engine.Install upper arc plate。
E ： The tail fin is mounted on the wind blade.
B ： Host: connect the host to the derrick and install it on the hanging board
C ： Wire rope: the fan four sides are fixed with wire rope.
D ： blades: install the blades on the main engine.Install upper arc plate。
E ： The tail fin is mounted on the wind blade.
Wire rope protection
Four steel wires will connect the main engine and the building, can make the fuselage run more stable, prevent the fuselage shake, each pull stress strength up to 1000KG, 4 load-bearing pull protection of 4000KG.
Anti-shedding protection system
The top of the motor is designed to protect the shaft from falling off and prevent the fuselage from falling off in case of accidents to ensure the safety of the ceiling fan.
Fan blade protection device
Connect all blades to the main engine to form a whole. Keeping the blades in balance can also prevent individual blades from falling off.
Aluminium alloy blade
6063 magnesium aluminum alloy material, thickness of 2.0mm at the same time built-in multiple reinforcement, with ultra-high headiness, to ensure that the fan blade will not fracture even if affected by external impact.
Abnormal warning system
Built-in protection system, frequency conversion system automatically alarm and stop operation when overvoltage, overvoltage, lack of equal accident.
Application:
Applications: | ||||||||
Industrial occasions: factory workshop, logistics storage, warehouse. | ||||||||
Business occasions: large shopping malls, supermarkets, 4S stores, sports and fitness places | ||||||||
Transportation applications: airport, waiting room, high-speed train station, bus station Other occasions: office, canteen,exhibition hall, breeding center and so on.... | ||||||||
