Two Columns Elevating Capacity 8 Ton Welding Positioners Export to Netherlands
- Category: >>>
- Supplier: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.Wuxi Ltd.
Share on (1600599183870):
Product Overview
Description
Product Description
Product Description

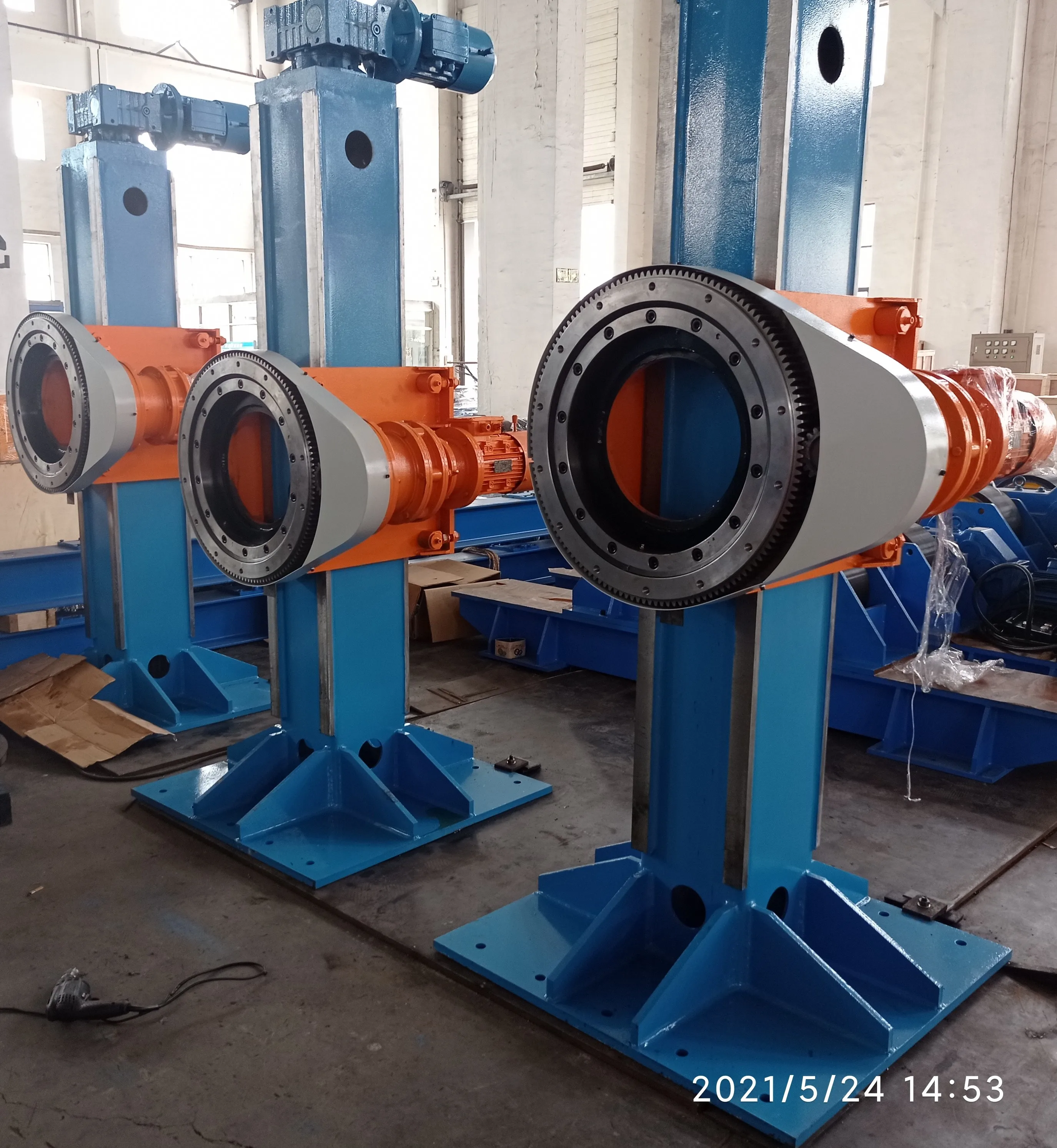

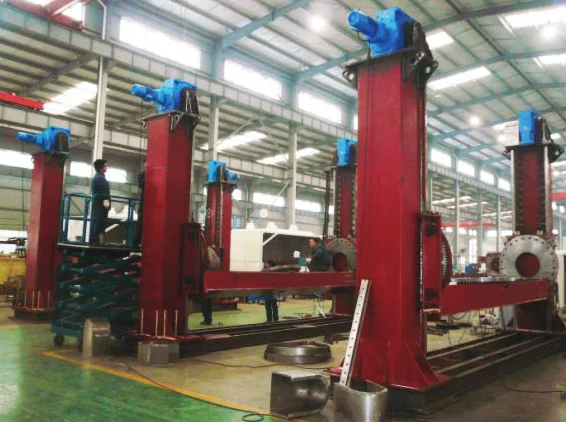

Double Column Headstock Tailstock Elevating and Tilting Positioner
1,Machine overview :
Double column head and tailstock elevating and tilting two functions positioner is mainly used for long, wide-based special products welding or assembly. Both ends of the products by a special jig, fixed to the lifting worktable.Worktable can stay at a certain height of the working position by synchronous lift , so that the workpiece can be safely reversed.
The series positioner control functions in general are: up and down, tilting. Lifting up and down using double motors synchronous drive, tilting adopt single motor.Operating height of the workpiece can be set in a position relatively easy, so the use of this type of positioner can improve safety, productivity, workability.
2,Main technical parameters:
Name: Double column headstock and tailstock elevating and tilting positioner
Head and tail column: Fixed on the earth
Max loading capacity : 8 Ton
Working table Diameter: 1000 mm
Motor of elevating power: 2 x 4 Kw
Elevating speed: 800 mm/min
Motor of tilting power: 4 Kw
Tilting speed: 0 --- 1.5 rpm
Tilting speed adjust : VFD frequency conversion
3,Equipment includes:
Double column head and tail lift positioner mainly consists of the following components:
1) Headstock column: Vertical column , Elevating system, Tilting system ,Worktable etc.
2) Tailstock column: Vertical column, Elevating system and Worktable et

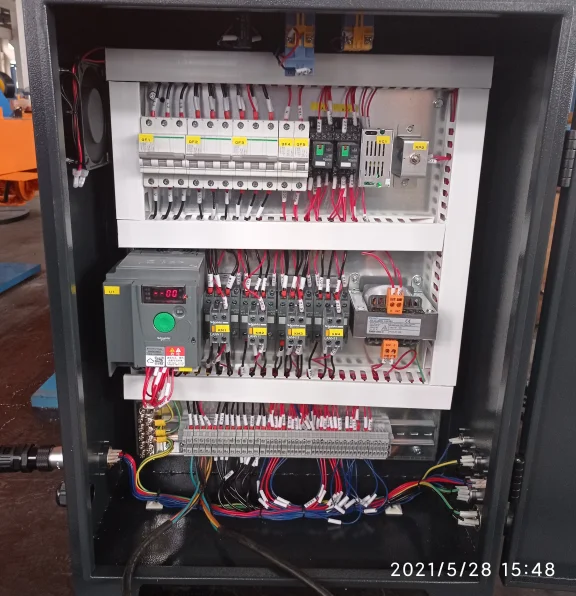

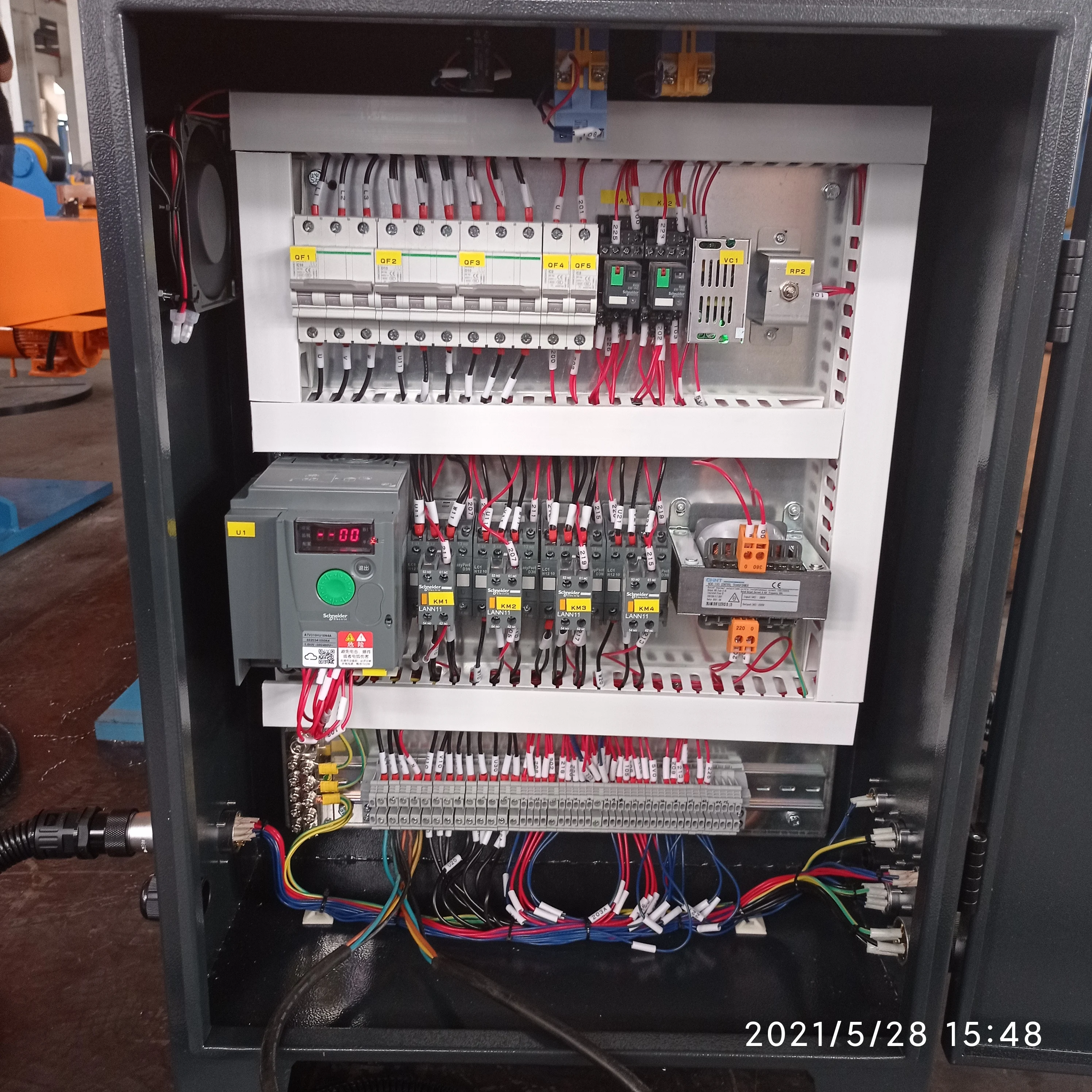

3) Electrical control: Electrical components box and Remote control box.
2,Main technical parameters:
Name: Double column headstock and tailstock elevating and tilting positioner
Head and tail column: Fixed on the earth
Max loading capacity : 8 Ton
Working table Diameter: 1000 mm
Motor of elevating power: 2 x 4 Kw
Elevating speed: 800 mm/min
Motor of tilting power: 4 Kw
Tilting speed: 0 --- 1.5 rpm
Tilting speed adjust : VFD frequency conversion
3,Equipment includes:
Double column head and tail lift positioner mainly consists of the following components:
1) Headstock column: Vertical column , Elevating system, Tilting system ,Worktable etc.
2) Tailstock column: Vertical column, Elevating system and Worktable et
3) Electrical control: Electrical components box and Remote control box.
Product Paramenters
Product Paramenters
Type | Loading Capacity(kg) | Tilting speed(rpm) | Elevating Speed mm/min | Size of working table(mm) | Motor power (Kw) | ||
Tilting | Elevating | ||||||
DWP-1 | 1000 | 0--2.0 | 1500 | 800 | 2.2 | 2 x 1.1 | |
DWP-3 | 3000 | 0--1.8 | 1200 | 800 | 2.2 | 2 x 2.2 | |
DWP-5 | 5000 | 0--1.5 | 1000 | 800 | 3 | 2 x 3 | |
DWP-8 | 8000 | 0--1.5 | 800 | 1000 | 4 | 2 x 4 | |
DWP-10 | 10000 | 0--1.0 | 500 | 1000 | 5.5 | 2 x 4 | |
DWP-20 | 20000 | 0--1.0 | 300 | 1500 | 11 | 2 x 7.5 | |
DWP-30 | 30000 | 0--0.5 | 200 | 1800 | 15 | 2 x 11 | |
DWP-50 | 50000 | 0--0.5 | 200 | 2000 | 18.5 | 2 x 22 | |
