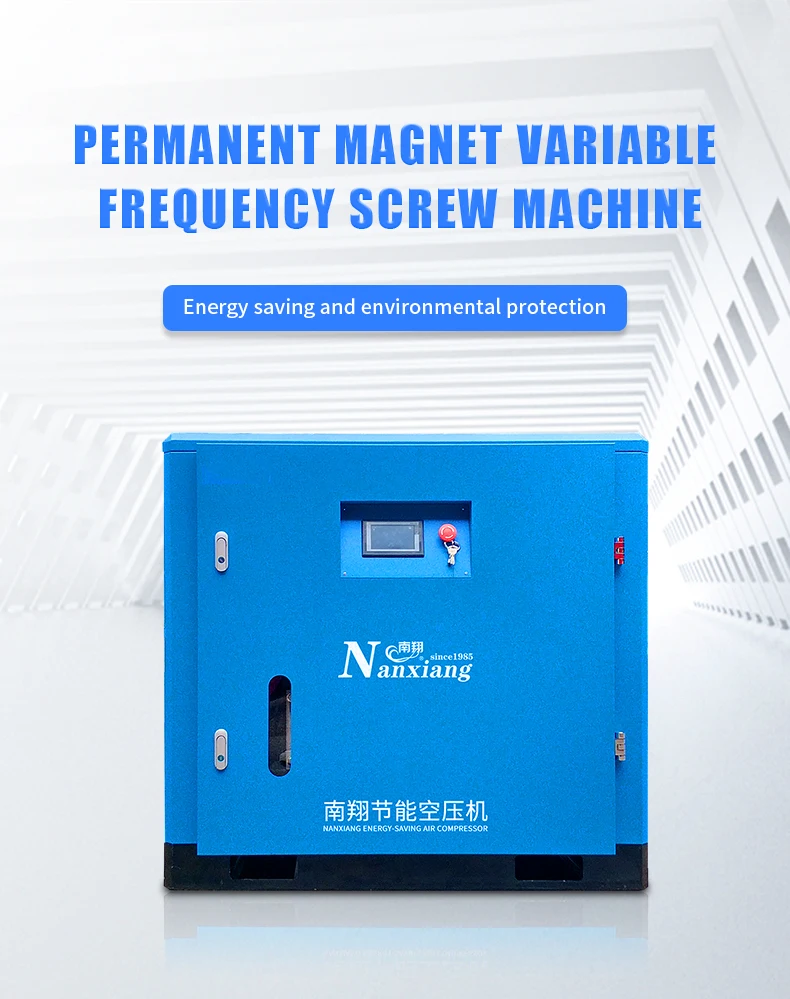

20HP low price high pressure air compressor industrial Screw air compressors
- Category: >>>
- Supplier: Jiangxi Nanxiang Air Compressor Co. Ltd.
Share on (1600599206503):
Product Overview
Description
Product Description
Product Name | Screw Air compressor |
Model | NXGV-15HC |
Motor Power | 15KW/20HP |
Working Pressure | 7-13bar |
Coling Method | Air Cooling |
Capacity | 1.0-2.4m³/min |
Voltage | 380V/220V/customized |
Driving Method | Direct |
Size | 1080*750*1000 |
PRODUCT FEATURES
2.Adopt the new generation of type line host, split coupling structure, compact and stable, high energy efficiency.
3.Intelligent frequency conversion technology, 30% energy saving compared with ordinary power frequency air compressor.
4.High-efficiency motor of well-known brand, protection grade IP23/IP54, insulation grade F, SKF heavy duty bearing, the
efficiency is 3-5% higher than similar products.
Model | KW | HP | Capacity | Pressure | Dimension (mm) | Weight | Size |
NXGV-7.5HC | 7.5 | 10 | 1.1 | 0.8 | 940*650*830 | 165 | DN15 |
1.0 | 1.0 | ||||||
0.8 | 1.3 | ||||||
NXGV-11HC | 11 | 15 | 1.6 | 0.8 | 1080*750*1000 | 310 | DN20 |
1.4 | 1.0 | ||||||
1.2 | 1.3 | ||||||
NXGV-15HC | 15 | 20 | 2.4 | 0.8 | 1080*750*1000 | 310 | |
2.1 | 1.0 | ||||||
1.7 | 1.3 | ||||||
NXGV-18HC | 18 | 25 | 3.0 | 0.8 | 1380*850*1160 | 400 | DN25 |
2.7 | 1.0 | ||||||
2.3 | 1.3 | ||||||
NXGV-22HC | 22 | 30 | 3.7 | 0.8 | 1380*850*1160 | 430 | |
3.4 | 1.0 | ||||||
2.8 | 1.3 | ||||||
NXGV-30HC | 30 | 40 | 5.0 | 0.8 | 1380*850*1160 | 480 | |
4.3 | 1.0 | ||||||
3.7 | 1.3 | ||||||
NXGV-37HC | 37 | 50 | 6.8 | 0.8 | 1500*1000*1330 | 620 | DN40 |
6.2 | 1.0 | ||||||
5.0 | 1.3 | ||||||
NXGV-45HC | 45 | 60 | 8.0 | 0.8 | 1500*1000*1330 | 720 | |
7.0 | 1.0 | ||||||
5.8 | 1.3 | ||||||
NXGV-55HC | 55 | 75 | 9.8 | 0.8 | 1800*1250*1670 | 1480 | DN50 |
9.0 | 1.0 | ||||||
7.8 | 1.3 | ||||||
NXGV-75HC | 75 | 100 | 13.1 | 0.8 | 1800*1250*1670 | 1680 | |
11.8 | 1.0 | ||||||
9.8 | 1.3 | ||||||
NXGV-90HC | 90 | 120 | 16.8 | 0.8 | 1800*1250*1670 | 1880 | |
14.6 | 1.0 | ||||||
11.6 | 1.3 | ||||||
NXGV-110HC | 110 | 150 | 20.0 | 0.8 | 2560*1650*1900 | 2400 | DN80 |
17.8 | 1.0 | ||||||
14.5 | 1.3 | ||||||
NXGV-132HC | 132 | 180 | 23.2 | 0.8 | 2560*1650*1900 | 2700 | DN100 |
20.7 | 1.0 | ||||||
16.9 | 1.3 |
Note:
Standard voltage is 380V/50HZ/3P, other voltage is available.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs.So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delight to serve you. Welcome to consult.
The recommended best capacity range is 60%-100%.
High altitude, high temperature, high humidity, high dust loads or other adverse working conditions will require specialized custom designs.So we can customize products according to your special requirements.
If you have any questions about product customization, you can notify us in advance.
We are delight to serve you. Welcome to consult.
FAQ
Q1: Who is Nanxiang Air Compressor?
A: Jiangxi Nanxiang Air Compressor Co., Ltd, founded in 1985, is a professional energy-saving air compressor manufacturer integrating R&D, manufacturing, marketing and service. Our products are famed for high efficiency, energy saving, high reliability, high cost-effectiveness, low noise and high duration. The company introduces advanced technology, design concept, and rigorous manufacturing process of Germany. Q2: Why Choose us?
A: Our products are all qualified by CE & ISO 9001. Our company introduces the advanced technology of German screw machine, adhering to the German industrial design concept and rigorous manufacturing process, specializing in screw compressor design, production and sales enterprises. We have 10 years exporting experience, which has helped us win more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q3: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
Q4: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q5: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc according to customer requirements.
Q6: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q7: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2.Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
