Foway2510PFS 8 ports 10/100/1000M PoE/PSE 2 port1000M SFP DC48V 200W PoE Switch

Product Overview

Description

Foway2510PFS 8 10/100/1000M PoE/PSE+2 1000M SFP PoE Switch

Overview

HiOSO Foway2510PFS series 10 ports 1000M Security Industrial PoE Ethernet Switches, supply 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.

Character

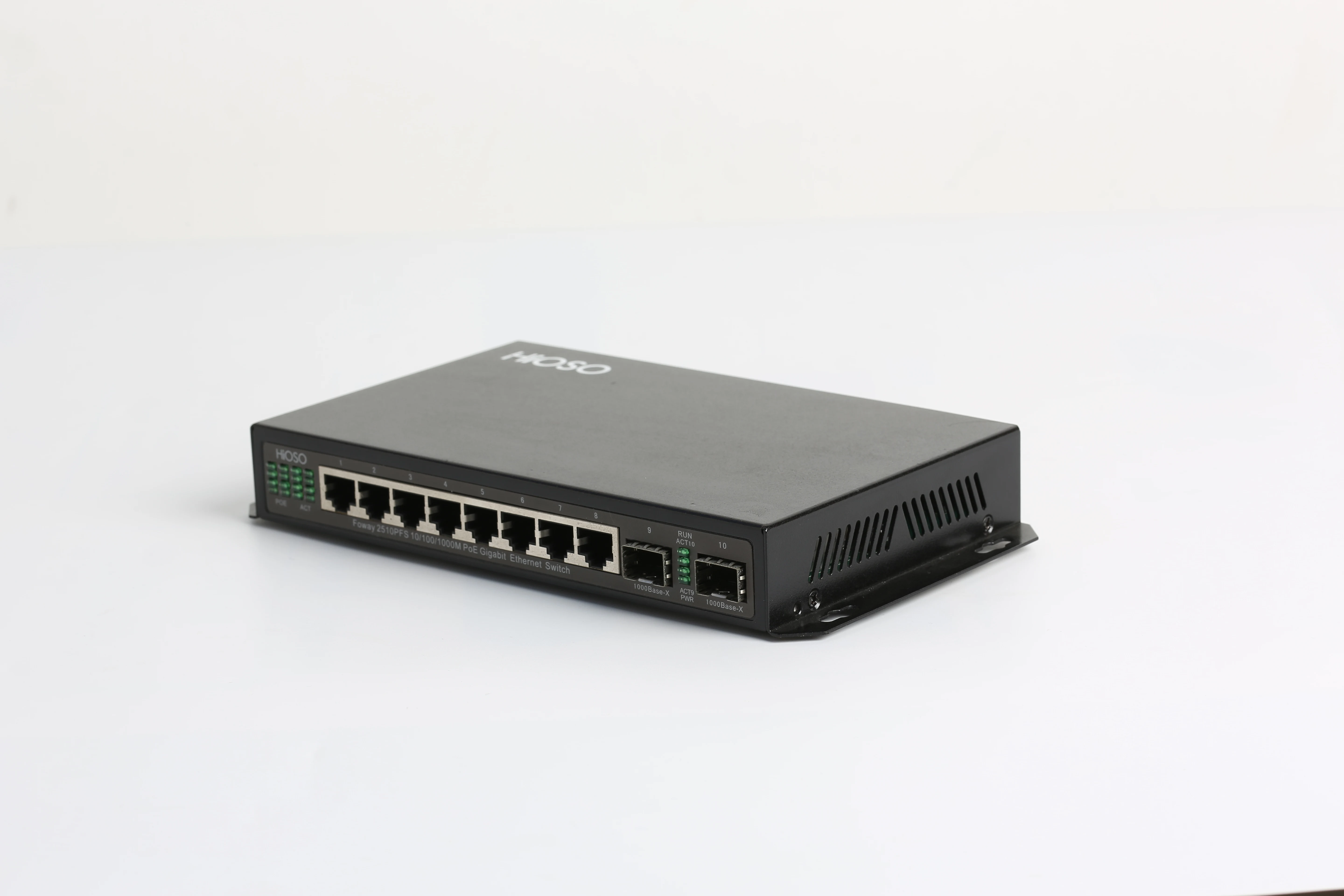

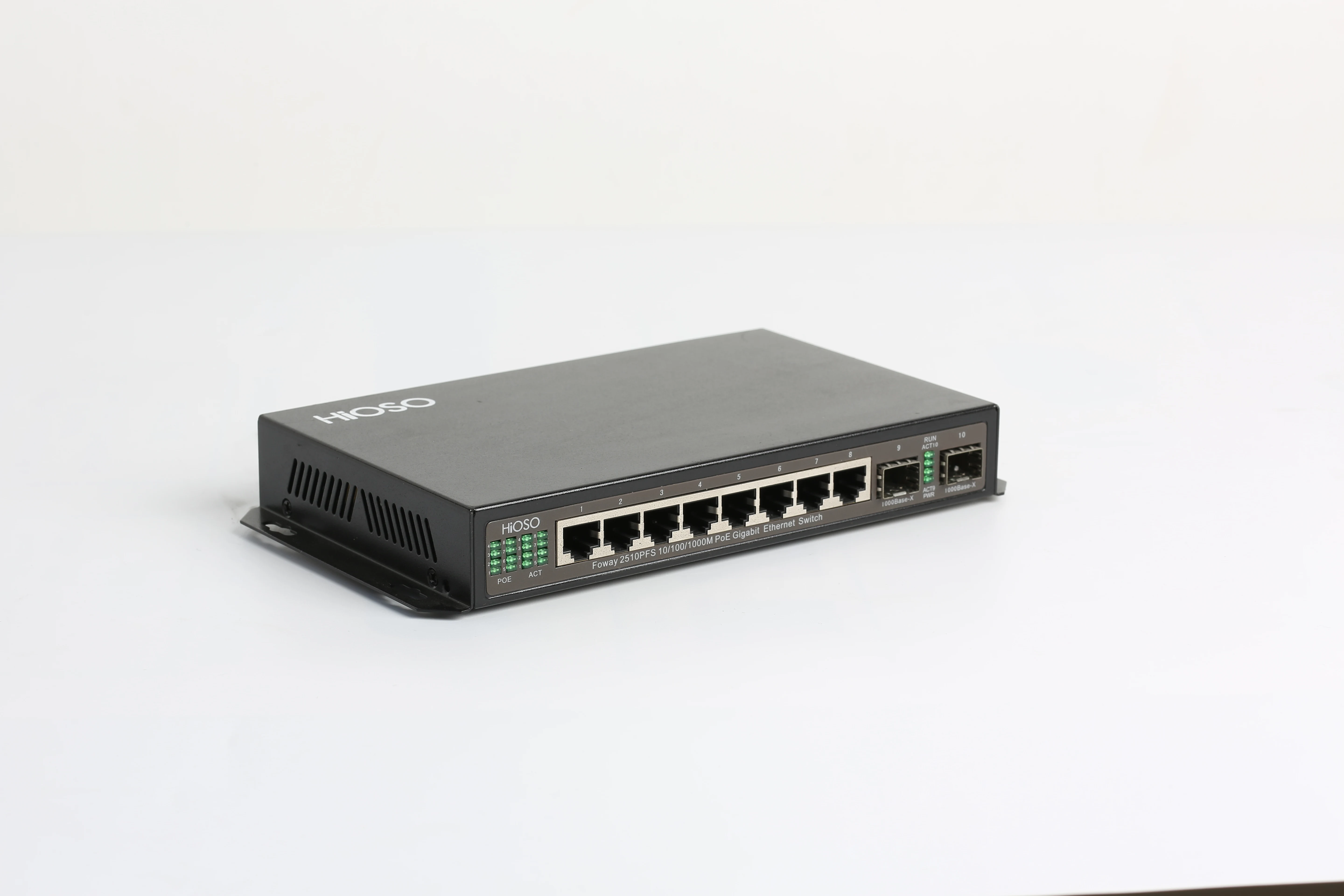

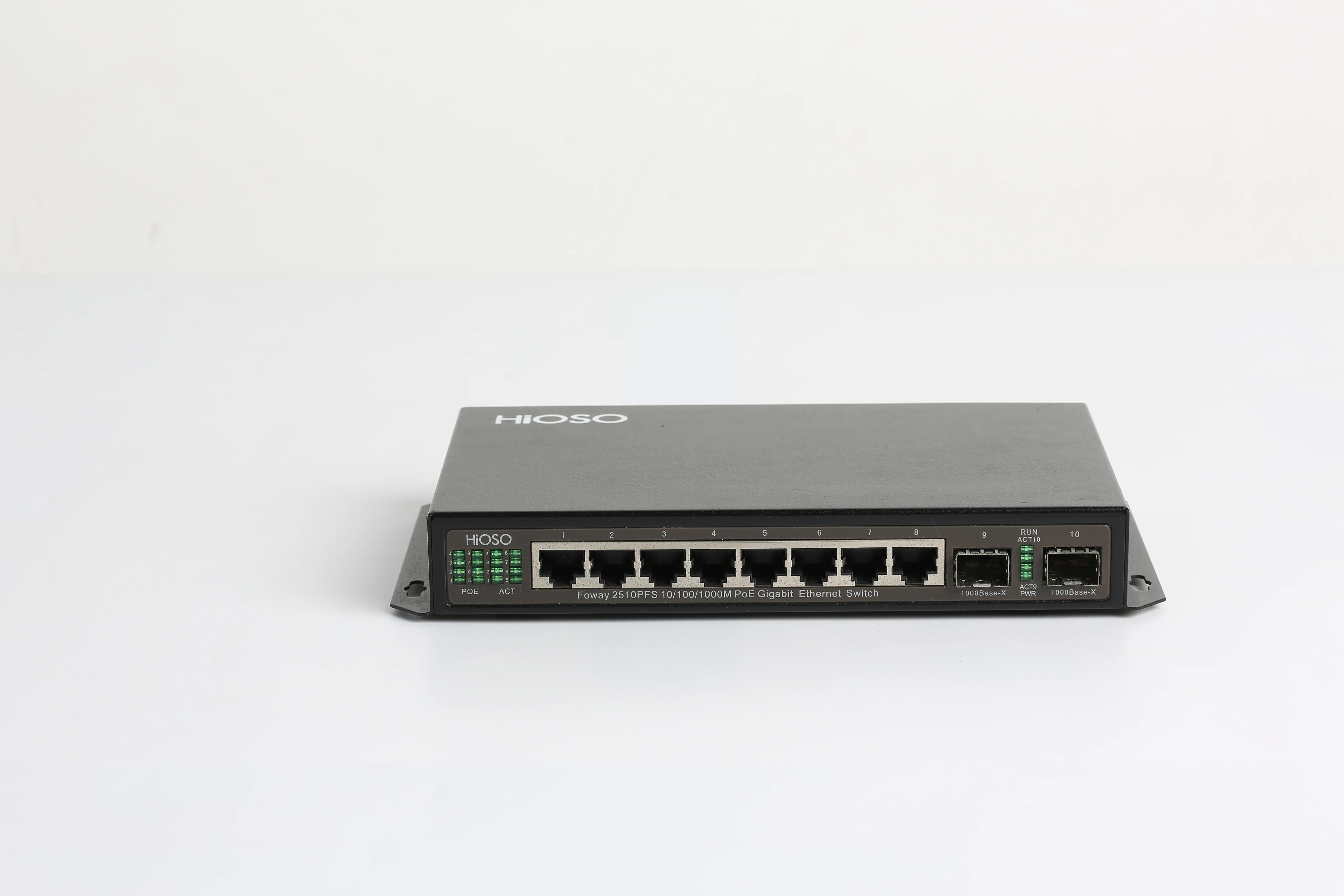

l Support 8 10/100/1000M RJ45 PoE ports and 2 1000M SFP ports ring network/cascaded Uplink,SFP port supports hot swap (support copper SFP)

l Each PoE port supports auto detect the powered device

l Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards

l Support to establish Gigabit ring/cascaded network, support RSR tech

l Support each port full rate, full-duplex non-blocking forwarding

l Support WEB management and SNMP (optional)

l Support 16K MAC learning, 2Mbit storage and forward cache space,support maximum 10K Bytes jumbo frame forward, 22G back plane bandwidth

l Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability

l Supply redundant dual power input ports, enhance reliability

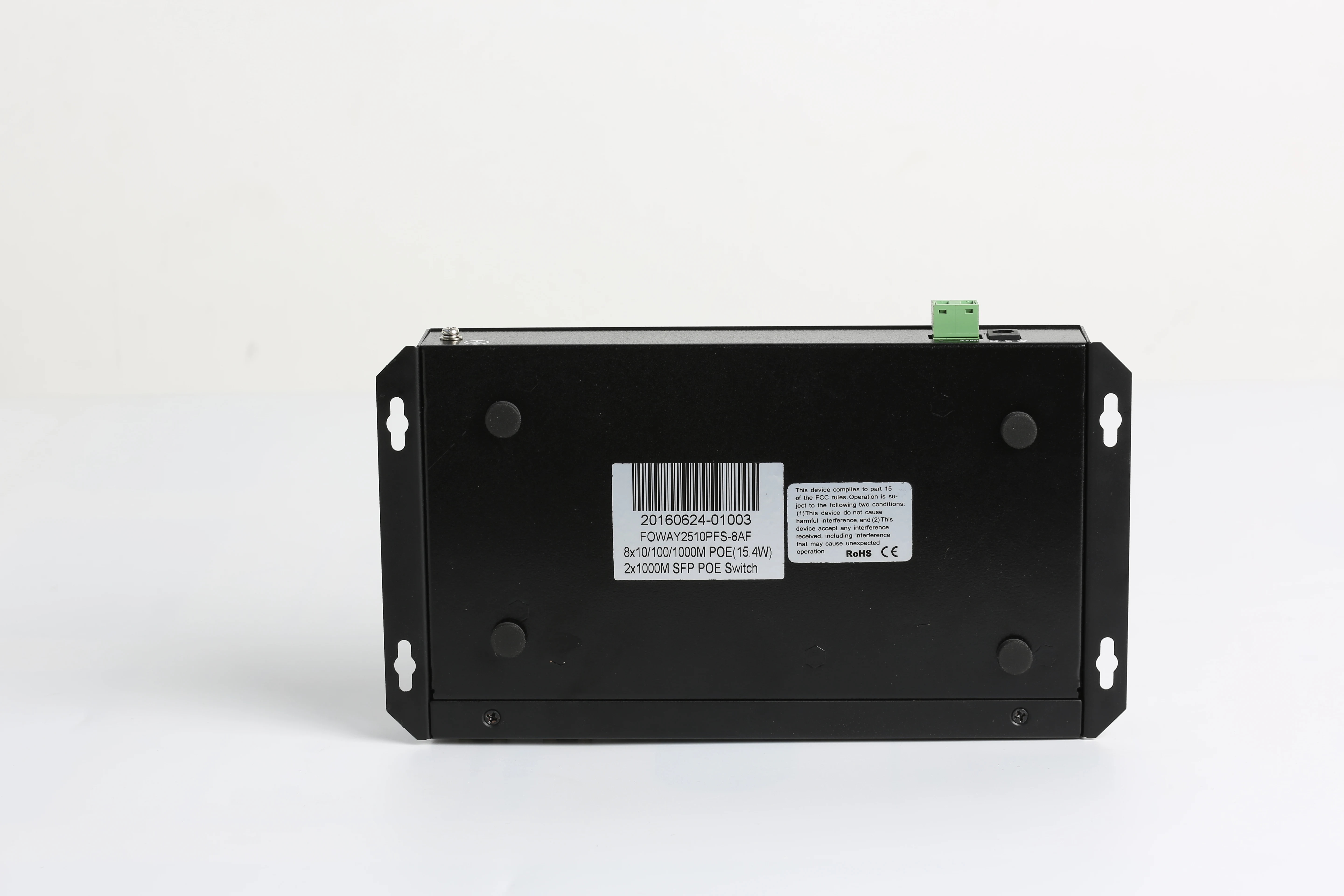

l Metal casing with Wall mounting design , better for heat dissipating and installation

l Metal casing with Wall mounting design , better for heat dissipating and installation

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control, IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.1w RSTP, IEEE802.3ad Trunk, DHCP, IEEE802.3af, IEEE802.3at
PoE	8 PoE/PSE ports, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device
Wavelength	850nm/1310nm/1490nm/1550nm/
Transmission distance	1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm);    Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M
Ports	8  1000M RJ45 ports (POE/PSE): 10/100/1000Mbps 2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP
MAC	16K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours

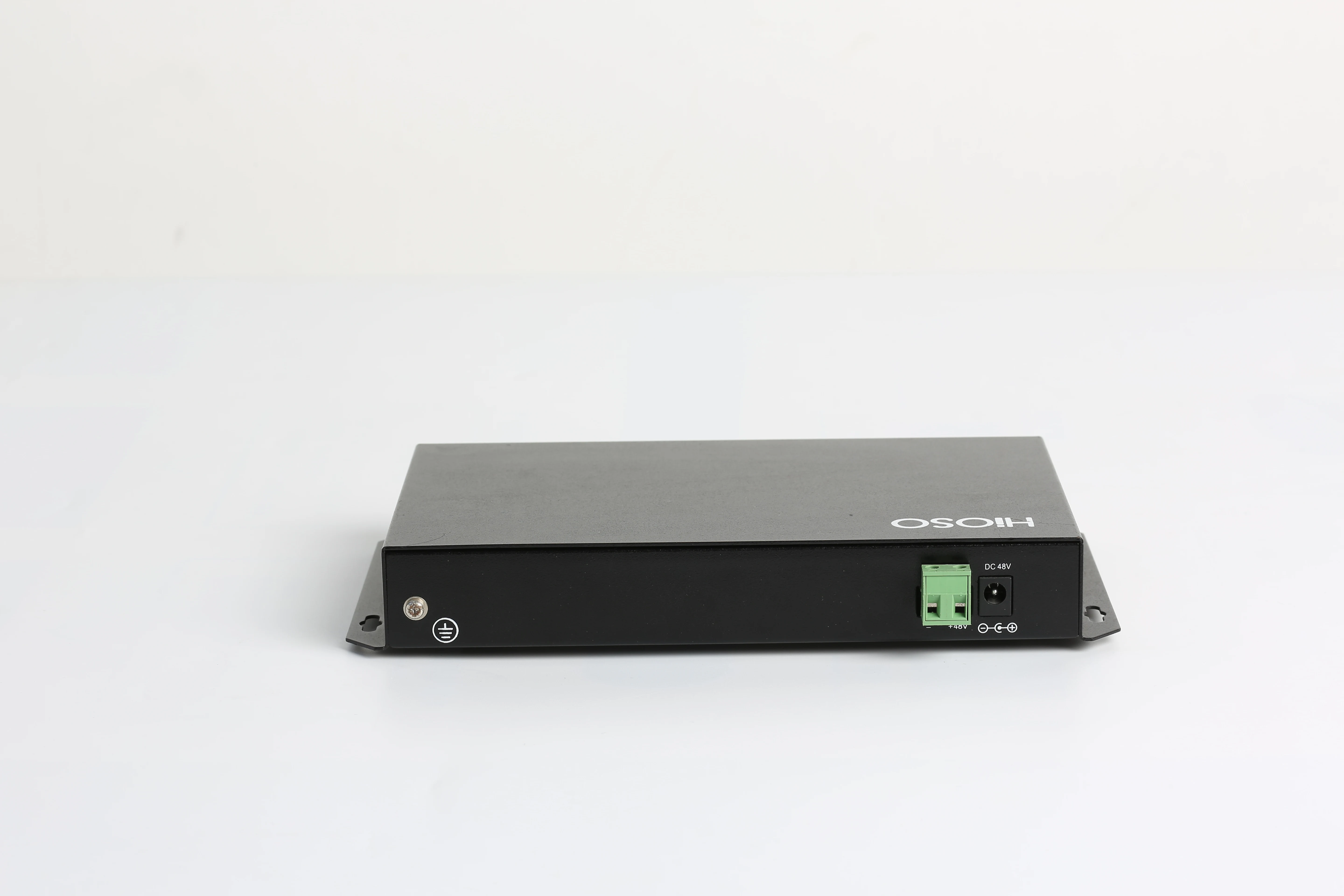

Power	DC48V dual input redundant backup (external power)     AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power)
Power consumption	Whole device:7.5W    POE/PSE: maximum240W
Working temperature	Common:-10~60℃; -T (wide temperature range):-40~75℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Installation	Wall mounting type (external power), desk type/1U rack (inside power)
Dimension	30mm (H)×219mm(W)×119mm (D) (external power) 44mm (H)×276mm(W)×190mm (D) (inside power)
