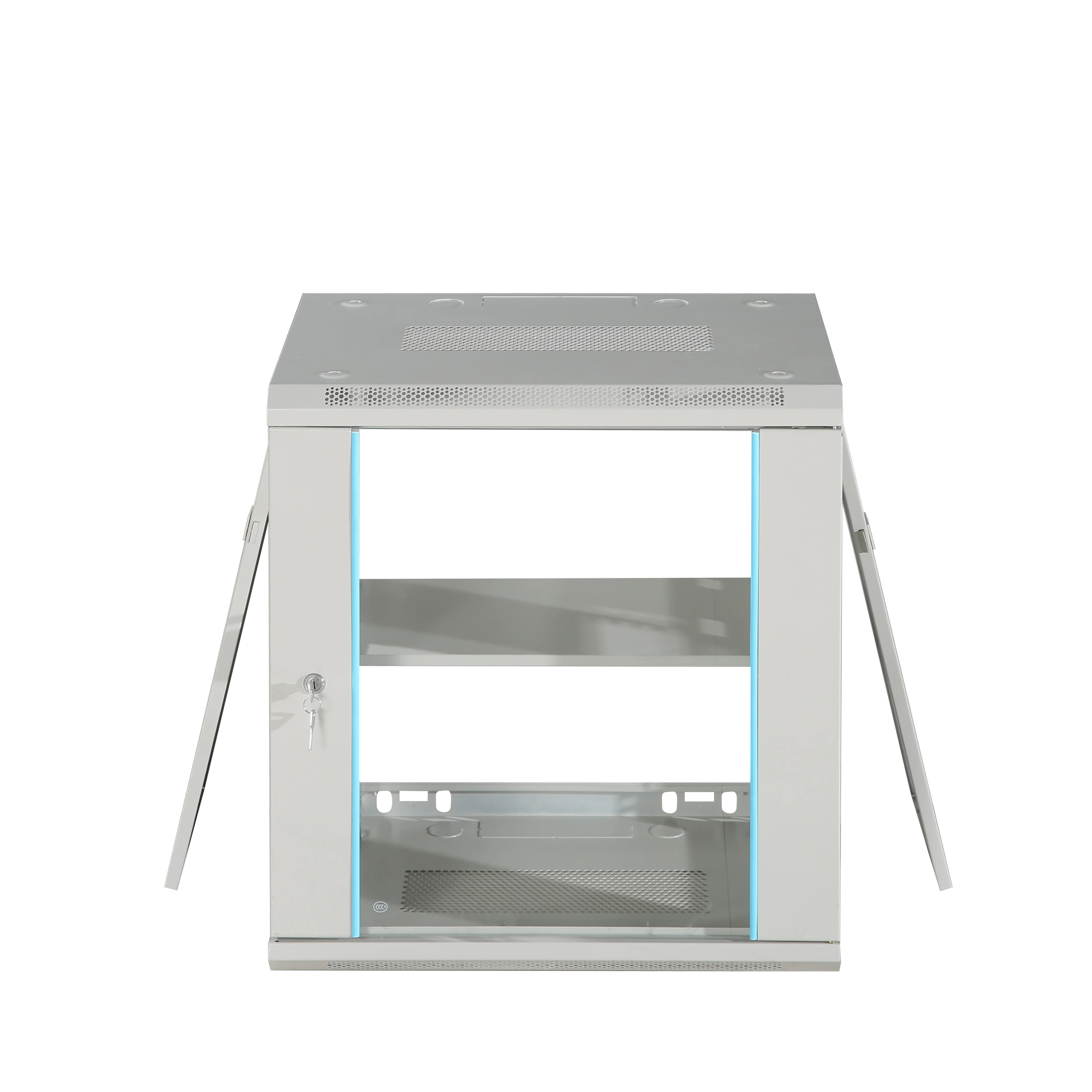

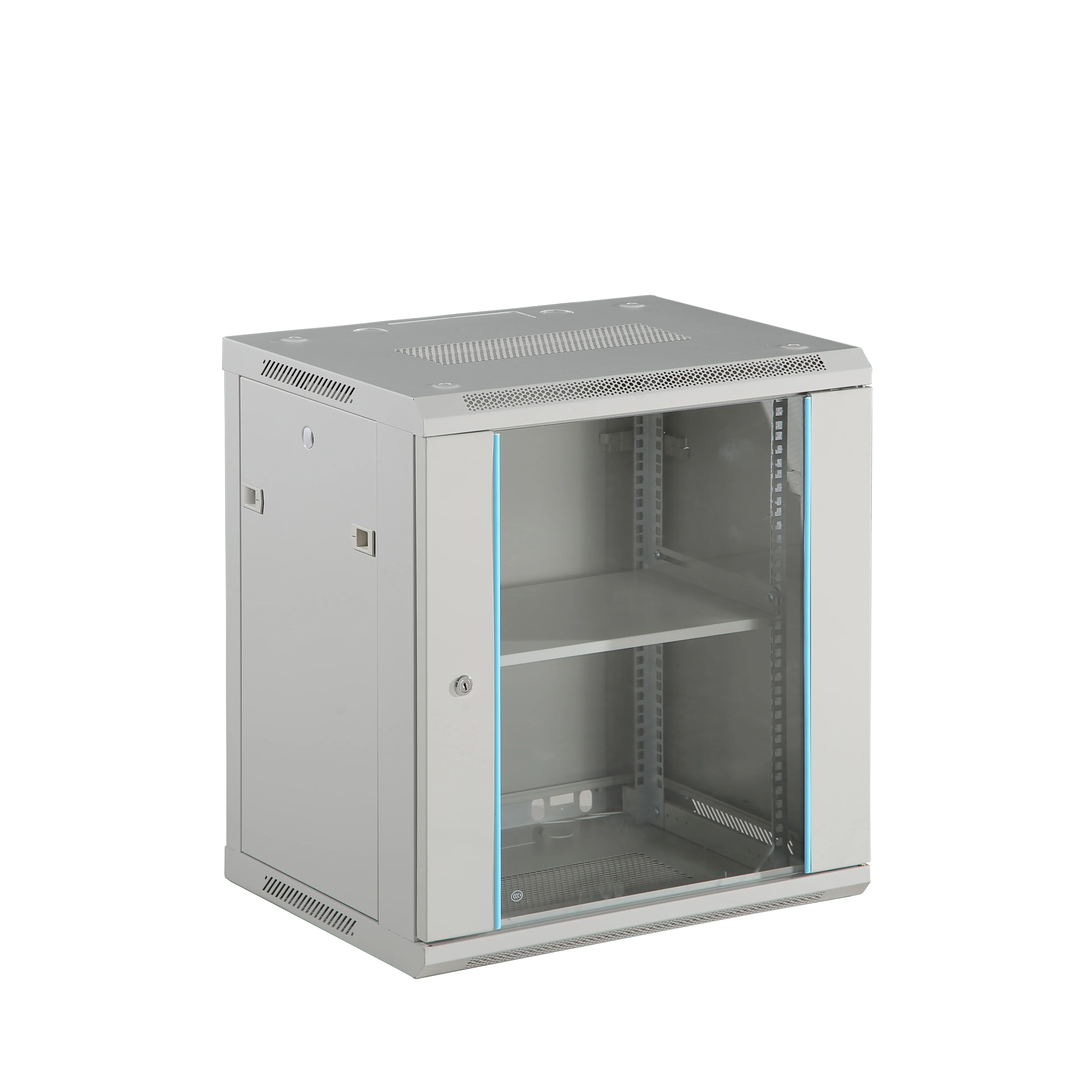

Internet Servers School Equipment Rack Mount Frame Server Lock Microdata Center 15U Rackmount Telecom Cabinets
- Category: Network Cabinets >>>
- Supplier: Hebei Huateng Yizhou Electrical Equipment Co. Ltd.
Share on (1600599220193):
Product Overview
Description
Basic information | ||||||||
1) standard | Conforms to ANSI/EIARS-310-D, DIN41491; PART1, iec297-2, DIN41494; PART7, GB/ t3047.2-92 standard Compatible with metric ETSI and 19" The international standard | |||||||
2) material | Galvanized installation profile, SPCC cold rolled steel | |||||||
3) the thickness of the | Mounting profile: 1.5mm, others: 0.9mm | |||||||
4) Surface finish | Degreasing, picking, phosphating, powder coating | |||||||
5) protection | IP20 | |||||||
6) Loading capacity | 100kg | |||||||

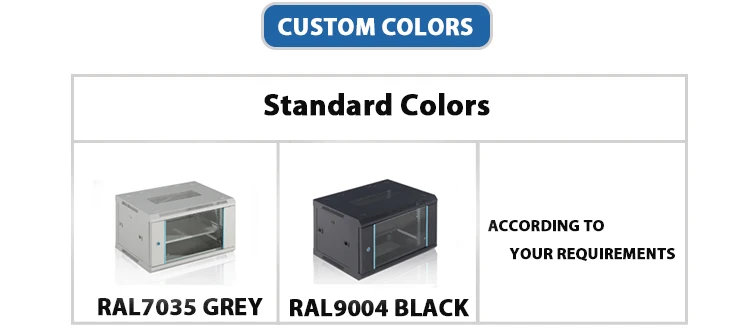

7) color | RAL9004(Black) / RAL7035(Grey) | |||||||
Rack Cabinet Functions | ||||||||
1) galvanized installation profile 2) Safe, firm and reliable 3) Easy to maintain equipment 4) Two types of packaging: Assemble packages to save labor costs, ready for resale or use Removable packaging saves space and shipping costs, making it easy to assemble 5) All kinds of optional accessories: PDU, fan, shelf, bracket, cable tray, etc. 6) Certification: ISO 9001:2000 7) Provide OEM/ODM services | ||||||||

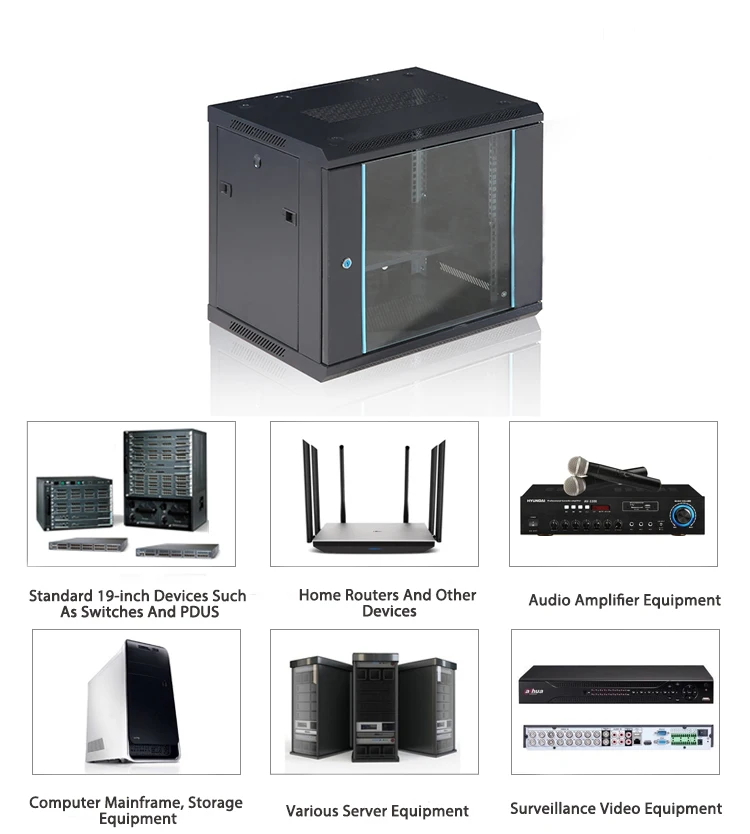

Cabinet Applications: | ||||||||
Small, medium, and large servers DVRS, security devices, and routers Junction boards and switches Telephone system and PABX Network and communication equipment UPS equipment Install devices in other racks | ||||||||

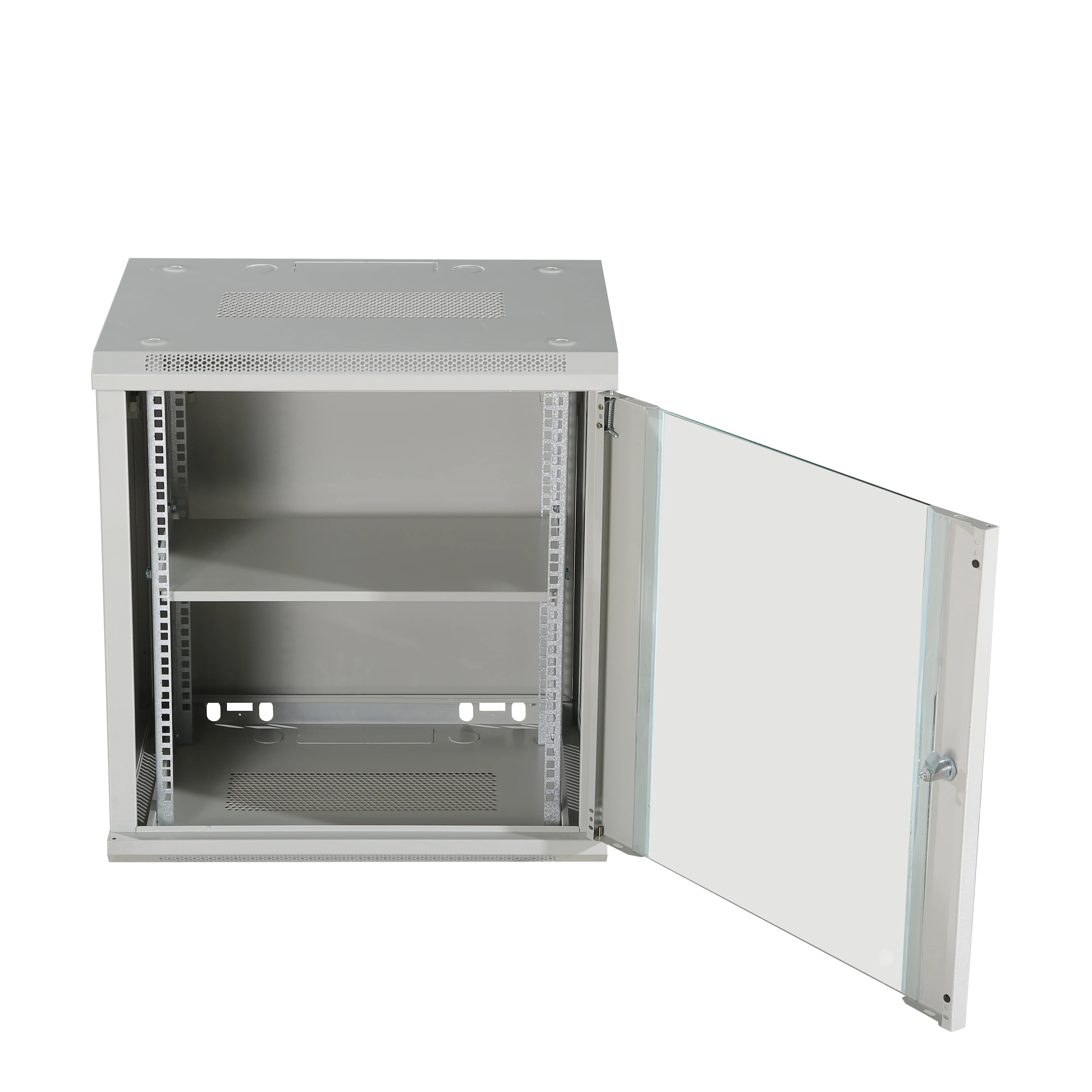

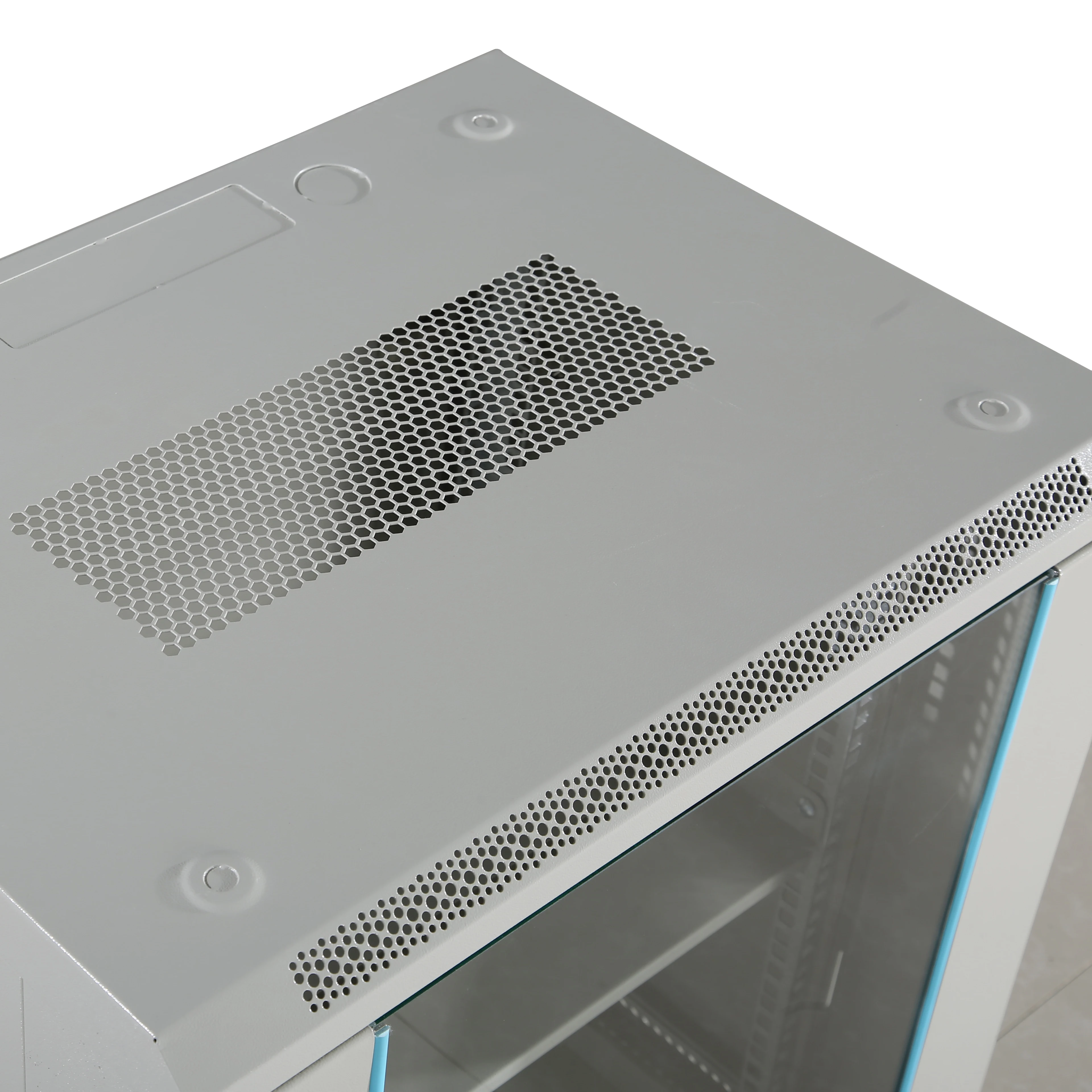

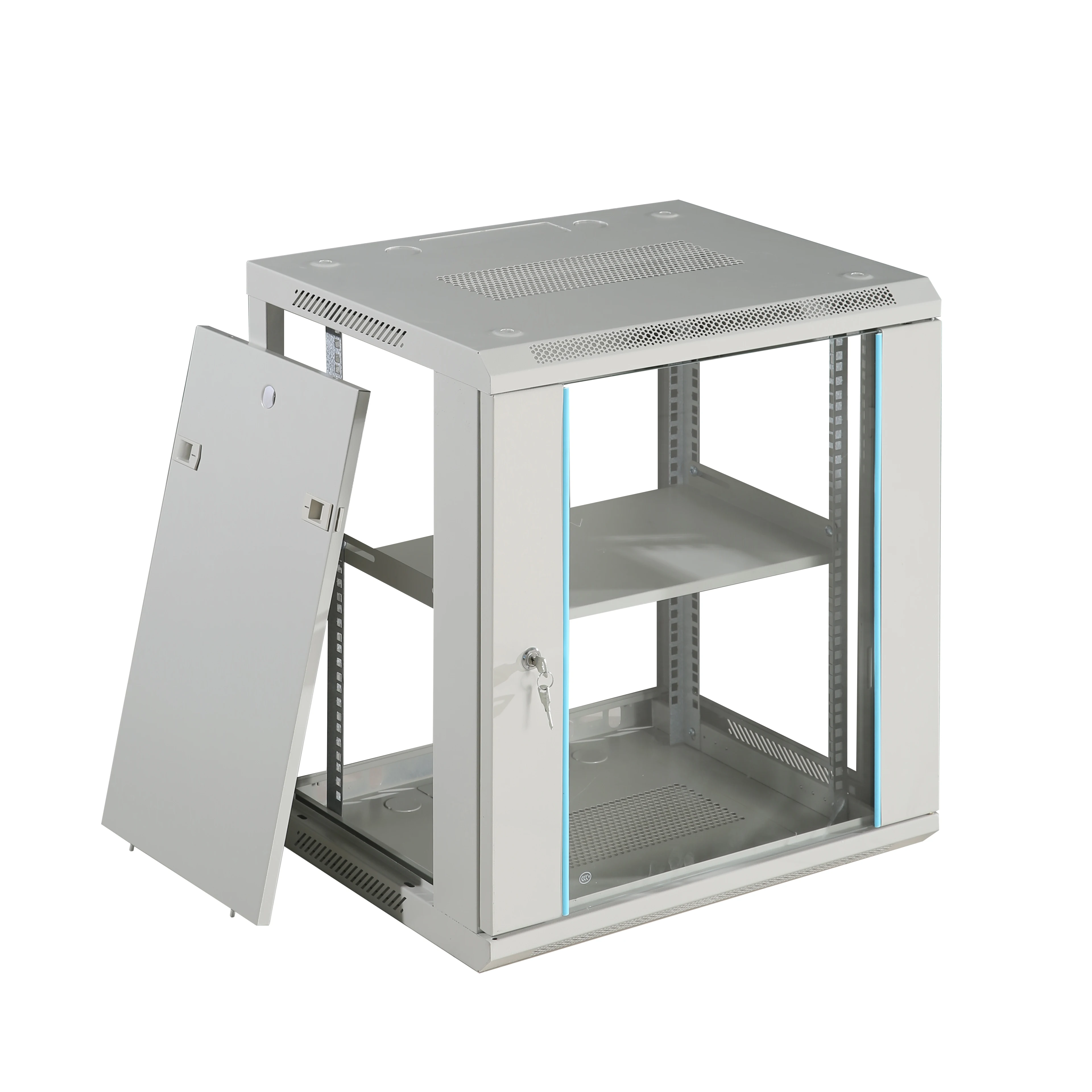

Details Images
Main Component | ||||||||||||
No. | Component Name | Quantity | Unit | Material Specification | Surface Finish | Note | ||||||
1 | Top cover | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | --- | ||||||
2 | Bottom panel | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | --- | ||||||
3 | Steel frame with assistant profiled | 2 | Pc | SPCC cold rolled steel T0.8 | Power coated | --- | ||||||
4 | Mounting profile | 4 | Pc | SPCC cold rolled steel T1.5 | Galvanization | --- | ||||||
5 | Front Door | 1 | Pc | Tempered glass 5mm | Powder coated | Or Hexagonal Mesh Door | ||||||
6 | Mounting tray | 1 | Pc | SPCC cold rolled steel T0.8 | Power coated | --- | ||||||
7 | Little round lock for front door | 1 | Pc | Steel | Galvanization | With 2 keys | ||||||
8 | Castor | 4 | Pc | Steel | Galvanization | Only for 12U and above | ||||||
9 | Installing back panel | 1 | Pc | SPCC cold rolled steel T1.5 | Power coated | --- | ||||||
10 | M6 B-head screw and M6 square nut | 10 | Pc | Steel | Galvanization | --- | ||||||
11 | Installation screws for cabinet | 1 | Set | Steel | Galvanization | --- | ||||||
More Specification | ||||||||||
Model No. | Capacity(U) | High*Width*Depth(mm) | Model No. | Capacity(U) | High*Width*Depth(mm) | |||||
MT6404S | 4 | 270*600*450 | MT6606S | 6 | 350*600*600 | |||||
MT6406S | 6 | 350*600*450 | MT6609S | 9 | 500*600*600 | |||||
MT6409S | 9 | 500*600*450 | MT6612S | 12 | 640*600*600 | |||||
MT6412S | 12 | 640*600*450 | MT6615S | 15 | 800*600*600 | |||||
MT6415S | 15 | 800*600*450 | MT6618S | 18 | 1000*600*600 | |||||
MT6418S | 18 | 1000*600*450 | ||||||||
