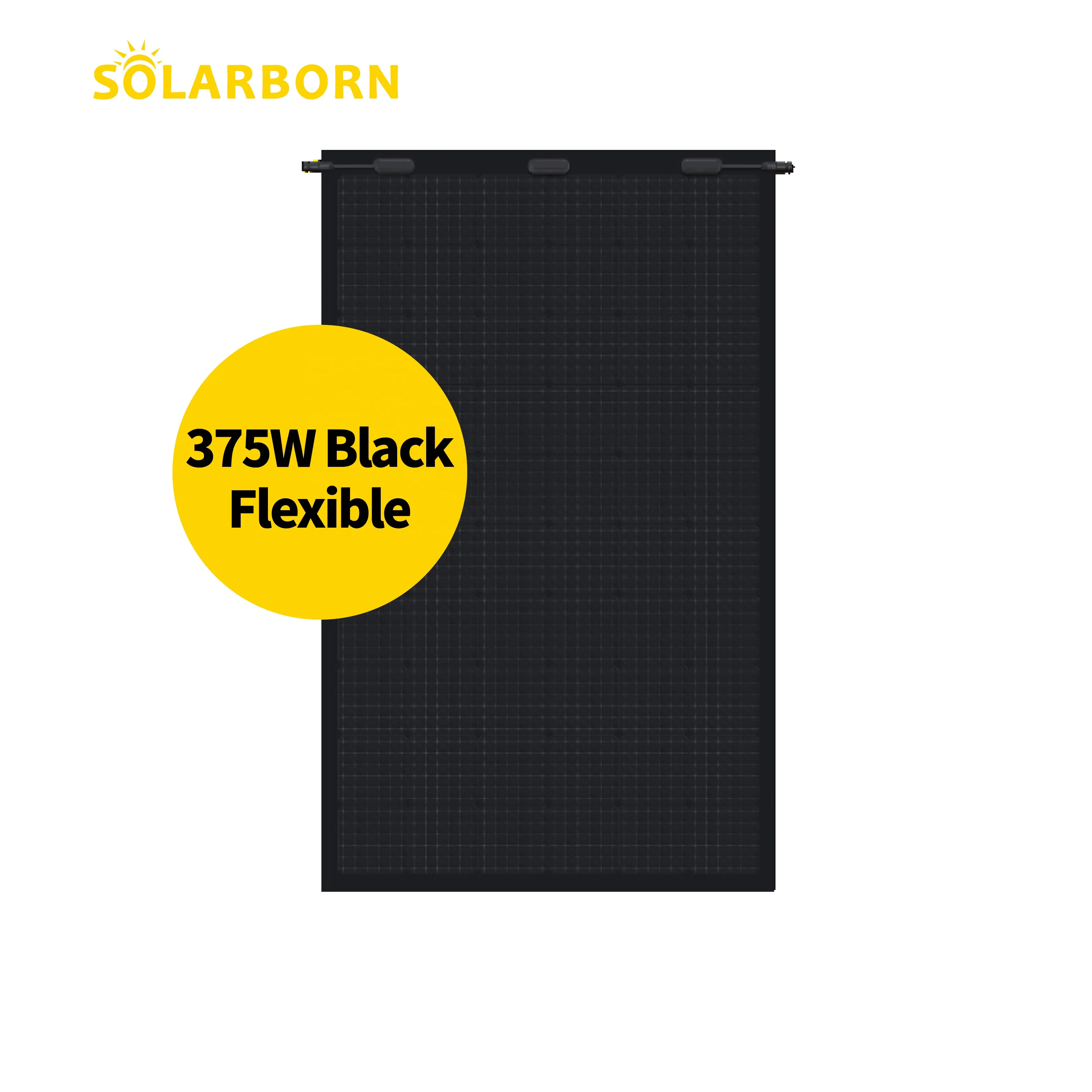

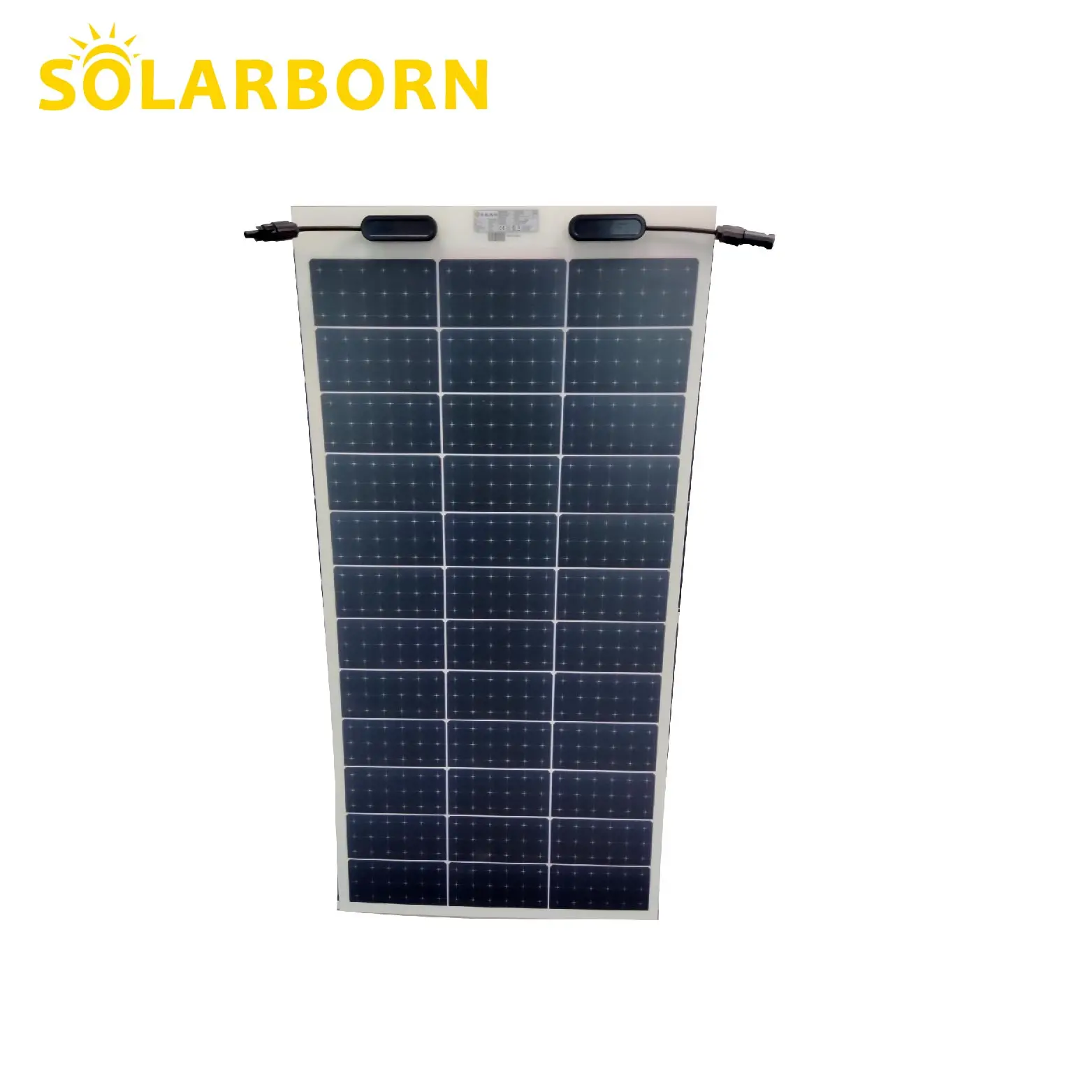

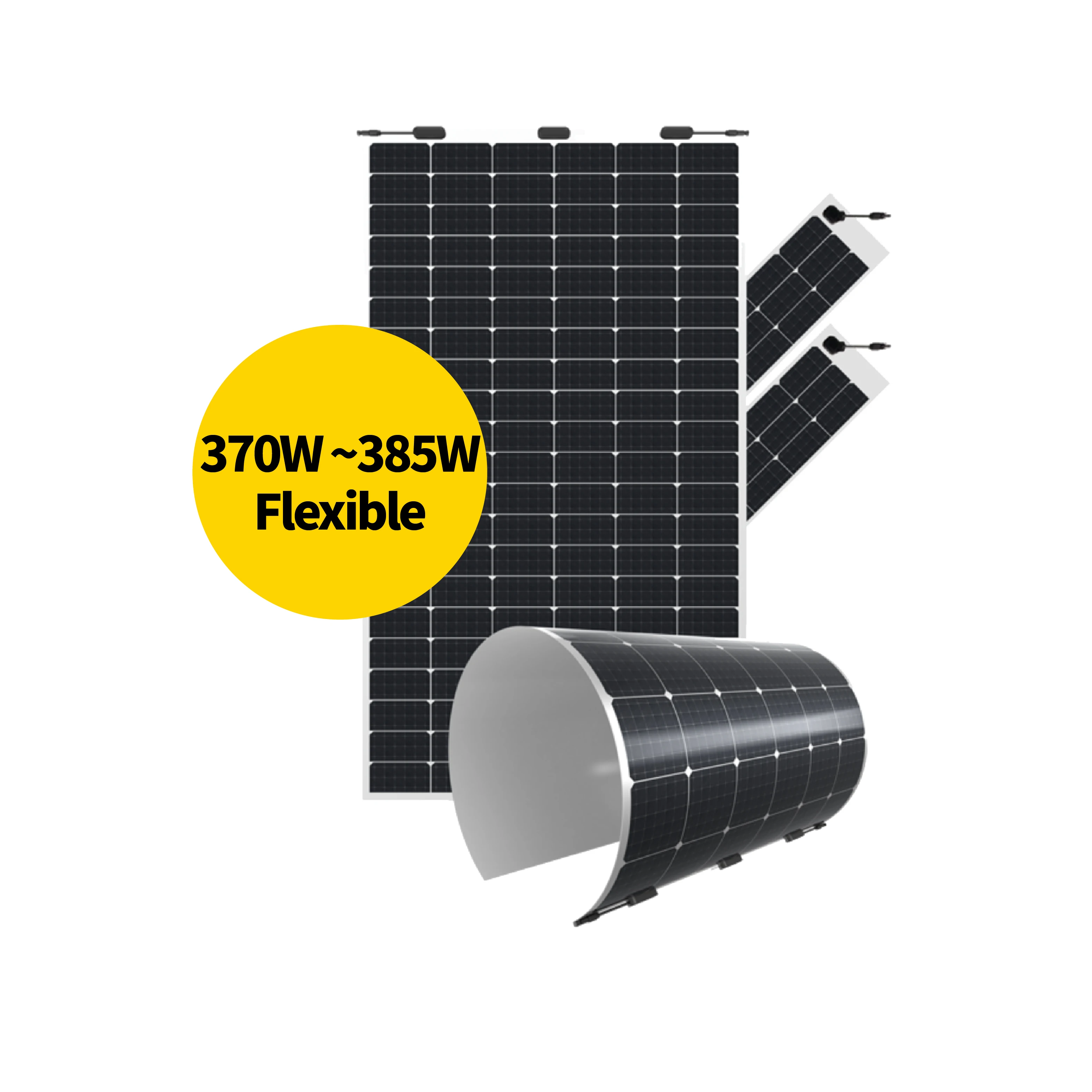

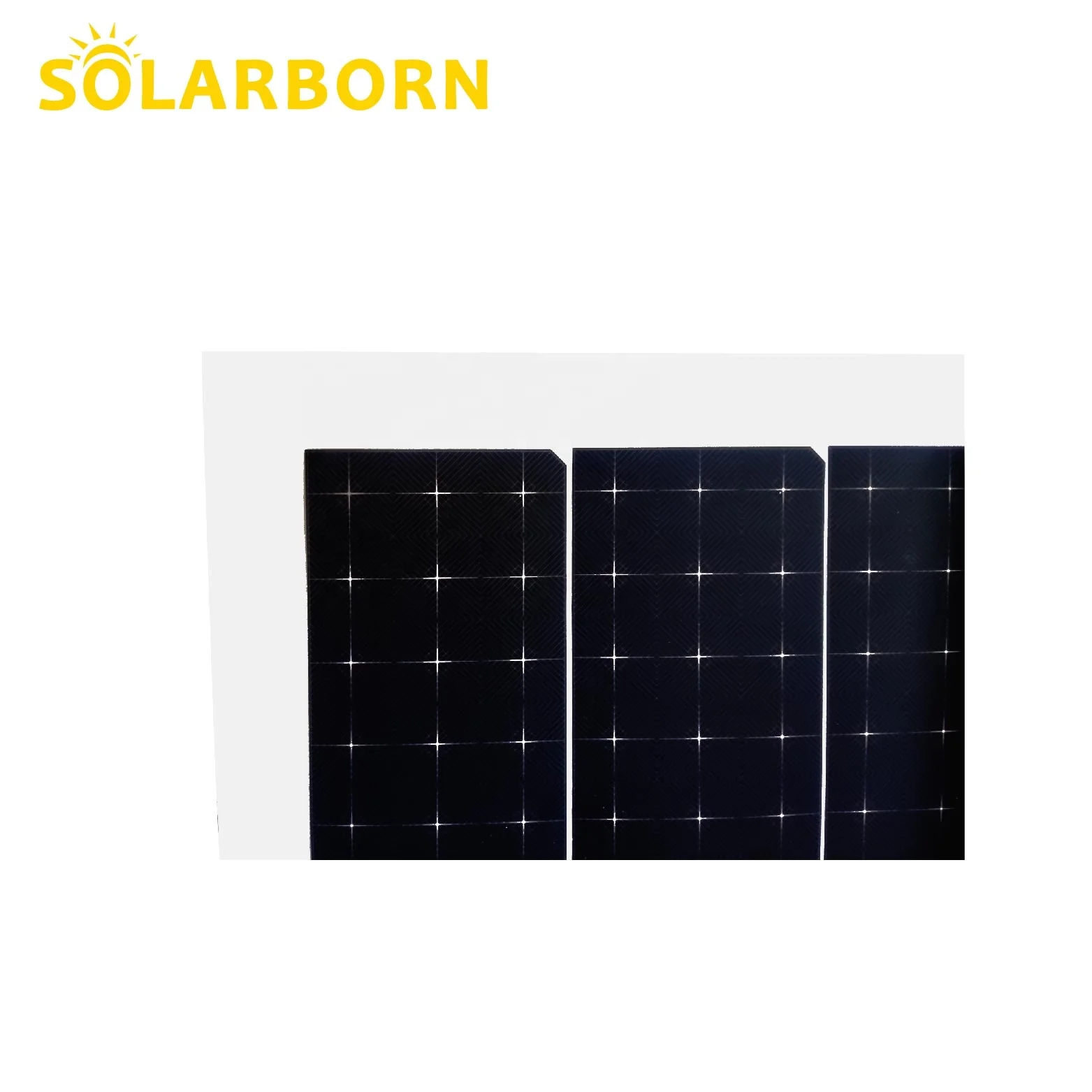

Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping
Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping

Solarborn 375W ETFE system energy cells related products panel flexible solar panels for RV Camping

Share on (1600599222022):


Price:$269.00 - $285.00

Quantity:


Product Overview

Description







Parameters of flexible solar panels (can be customized)


Maximum power (pm)
355 W
360 W
365 W
370 W
375 W
380 W
385 W
Best working voltage (vm)
34.6 V
34.8 V
35 V
35.2 V
35.4 V
35.5 V
35.7 V
Best working current (lm)
10.27 A
10.36 A
10.44 A
10.52 A
10.60 A
10.7 A
10.78 A
Open circuit voltage (Voc)
42.5 V
42.7 V
42.9 V
43.1 V
43.3 V
43.0 V
43.2 V
Short Circuit Current (ISC)
10.76 A
10.85 A
10.94 A
11.02 A
11.09 A
11.3 A
11.35 A
Component Effective Efficiency
20.9%
21.2%
21.5%
21.8%
22.1%
21.5%
21.8%


MWT Technology
MWT (Metal Wrap Through, Metal Wrap Through) high-efficiency back contact cell and module technology, using laser drilling and back wiring technology to eliminate the busbars of the front electrode, the current collected by the fine gridlines of the front electrode passes through the silver in the holes The slurry is led to the back side, so that the positive and negative electrode points of the battery are distributed on the back side of the battery sheet.




1: Eliminate front busbars and reduce front shading area by 3%
2: Module output power is about 15W higher than the industry average
3: Performance degradation due to welding stress and micro-cracking is avoided
4: Good compatibility with other technologies, including TOPCon, PERC, HIT, etc.


Technology Comparison

Compared with conventional products, MWT modules have no busbars, which reduces the front shading loss by 3%, and uses conductive foils instead of solder ribbons to avoid stress and micro-cracking caused by high-temperature soldering, greatly improving the stability of the module. and reliability.




Core Structure


The positive and negative electrodes of the battery are located on the back of the battery
The positive and negative electrodes of the battery are located on the front and back of the battery, respectively

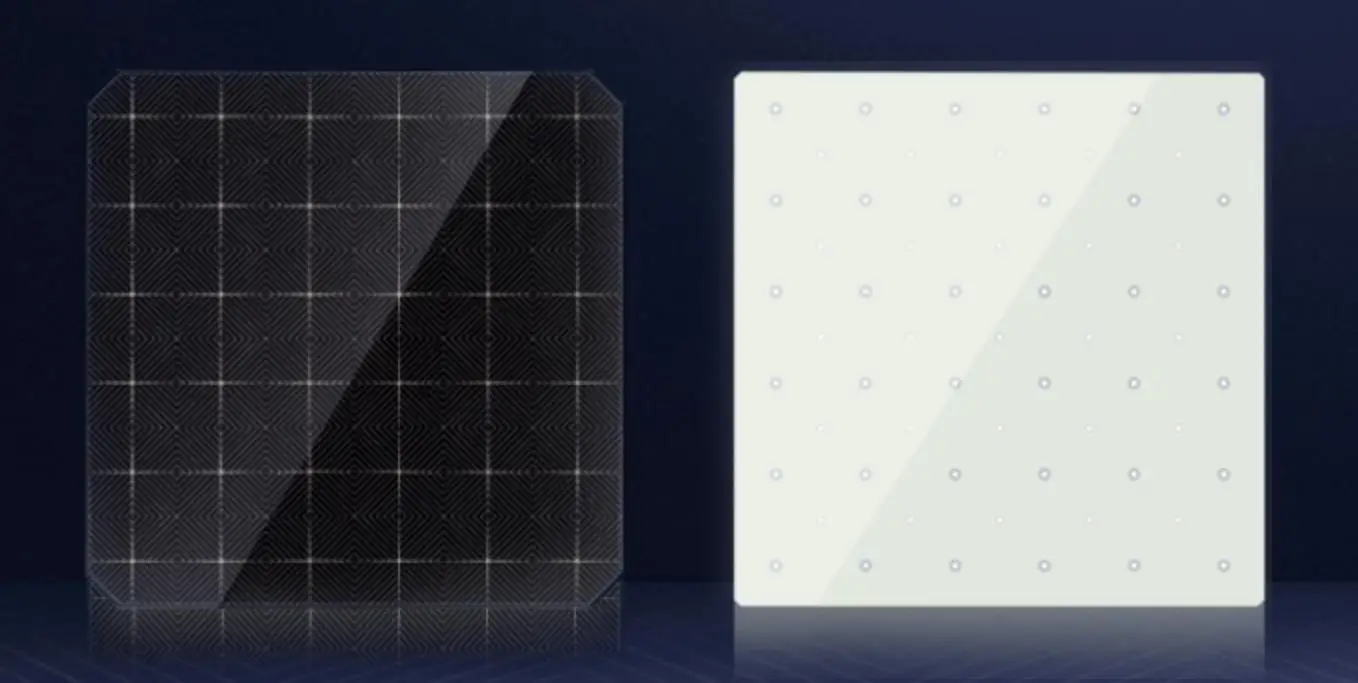

Cell Structure


There is no busbar on the surface of the battery, and the shading area is reduced by about 3%, providing higher output power.
The front busbar design of the battery increases the shading area and reduces the output power.


Packaging Method


Use metal conductive circuit boards instead of solder tapes, and use flat two-dimensional packaging technology
Utilize the welding ribbon to connect the cells up and down in series

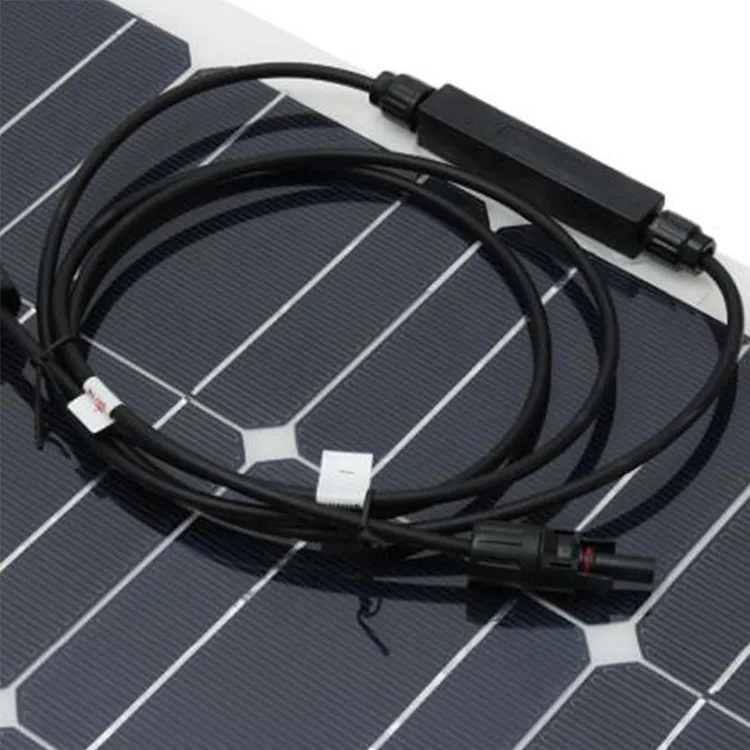

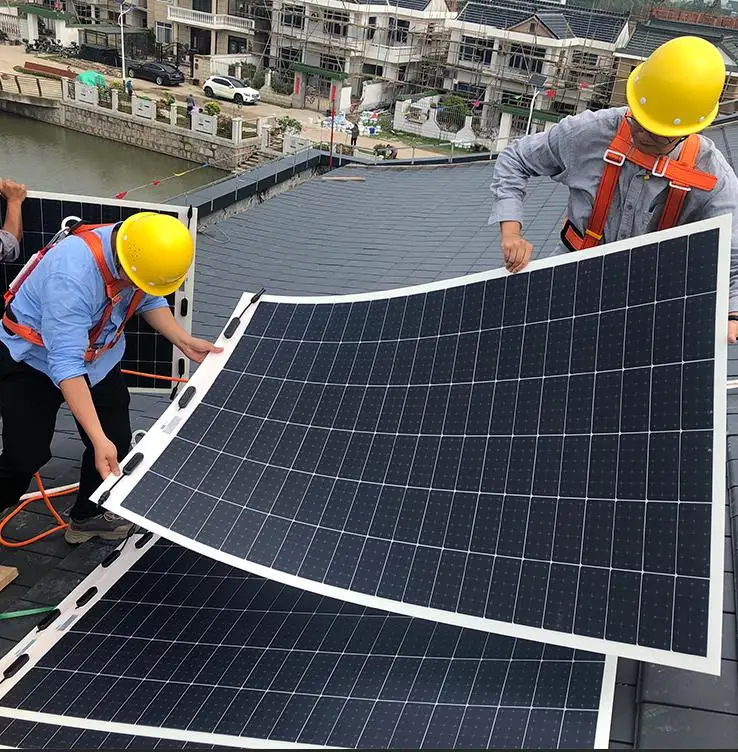

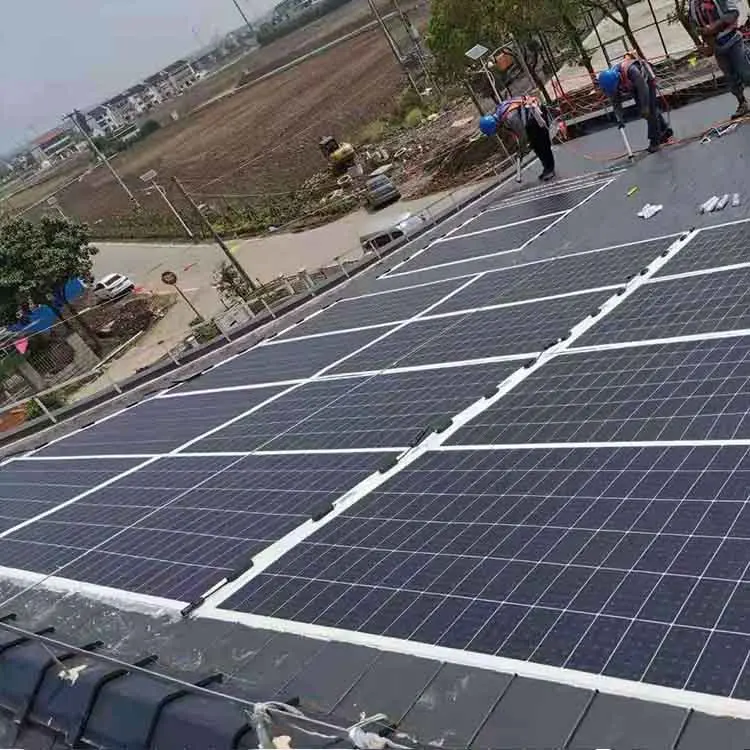

Installation And Details

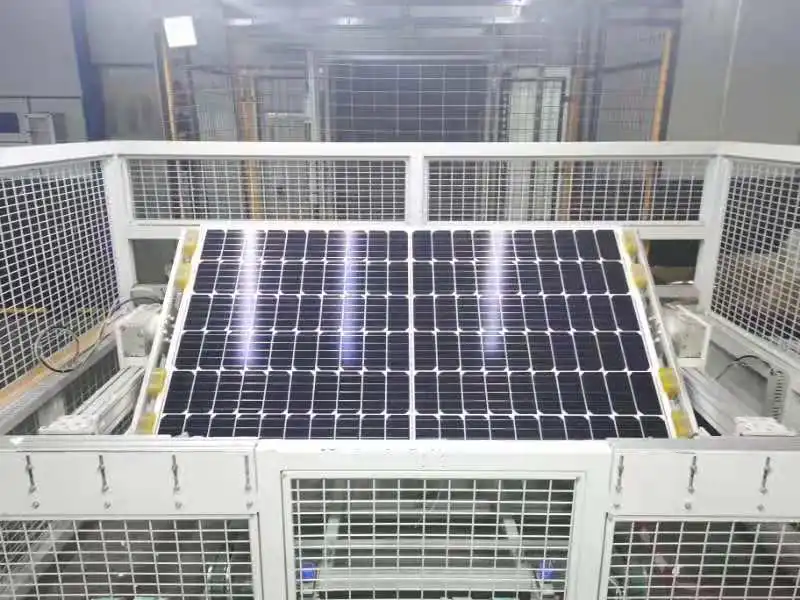

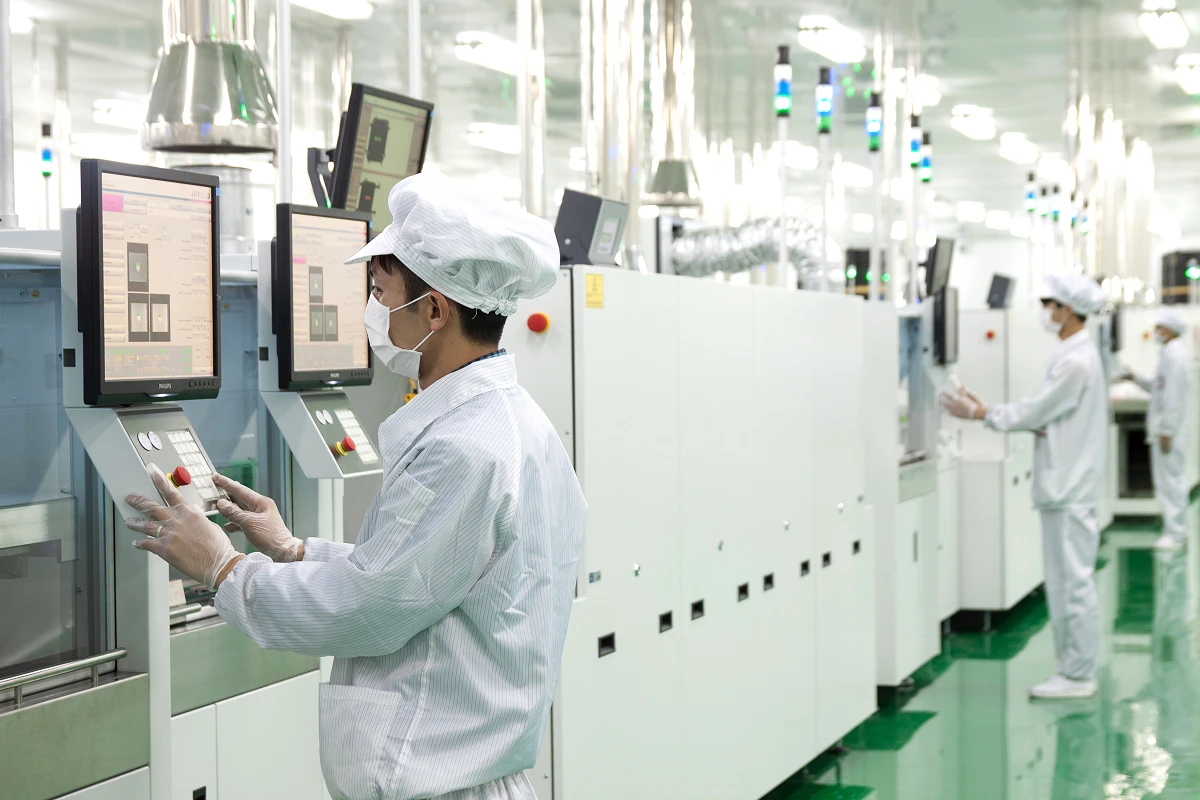

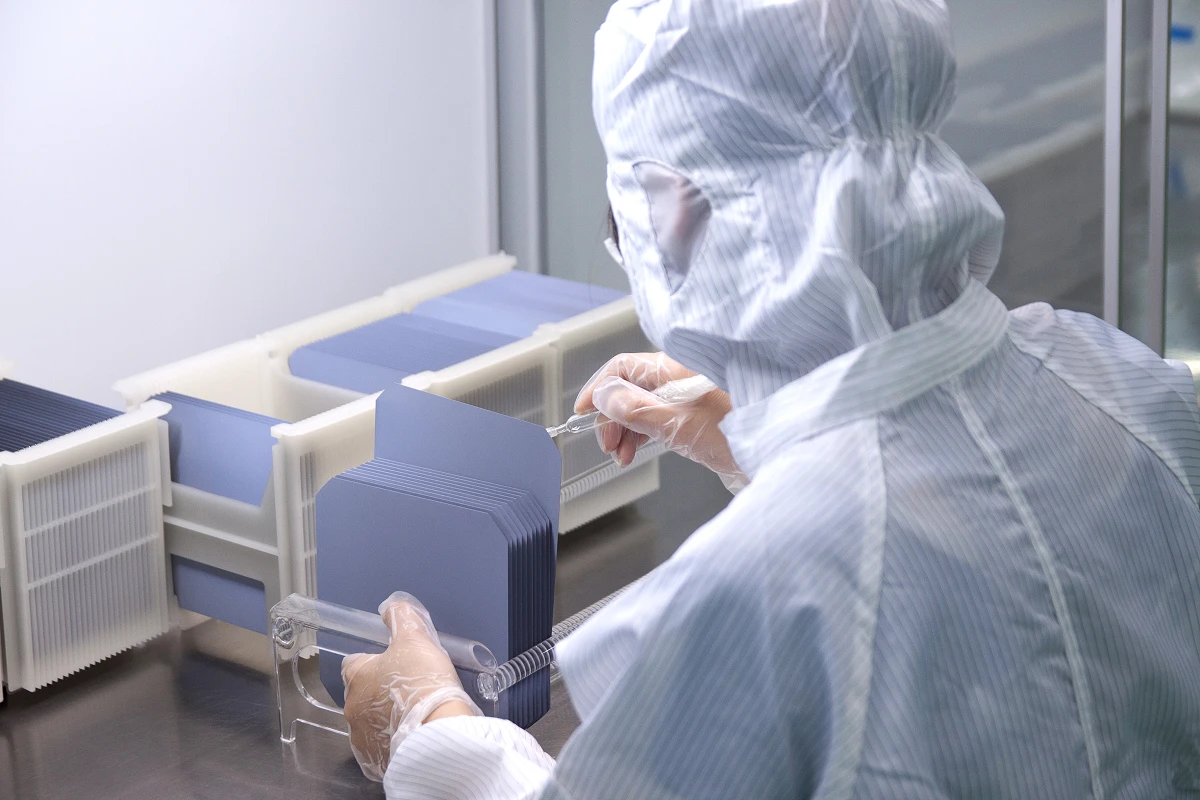

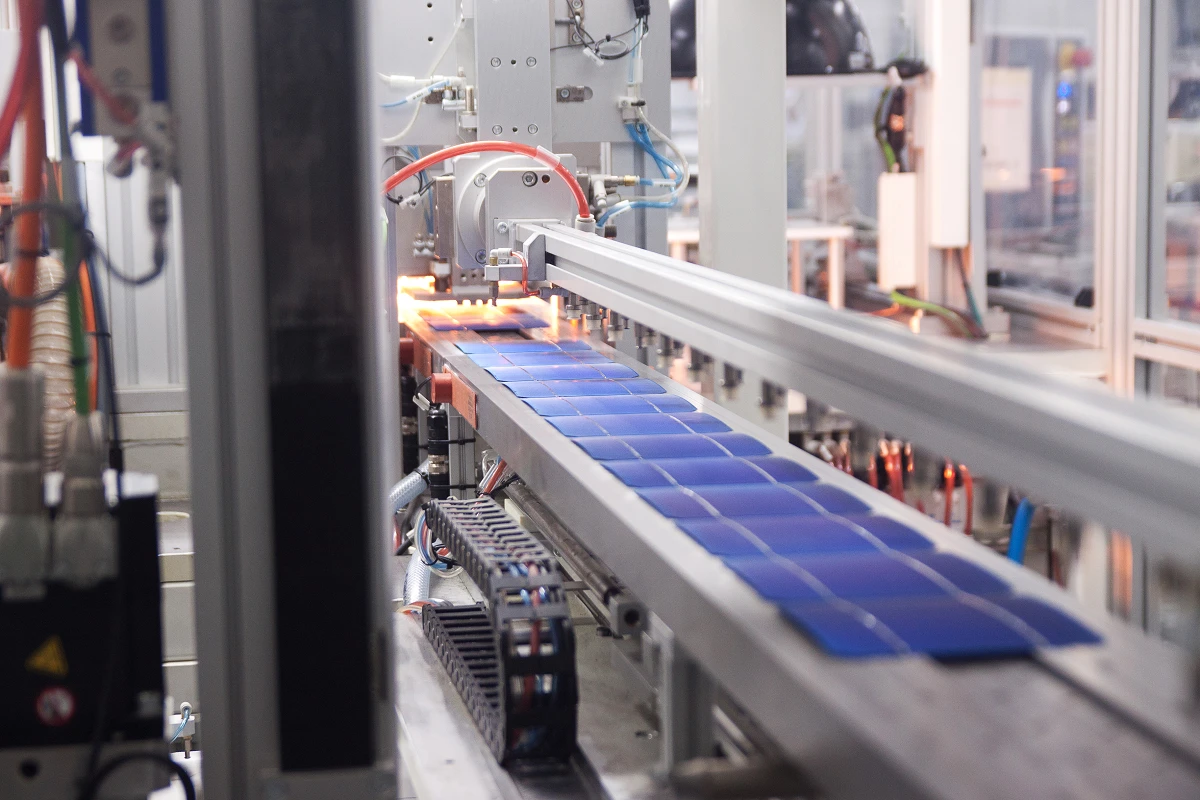

Factory






Certificates and Business Cards






Shipping and Payment Methods


By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL







Payment Term



T/T
EXW


30%T/T in advance，70% before shipment
FOB
DDP
CFR

30%T/T in advance，70% aganist B/L copy
CIF
L/C
contract amount more than USD3000, L/C at sigh is acceptable
West Union
contract amount less than USD3000
Delivery time
7-15 days after payment receipt for the quantity less than 1MW


FAQ
Q1:Are you a factory or a trading company?
Answer:We are a factory, the group company has 15 years of manufacturing capacity, has research and development capabilities,and can accept OEM and ODM.

Q2:Can I order samples of solar products?
Answer: Yes,we welcome to order samples to test and check the quality.Mixed samples are acceptable.

Q3:When is the delivery time?
Answer:7-15 days after receiving customer payment.

Q4:If I don't know the configuration.Can you help us Konw?
Answer:Of course you can. If you can tell your needs,we can help you.

Q5:Do you provide guarantee for the product?
Answer: Yes we provide a 25-years warranty for the solar panels.

Q6:How do you ship the goods and how long does it take to arrive?
Answer:We usually ship by sea,and the arrival time will vary depending on the destination country of the customer.
