HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module
HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module

HUGEROCK B80 industrial rugged android tablet pc computer 8 inch fingerprint scanner nfc tags time attendance module

Share on (1600599231118):


Price:$345.00 - $365.00

Quantity:


Product Overview

Description

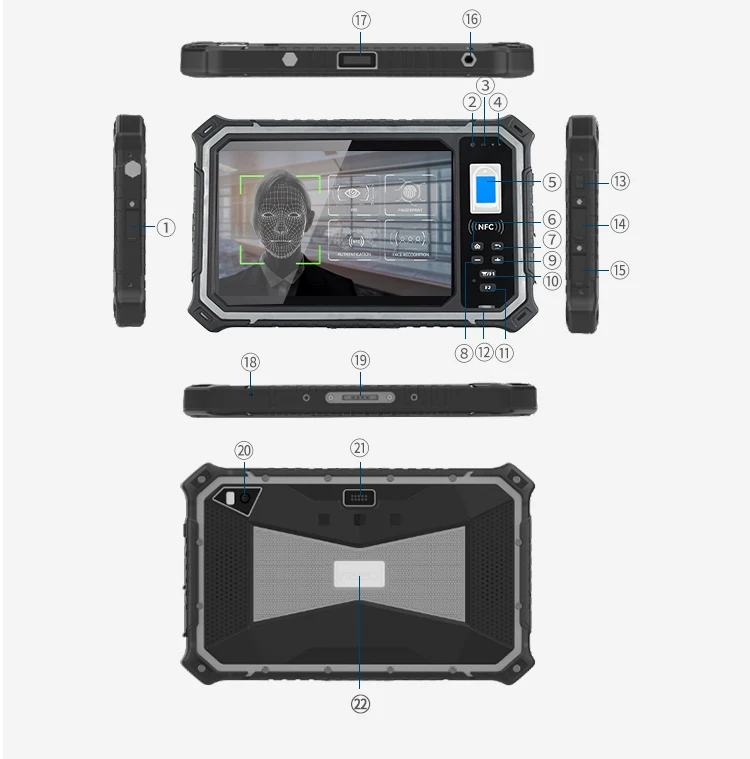

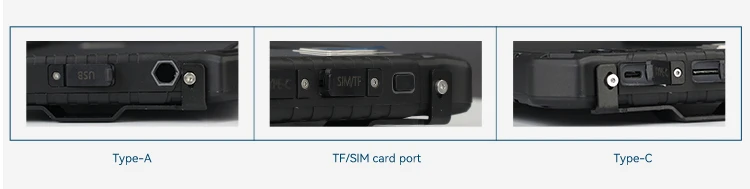

1. Type-A(Sealed Cover)
2. Sub Camera
3. Light sensor
4.Charge lamp
5. The fingerprint module
6. Home button
7. Back button
8. Volume Down
9. Volume Up
10. Scan button
11. Defined button
12. Speaker
13. Power button
14. SIM/TF card slot(Sealed Cover)
15. Type-c(Sealed Cover)
16.SMA interface(Optional)
17. Barcode module(Optional)
18. Mic
19.4PIN magnetic charging in terface(Optional)
20.Main camera
21. 10PIN expansion interface
22. Nameplate








Hardware
CPU
ARM Cortex A73 Octa-core (2.0GHz)
GPU
ARM Mali-G72 MP3
RAM
8G
Internal Memory
128G
External Memory
Micro SD card ( T-FLASH card), max 256GB
Main Camera
13.0MP(AF) with flash led
Sub Camera
5.0MP
Battery
18900mAh

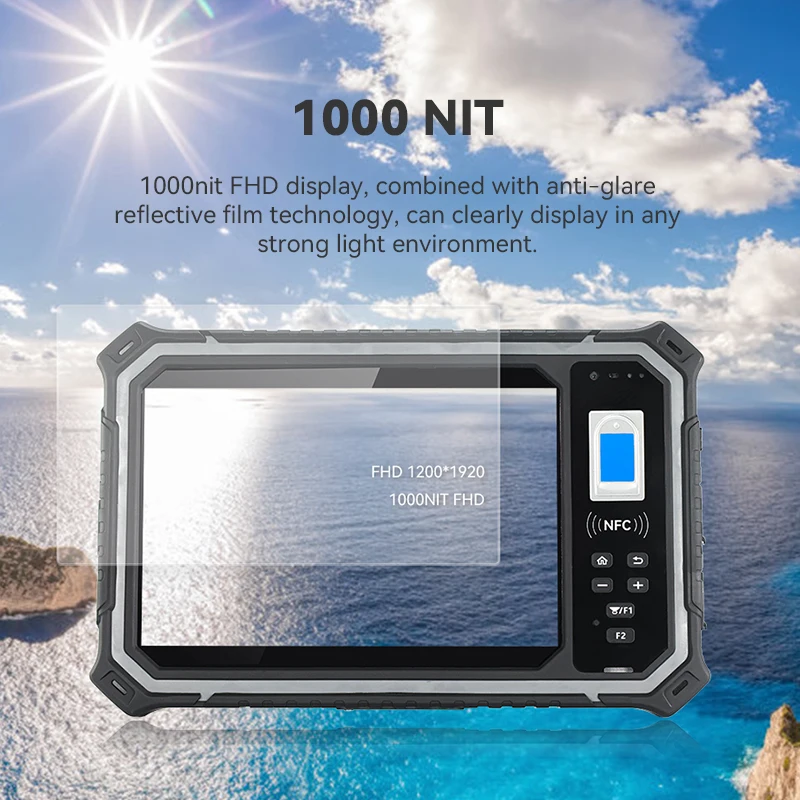

Display
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable
Touch Panel
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen


IO/Sensor/Navigation
SIM Card
Nano sim card*2
TF Card
Micro SD card (T-FLASH card); max 256GB
Headphone
3.5mm (CTIA）
Charging interface
Type-C & 4PIN magnetic charging
Data interface
USB Type-A(Host)*1, Type-C(OTG)*1
Direction Sensor
support
Gravity sensor
support
Magnetic Field Sensor
support
Motion sensor
support
Rotation Vector
support
Light-sensor
support
Acceleration sensor
support
Charger
5.0V 2A-10W
Navigation
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）


Appearance

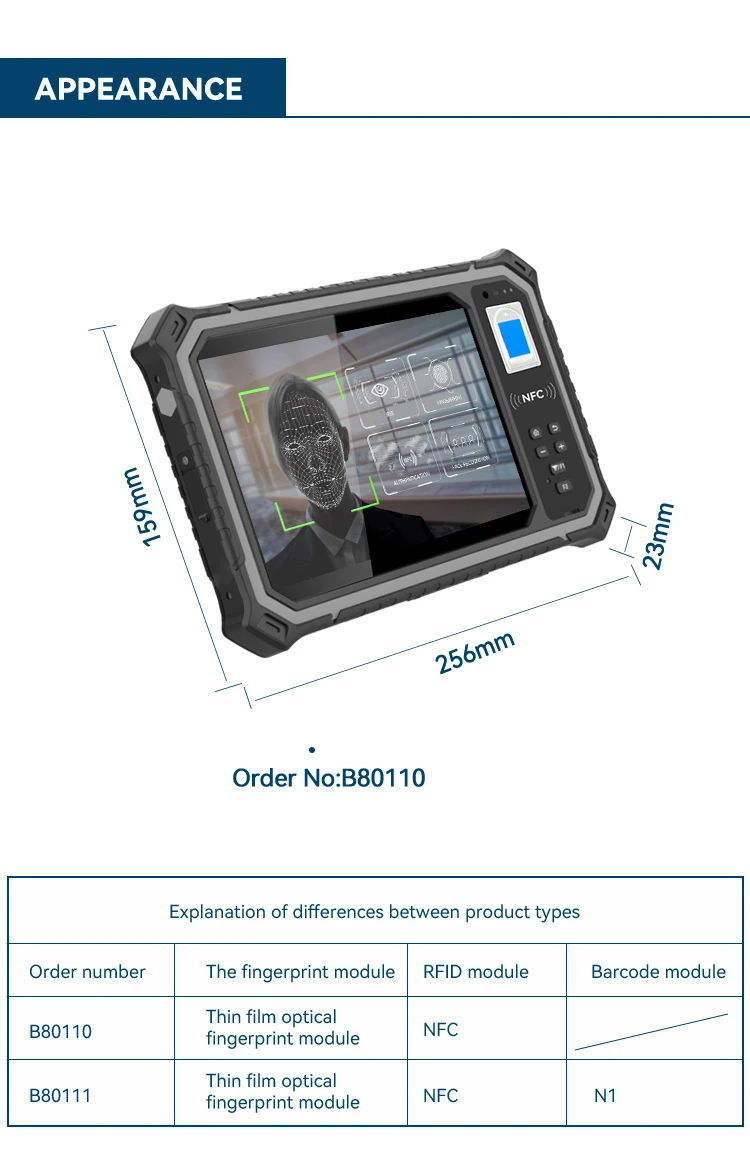

Size
256*159*23mm (L×W×H)
Weight
1015g
Color & Material
Gray (PC+ABS)


Communications & Networking
Phone Call
GSM /WCDMA/CDMA 1X/VoLTE
2G
GSM/CDMA 1X/EDGE/GPRS/WAP
2G Band
GSM（B2/3/5/8）
3G
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
3G Band
WCDMA B1/2/5/8 ,Evdo: BC0/BC1 CDMA: BC0/BC1
4G
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink
4G Band
TD-LTE B38/39/40/41 FDD LTE B1/2/3/4/5/7/8/12/17/20/28)
WI-FI
Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
BT
4.2 Low Energy (LE)


Industrial & Reliability Design
Shake-proof
1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof /IK
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
Waterproof
Class 7 (IEC 60529)
Dustproof
Class 6 (IEC 60529)
Reliability
MTBF>5000h；MTTR<0.5h
Operating temperature
-20°C to 55°C
Storage Temperature
-40°C to 80°C
RH
5% to 95%
Operating Altitude
Max: 4,500 m（15,000 feet）


Certification/OS/Software

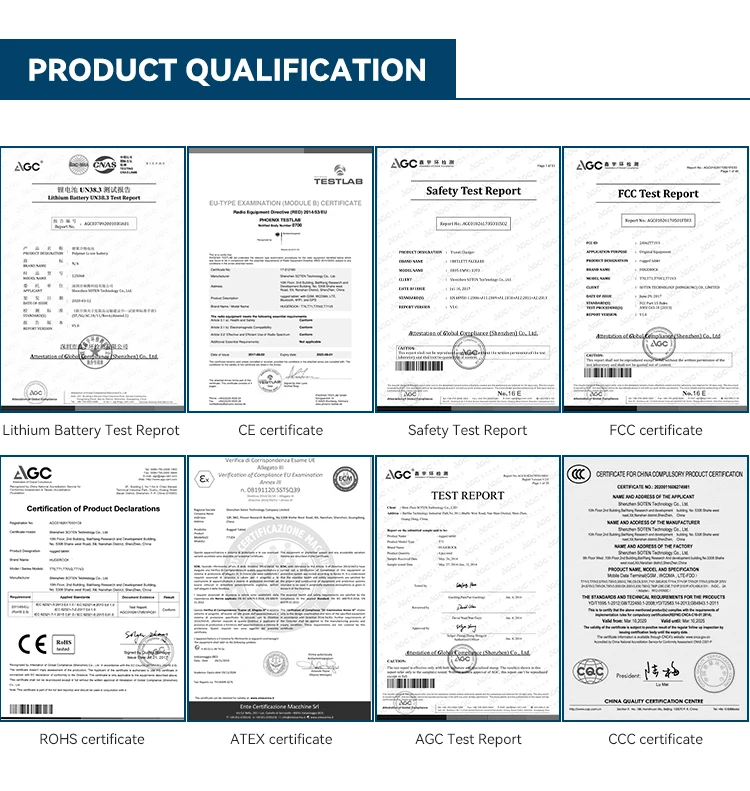

Certification
3C/FCC/CE/ROHS/IP67 (IEC 60529)
Language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
OS
Android 10.0


Package/Warranty terms/OEM
Warranty
24 months
OEM/ODM
Support
Package

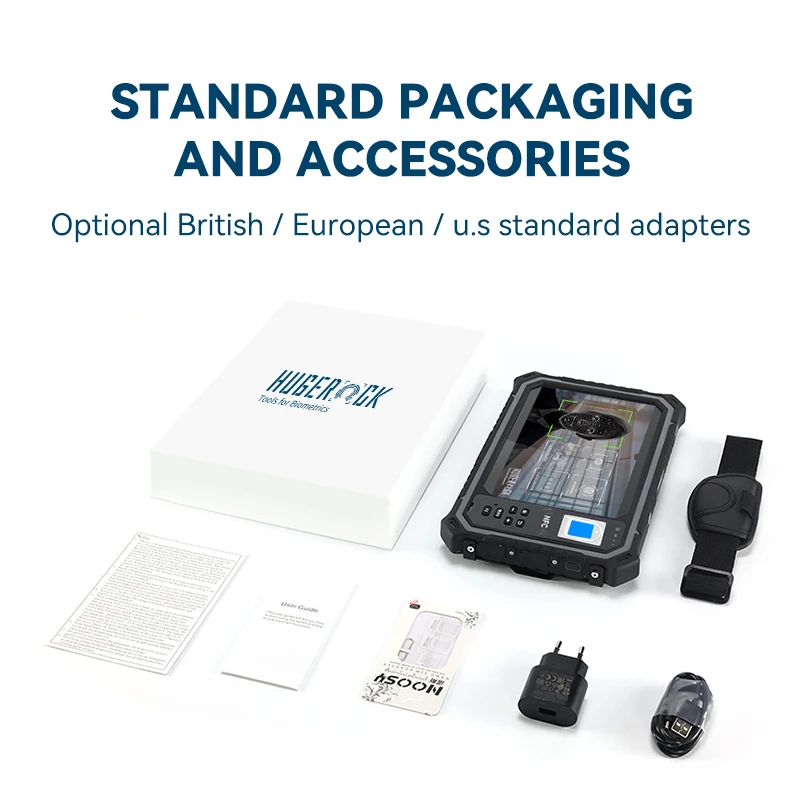

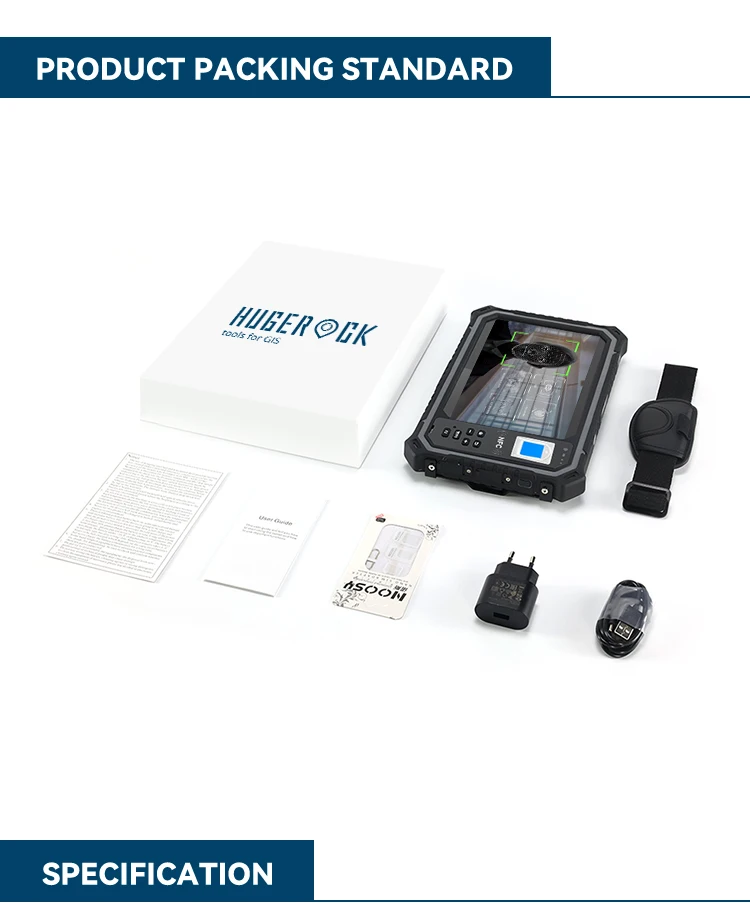

USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional)/SIM Card Ejector




NFC
Frequency
13.56MHz
Protocol standard
ISO14443A/B,ISO15693，NFC
Label standard
M1(S50、S70)、CPU、NFC
Read-write distance
2-5cm


Data Collection
Scanning engine
Newland N1
1D
UPC/EAN,Code128，Code39，Code93，Code11，Interleaved 2 of 5，Discrete 2 of 5，Chinese 2 of 5，Codabar，MSI，RSS,etc.
2D
Code39，Code128，PDF417，MicroPDF417，DataMatrix，Composite，RSS,TLC-39，QR code，Micro QR code，Aztec，MaxiCode，Postal Code；US PostNet，US
Planet，UK Postal，Australian Postal，Japan Postal,etc.


The data collection
Thin film optical fingerprint sensor
Grayscale: 32768
FAP10, 500 dpi, 8 bit, 256X360，
FBI MINEX III (NIST Certification)
RoHS Certification











Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance

Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
