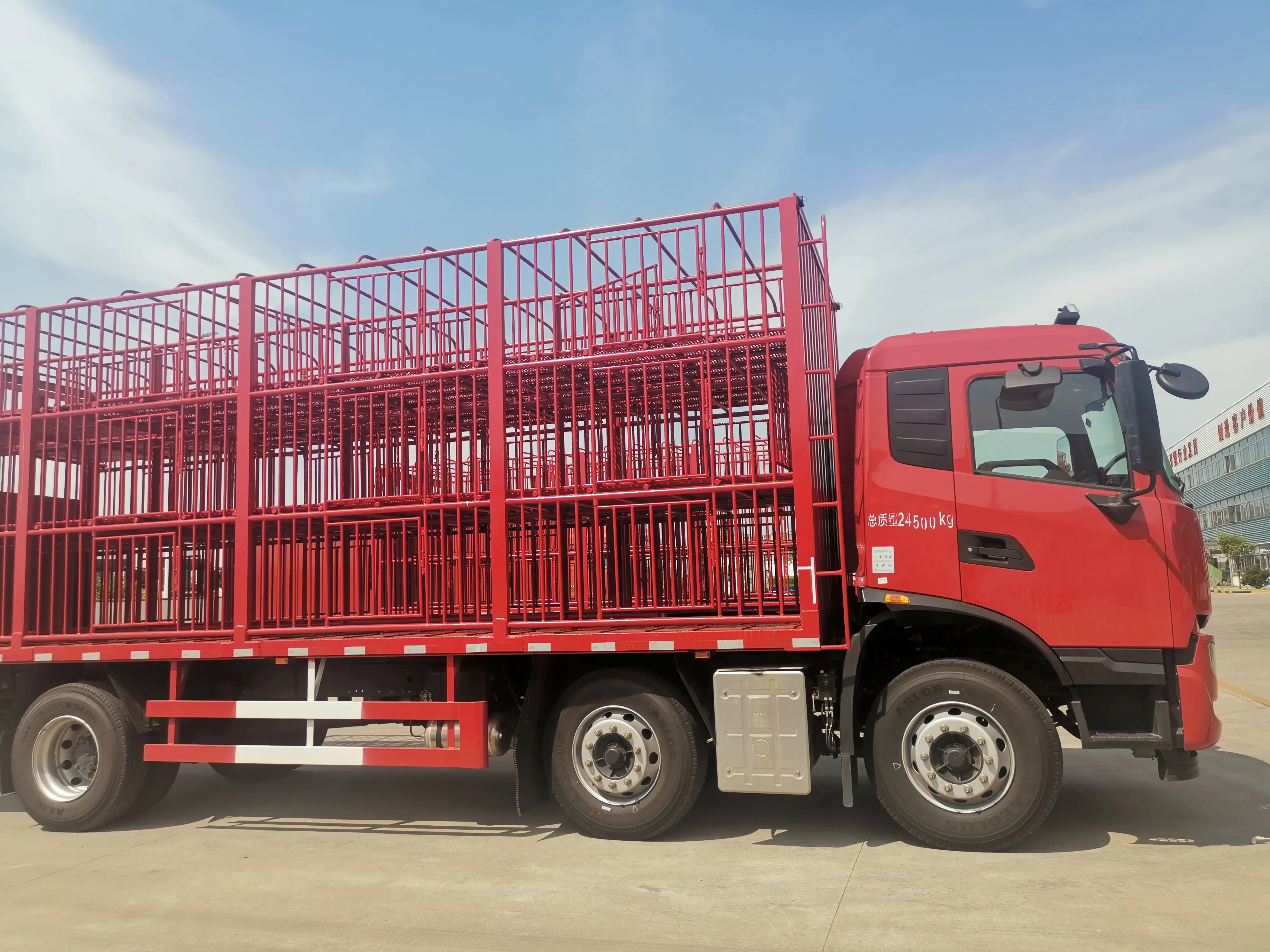

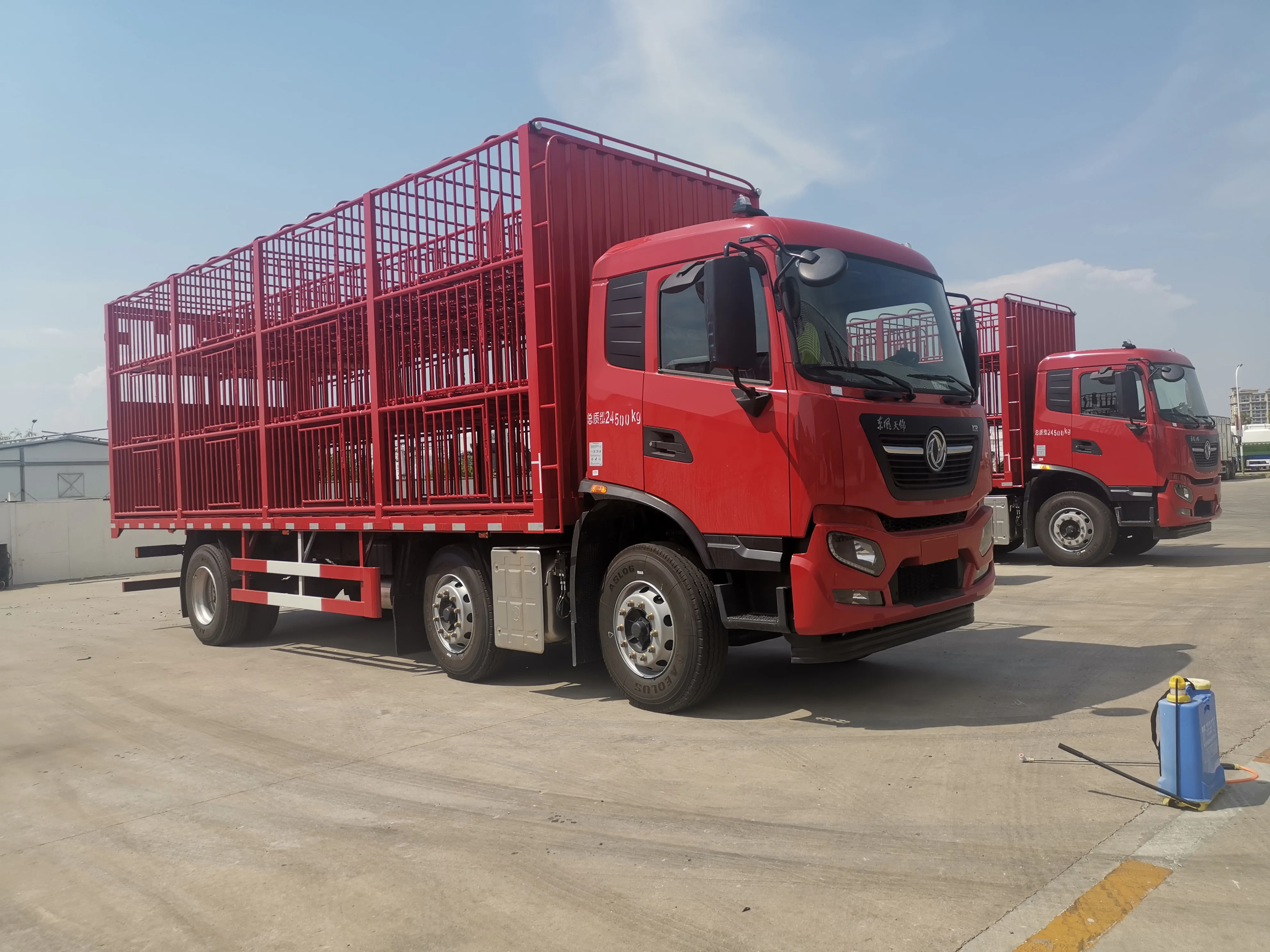

Xinbaiqin Dongfeng Chassis 6x2 Pig Transport Fence Truck
- Category: >>>
- Supplier: Xinbaiqin Special Vehicle Co. Ltd.
Share on (1600599239079):
Product Overview
Description
ProductDescription
| Vehicle Model | DFH5310CCQDX | Curb Weight | 12850 | |
| Load Weight/kg | 18020 | Overall Dimension/mm | 12000*2550*3990 | |
| Van Box Dimension/mm | 9600*2450*2300(Column) | |||
| Standard Configuration | Cabin | D320-H | Gear box | Dongfeng Longqing DT1422 DD gearbox, 2.87 speed ratio |
| Engine | Dongfeng Volvo DDi11E430-60 | Displacement | 11L | |
| Front/rear axle(DF400) | 5T/10T | Wheel base | 2050+4600+1350mm | |
| Spring qty | 3/3/10 | Frame section | 300*80*8mm | |
| Oil tank (AL) | 800L | Tyre | 12R22.5 18PR | |
| Passenger | 2 | Other | 165Ah storage battery | |
| Truck Body Configuration | ||||
| Truck Body Configuration | 3 Decks | 3 decks pig fence transport truck, height of the 1st and the 2nd deck are 900mm, and the 3rd deck is 700mm. | ||
| Process | 1) Primary coat: electrophoresis primer---corrosion resistance, increasing the adhesion of the topcoat; | |||
| 2) Finishing coat: drying topcoat treatment | ||||
