YB 210F Automatic Powder Zipper Bag Doypack Filling Sealing Premade Pouch Food Packing Machine
- Category: >>>
- Supplier: Suzhou YangBang Machinery Co. Ltd
Share on (1600599247276):
Product Overview
Description
YB-210F
Automatic Powder Zipper Bag Doypack Filling Sealing Premade Pouch Food Packing Machine
PRODUCT SPECIFICATIONS
No | Model | YB-210F Automatic given bag packing machine |
1 | Packing speed | 10-50 bags/min |
2 | Bag length | 100-320mm |
3 | Bag width | 80-210mm |
4 | Application product | Powder products |
5 | Packing accuracy | ≤±1% |
6 | Power | 3.5 KW |
7 | Machine weight | 500kg |
7 | Machine dimension | L1800mm, W1000mm, H1500mm |
Product details
Technical features:
1. Fully automatic packaging process, no manual operation required.2. All components in contact with food are SUS304, which complies with GMP standards
3. Intelligent sensing, sealing when full, stopping when empty, saving materials.

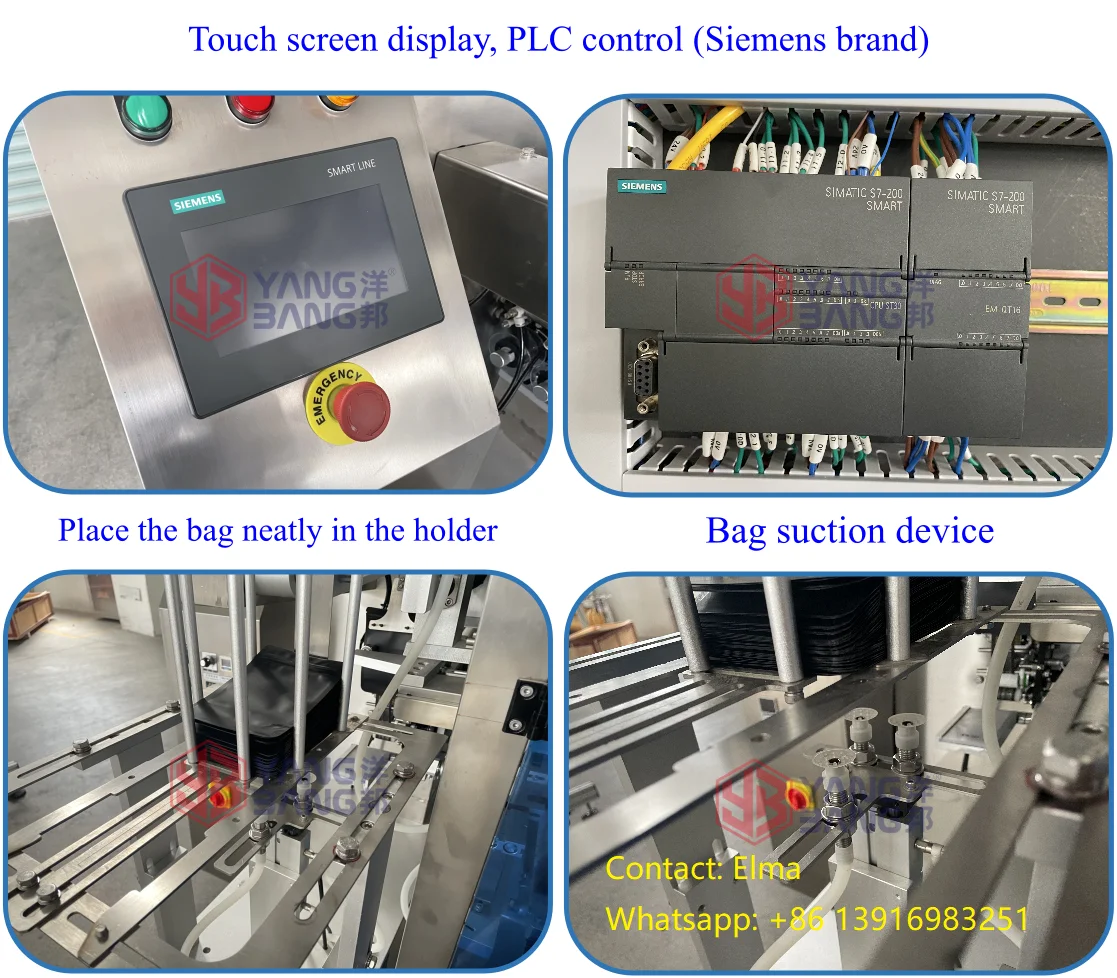

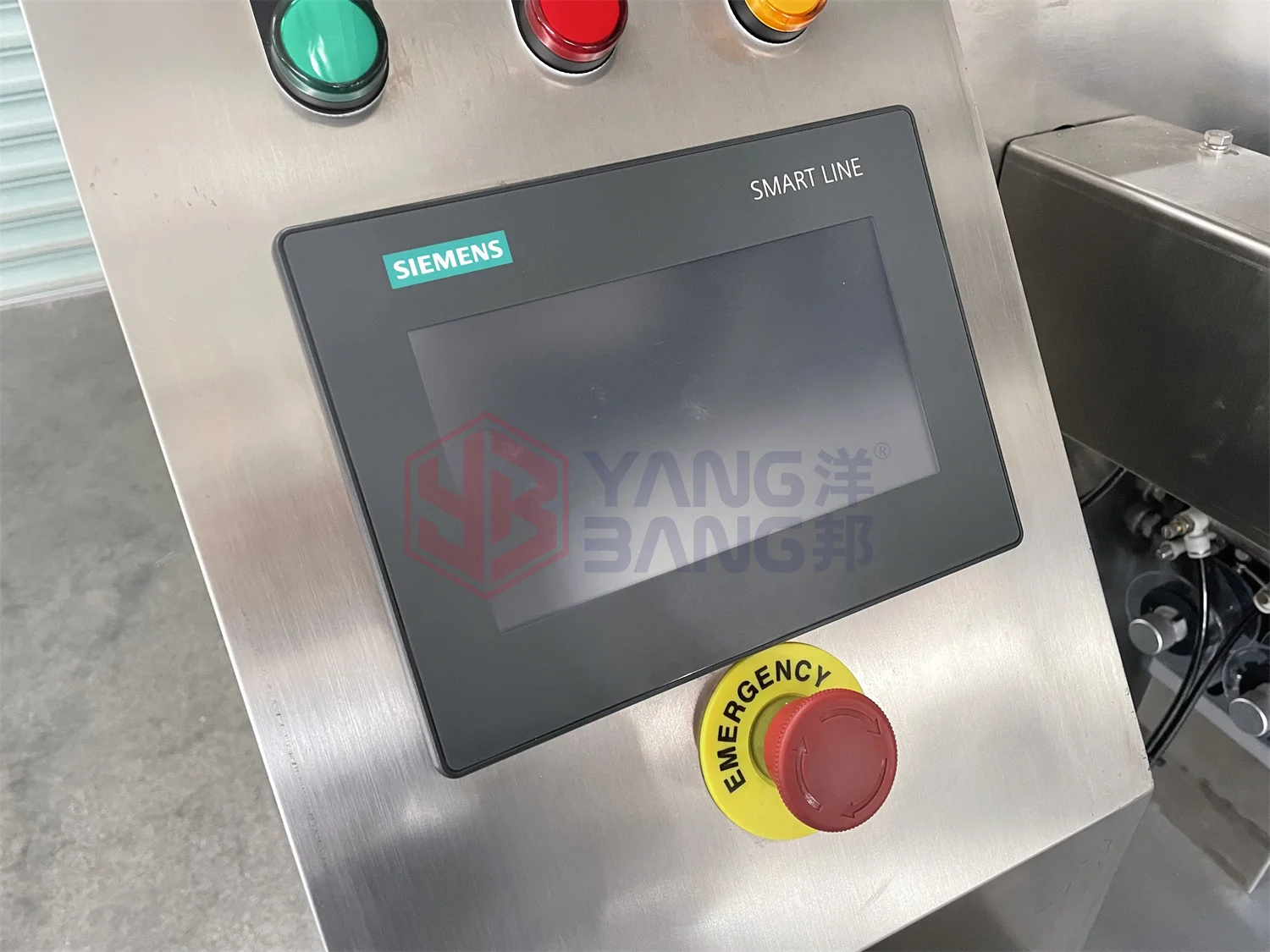

4. It adopts Siemens PLC and French Schneider brand electrical components for control, with stable functions and long service life.
5. The Japanese Omron temperature controller is used to automatically compensate the temperature, making the joint sealing beautiful.
6. Adopting Taiwan's Atlas cylinder, it has a long service life and is easy to replace.
7. The feeding device can be directly cleaned with water, but it is necessary to avoid electrical components.
8. For powder packaging, an air suction device or a glass cover can be added to prevent powder from flying out.
Machine advantages:
1. Small size, light weight, and can be manually placed into the elevator without space limitations.
2. Low power requirement: 220V voltage, no need for power supply.
3. With 4-6 workstations, low maintenance rate and high stability.
4. Fast speed, easy to match with other equipment, up to 55 bags/minute.
5. Multifunctional operation, one click operation, no need for professional training.
Good compatibility, able to adapt to different types of irregularly shaped packages, making it easy to change the type of package without the need for additional additions accessories for.
Details Images

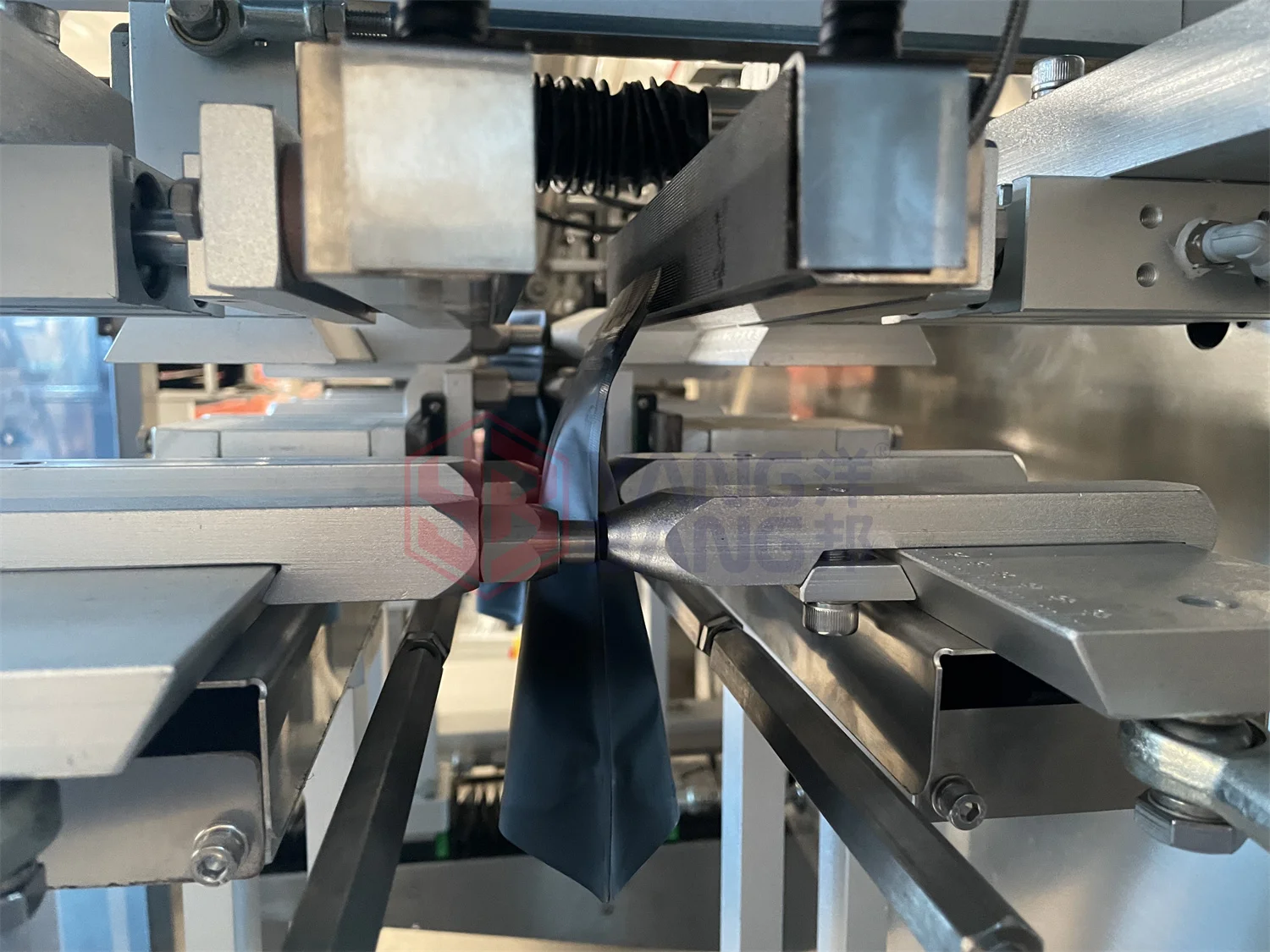

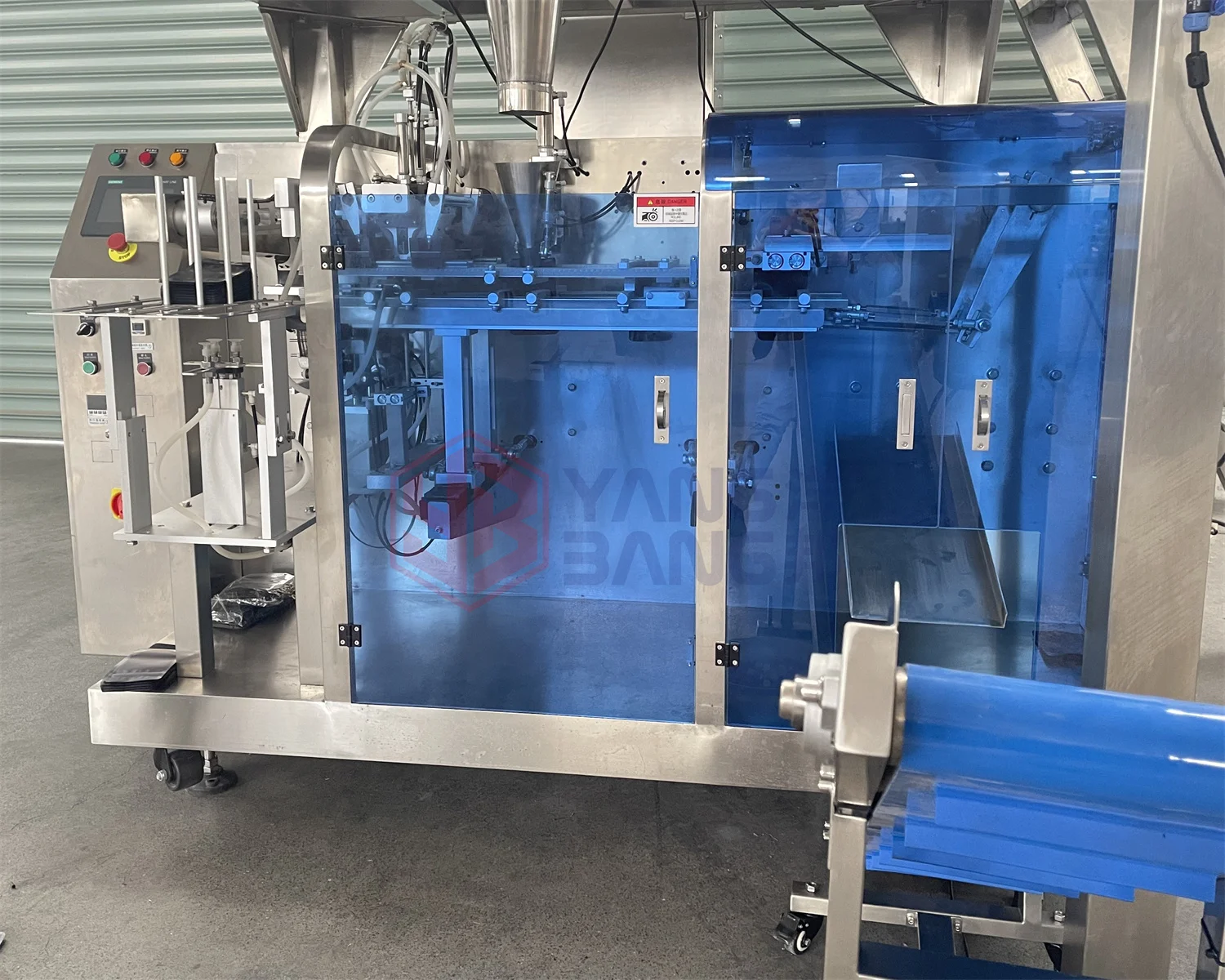

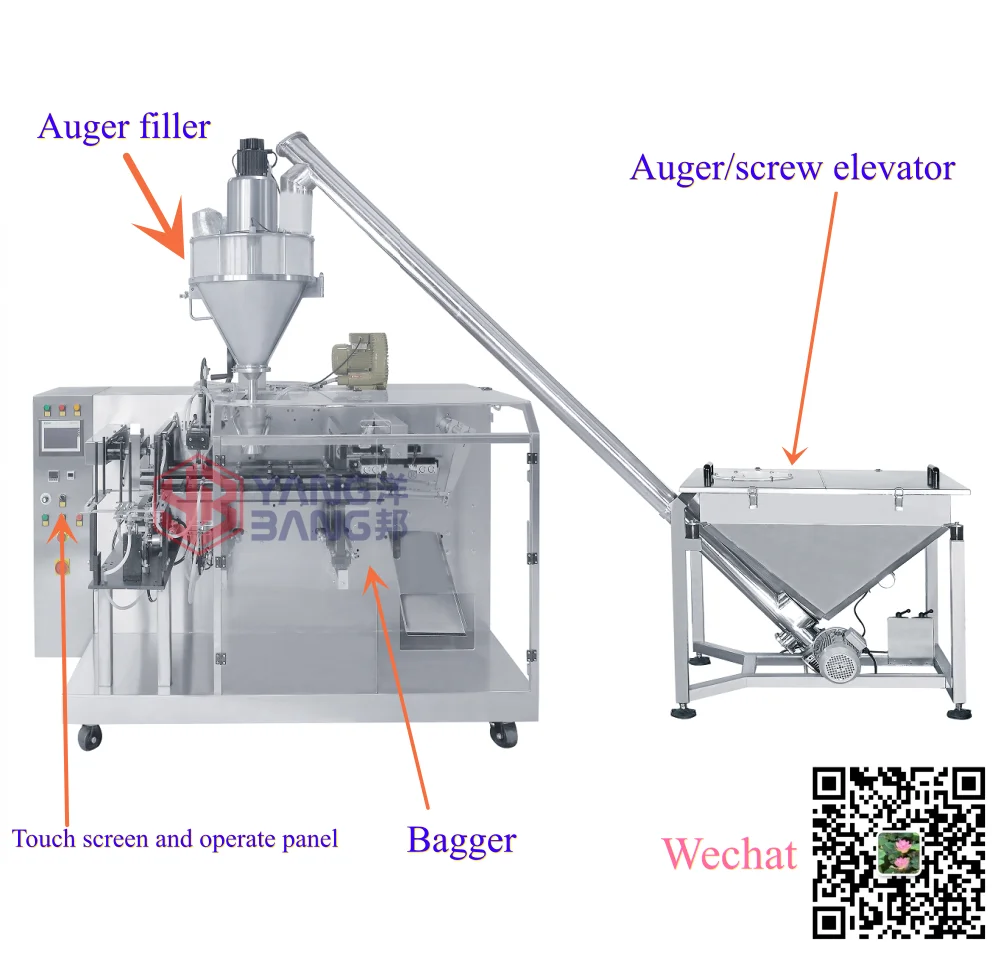

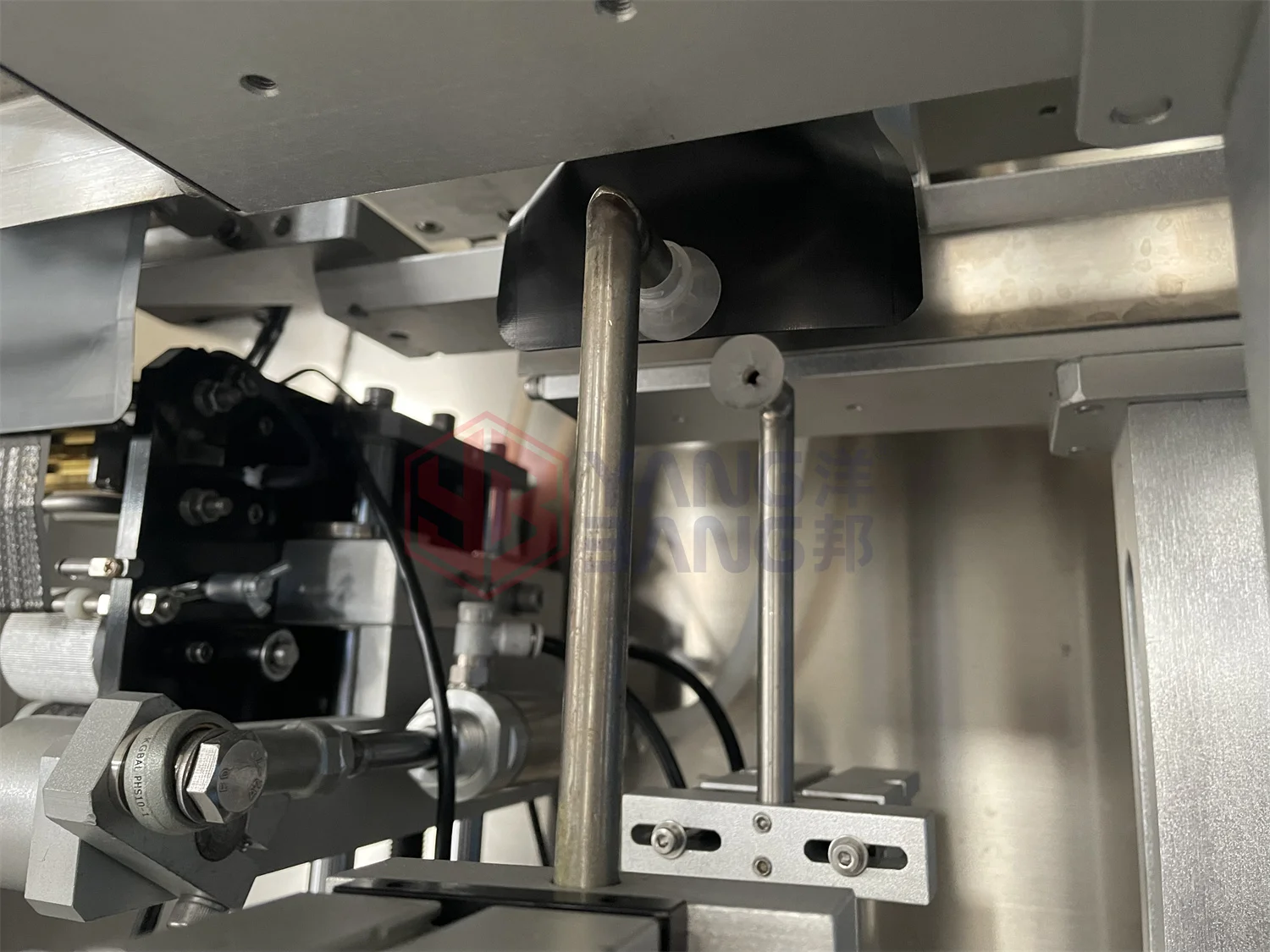

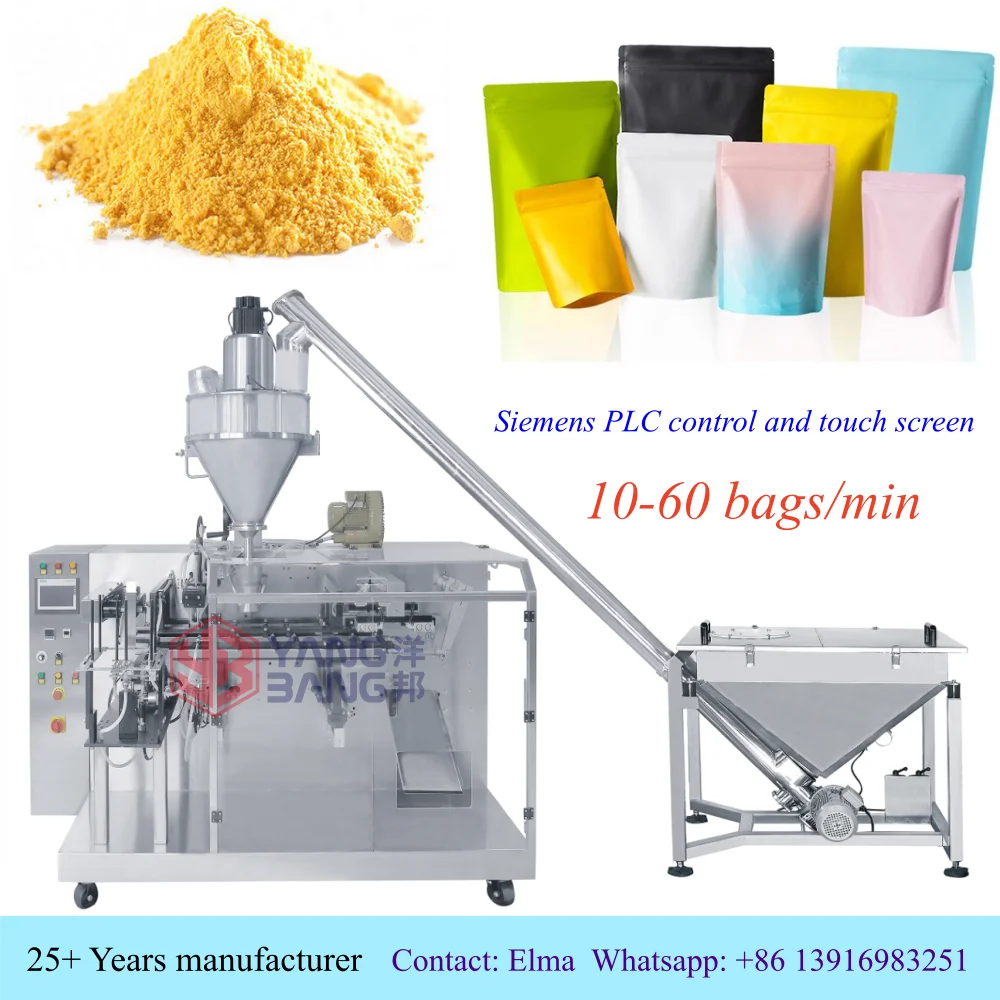

Automatic Powder Zipper Bag Doypack Filling Sealing Premade Pouch Food Packing Machine

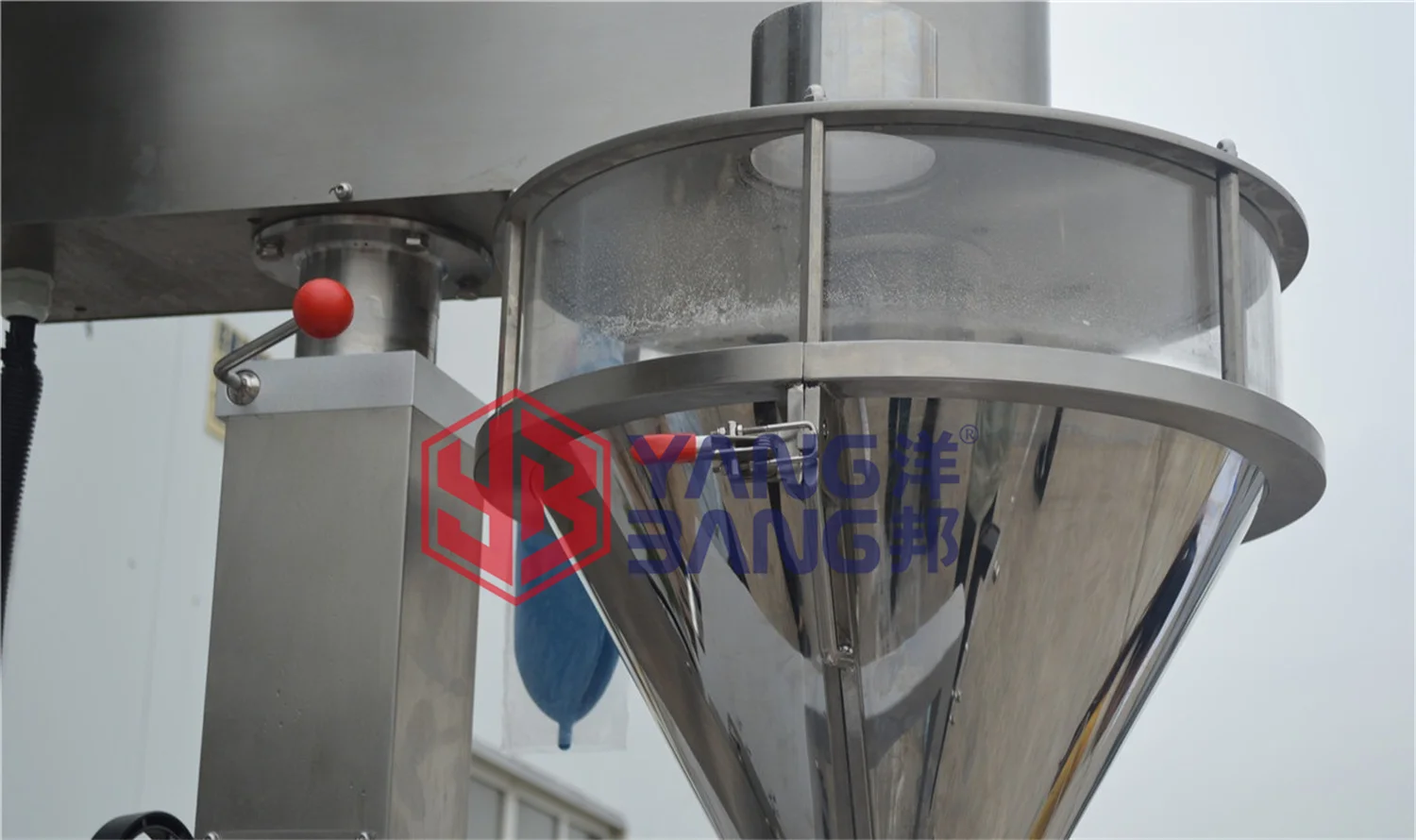

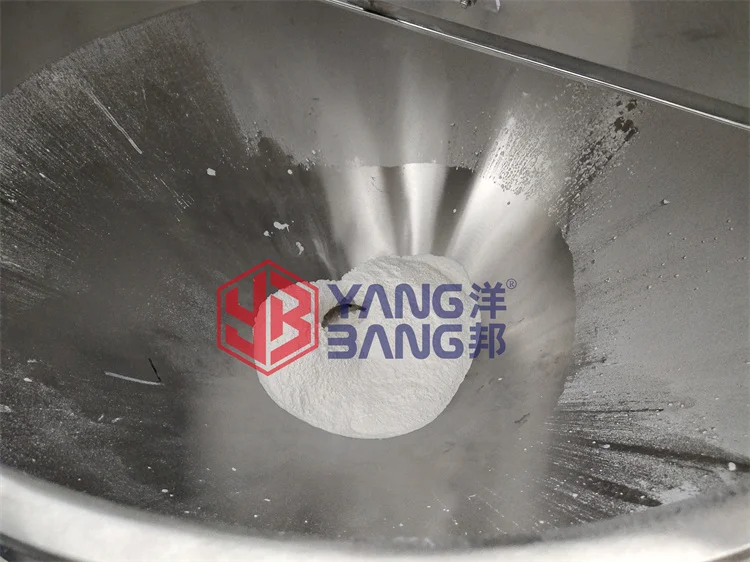

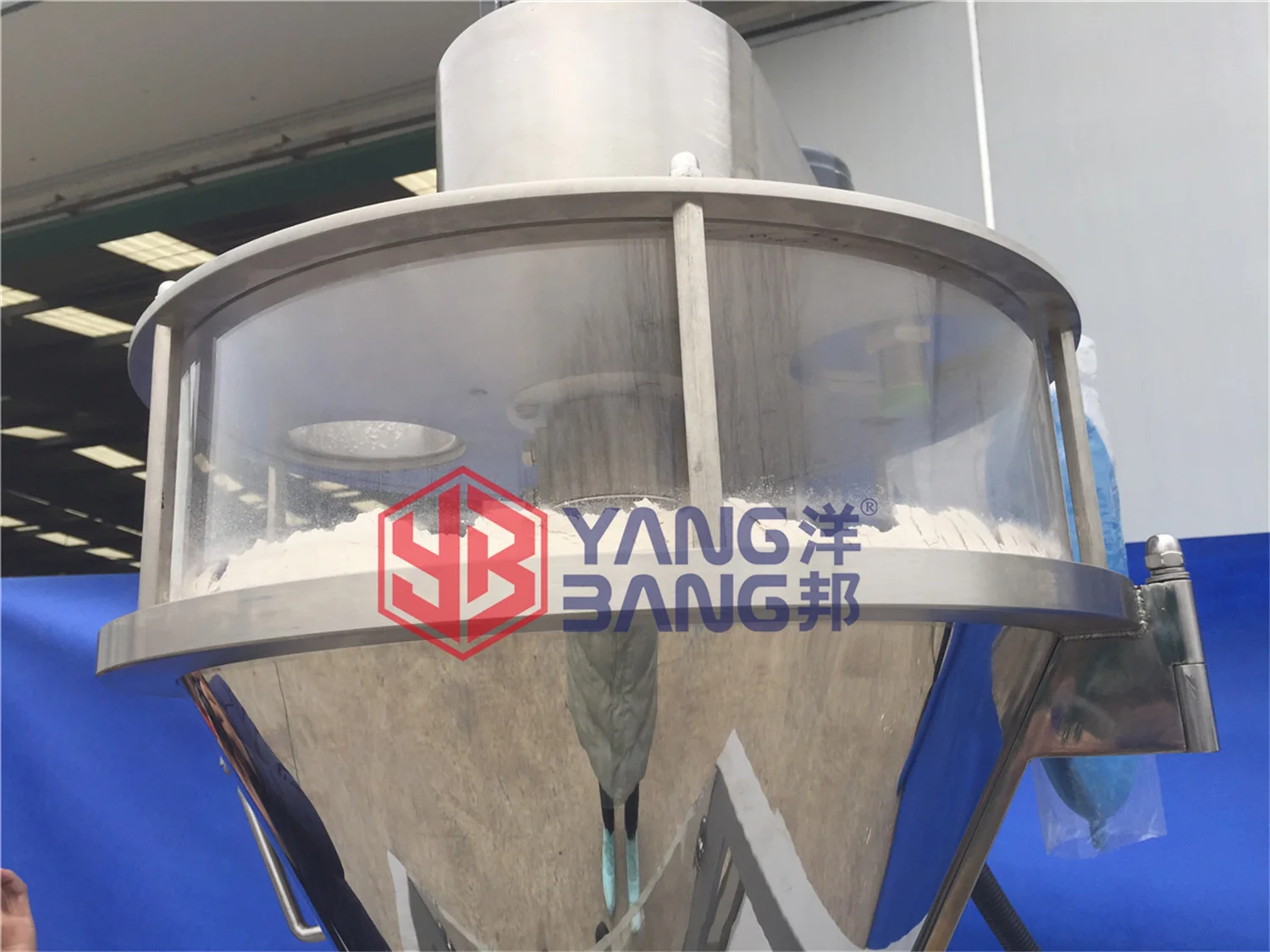

Auger dosing system for powder

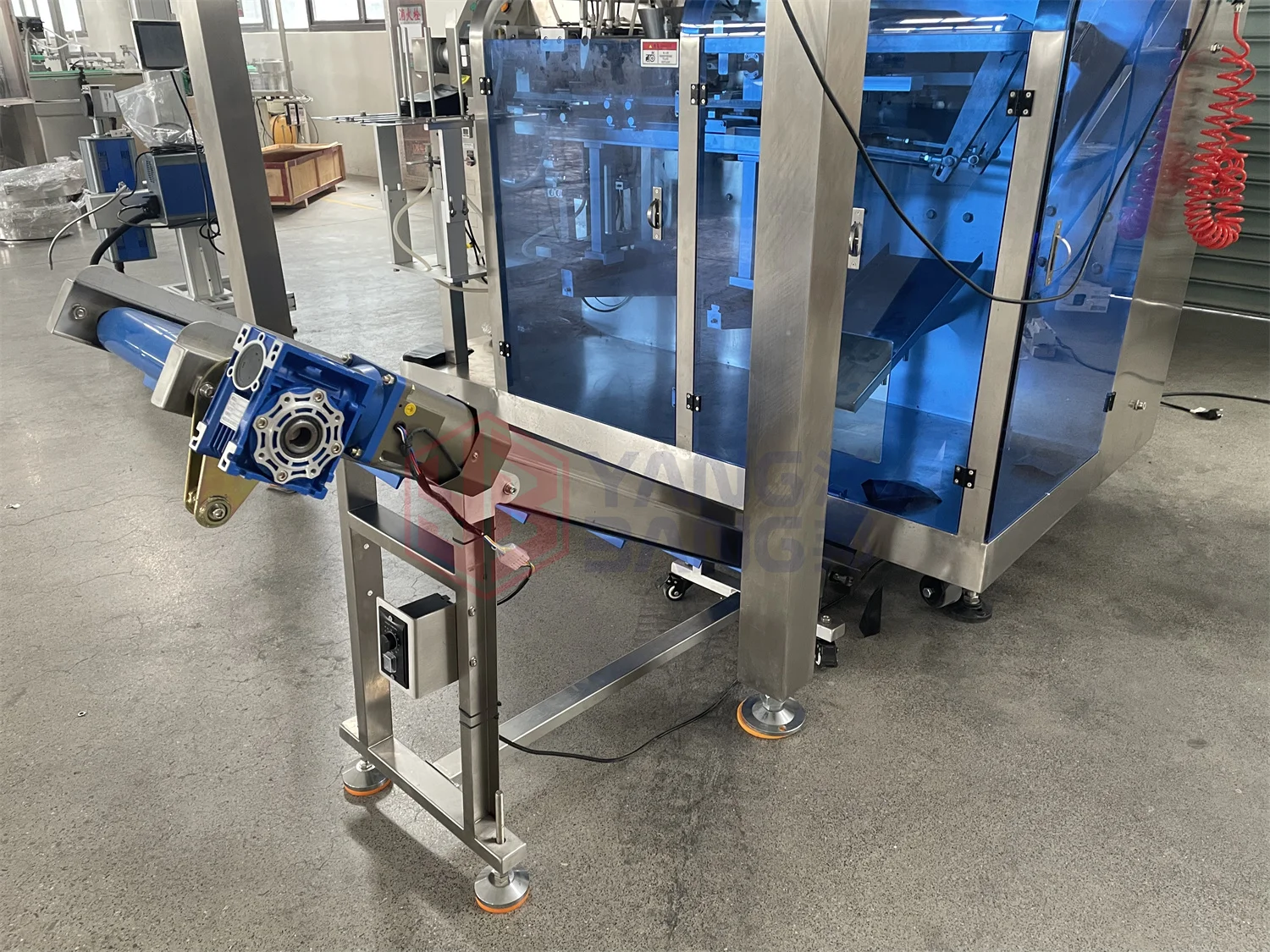

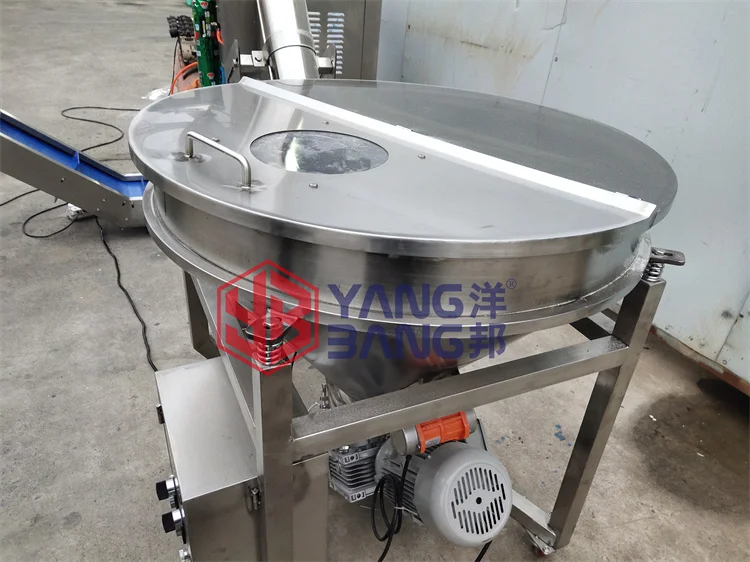

Elevator/ feeding conveyor
Exit conveyor for finished bags/pouches.
Packaging picture
Recommend Products

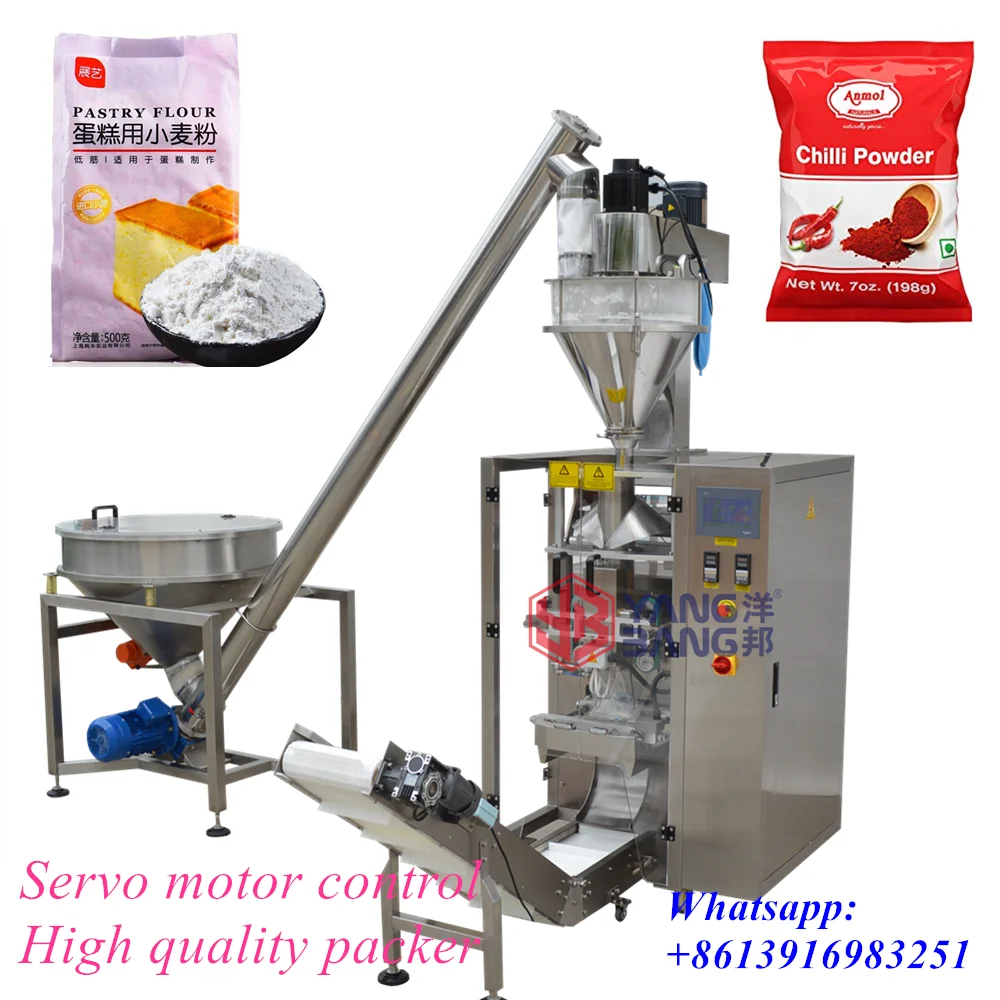

We also YB-520F Powder packing machines work for film roll - Click below
Top Sale! Yangbang Automatic Carton Case Erector - Click below
Namecard
Customer Photos

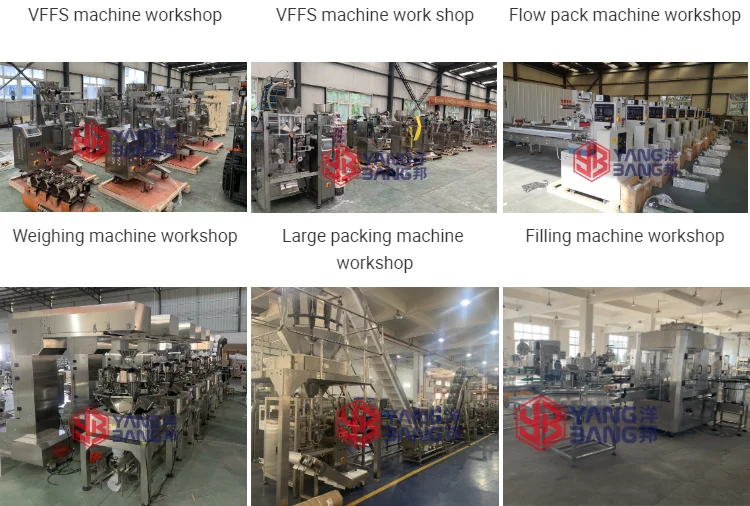

Our workshop
