Hot sale voip product Goip 16 port gsm gateway sip sim asterisk voip gateway sim box gateway voip
- Category: >>>
- Supplier: Shenzhen TYH Technology Co. Ltd.
Share on (1600599258327):
Product Overview
Description
Product Overviews

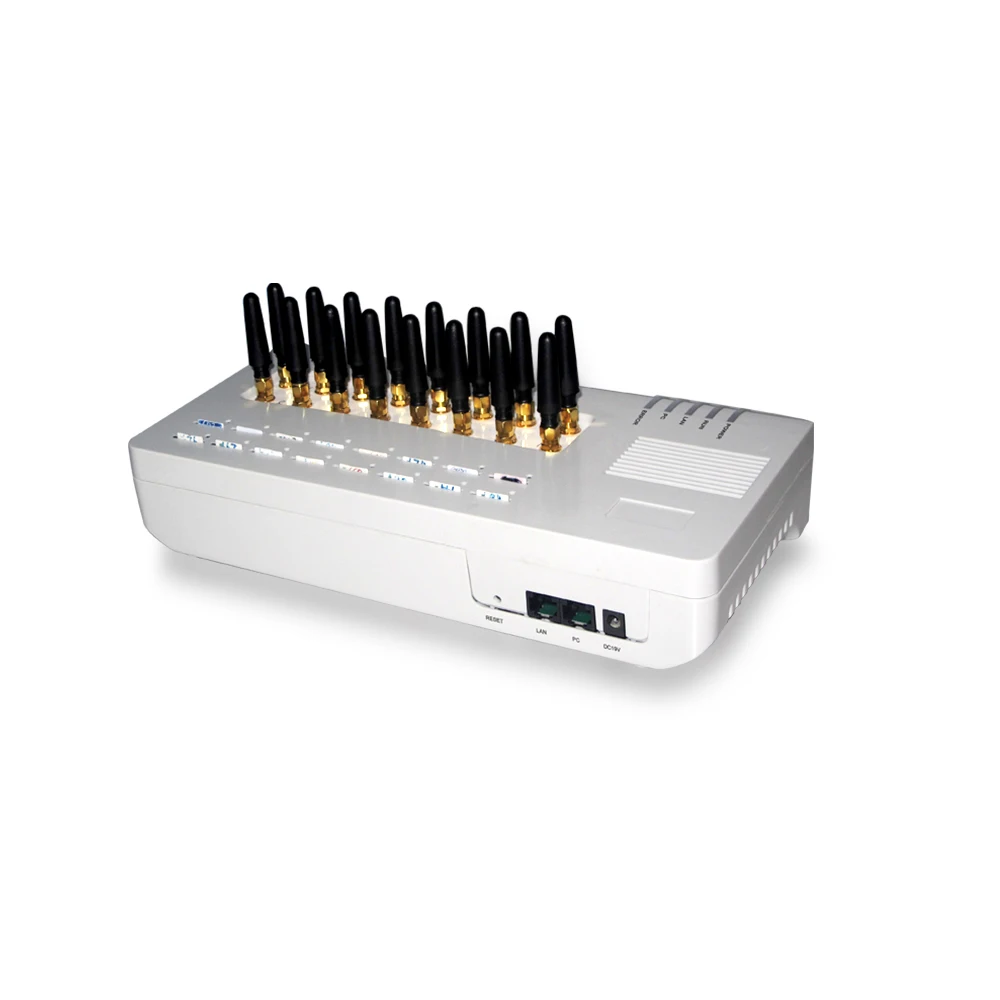

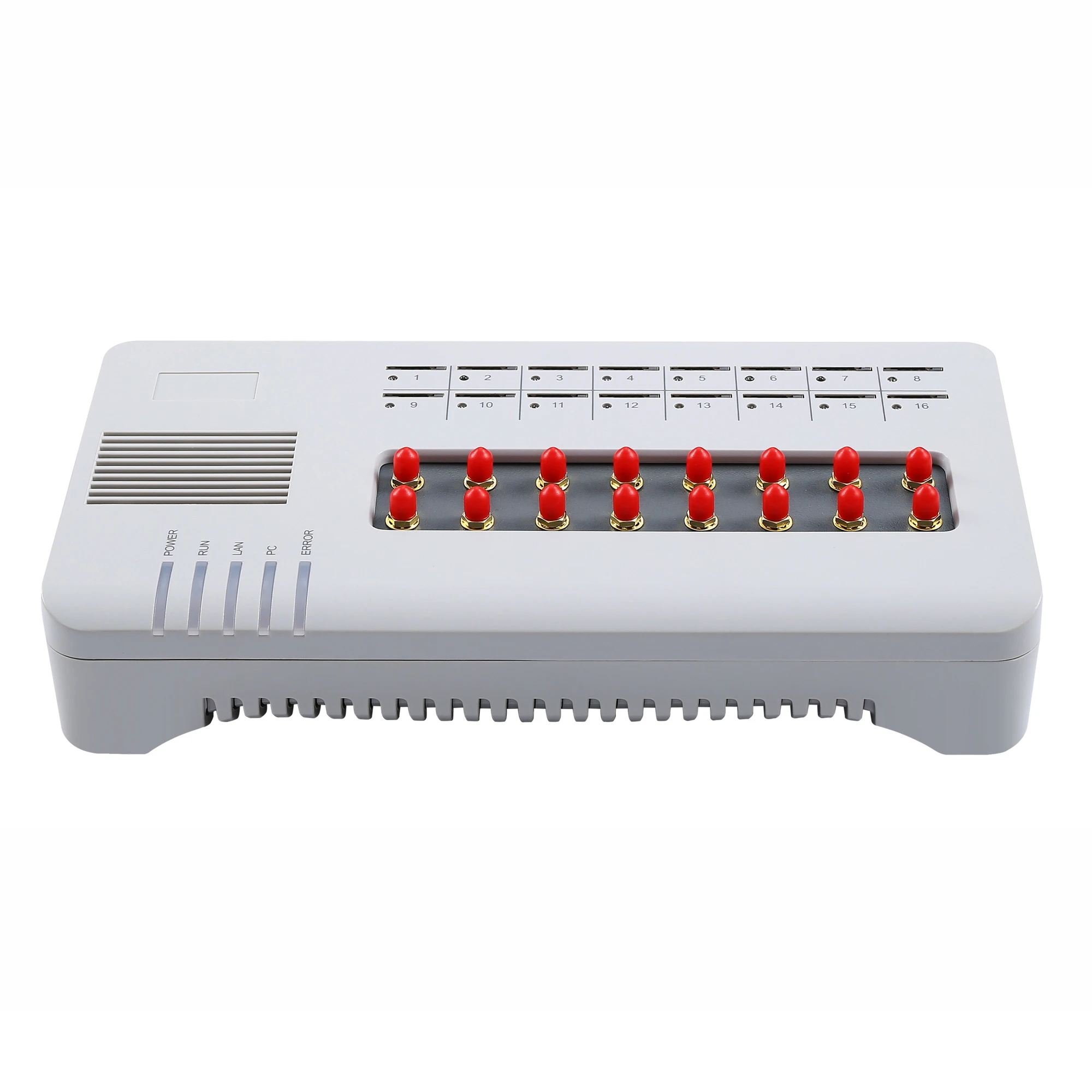

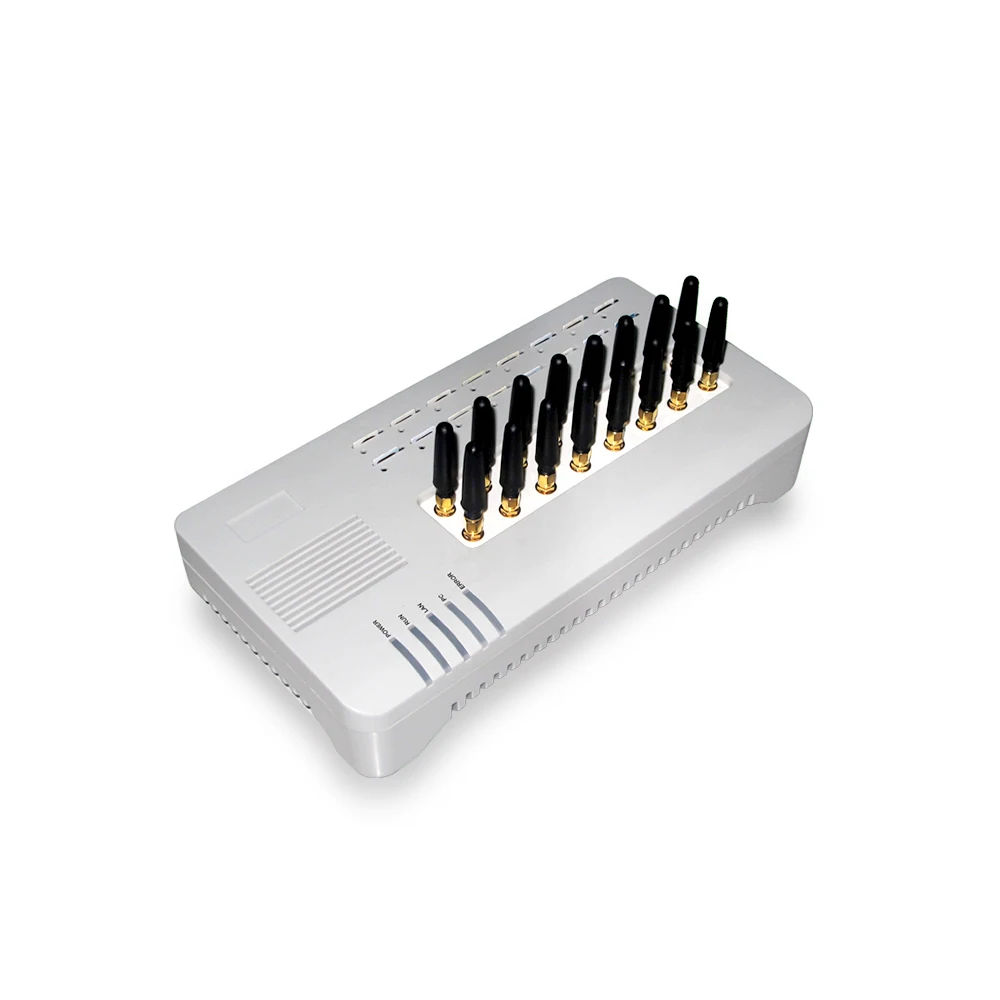

GOIP 16 Brief introduction
GoIP 16 is abbreviated from GSM over IP and WCDMA over IP respectively. This is new types of VoIP gateway that allows call terminations from a VoIP network to cellular networks and vice versa. Call connections between IP networks and cellular networks are now bridged seamlessly to extend the voice communication coverage significantly.
Product Usage
GoIP 16 Applications
1: Call Origination And Termination for VoIP Traffic
a. Call Origination refers to a call initiated from the PSTN or cell phone network is terminated using VoIP.
b. Call Termination refers to a call initiated as a VoIP call is terminated using PSTN or cell phone network.

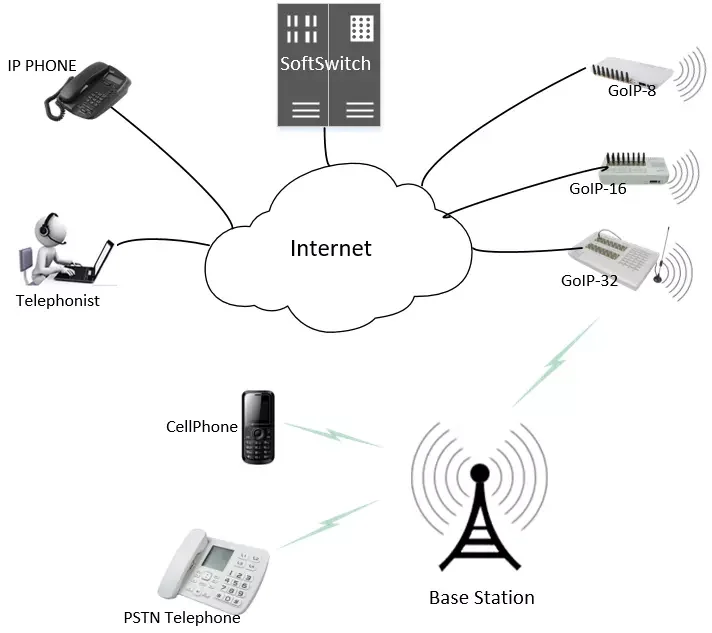

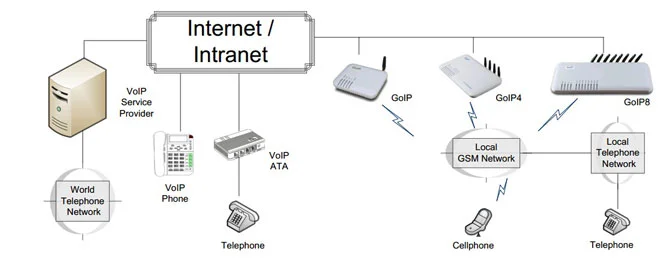

c. As shown in the network topology diagram, a VoIP Service Provider is using GoIPs as call origination and termination devices.
b. Call Termination refers to a call initiated as a VoIP call is terminated using PSTN or cell phone network.
c. As shown in the network topology diagram, a VoIP Service Provider is using GoIPs as call origination and termination devices.

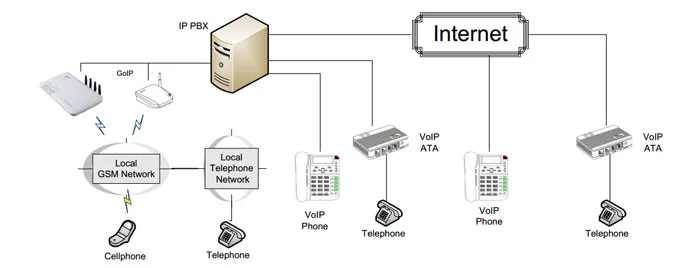

2: IP PBX Call Origination and Termination
a,Instead of FXO gateways, GoIPs are as a call termination and origination device for the IP PBX as shown in the diagram above.
b. VoIP endpoints connected to the IP PBX can make calls to cellular/traditional telephone network via the GoIP GSM ports.
c. Outside callers can then call in via the GoIP GSM ports to reach any of the VoIP endpoints that are registered to the IP PBX.
d. GoIPs can be configured in a group mode such that all GSM ports can be used by just dialing only one GSM number.
b. VoIP endpoints connected to the IP PBX can make calls to cellular/traditional telephone network via the GoIP GSM ports.
c. Outside callers can then call in via the GoIP GSM ports to reach any of the VoIP endpoints that are registered to the IP PBX.
d. GoIPs can be configured in a group mode such that all GSM ports can be used by just dialing only one GSM number.

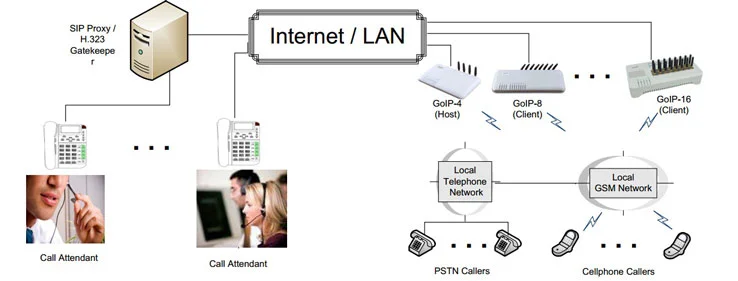

3:Inbound Call Centre for Customer Service
a, Inbound call centre is operated by a company to administer incoming product support or information inquiries from consumers.
b. This application requires customers to call in via a single phone number. Each GSM channel in a GoIP has its own phone number.
In order to achieve calling in via a single number, GoIPs must be configured in a phone group mode with one GoIP as a host and the others as clients.
c. An incoming call to the host GoIP is automatically forwarded to an idle GSM channel in the phone group. The call is then routed to a call attendant via a VoIP connection.
d. Key advantages: quick setup, scalable, portable, low system cost, low operating cost especially used in cellular network no charge on incoming
b. This application requires customers to call in via a single phone number. Each GSM channel in a GoIP has its own phone number.
In order to achieve calling in via a single number, GoIPs must be configured in a phone group mode with one GoIP as a host and the others as clients.
c. An incoming call to the host GoIP is automatically forwarded to an idle GSM channel in the phone group. The call is then routed to a call attendant via a VoIP connection.
d. Key advantages: quick setup, scalable, portable, low system cost, low operating cost especially used in cellular network no charge on incoming
Features
Hardware Features | Hardware Features | ||||||
*ARM processor | *LINUX OS | ||||||
*DSP for voice signal processing | *Built-in Web Server for device configuration | ||||||

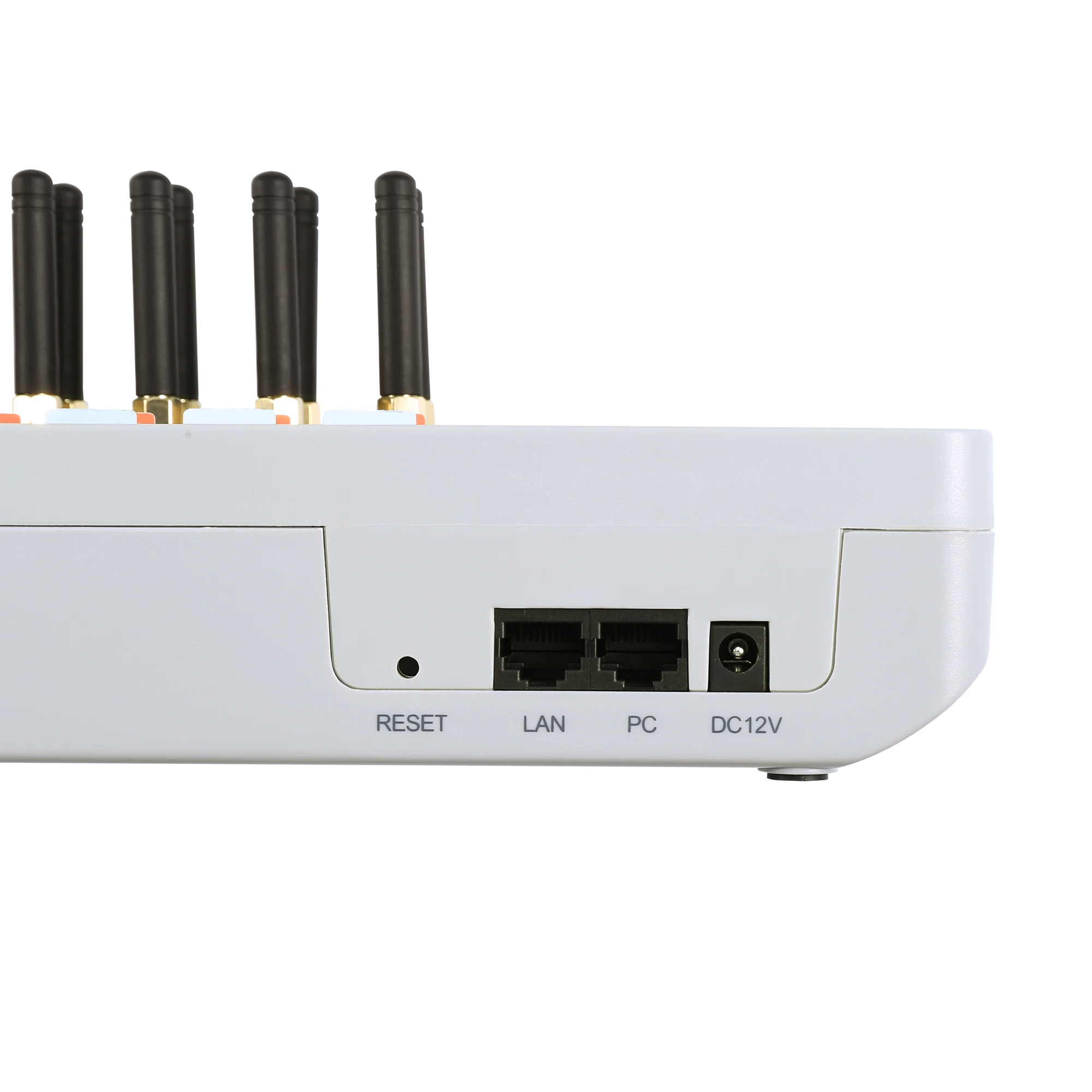

*Two 10/100MB Ethernet ports (IEEE 802.3 standard) with status LEDs | *Built-in SIP Proxy (Simplified) | ||||||
*GoIP: Quadband GSM module (850 / 900 / 1800 / 1900 MHz) | *PPPoE Dial Up Router function | ||||||
*WoIP: UMTS (WCDMA/FDD): 850/900/1900/2100 MHz GSM: 850/900/1800/1900 MHz | *DHCP client & Server | ||||||
*External Antenna (Internal Antenna option for selected models) | *QoS (VLAN) | ||||||
*VPN (PPTP) | |||||||
*Online firmware upgrade | |||||||
*Remote Control Mechanism for remote technical support | |||||||
*Proprietary Auto Provisioning Mechanism | |||||||
*Remote SIM function | |||||||
*Short Messages (SMS) support (standalone and server based) | |||||||
*Call Management and Routing | |||||||
Related Product
Company Profile
About Our Company
SKYLINE INTERNATIONAL COMMUNICATION Co., Ltd. was founded in 2002.We have 200+ employees,15 departments and more than 10 production lines. More than 200 companies have established business with us, and they are from 40 different countries. Our company is a manufacturer of VoIP Gateways, GSM VoIP gateways, with well equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communication industry and other industries.Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
China Skyline Attend ACC 2017 Attending ITW 2018 as Prime Sponsor
Shipping and Package
Shipping:

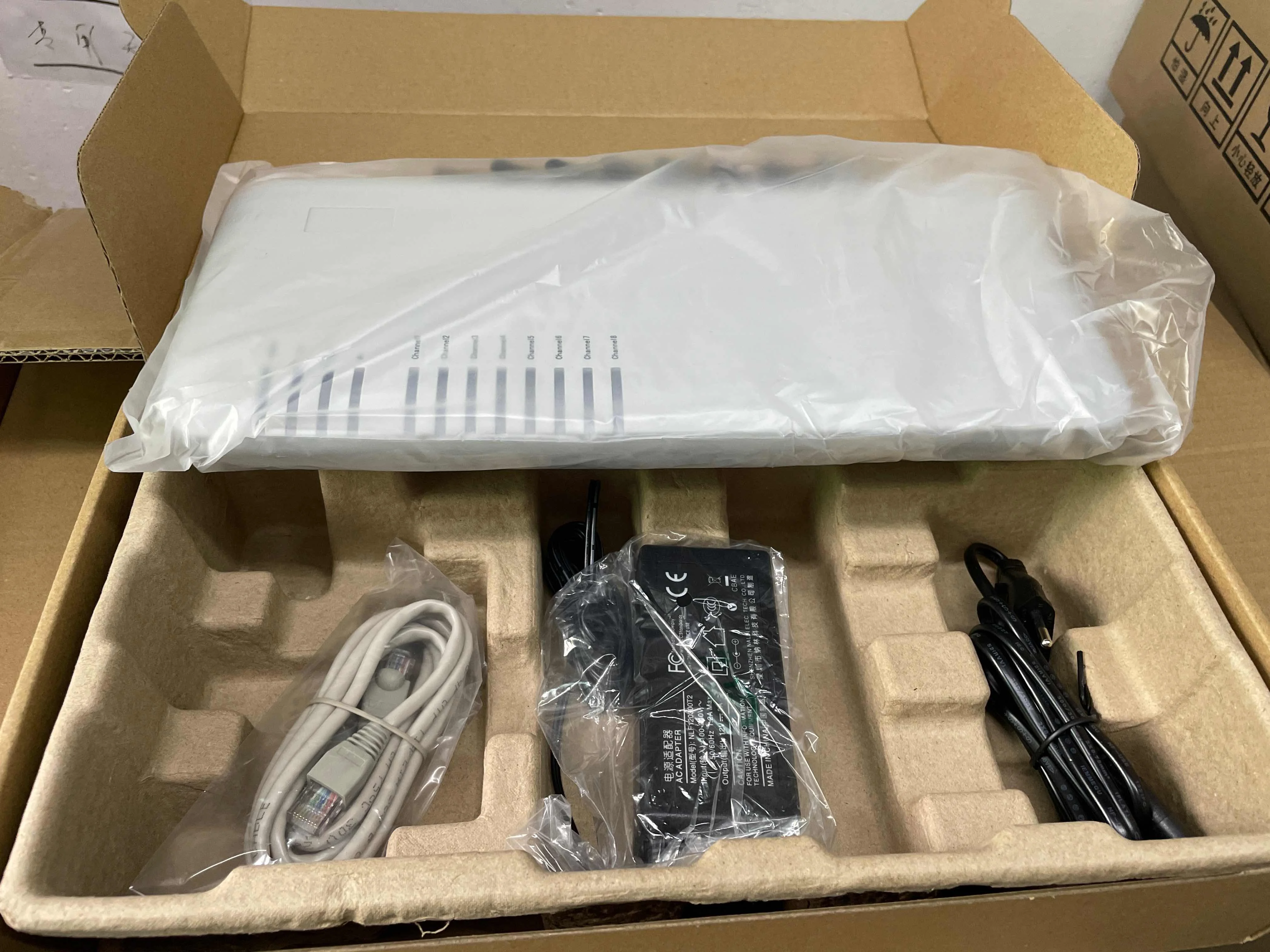

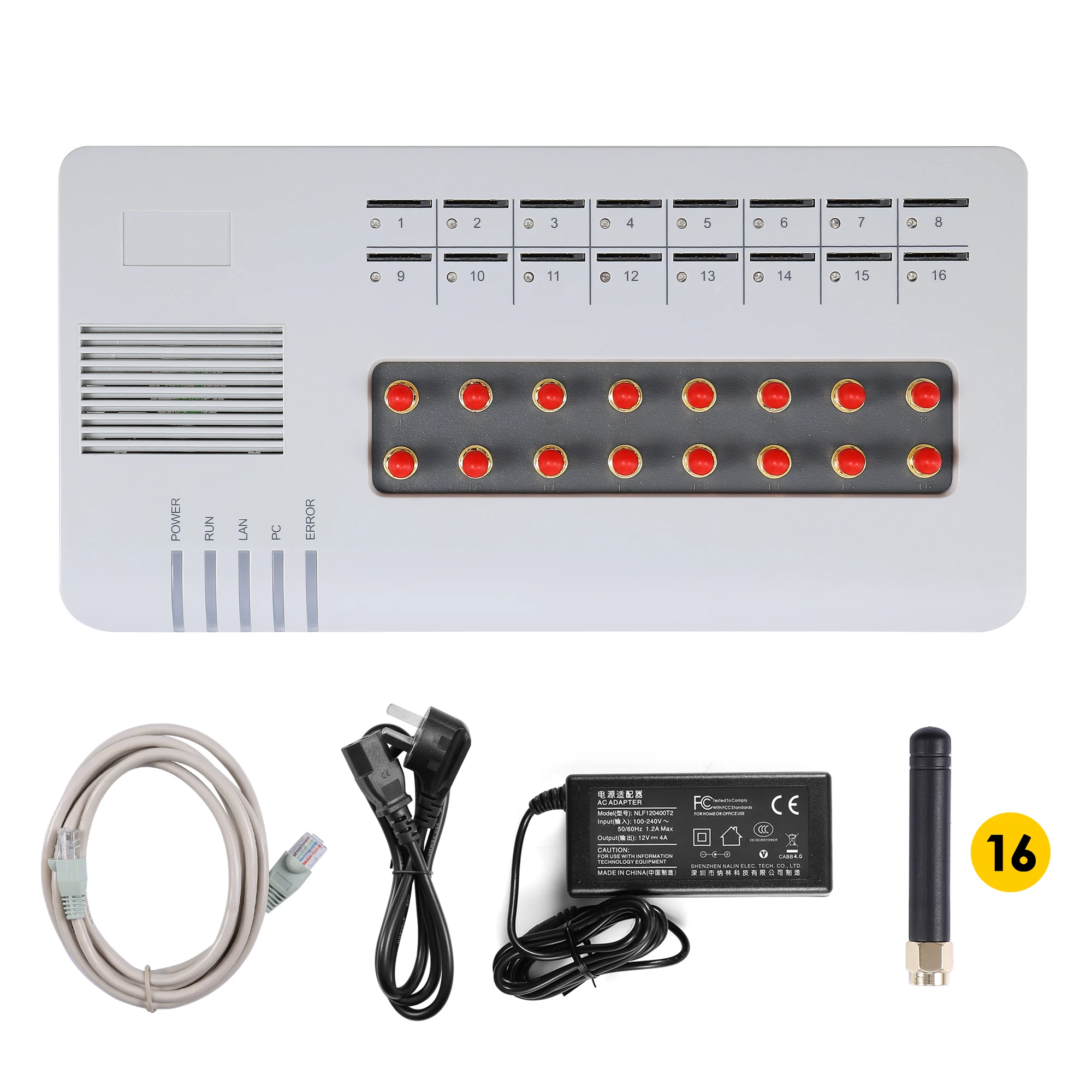

Packing Contents:
1. GOIP 16 DEVICE

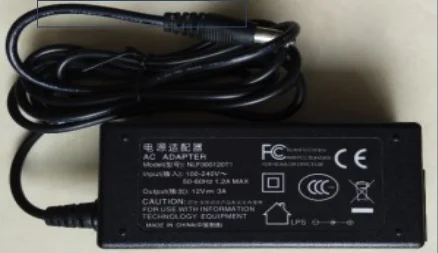

2. GoIP16: 12V/4.5A

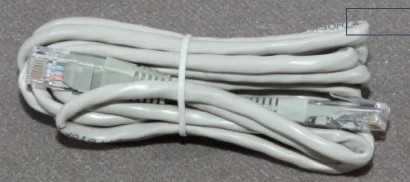

3. 1 x Ethernet CAT5 Cable (2M)
