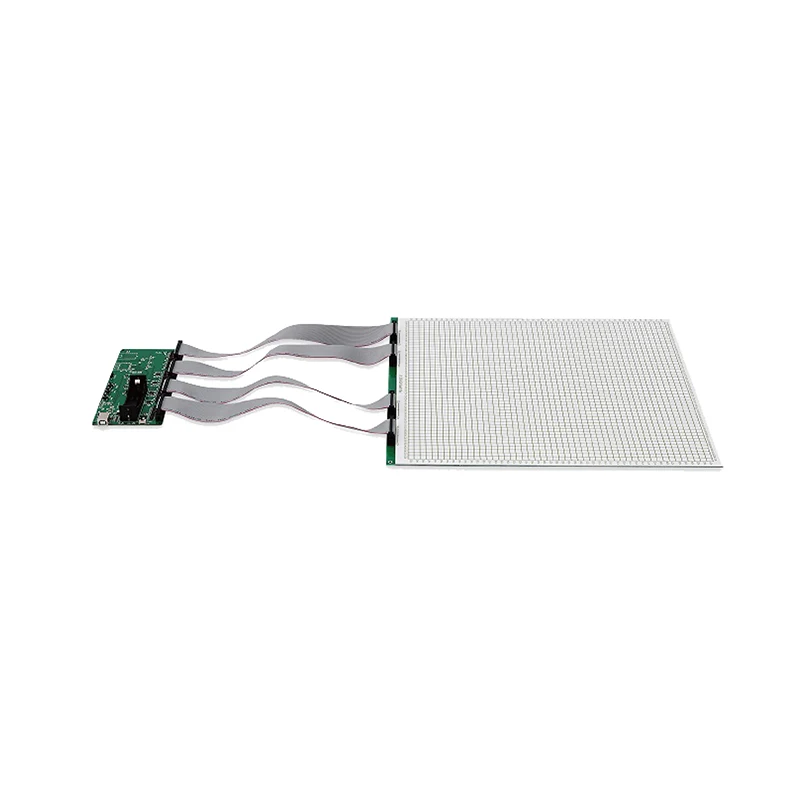

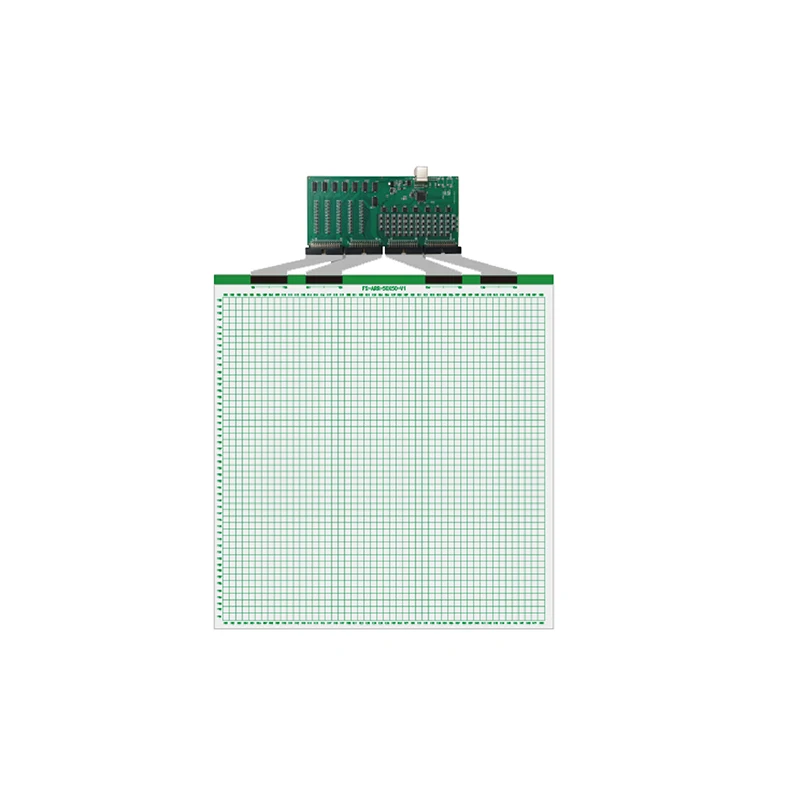

RPPS 2500 Foot track array sensor circuit software for pressure distribution detection and acquisition system
- Category: >>>
- Supplier: Shenzhen Legact Technology Co. Ltd.
Share on (1600599277244):
Product Overview
Description
Product Description

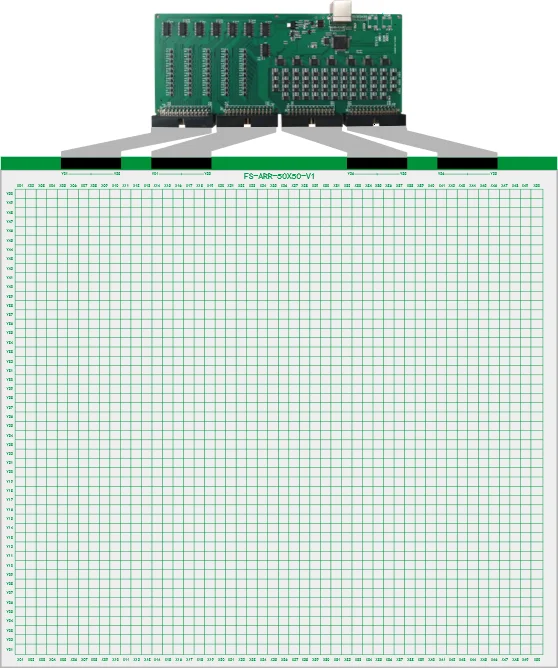

This system is equipped with LEGAC technology’s own sensor FS-ARRY-50*50 matrix sensor, self-developed sensor, hardware and software, developed specifically for pressure distribution measurement. 50*50 matrix thickened and hardened sensors, in terms of performance indicators and service life are greatly enhanced. A matrix pressure sensor with 2500 sensing points, 50 sensing points in the horizontal and vertical directions, one sensing point every 7x7mm, with a sensing point size of 5mm in diameter, is
provided with a sensor schematic and layout diagram, and a hardware communication interface for easy integration into the overall system. This system can be used individually or multiple pieces can be connected to form a runway.
provided with a sensor schematic and layout diagram, and a hardware communication interface for easy integration into the overall system. This system can be used individually or multiple pieces can be connected to form a runway.
Product parameters
Sensor size [mm] | 370 x 385 |
Sensor sensing area size [mm] | 350 x 350 |
Number of sensor points [pcs] | 2500 |
Thickness [mm] | 2 |
Rows | 50x50 |
Individual sensor shape and size [mm] | Round, 7mm diameter |
Individual sensor shape and size [mm] | Round, 7mm diameter |
Transfer frame rate: | 20fps by default (up to 100fps, additional firmware update required) |

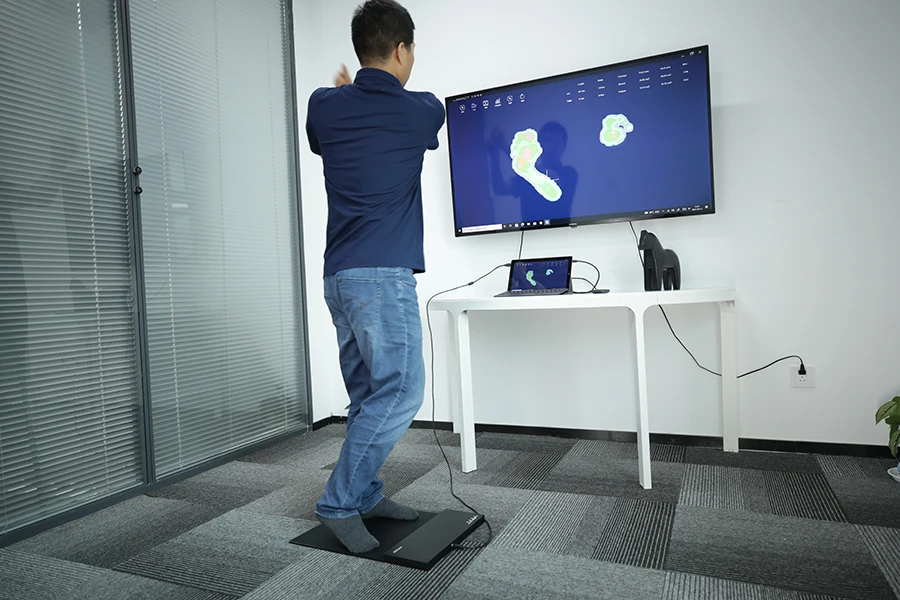

1.Plantar pressure distribution measurement
2. Sitting analysis
3. Gait analysis
4.Analysis of ulcers and pressure sores
5.Analysis of foot neuropathy
2. Sitting analysis
3. Gait analysis
4.Analysis of ulcers and pressure sores
5.Analysis of foot neuropathy
1.Precise sensing
2.Fast response time
3. Long durability life
4. Provide hardware interface
5. Overall dimensions and pressure sensing range sensitivity can be customized according to customer requirements
2.Fast response time
3. Long durability life
4. Provide hardware interface
5. Overall dimensions and pressure sensing range sensitivity can be customized according to customer requirements
Hardware metrics
Input voltage: DC5V (USB-B interface)
Rated power: Less than 5W
Operating temperature: 0 - 50°C
Storage temperature: -15 - 60°C
Operating humidity: 30% - 90% non-condensing
Transfer frame rate: 20fps by default (up to 100fps, additional firmware update required)
Rated power: Less than 5W
Operating temperature: 0 - 50°C
Storage temperature: -15 - 60°C
Operating humidity: 30% - 90% non-condensing
Transfer frame rate: 20fps by default (up to 100fps, additional firmware update required)
Data Format
1. a) Serial port setting: 1 start bit, 8bit data bit, 1 stop bit, arbitrary baud rate (because it is a USB virtual serial port).

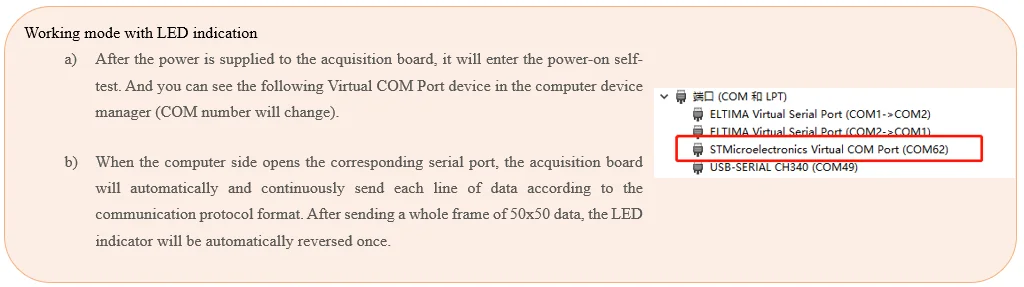

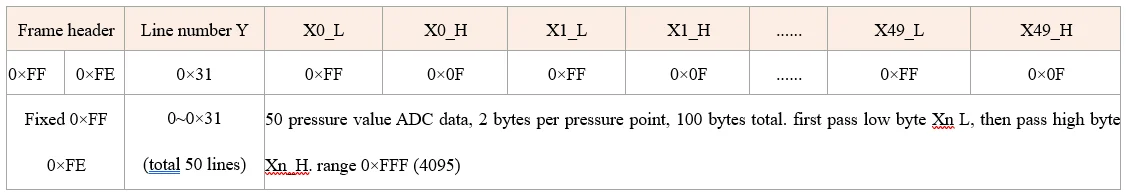

2. b) Active transmission upon power-on, with each line (X0 ~ X49) of data transmitted as one packet. The format is as follows:
2. b) Active transmission upon power-on, with each line (X0 ~ X49) of data transmitted as one packet. The format is as follows:
Sending in a cyclic manner, line by line.

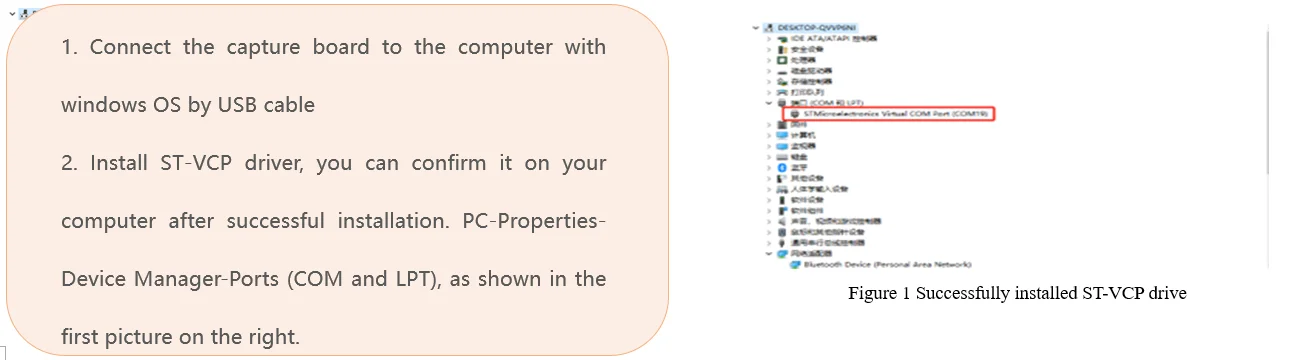

DEMO software operating instructions

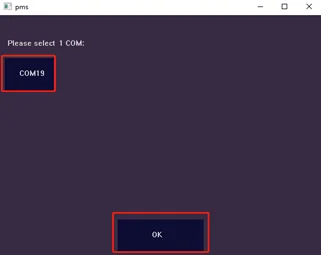

3. Unzip the "Array sensor demo software" file, as shown in Figure 2 on the right.

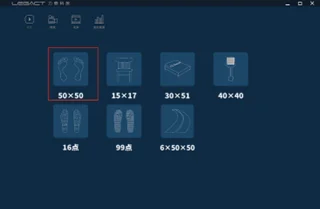

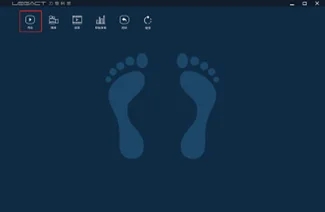

Software interface description
Start: Start the test.
Playback: Play the recorded screen file.
Record Screen: Record the thermal cloud and raw data during the test, which is automatically stored in the application's directory as a file with a CSV suffix.
Raw data: Raw data collected, the data is not pressure value, it is digital AD value, for accurate pressure value, additional calibration and development of calibration equipment is required.
Return: Return to the previous level.
Rotate: Rotates the direction of the thermal cloud.
Playback: Play the recorded screen file.
Record Screen: Record the thermal cloud and raw data during the test, which is automatically stored in the application's directory as a file with a CSV suffix.
Raw data: Raw data collected, the data is not pressure value, it is digital AD value, for accurate pressure value, additional calibration and development of calibration equipment is required.
Return: Return to the previous level.
Rotate: Rotates the direction of the thermal cloud.
Company Introduction
Shenzhen Legact Technology Co., Ltd. is a subsidiary company of Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences.
Our sensing solution products include force sensitive resistor (FSR sensor), piezoelectric film sensor, array sensor,pressure mapping system, sleep monitoring sensor and sleep monitoring system.
What we can do

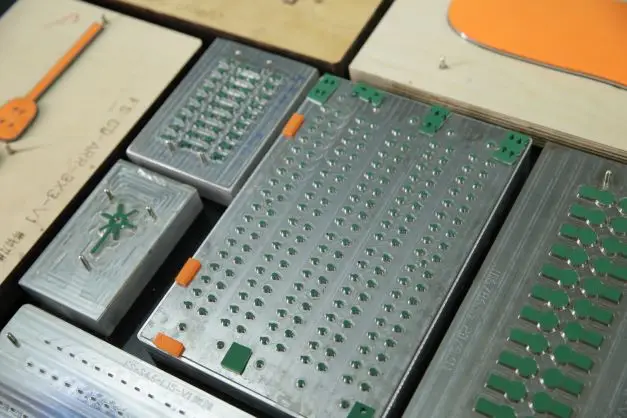

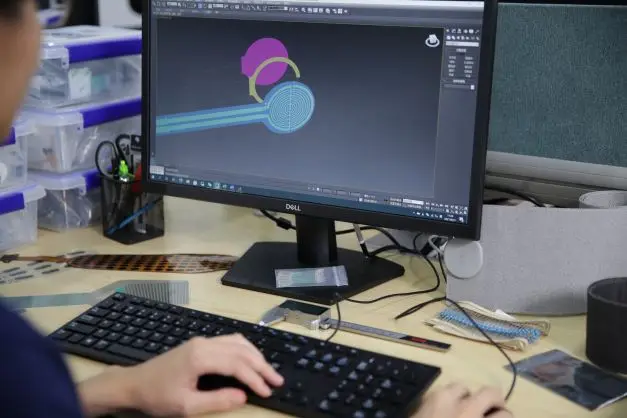

FSR Sensor R&D Prototype, Development Manufacturing and Customization
Sensor Fiber Cover Protection
Firmware Development

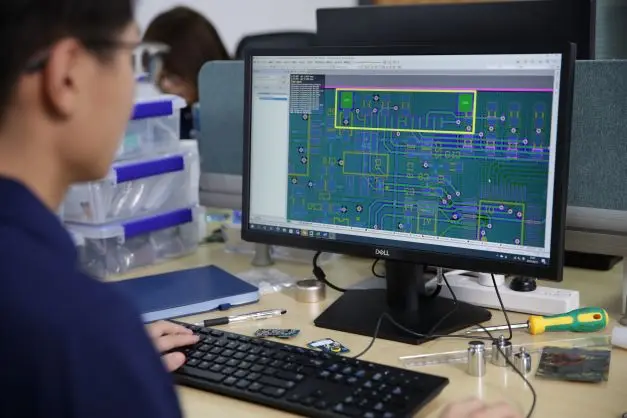

Hardware Design
PCB Production
PCB Assembly
Firmware Development
Hardware Design
PCB Production
PCB Assembly
Factory Demonstration

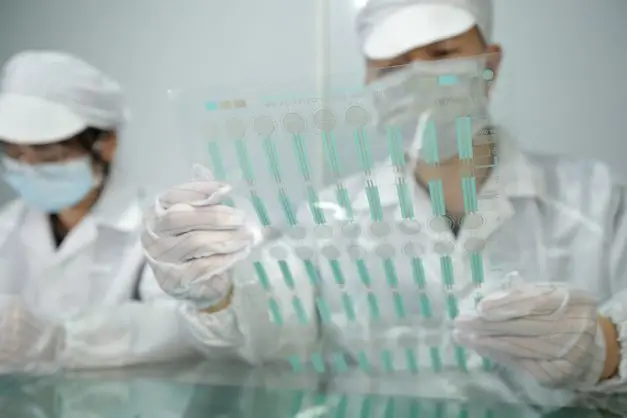

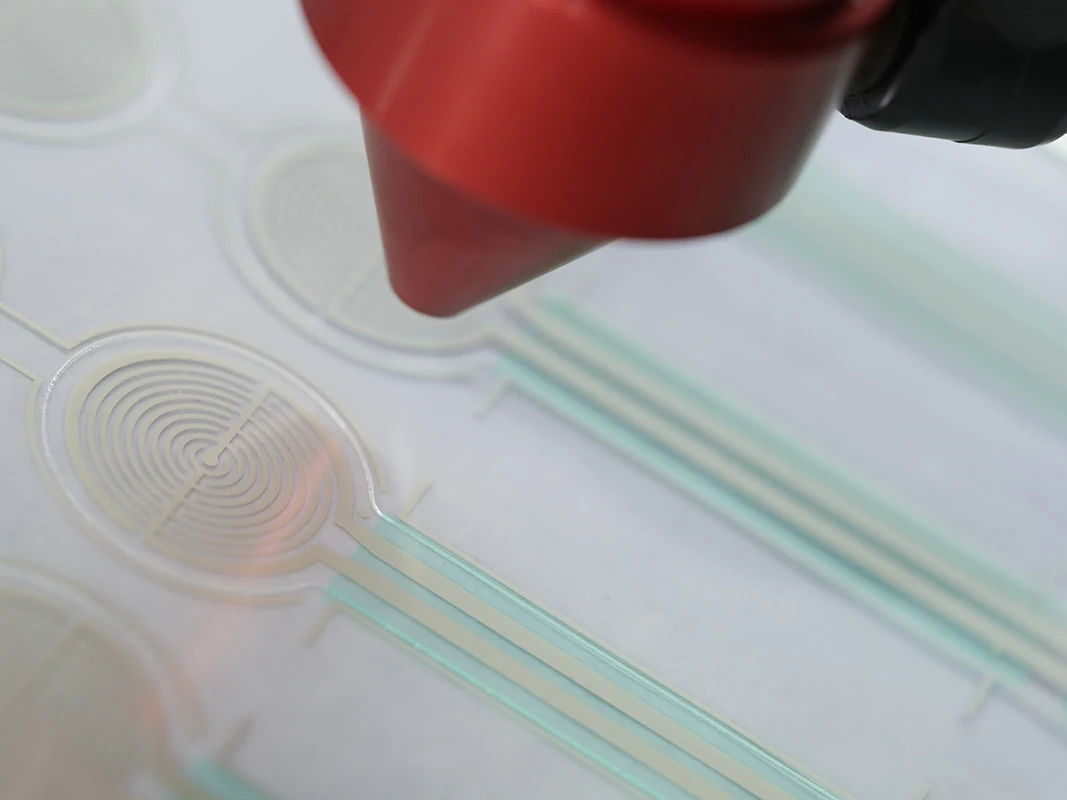

Force sensing resistor ( FSR sensor)
