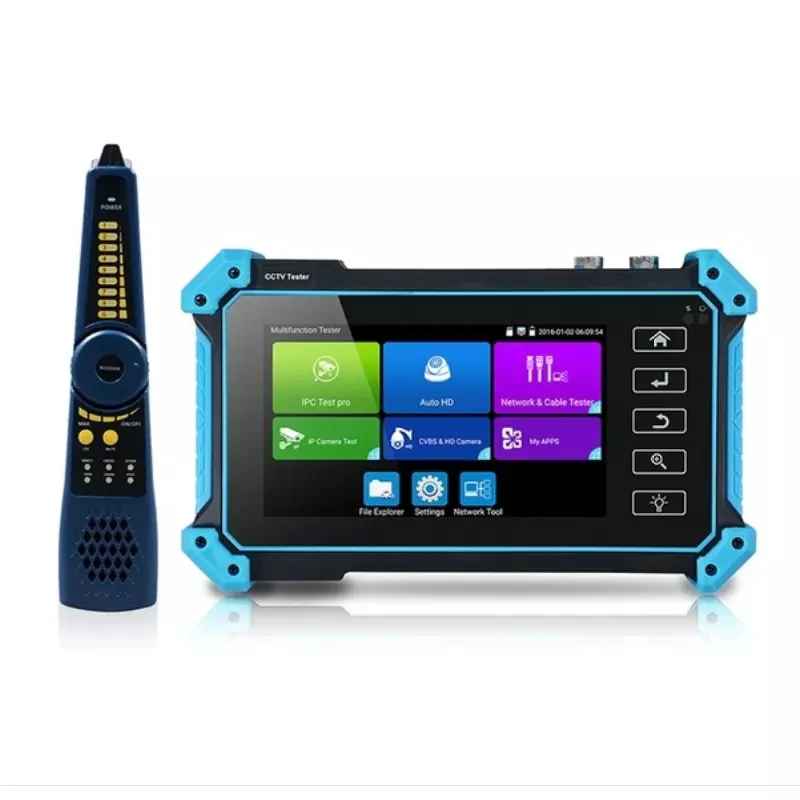

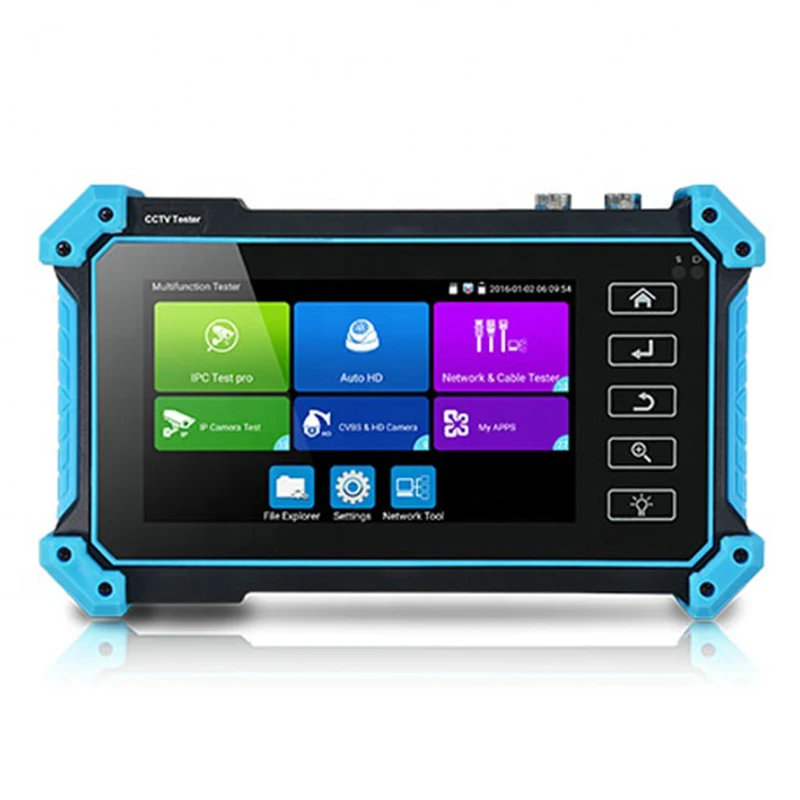

Factory Camera IPC CCTV Tester 5200 5000 Plus AHD CVI TVI SDI IP CVBS 8MP IPC 5100P CCTV Tester
- Category: >>>
- Supplier: Igreenview Optoelectronic Co. Ltd.
Share on (1600599277338):
Product Overview
Description
Features/ Model | 5 inch tester + IP+Analog+TVI CVI AHD+ HDMI-output IPC5000P | 5 inch tester +IP+Analog+TVI CVI AHD+VGA input + HDMI-input IPC5100P | 5 inch tester +IP+Analog+ TVI CVI AHD+SDI/EX SDI+VGA input + HDMI-input IPC5200P |
8MP AHD | V | V | V |
8MP TVI | V | V | V |
8MP CVI | V | V | V |
4K IP /Analog | V | V | V |
Snapshot, Video recording | V | V | V |

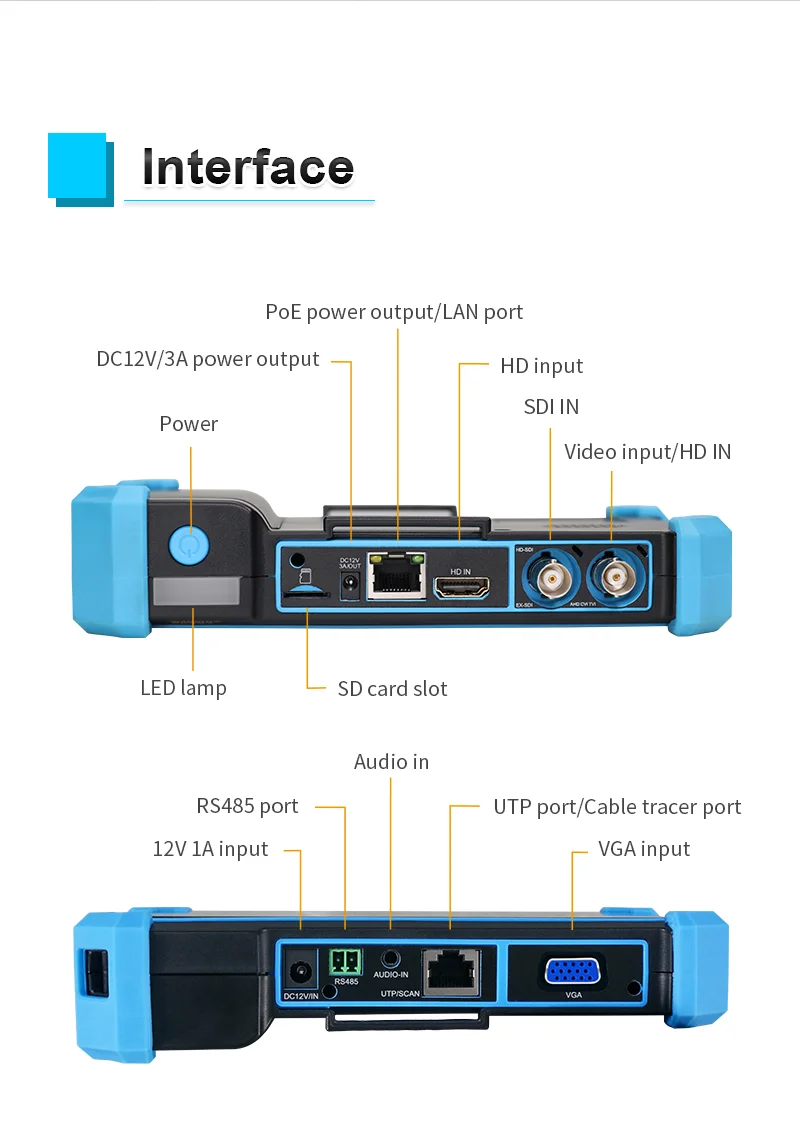

DC12V 3A /48V PoE output | V | V | V |
HD-SDI/3G-SDI/EX-SDI 2.0* | X | X | V |
HDMI output* | V | X | X |
HDMI INPUT 4K 30 FPS* | X | V | V |
VGA IN* | X | V | V |
Battery | 2600mAh | 3350mAh | 3350mAh |
Working hours | 5 hours | 6 hours | 6 hours |
Digital Cable tracer* | Optional | Optional | Optional |
Upgrade UTP cable test, check fault of RJ45 cable plug | v | v | v |
IPC-5000 PlusSupport 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog test
IPC-5100 PlusSupport 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP+Analog+HDMI-compatible IN+VGA IN test
IPC-5200 PlusSupport 8MP TVI+8MP CVI+8MP AHD+SDI+4K H.265 IP+Analog+EX-SDI/HD-SDI+HDMI-compatible IN+VGA IN test.
Specification

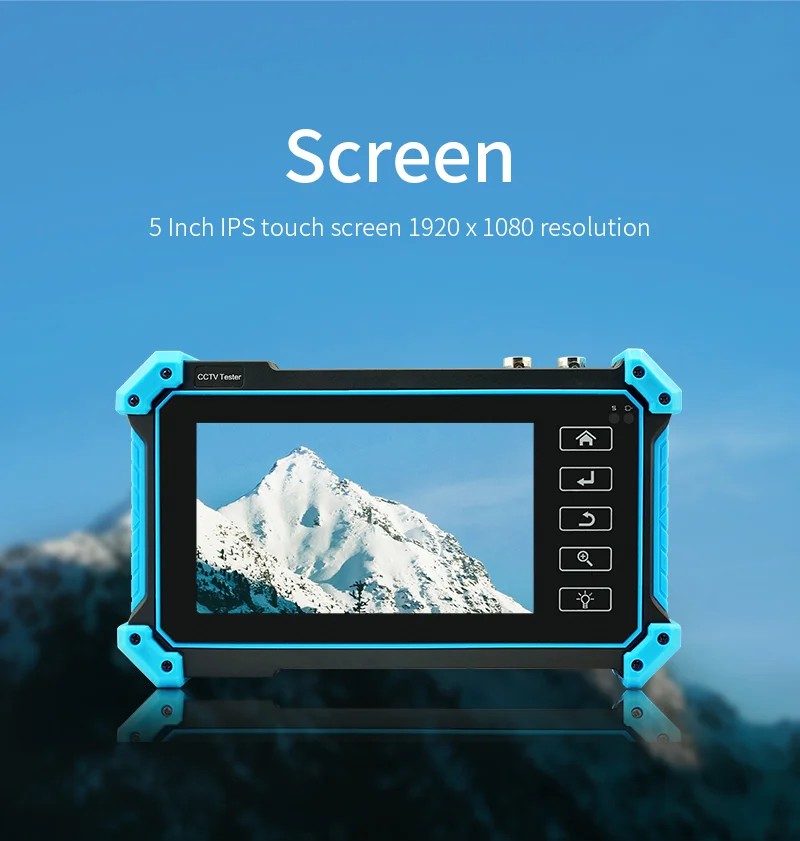

> 5 inch IPS touch screen, 1920x1080 resolutions
> 8MP CVI/ TVI/ AHD camera test
> 8MP EX-SDI, HD-SDI, 3G-SDI test*
> H.265/H.264, 4K video display via mainstream

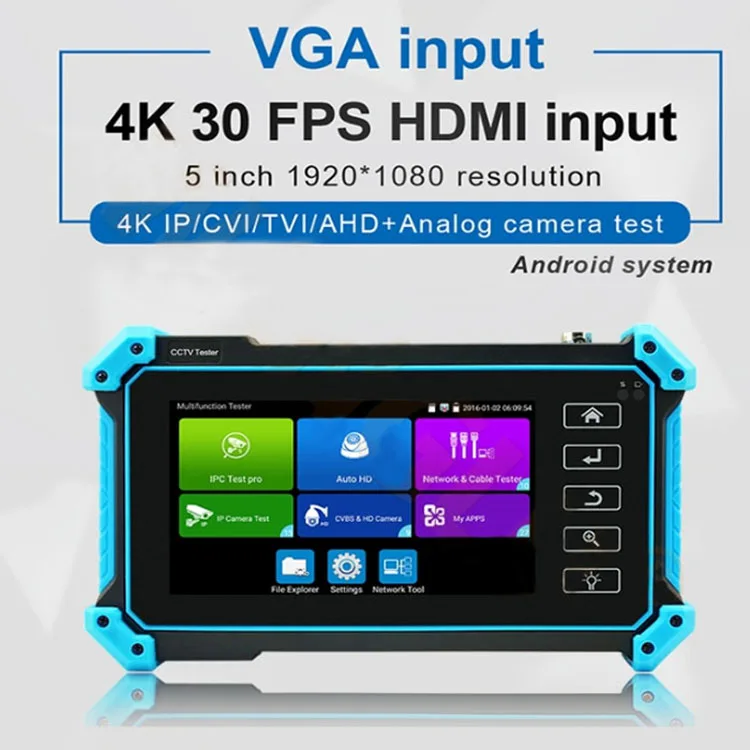

> VGA input, support 1920 x 1200P 60FPS*
> HDMI-Input, support 4K 30FPS*
> DC12V 3A, 48V PoE power output
> Rapid ONVIF, Create the test report and modify IP address, etc
> Auto HD, auto recognize HD coax camera type and resolution
> RJ45 TDR cable test, cable quality test
> UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head
> 5 inch IPS touch screen, 1920x1080 resolutions
> 8MP CVI/ TVI/ AHD camera test
> 8MP EX-SDI, HD-SDI, 3G-SDI test*
> H.265/H.264, 4K video display via mainstream
> VGA input, support 1920 x 1200P 60FPS*
> HDMI-Input, support 4K 30FPS*
> DC12V 3A, 48V PoE power output
> Rapid ONVIF, Create the test report and modify IP address, etc
> Auto HD, auto recognize HD coax camera type and resolution
> RJ45 TDR cable test, cable quality test
> UTP cable test, detect the near-end, mid-end and far-end fault point
of the network cable crystal head
Application:
* CCTV system installation and maintenance
* Network cabling project installation and maintenance
* Dome camera, 4K H.265 IP camera testing
* Video transmission channel testing
* PTZ controller
* Network cabling project installation and maintenance
* Dome camera, 4K H.265 IP camera testing
* Video transmission channel testing
* PTZ controller
Camera test:
>5 inch IPS touch screen, 1920*1080 resolution
> H.265 & H .264 IP, 4K video display via mainstream
> Analog camera test, PTZ controller
> 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
> 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
> 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
> 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )
> HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )
> 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )

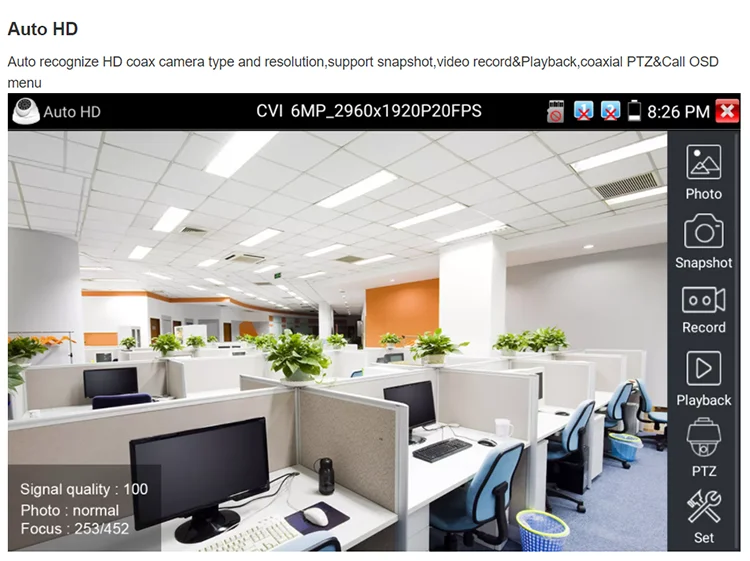

> Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call
OSD menu

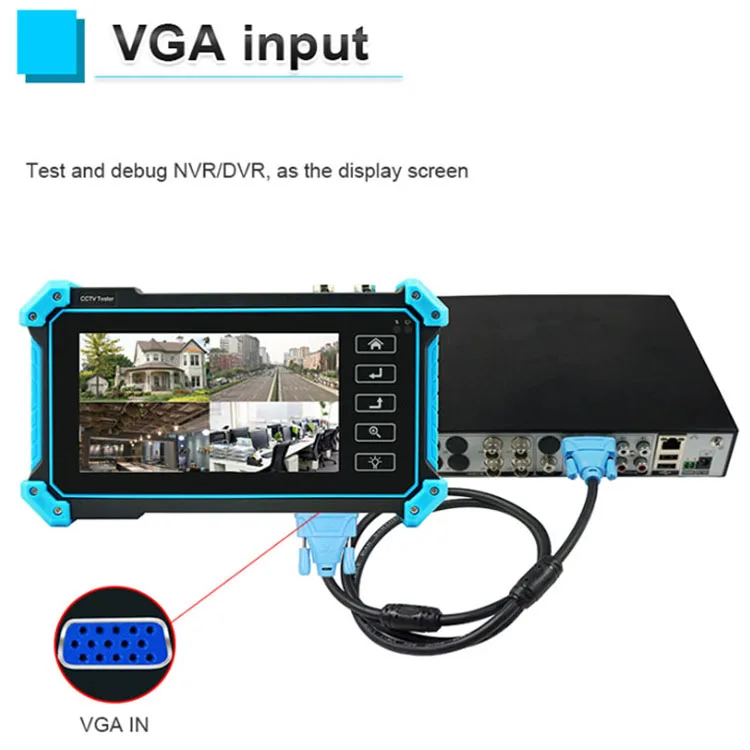

> VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback* (only for IPC5100P , IPC5200P )

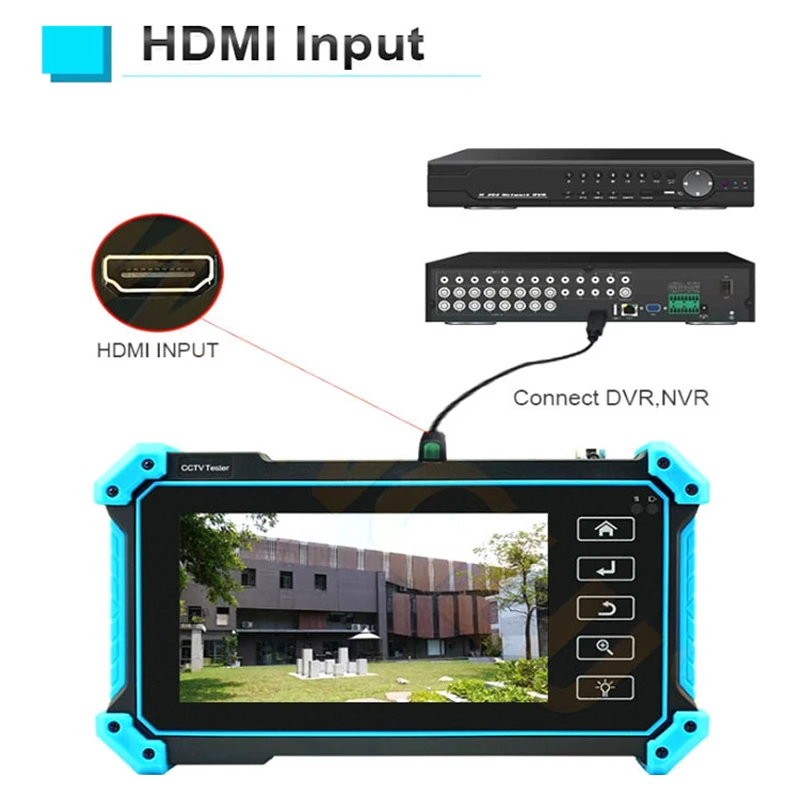

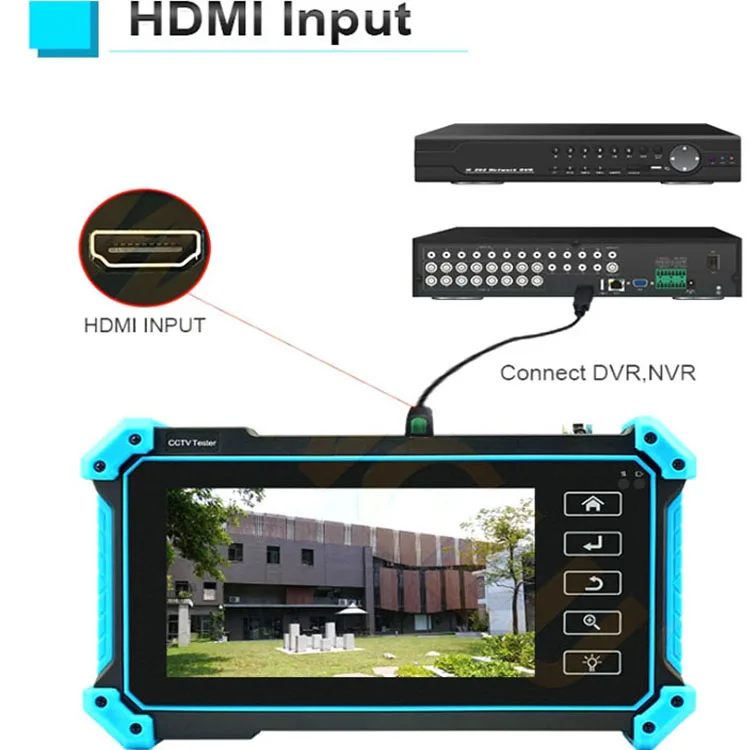

> HDMI-Input, up to 4K 30FPS, support snapshot, video record & playback*(only for IPC5100P , IPC5200P )

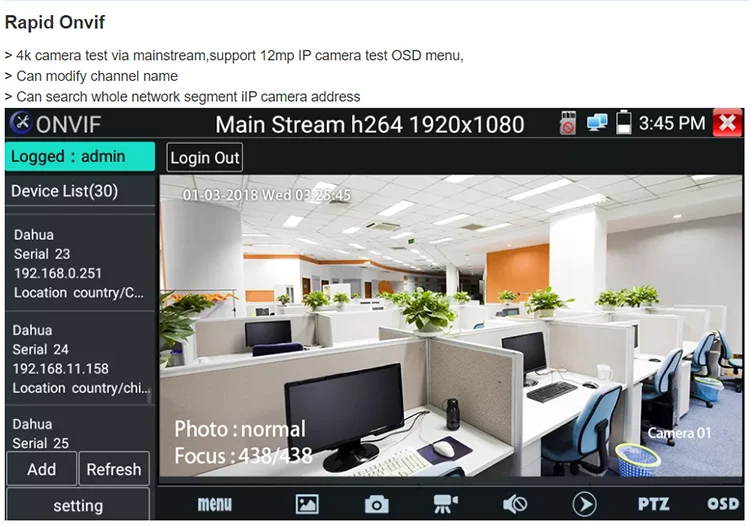

> Rapid ONVIF, Auto log in and display image, create testing report

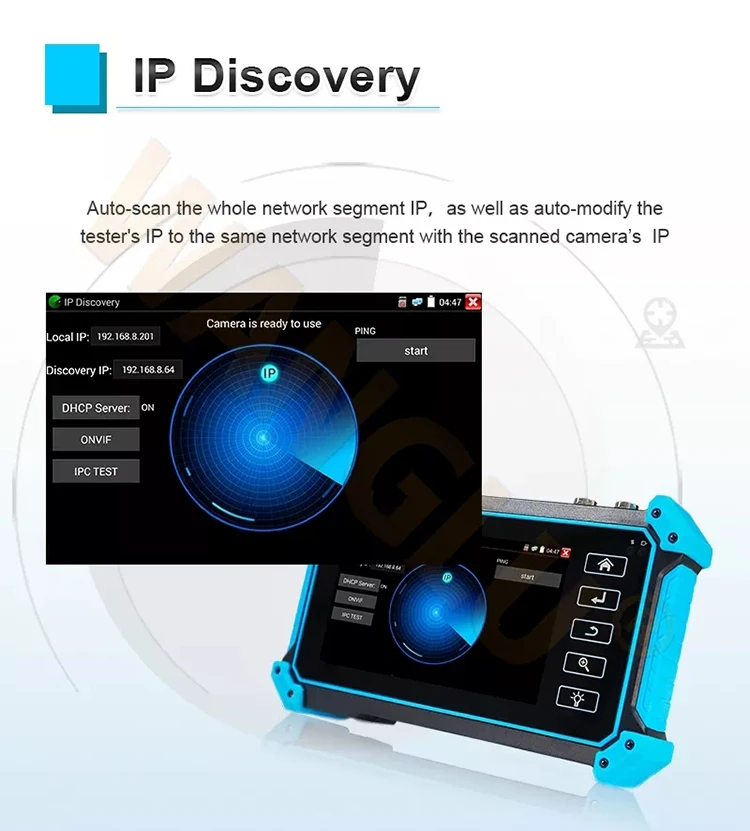

> IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can
scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
> AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
> HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify
channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
> Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel
name
> IP and analog display image at the same time
> IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

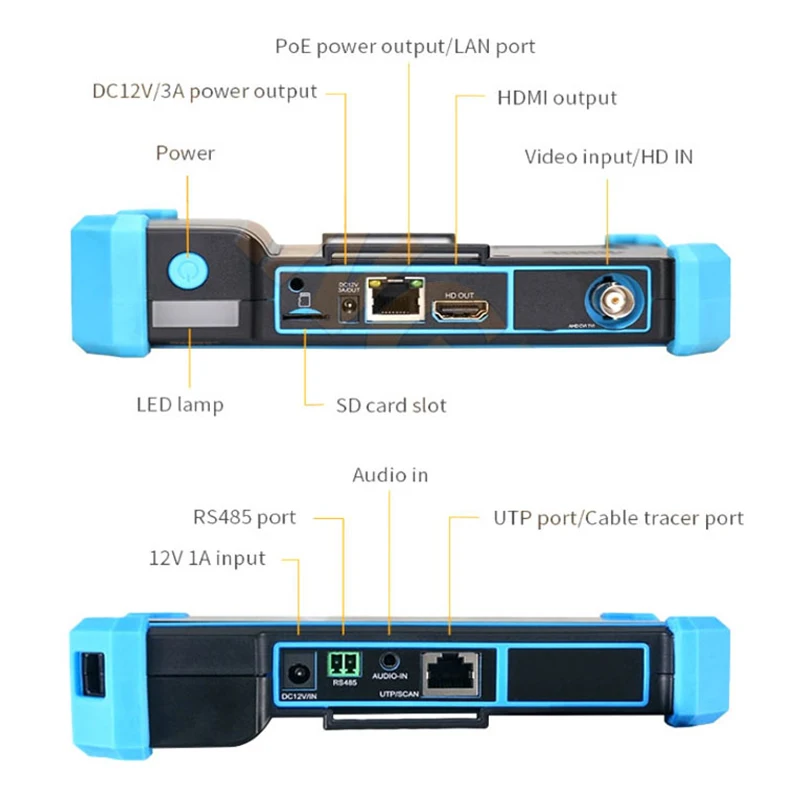

> DC12V/3A power output, camera can be powered from DC 12 Voltage
> Rapid video, just by one key to detect all network cameras and auto display
> Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:

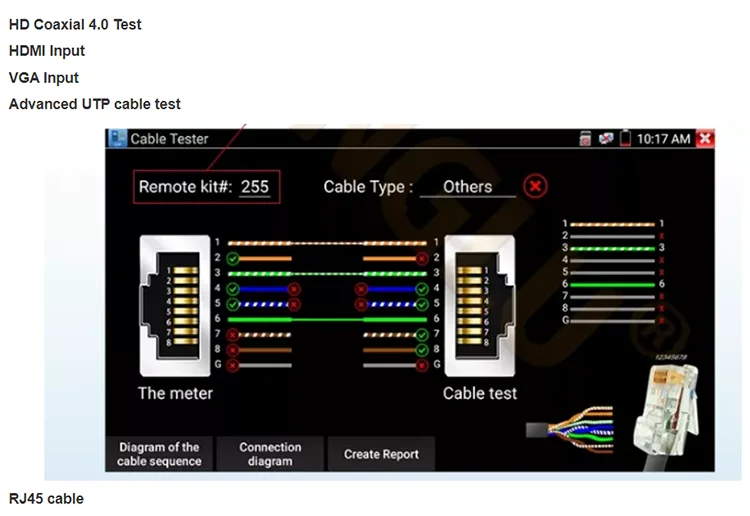

> Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special
number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

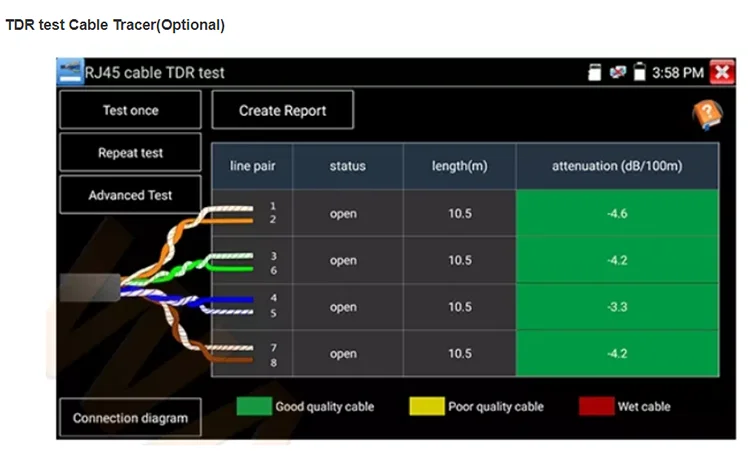

> RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report
> Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can
test at the same time * it is optional , if you need this one , pelase contact me .
Other Functions:
> Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
> Tester Play: Tester, android version mobile phone and PC display at the same time
> Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
> Customers self-update software, you can install apps with android version
> Media player, 4K video files and MKV/MP4 media files play
> Display its genuine resolution of the IP camera images
> Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
> 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 Plus and IPC-5200 Plus)
> 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)
>5 inch IPS touch screen, 1920*1080 resolution
> H.265 & H .264 IP, 4K video display via mainstream
> Analog camera test, PTZ controller
> 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu
> 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
> 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
> 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )
> HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )
> 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu* (only for IPC5200P )
> Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call
OSD menu
> VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback* (only for IPC5100P , IPC5200P )
> HDMI-Input, up to 4K 30FPS, support snapshot, video record & playback*(only for IPC5100P , IPC5200P )
> Rapid ONVIF, Auto log in and display image, create testing report
> IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can
scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools.
> AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
> HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify
channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
> Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel
name
> IP and analog display image at the same time
> IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
> DC12V/3A power output, camera can be powered from DC 12 Voltage
> Rapid video, just by one key to detect all network cameras and auto display
> Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test:
> Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special
number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
> RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report
> Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can
test at the same time * it is optional , if you need this one , pelase contact me .
Other Functions:
> Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
> Tester Play: Tester, android version mobile phone and PC display at the same time
> Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
> Customers self-update software, you can install apps with android version
> Media player, 4K video files and MKV/MP4 media files play
> Display its genuine resolution of the IP camera images
> Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
> 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 Plus and IPC-5200 Plus)
> 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)
