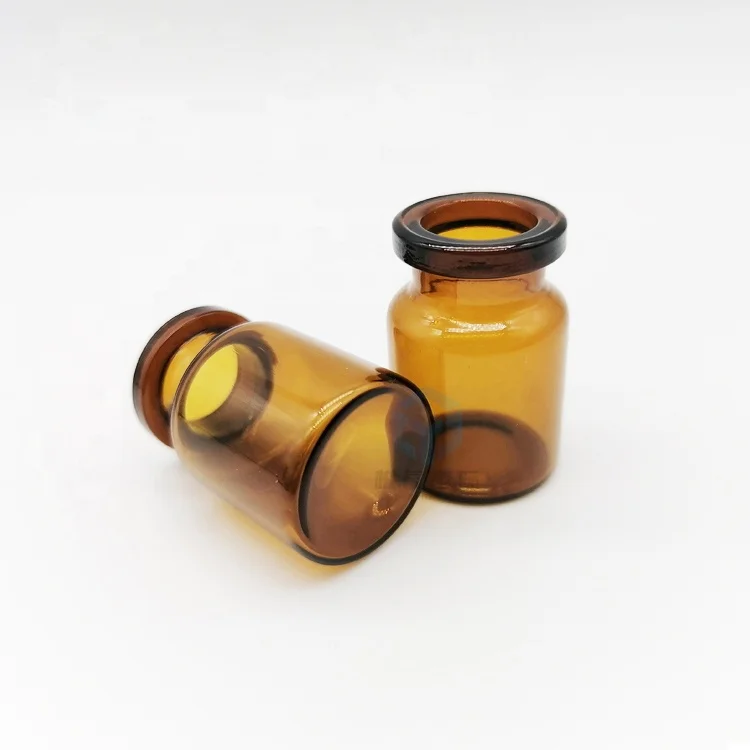

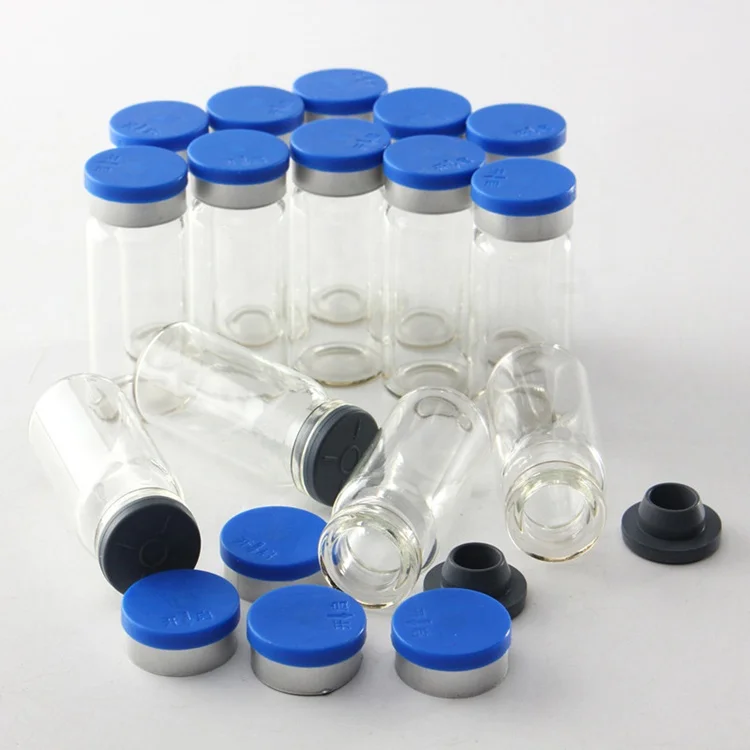

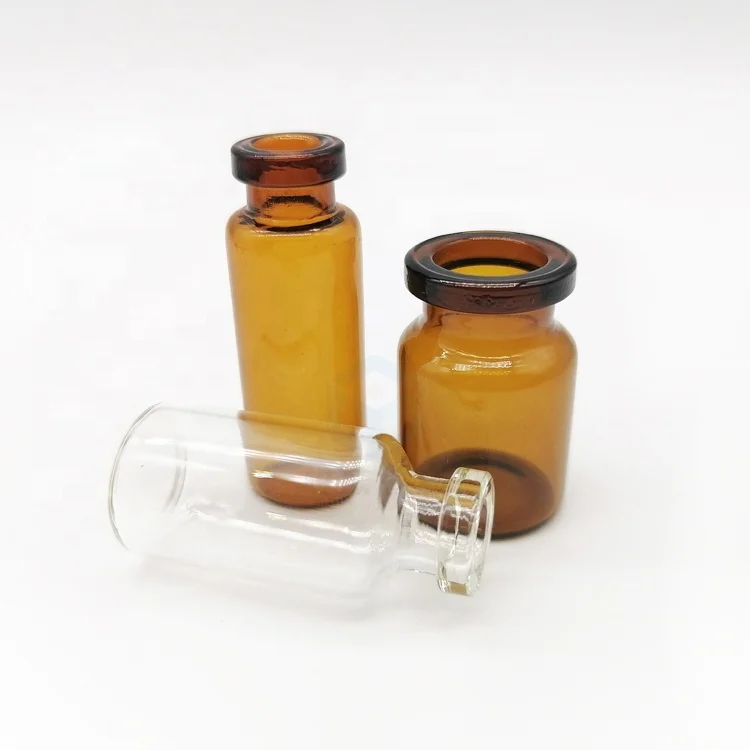

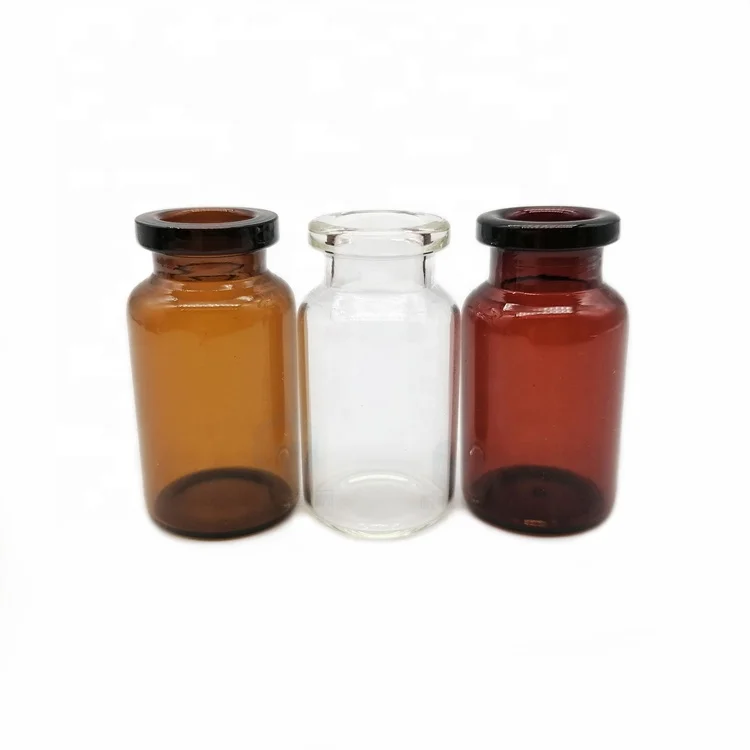

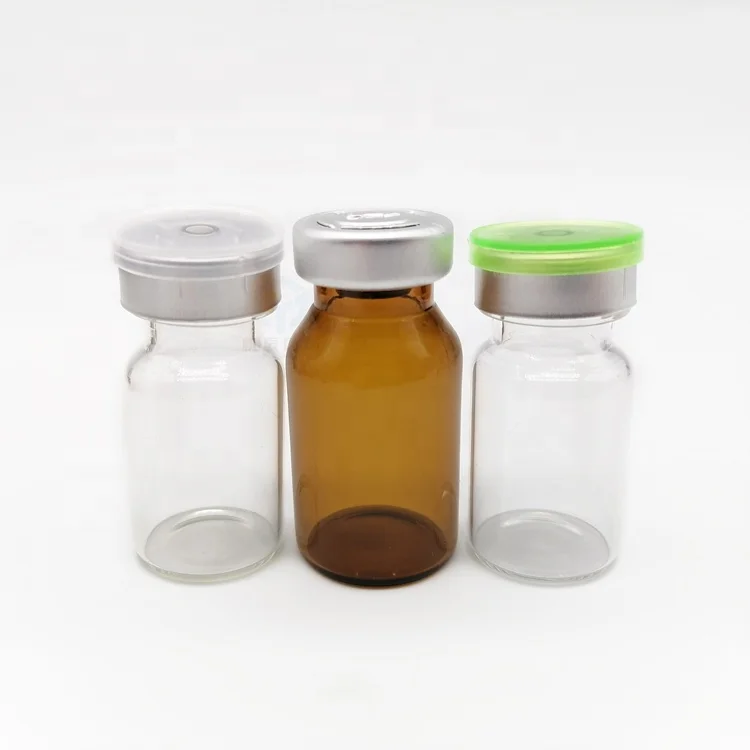

Empty Glass Ampoule Vials With Flip O ff Cap 10ml

Tubular Glass Vial Specification

No.

Specification

OD of body

(mm)

OD of bottle mouth

(mm)

ID of bottle mouth

(mm)

Total height

(mm)

height of bottle mouth

(mm)

wall thickness (mm)

1

3ml

16.0 ±0.2

13.0± 0.2

7.0 ± 0.2

35.0 ± 0.4

3.6± 0.2

1.1 ± 0.03

2

5ml

18.4±0.2

13.0+ 0.2-0.3

7.6± 0.2

39.7 ± 0.5

3.6± 0.2

0.8

3

7ml

21.9±0.3

19.6± 0.2

12.6 ± 0.2

39.7 ± 0.4

3.6 ± 0.2

1.1 ± 0.03

4

10ml

21.9 ±0.3

19.6± 0.2

12.6 ± 0.2

49.7 ± 0.5

3.6 ± 0.2

1.1 ± 0.05

5

12ml

24.5 ±0.35

19.6± 0.2

12.5 ± 0.2

44.5 ± 0.4

4.1 ± 0.2

1.1 ± 0.05

6

15ml

26.5±0.3

19.6±0.2

12.5±0.2

52.0±0.4

3.8±0.2

1.1 ± 0.05

7

20ml

28.0±0.3

19.6+0.2-0.3

12.6±0.2

55.0±0.7

3.6±0.2

1.1 ± 0.1

8

25ml

28.0±0.3

19.6+0.2-0.3

12.6±0.2

65.0±0.7

3.6±0.2

1.1 ± 0.1

9

30ml

32.0±0.3

19.6+0.2-0.3

12.6±0.2

70.0±0.7

3.6±0.2

1.1±0.1
