HF RadioAnyTone AT5555N II High Power CB Radio AM FAM SSB Transceiver 27 mhz Radio Communicator
- Category: >>>
- Supplier: Qixiang Electron Science & Technology Co. Ltd.
Share on (1600599355430):
Product Overview
Description
Product Description
MODEL NO.: AT-5555N II 10 Meter Radio
Frequency:
28.000-29.700MHz (25.615~30.105MHz)
◆◆Big LCD displays frequency and all kinds of information
◆◆ FM、AM、USB、LSB、PA mode
◆◆ Frequency Tuning Step 100Hz、1KHz、10KHz、100KHz、1MHz
◆◆ ±1.5KHz CLARLFILER Adjustment
◆◆ Flexible Menu Function and PC Program Software
◆◆ ECHO Function
◆◆ SQ, ASQ Function (FM and AM mode only)
◆◆ RF GAIN Adjustment
◆◆ RF PWR Adjustment
◆◆ SCAN Function
◆◆ Programmable RB Function
◆◆ NB/ANL Function
◆◆ DW DUAL-WATCH Function
◆◆ Offset Frequency Function
◆◆ BEEP Voice Prompt
◆◆ +10KHZ Function
◆◆ SIG、PWR、SWR Function
◆◆ TOT function
◆◆ HI-CUT Function
◆◆ EMG Channel Function
◆◆ SWR Protection
◆◆ Power Supply Voltage Protection
◆◆ Key-Lock Function
◆◆ Six(6) Groups Memory Channel
◆◆ Model Name Customized Function
(below is new function add which different from AT-5555N)
◆◆ CTCSS/DCS Code
◆◆ VOX Function
◆◆ TX and RX Noise Reduction
◆◆ Compatible with electronic and dynamic MIC type
◆◆ WX weather channel
◆◆ Weather Alert
◆◆ CTCSS/DCS Code
◆◆ VOX Function
◆◆ TX and RX Noise Reduction
◆◆ Compatible with electronic and dynamic MIC type
◆◆ WX weather channel
◆◆ Weather Alert
WX channels | ||
WX-01 | 162.400MHz | |
WX-02 | 162.475MHz | |
WX-03 | 162.425MHz | |
WX-04 | 162.450MHz | |
WX-05 | 162.500MHz | |
WX-06 | 162.525MHz | |
WX-07 | 162.550MHz | |
Details Images
Specification
GENERAL | ||
Frequency Range | Frequency Range | |
Frequency Band | A/B/C/D/E/F/G/H/I | |
Frequency Tolerance | ±5.0ppm | |
Channel | 40channels(programmable)in each band | |
Frequency Control | Phase-Locked-Loop Synthesizer | |
Frequency Step | 100Hz、1KHz、10KHz、100KHz、1MHz | |
Frequency Tolerance | ±5.00ppm | |
Input Voltage | 13.8V | |
Microphone | with push-to-talk /UP/DN and coiled cord | |

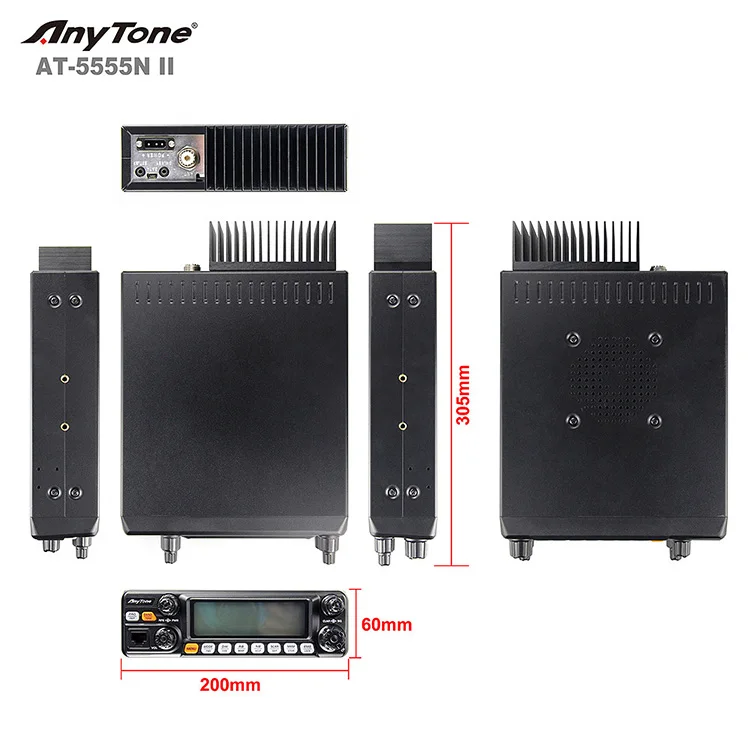

Dimensions | 305(L)x200(W)x60(H) | |
Weight | 1.75kgs | |
Antenna Connector | UHF, SO239 | |
Operating Temperature Range | -20℃ to +50℃ | |
TRANSMITTER | ||
Power Output | AM PEP: 60W / FM: 50W / SSB: 60W(PEP) | |
Drain | 10A(with modulation) | |
Modulation | AM/FM/USB/LSB | |
Inter-modulation Distortion | SSB: 3rd order, more than -25dB; 5th order, more than -35dB | |
SSB Carrier Suppression | 55dB | |
Unwanted Sideband | 50dB | |
Frequency Response | AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz | |
Output Impedance | 50ohms, unbalanced | |
RECEIVER | ||
Sensitivity | SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output AM:1.0μV for 10dB(S+N)/N at greater than 1/2watt of audio output FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output | |
Adjacent-Channel Selectivity | AM/FM: 60dB SSB: 70dB | |
Image Rejection | More than 65dB | |
IF Frequency | AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz | |
RF Gain Control | 45dB adjustable for optimum signal reception | |
Automatic Gain Control(AGC) | Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt. | |
Squelch | Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV | |
Audio Output Power | 3 watts into 8 ohms | |
Frequency Response | AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz | |
Built-in Speaker | 8 ohms, round | |
External Speaker(Not Supplied) | 8 ohms; disables internal speaker when connected. | |
Recommend Products
Packing & Delivery
Package Includes:
Mian Radio

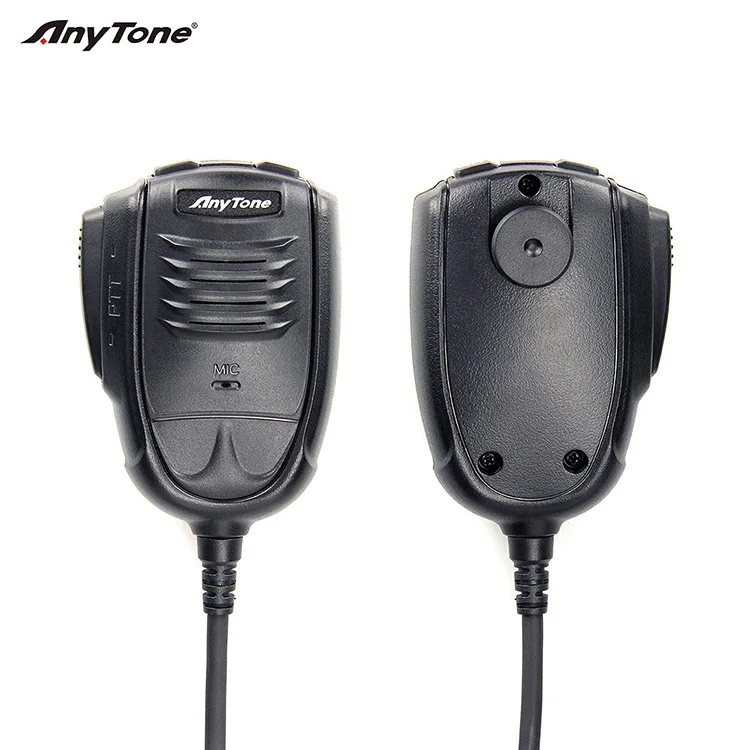

Microphone
Mian Radio
Microphone

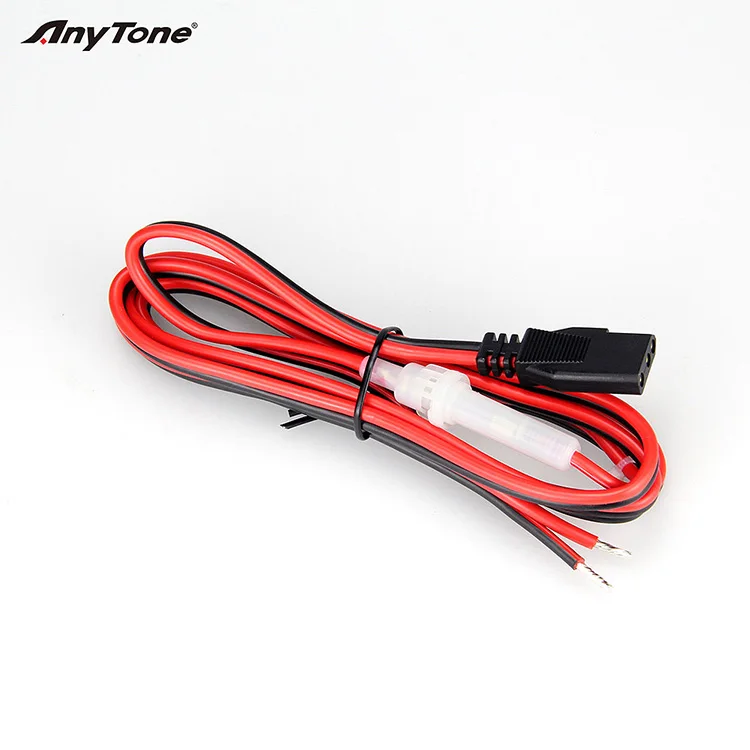

DC Power cable
Bracket and accessories
Downloadable software
User manual
Downloadable software
User manual
