Manufacturer CE Certified CNC Milling Machine Frames Machining Center VMC Frames
- Category: >>>
- Supplier: Dongguan Chansin Hardware Machinery Co. Ltd.
Share on (1600599416465):
Product Overview
Description
Product Overview

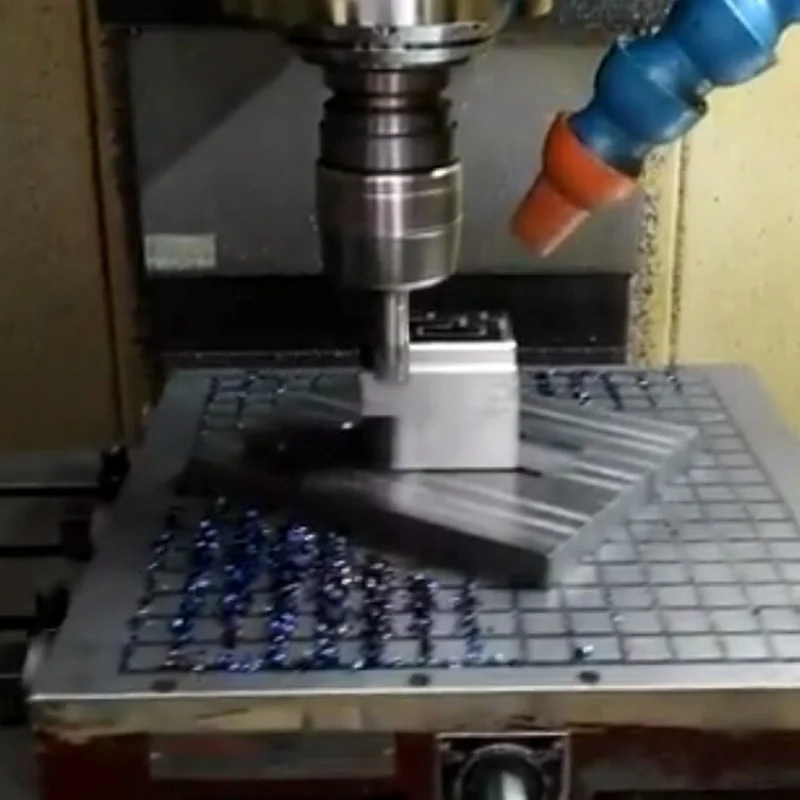

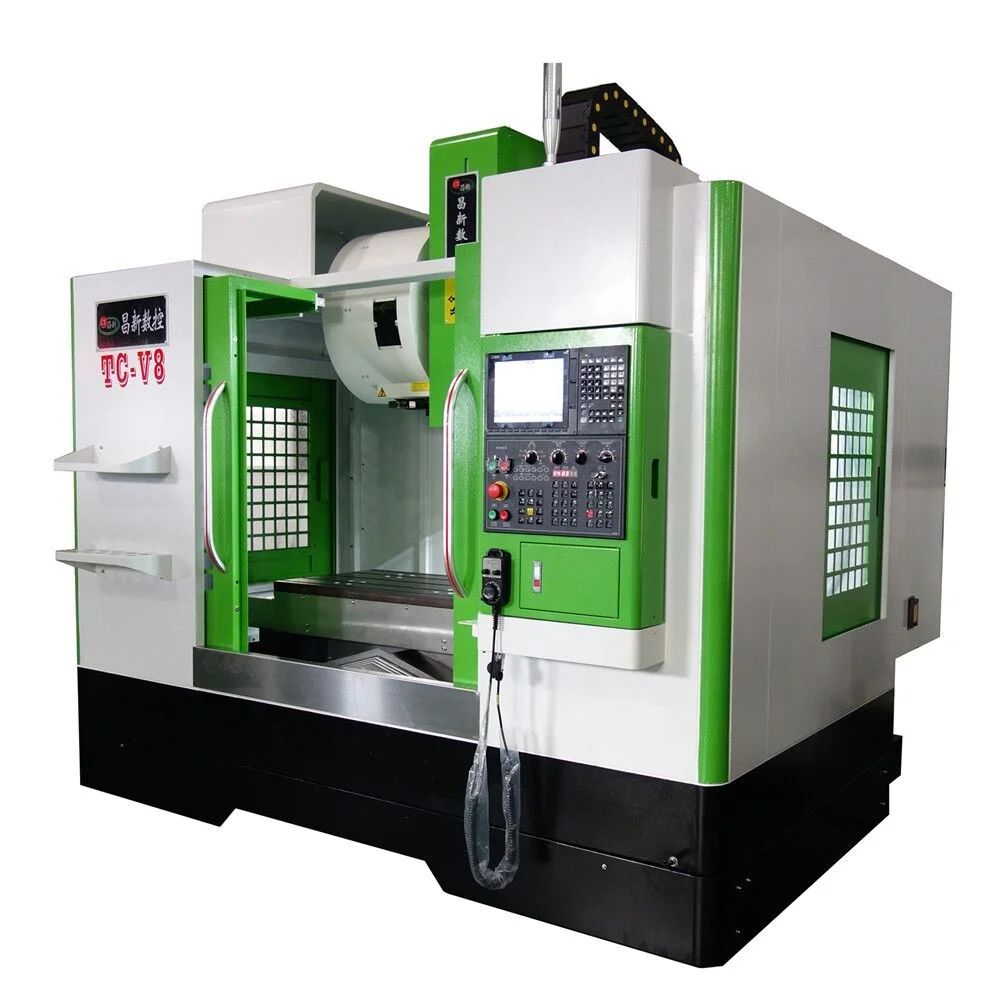

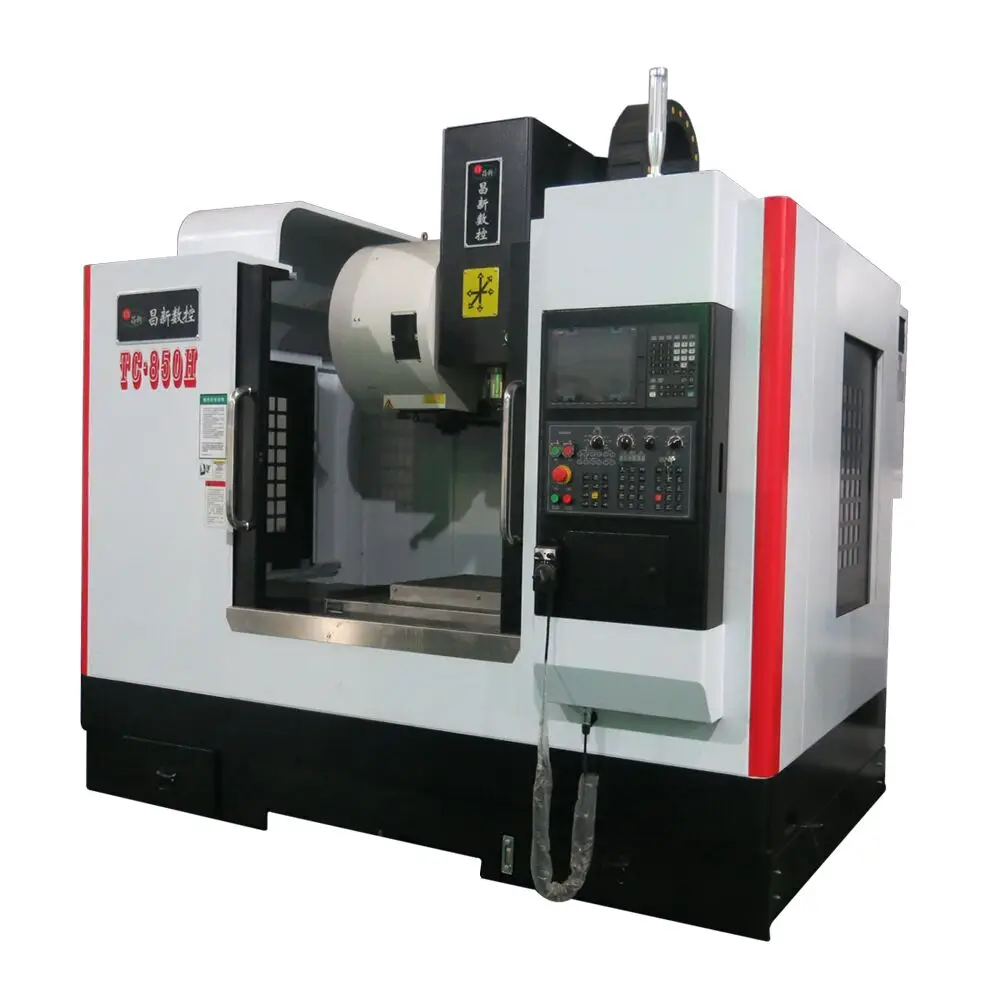

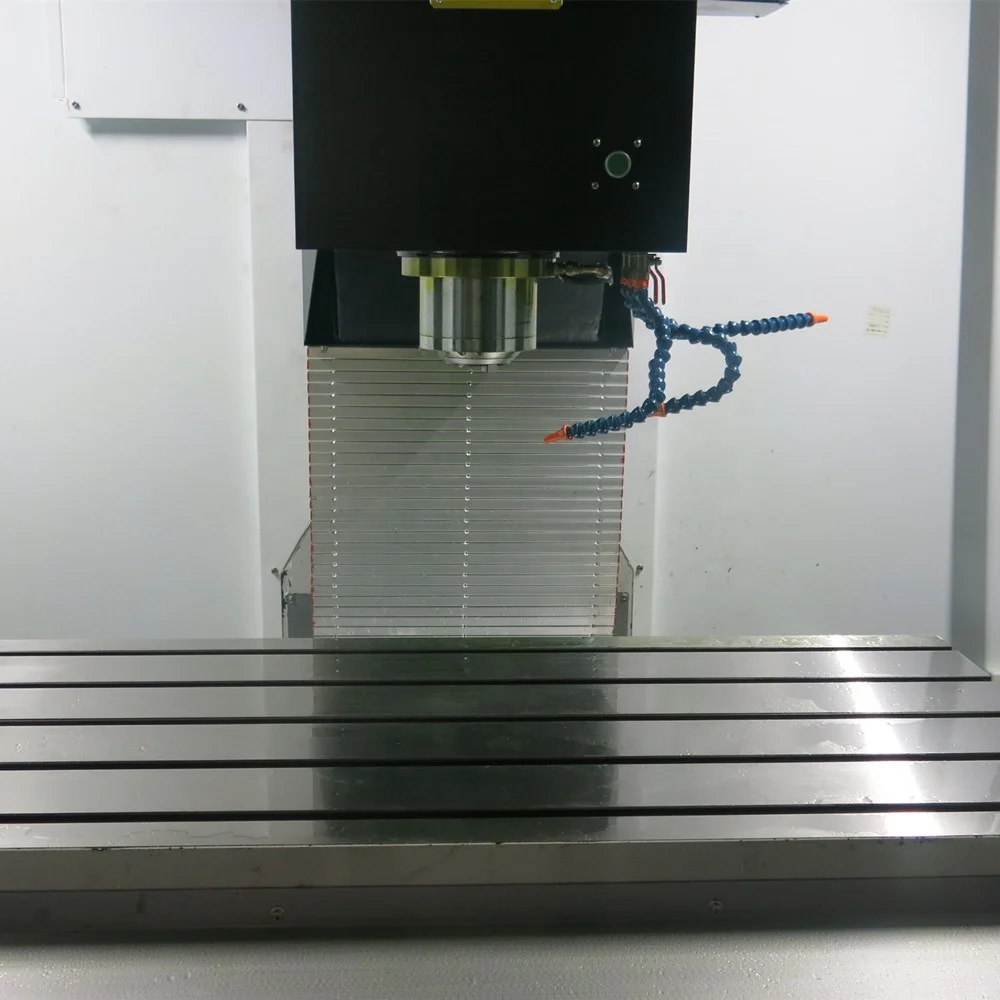

3 Axes CNC Millng Machine CNC Machining Center

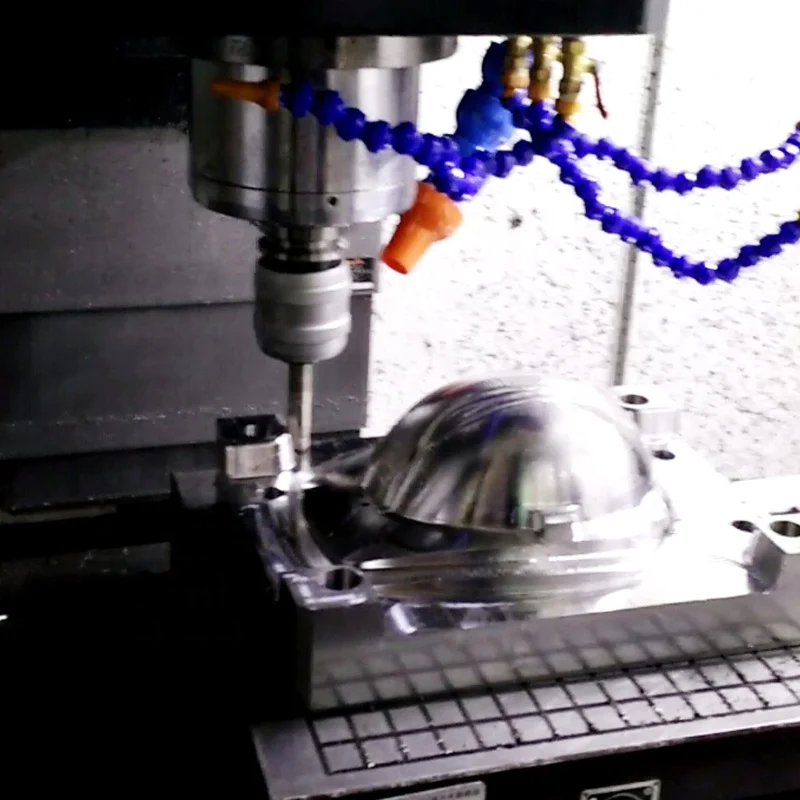

This machine is widely used for making molds or processing complex metal parts with high precision. It can do drilling boring tapping milling etc.. The machine is equipped with a tool magazine, which stores various tools or inspection tools, which are automatically selected and replaced by the program during the processing.
Tool Storage Number:24
BT40 Spindle
8000/10000/12000rpm
Central Lubircation System
Positioning Accuracy:±0.005mm
Repeat Positioning Accuracy:±0.003mm
Safety Doors and Windows
Chip Removal Device at the back
Voltage Customized
X/Y/Z-axis Travel | 800mm/500mm/500mm |
Distance from Spindle Nose to Table | 170mm-670mm |
Distance Spindle Center to Column Guide Rail | 580mm |
Working Table Size | 1000*500mm |
Table Max Load | 600kg |
T Slot Size/No. | 18/5 |
Spindle Speed | 8000/10000/12000rpm |
Spindle Motor Power | 7.5kw/11kw |
X/Y/Z-axis Motor Power | 2.0kw/2.0kw/3.0kw |
Rapid Traverse(X/Y/Z) | 48000/48000/48000mm/min |
Cutting Speed | 0-12000mm/min |
Spinldle Taper | BT40 |
Positioning Accuracy | ±0.005mm |
Repeat Positioning Accuracy | ±0.003mm |
Machine Size | 2600*2240*2400mm |
Machine Weight | 4.5ton |
System | Syntec/Mitsubishi/Siemens/Fanuc |
Spindle | Volis/Royal/WLT in Taiwan |
Tool Magazine | Okada/Sanjet/Deta in Taiwan |
Bearing | NSK in Japan or FAG in Germany |
Screws/Guide Rail | Hiwin/PMI in Taiwan |
Electronic Components | Schneider/Merlin in France |
BT40/BT50 Spindle
Volis/Royal/WLT in Taiwan
ISO Spindle
Theta/Cells brand in Taiwan
BT/ISO Tool Holder
matchable

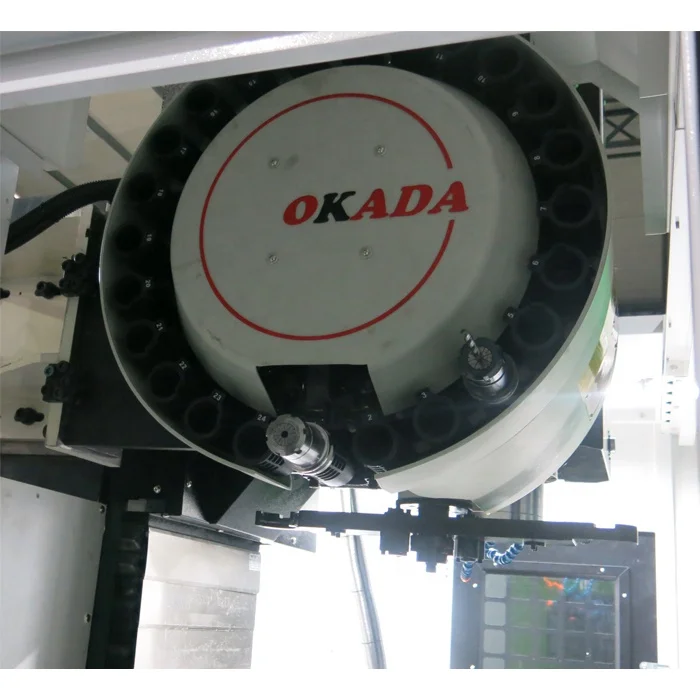

Arm Type Tool Magazine
Okada/Sanjet brand in Taiwan
Screw and Guide Rail
Hiwin/PMI/PBI in Taiwan
Storng Bearings
NSK/FAG/KOYO brand
Syntec System
Mitsubishi System
Siemens/Fanuc System etc.
Air Conditioner
Oil Chiller
Chip Conveyor
4 Axes
4 Axes with Tailstock
5 Axes
Scraping.
Verticality Test
Spindle Vibration Test
Circular Test
Spindle Coupling Inspection
Laser Test
Verticality Test
Parallelism Test
Laser Test
Company Profile
Dongguan Chansin Hardware Machinery Co., Ltd. is located in Dongguan city, Guangdong Province, south of China. It was founded in 1998 as one of the earliest leading manufacturers in our country producing VMC CNC Milling Machine, CNC Drilling Tapping Machine, CNC Milling Engraving Machine, CNC Lathe, Automatic Drilling Machine and Automatic Tapping Machine, Automatic Assembly Line, Visual Inspection Machine etc..
We have professional technology team integrating R & D, production, selling and service. Our engineers are available to overseas assemble and debug machinery and have traing class. Our machinery was sold throughout the world and enjoys good comments from our customers.
Garden Plant
Bright Office
CNC Workshop 1
CNC Workshop 2
CNC Workshop 3
CNC Workshop 4
Drilling Tapping Machine Workshop 1
Drilling Tapping Machine Workshop 2
Our Partners

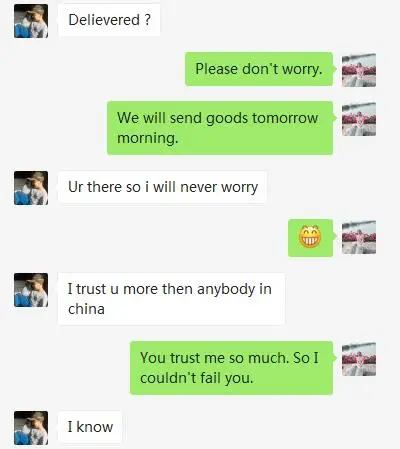

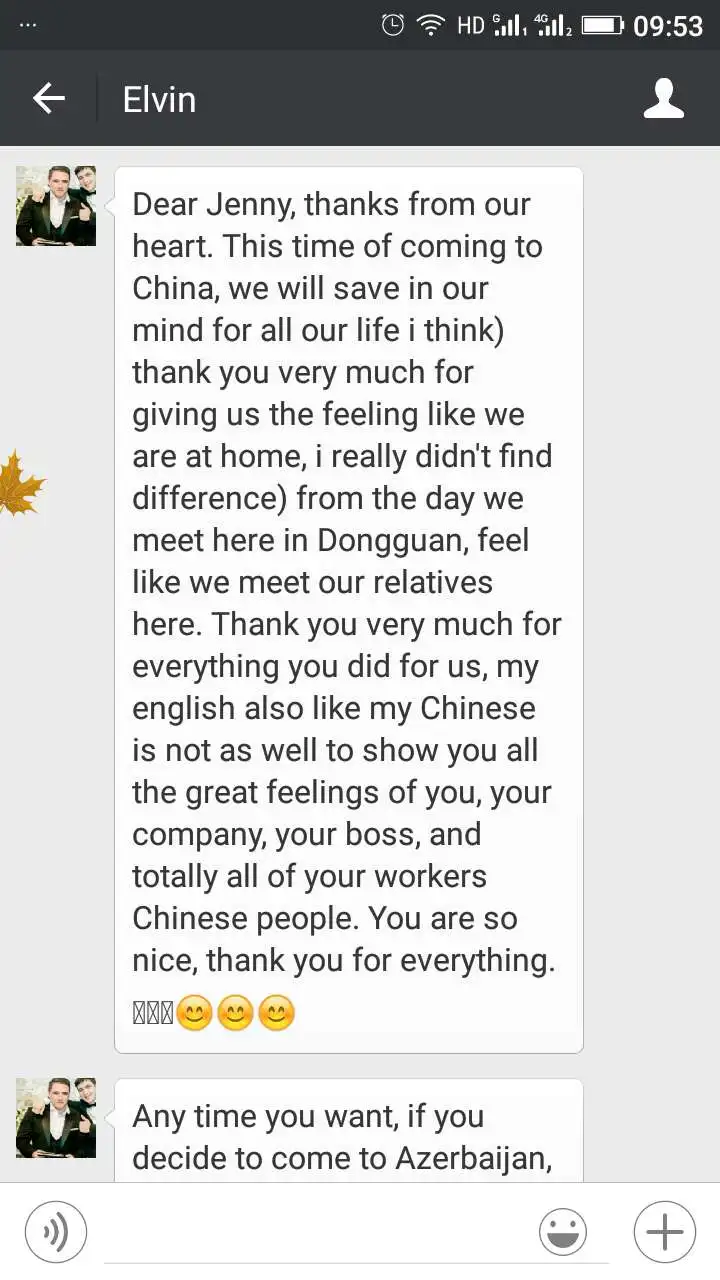

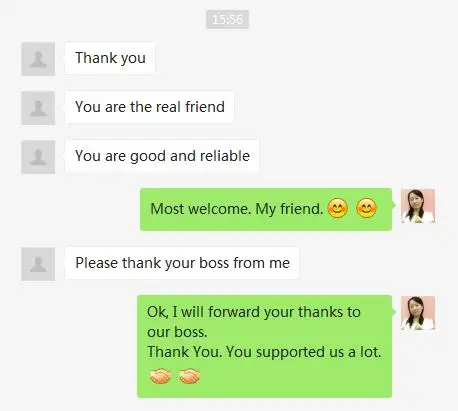

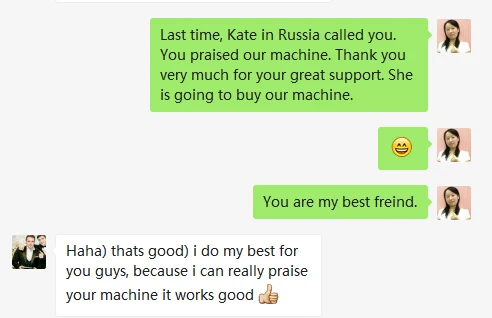

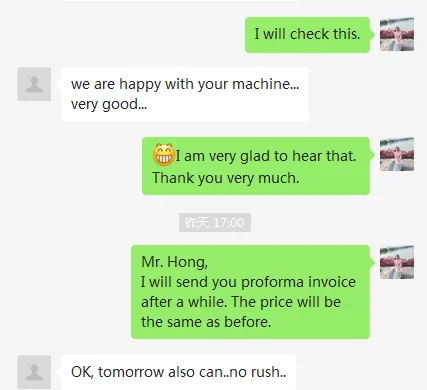

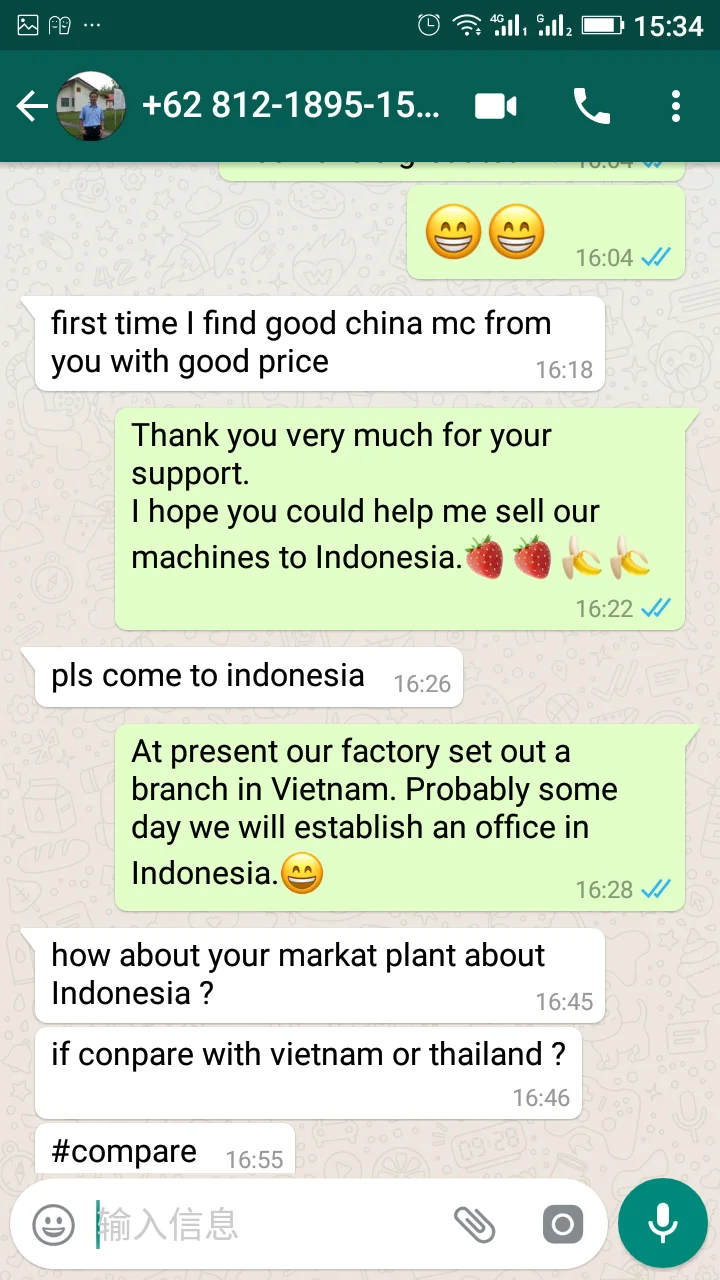

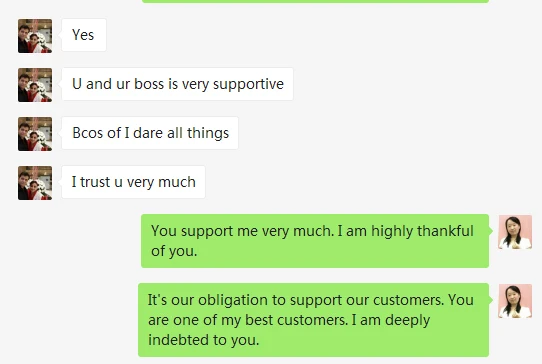

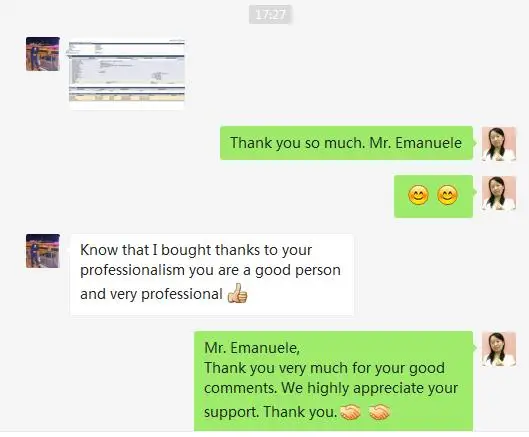

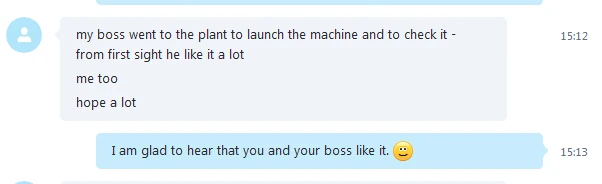

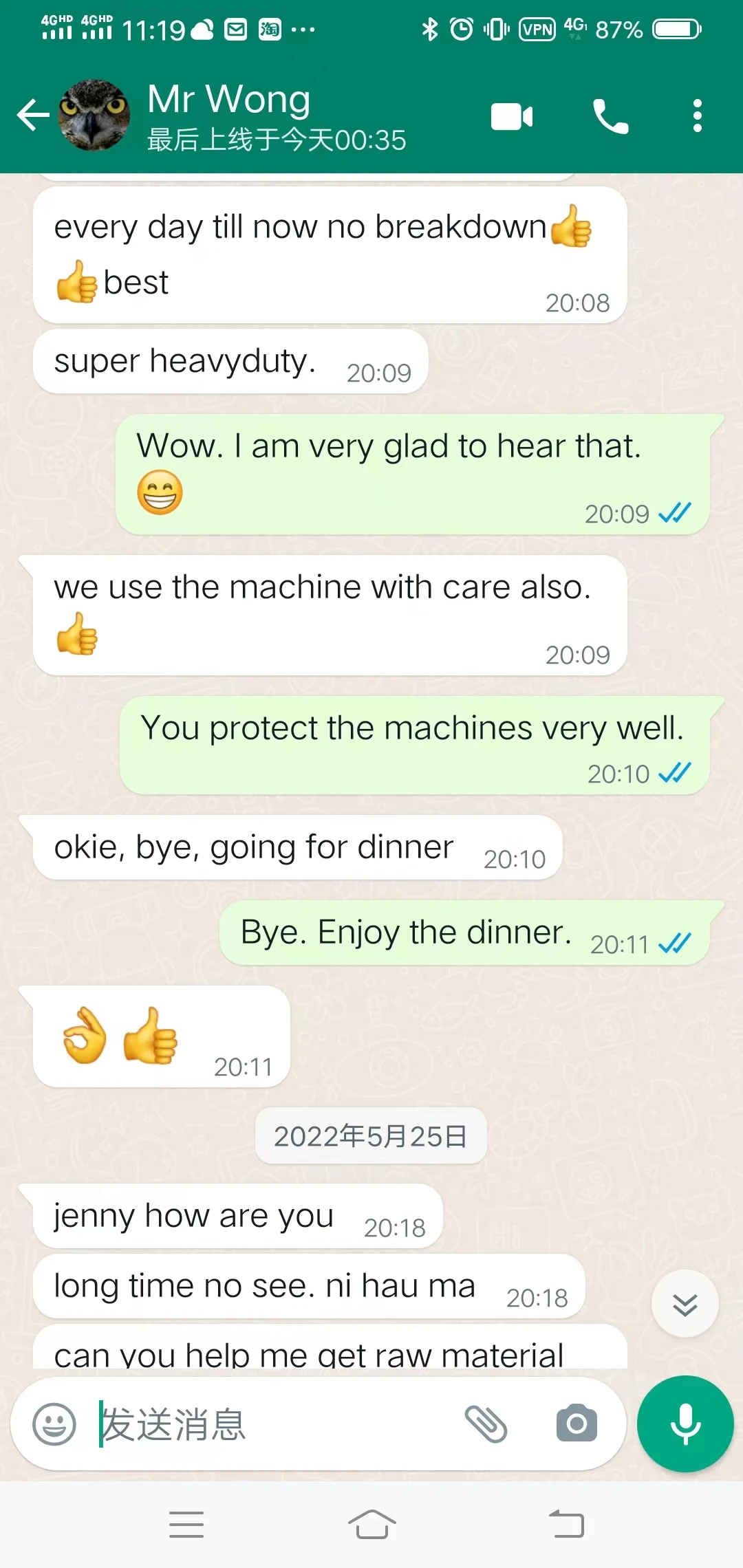

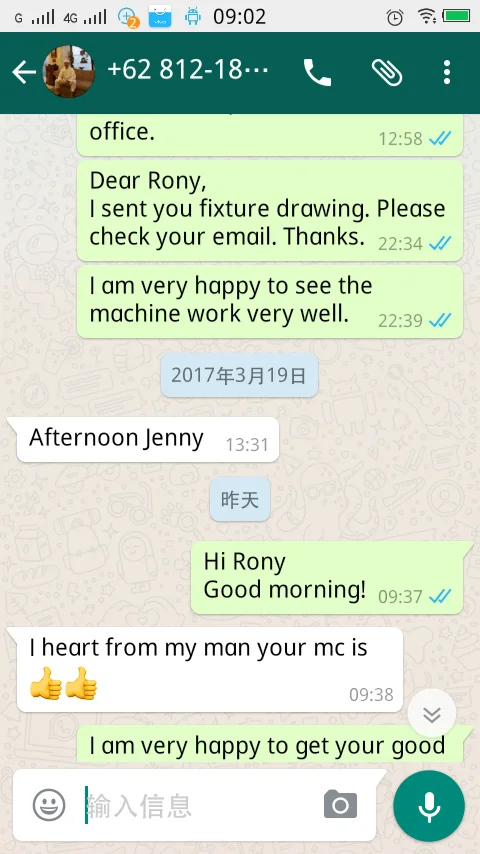

Customers' Comments

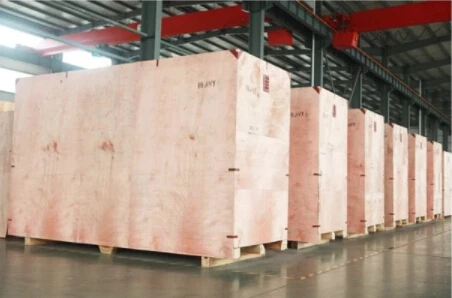

Package and Shipping
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Production time
A3: 20 days upon getting deposit
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long
technical support. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Production time
A3: 20 days upon getting deposit
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long
technical support. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay
for air tickets between China and buyer's destination and free provide accommodation and meals.
2)12 months warranty begins from the day when the machine arrives.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
