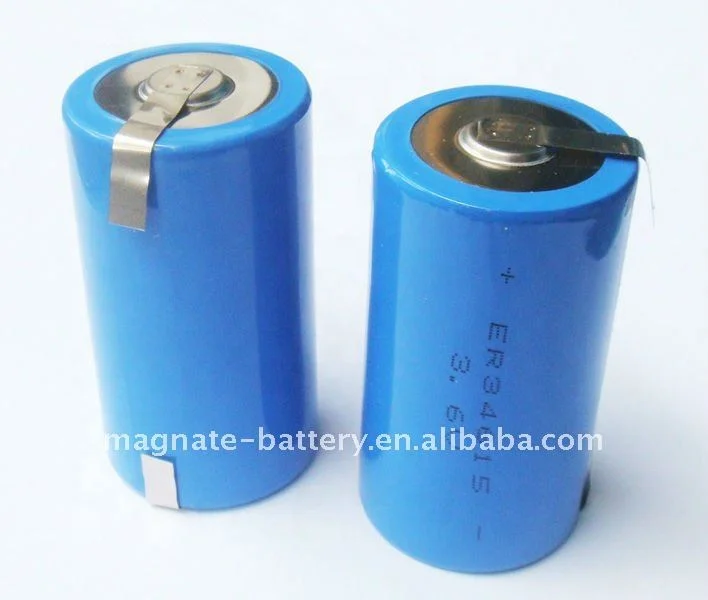

Lithium Battery 3.6V 19Ah D size ER34615

Product Overview

Description

 1. ER34615 battery or battery packs

2. Low Self-Discharge Rate
3. Wide Working Temperature Range -55~+85
4. UL, UN38.3, CE,

ER34615 Primary Lithium Battery bobbin type c Size can replace TL-4930 TL-5930 TL-2200 LS33600 XL-205F SB-D01 XL-200F





Specifications:



Model No.	Size	Max Dimensions (mm)	Weight(g)	Norminal Voltage (v)	Norminal Capacity (mAh)	Max Continuous Current  (mA)	Max Pulse Current      (mA)	Operating Temperature  (°C)	End Voltage  (v)
ER34615	D	34.2X61.5	102	3.6	19000	300	500	-55~+85	2.0







Main applications:

1. Utility meter (water, electricity, gas, heat meter)

2. Automatic meter reading

3. Alarm or security system (smoke alarm detector)

4. GPS tracking systems(data logger, dog collar, PIR sensor)

5. Real time clock

6. Temperature Monitor

7. Automotive electronics

8. Professional electronics



Advantage:

1. High and stable operating voltage

2. Low self-discharge rate (less than 1% per year of storage at +25°C)

3. Wide range of operating temperature

4. Stainless steel container and end caps

5. Hermetic glass-to-metal sealing









6. Non-flammable electrolyte

7. Compliant with IEC86-4 safety standard, UL, CE, UN.





Related products:



Model	Size	Norminal Voltage  (V)	Norminal Capacity  (mAh)
ER14250	1/2AA	3.6	1200
ER14250M	1/2AA	3.6	800
ER14505	AA	3.6	2400-2700
ER14505M	AA	3.6	2200
ER14335	2/3AA	3.6	1650
ER14335M	2/3AA	3.6	1350
ER17505	A	3.6	3400
ER17505M	A	3.6	2800
ER17335	2/3A	3.6	1900
ER17335M	2/3A	3.6	1700
ER18505	-	3.6	3800
ER18505M	-	3.6	3500
ER26500	C	3.6	9000
ER26500M	C	3.6	6000
ER34615	D	3.6	19000
ER34615M	D	3.6	14000
ER251020/ER261020	CC	3.6	15000
ER341245	DD	3.6	38000
ER9V/CP9V/CR9V	-	9	1200
CR14250	1/2AA	3.0	650
CR123A/CR17335	2/3A	3.0	1350
CR17450	AG	3.0	2200
CP505050	-	3.0
