AZ 7310 Oil and Impact Resistance Micro Switch
- Category: >>>
- Supplier: Yueqing Cleanlysis Import & Export Co. Ltd.
Share on (1600599655779):
Product Overview
Description
Specification
| Model | AZ Limit Switch | |
| Insulation Resistance | Min. 100MΩ (Below 500VDC) | |
| Contact Resistance | Max. 15mΩ | |
| Dielectric Strength | 1500VAC 50/60Hz 1 Minute | |
| Life Cycle | Mechanical | Min. 10,000,000 |
| Electrical | Min. 500,000 | |
| On/Off Frequency | Mechanical | 120 / Min. |
| Electrical | 30 / Min. | |
| Operation Speed | 0.01mm ~ 0.5m/sec | |
| Vibration Resistance | 10 ~ 55Hz dual wave length 1.5mm | |
| Shock Resistance | Malfunction | 1,000m/s2 Max. . approx. 100G |
| Destruction | 300m/s2 Max. approx. 30G | |
| Ambient Temperature | -10 ~ +80°C· (with no icing) | |
| Ambient Humidity | Max. 95%RH | |
| Housing Material | Plastic | |
| Weight | Approx. 60g | |
Operating Characteri
| Models | AZ-7310 |
| OF max. | 600g |
| RF min. | 100g |
| PT max. | 2mm |
| OT min. | 0.8mm |
| MD max. | 0.8mm |
| OP | 21.8±1.2mm |

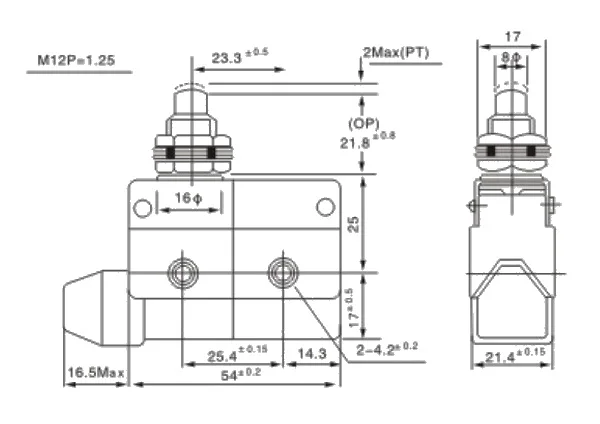

Dimension

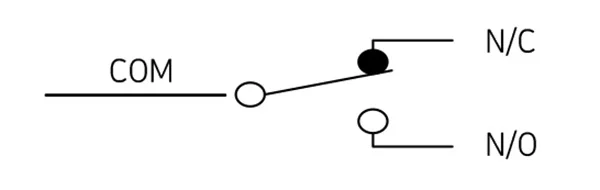

Contact Form
Company
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
