High quality aluminum ceiling wall panel, lightweight, glue free, recyclable honeycomb core ceiling materials decorative
- Category: >>>
- Supplier: JIANGSU GENTLE BOOMS IMPORT AND EXPORT CO. LTD.
Share on (1600599659768):
Product Overview
Description
Product introduction
Product Name | Welded honeycomb panel |
Product Material | Aluminum alloy (3 series/6 series) |
Applicable temperature range | -50℃~400℃ |
OEM/ODM | Acceptable |
Thickness tolerance | ±0.1mm |
Specification | Customizable |
Panel Thickness | 4mm、8mm、10mm、15mm、25mm、Max 200mm |
Skin Thickness | 0.5mm、0.8mm、0.5mm、1mm、1.5mm、Max 3mm |
Width | 1000mm、1220mm、1250mm、1500mm、Max 2200mm |
Length | 2440mm、3000mm、3500mm、5800mm、Max 10000mm |
Coating | PVDF、PE、Anodized、Mill finished、Embossed、Granite |
What you need to know about aluminum honeycomb panels

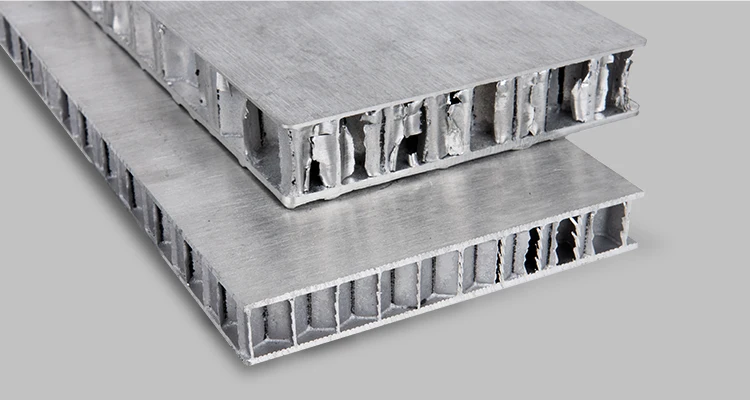

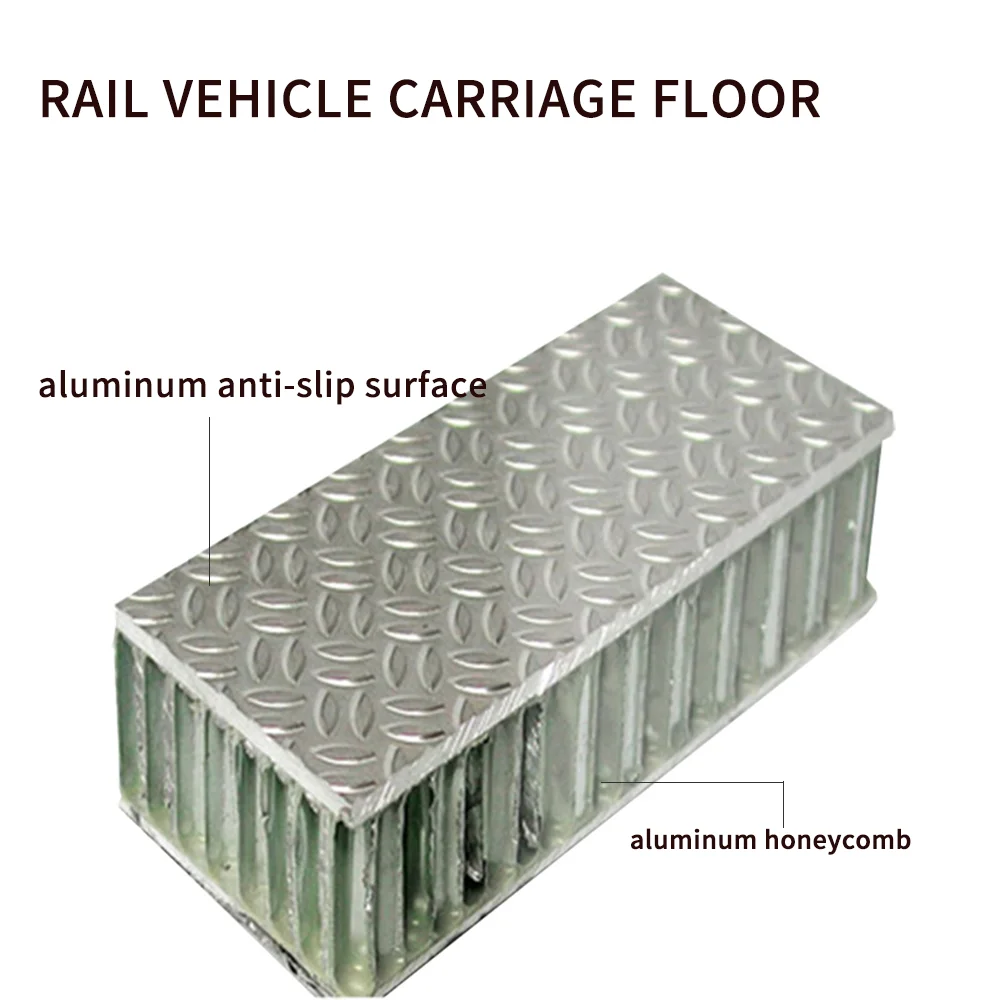

Welded aluminum honeycomb panel is a metal structural material made of welded aluminum honeycomb as core material and aluminum panels on both sides, which are combined and brazed in a brazing furnace at a temperature field of about 600°C. All nodes between aluminum honeycomb core and aluminum honeycomb core, aluminum honeycomb core and aluminum panels are metal welded connections without adding any non-metallic materials such as adhesives，Compared with other materials of the same volume, the all-welded aluminum honeycomb panel has the advantages of lightest weight, strong rigidity and overall stability, and good sound insulation and heat insulation due to its unique structure. Recycling and recycling, saving resources and energy, honeycomb aluminum plate has become a new energy-saving and environmentally friendly material.
At present, the common aluminum honeycomb panels at home and abroad are made of adhesive structures. Their strength (rigidity), service life and allowable application environment are restricted by the performance of the adhesive, such as poor temperature resistance, aging and cracking of the adhesive, and release of toxic gases in case of fire. It is difficult to apply it on some high-end equipment, such as aerospace vehicles, rail transit vehicles, marine and deep-sea ships and other equipment. With the increasing demand for energy saving and environmental protection and the aging problem of glued aluminum honeycomb panels, the market has an urgent demand for glueless honeycomb panels.
Our company uses a new process to manufacture aluminum honeycomb panels to achieve metallurgical bonding of all metals. Its mechanical properties are not only higher than the adhesive structure of the same specification, but also completely overcome many defects of adhesive aluminum honeycomb panels.
Product advantages
Light weight and high strength
High temperature, severe cold resistance, no cracking
Arbitrary processing, easy installation
A1 class fire performance
Surface high temperature spraying, oxidation treatment
Green and environmentally friendly, 100% recycled
Advantage Introduction
1、Light weight and low density.

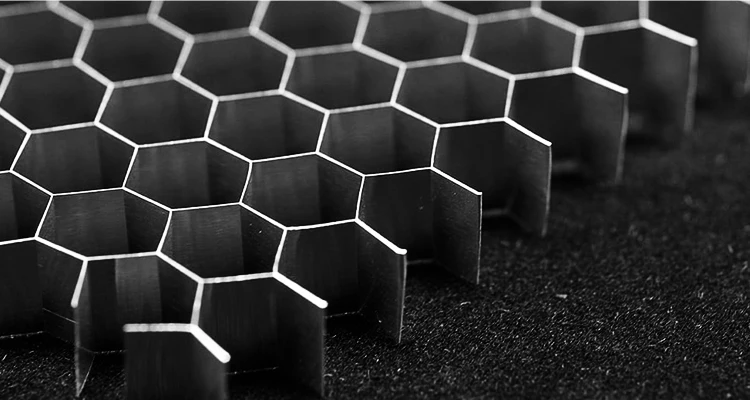

The core layer of honeycomb panel is a typical honeycomb structure with continuous polygonal honeycomb arrangement, which makes the solid part of honeycomb panel with small cross-sectional area. The low density and light weight make honeycomb panels meet the requirements of "light weight, energy saving and environmental friendly" materials for aerospace engineering vehicles and transportation vehicles.
2、High strength and good rigidity.
All nodes in welded honeycomb panels are connected by brazing welding. The thickness of aluminum foil of welded aluminum honeycomb panel can be 0.15~0.35, the edge length can be 05~10mm, and the compressive strength is 4~10MPa.
3、High compressive strength
The welded aluminum honeycomb core can be made of thicker aluminum foil or aluminum strip, which has high node strength and strong retention of honeycomb structure, and can maintain a certain load capacity without crushing even if it is overloaded and deformed.
4、High temperature resistance
All materials of welded aluminum honeycomb panels are pure aluminum alloy materials, and no non-metallic materials are added to the whole process, and the molding process temperature of the products reaches 600℃. Therefore, the temperature resistance of the material is determined by the temperature resistance of the aluminum alloy material.
5、Non-polluting, environmentally friendly and recyclable
The raw material of aluminum honeycomb panel is aluminum alloy, which is non-radioactive and does not volatilize any harmful gas. It can also be completely recycled, saving resources and energy and meeting the requirements of energy conservation and environmental protection. Honeycomb panels reduce the load of transportation vehicles, improve power, reduce fuel consumption, and reduce exhaust emission pollution while saving energy.

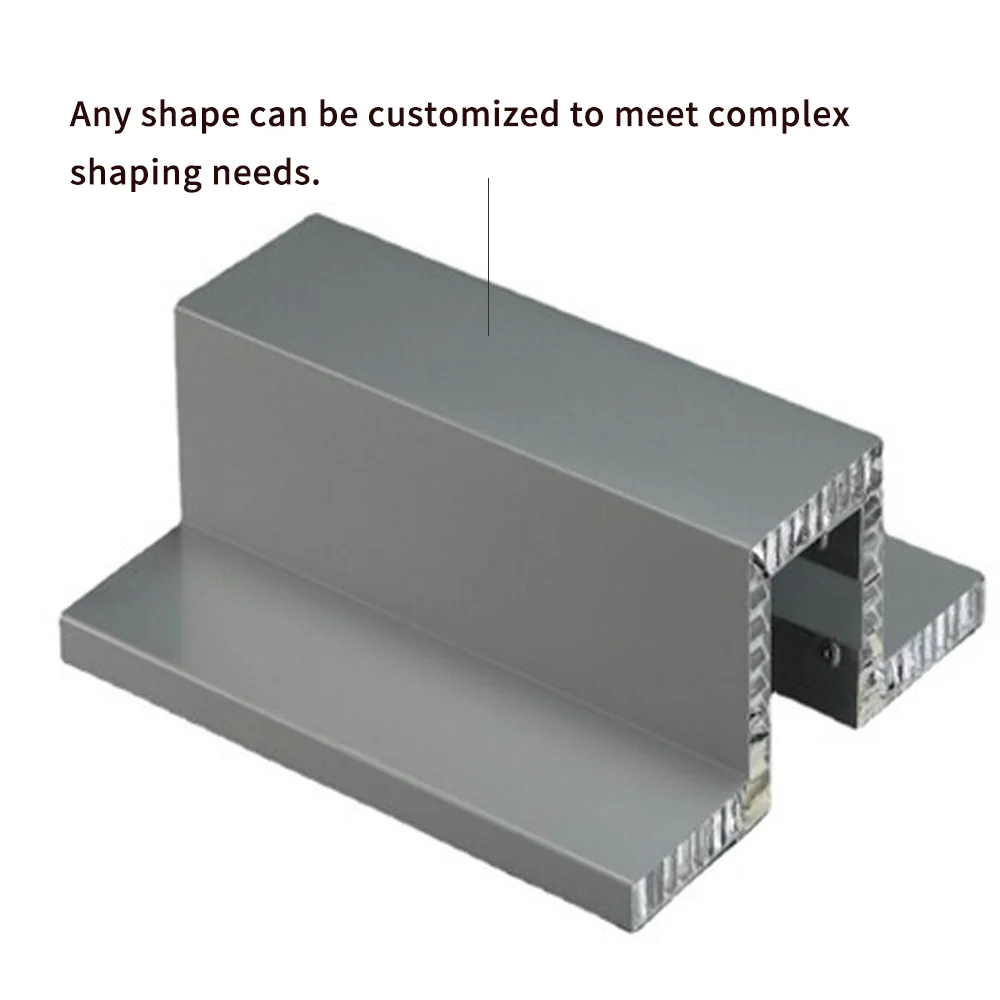

6、Good formability, thickness optional
The thickness of honeycomb aluminum panel can be chosen from 6mm-100mm according to actual needs, and the shape can also be made into flat panel, single curved panel or hyperbolic panel according to specific requirements. Honeycomb aluminum panels not only have good formability, but also are not easily deformed after forming.
The core layer of honeycomb panel is a typical honeycomb structure with continuous polygonal honeycomb arrangement, which makes the solid part of honeycomb panel with small cross-sectional area. The low density and light weight make honeycomb panels meet the requirements of "light weight, energy saving and environmental friendly" materials for aerospace engineering vehicles and transportation vehicles.
2、High strength and good rigidity.
All nodes in welded honeycomb panels are connected by brazing welding. The thickness of aluminum foil of welded aluminum honeycomb panel can be 0.15~0.35, the edge length can be 05~10mm, and the compressive strength is 4~10MPa.
3、High compressive strength
The welded aluminum honeycomb core can be made of thicker aluminum foil or aluminum strip, which has high node strength and strong retention of honeycomb structure, and can maintain a certain load capacity without crushing even if it is overloaded and deformed.
4、High temperature resistance
All materials of welded aluminum honeycomb panels are pure aluminum alloy materials, and no non-metallic materials are added to the whole process, and the molding process temperature of the products reaches 600℃. Therefore, the temperature resistance of the material is determined by the temperature resistance of the aluminum alloy material.
5、Non-polluting, environmentally friendly and recyclable
The raw material of aluminum honeycomb panel is aluminum alloy, which is non-radioactive and does not volatilize any harmful gas. It can also be completely recycled, saving resources and energy and meeting the requirements of energy conservation and environmental protection. Honeycomb panels reduce the load of transportation vehicles, improve power, reduce fuel consumption, and reduce exhaust emission pollution while saving energy.
6、Good formability, thickness optional
The thickness of honeycomb aluminum panel can be chosen from 6mm-100mm according to actual needs, and the shape can also be made into flat panel, single curved panel or hyperbolic panel according to specific requirements. Honeycomb aluminum panels not only have good formability, but also are not easily deformed after forming.
Company Introduction
Why Choose Us

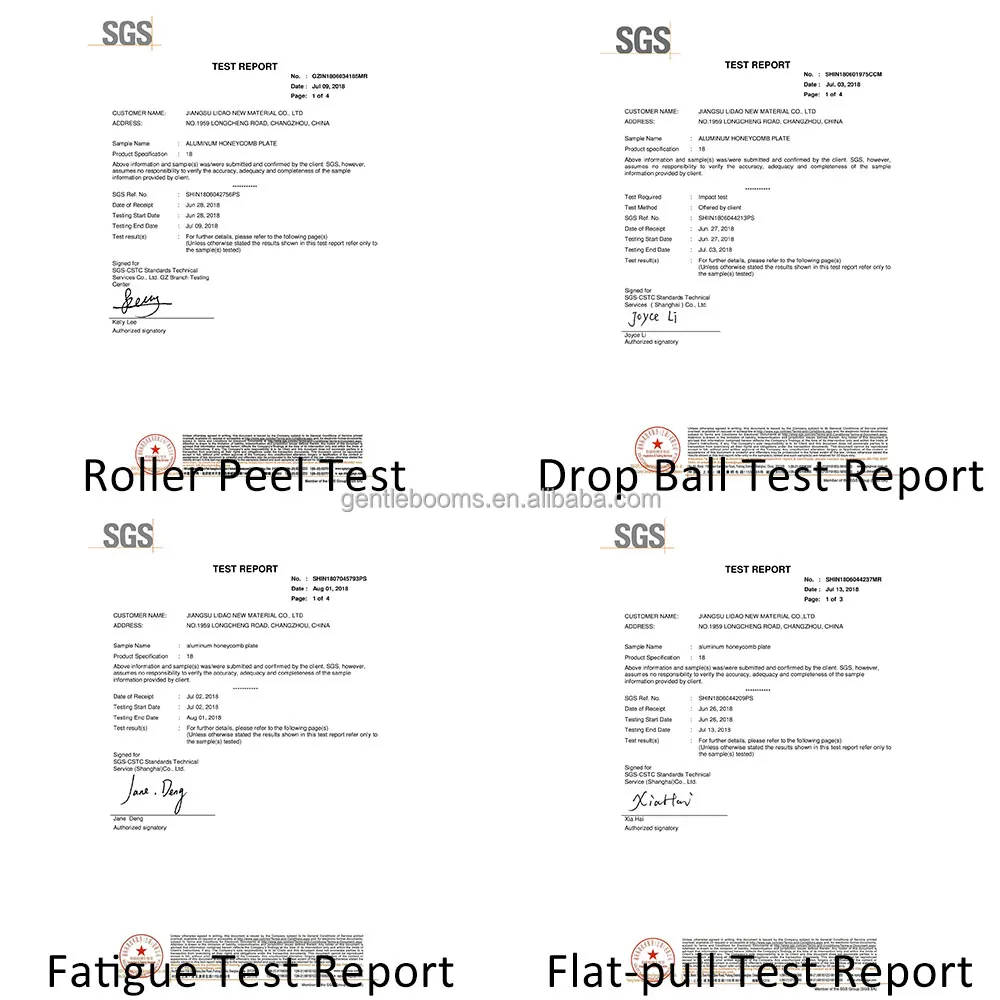

Certifications

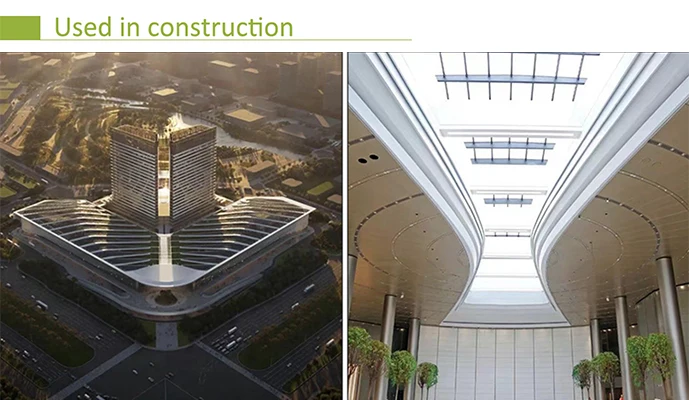

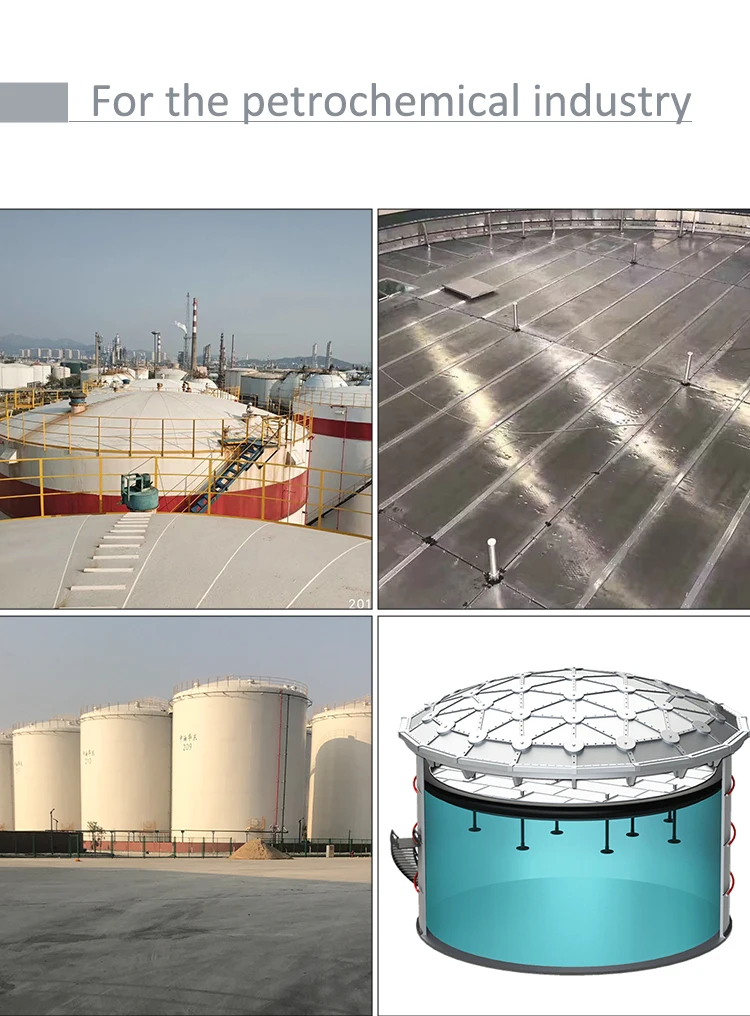

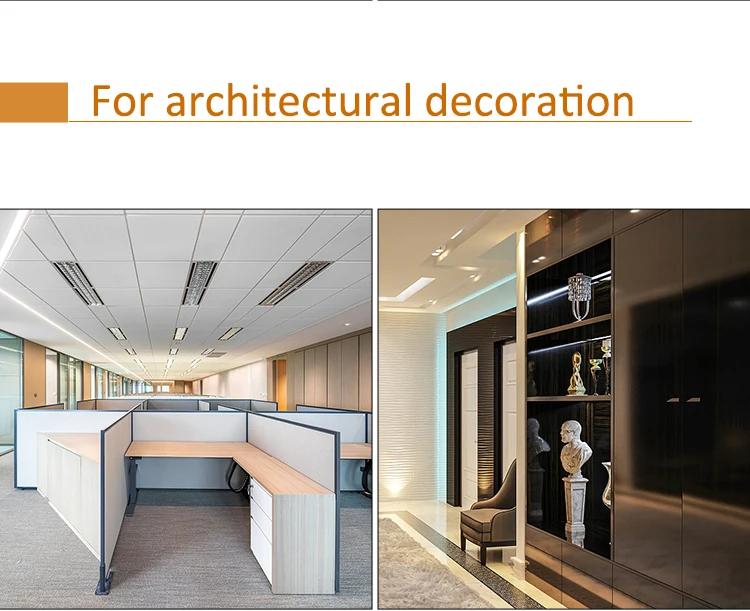

Application scenarios
Payment & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance(or do L/C at sight) ,balance before shippment.
If you have another question, pls feel free to contact us.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance(or do L/C at sight) ,balance before shippment.
If you have another question, pls feel free to contact us.
