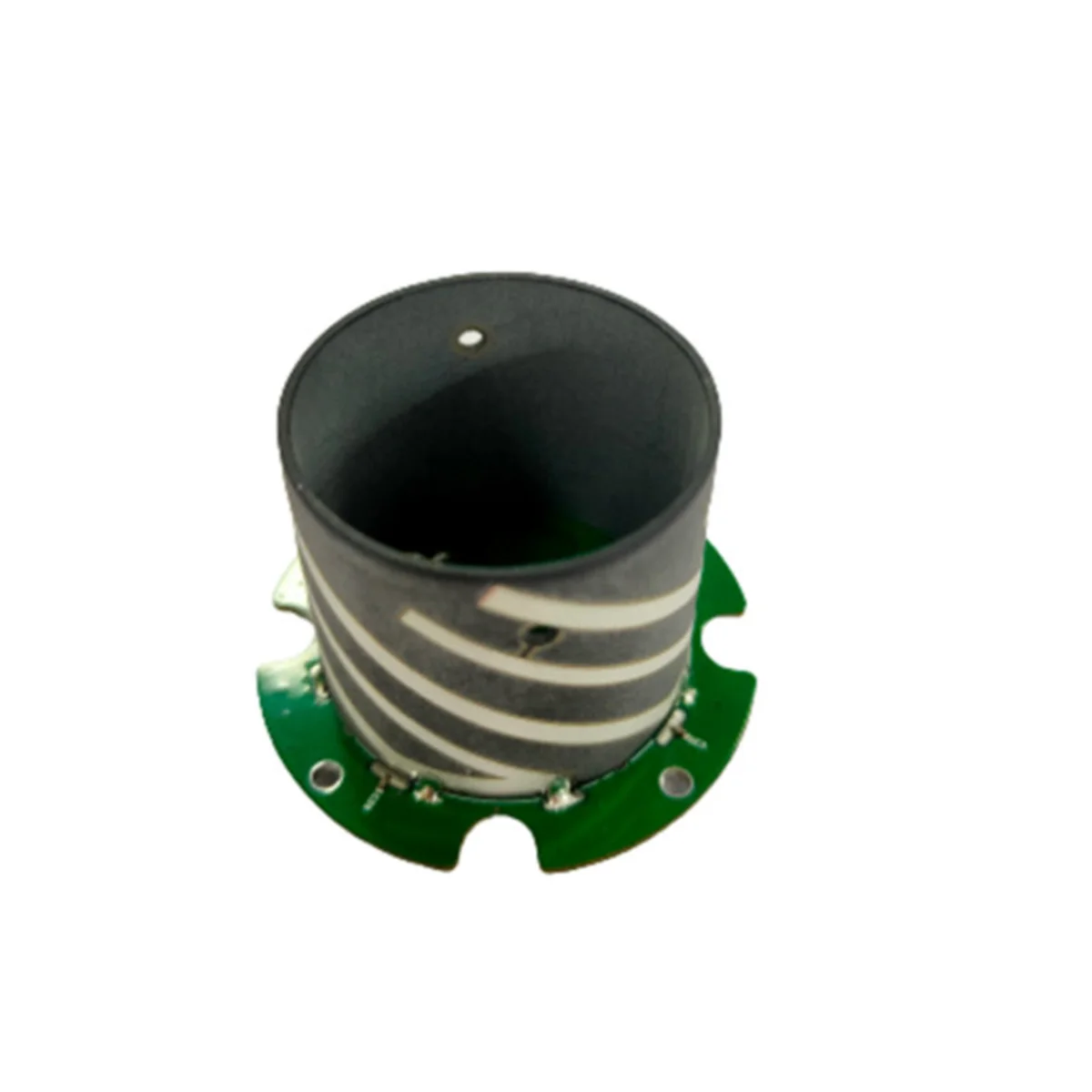

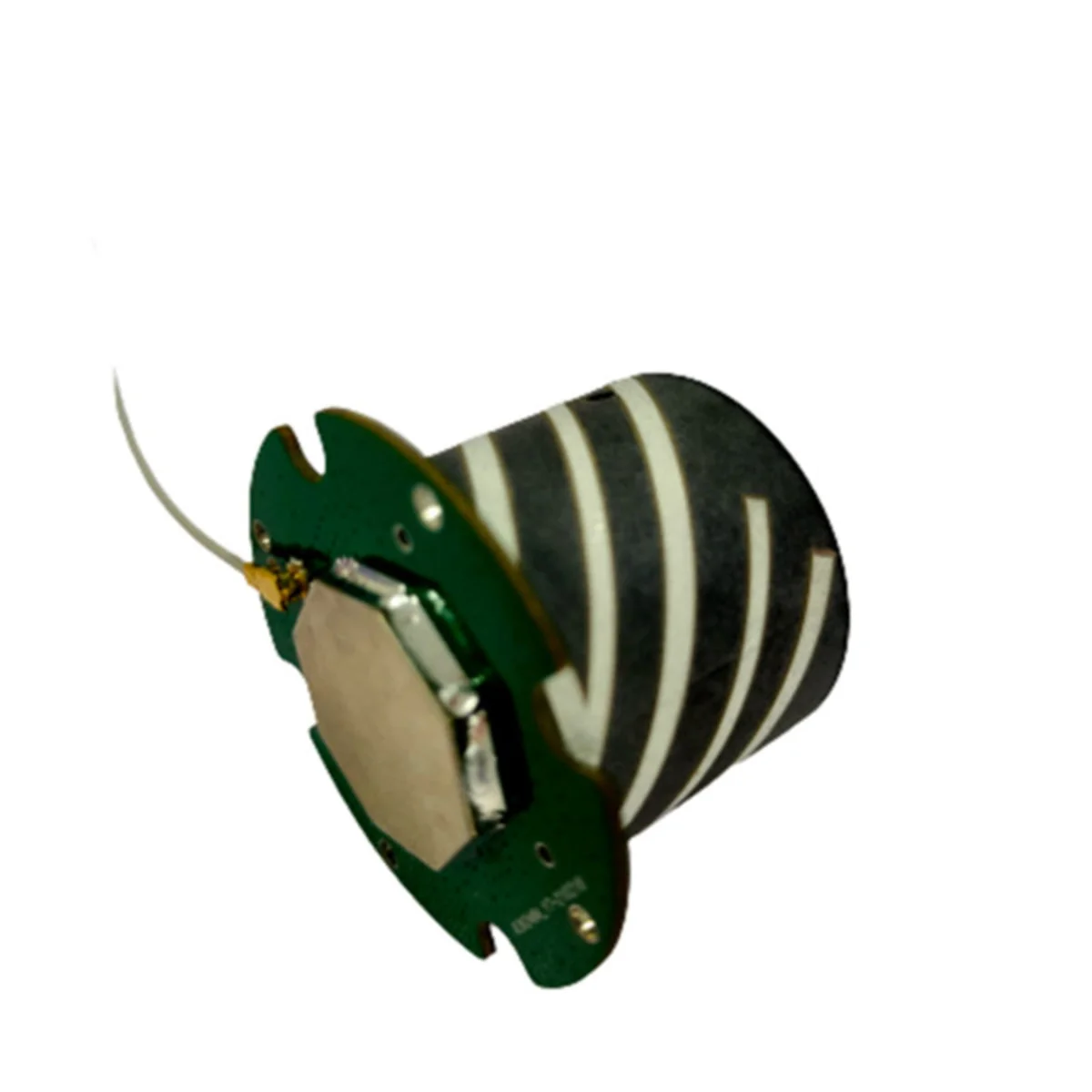

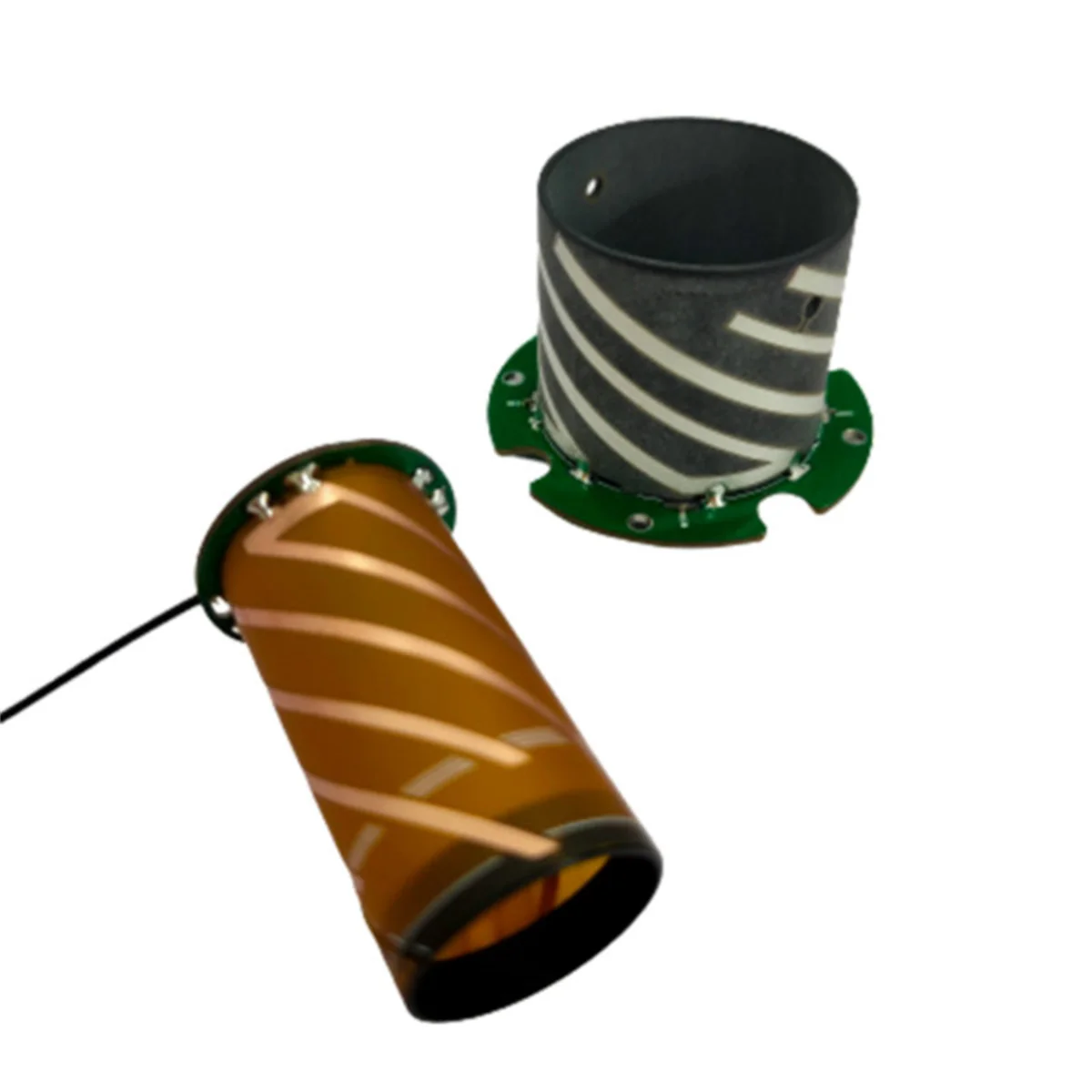

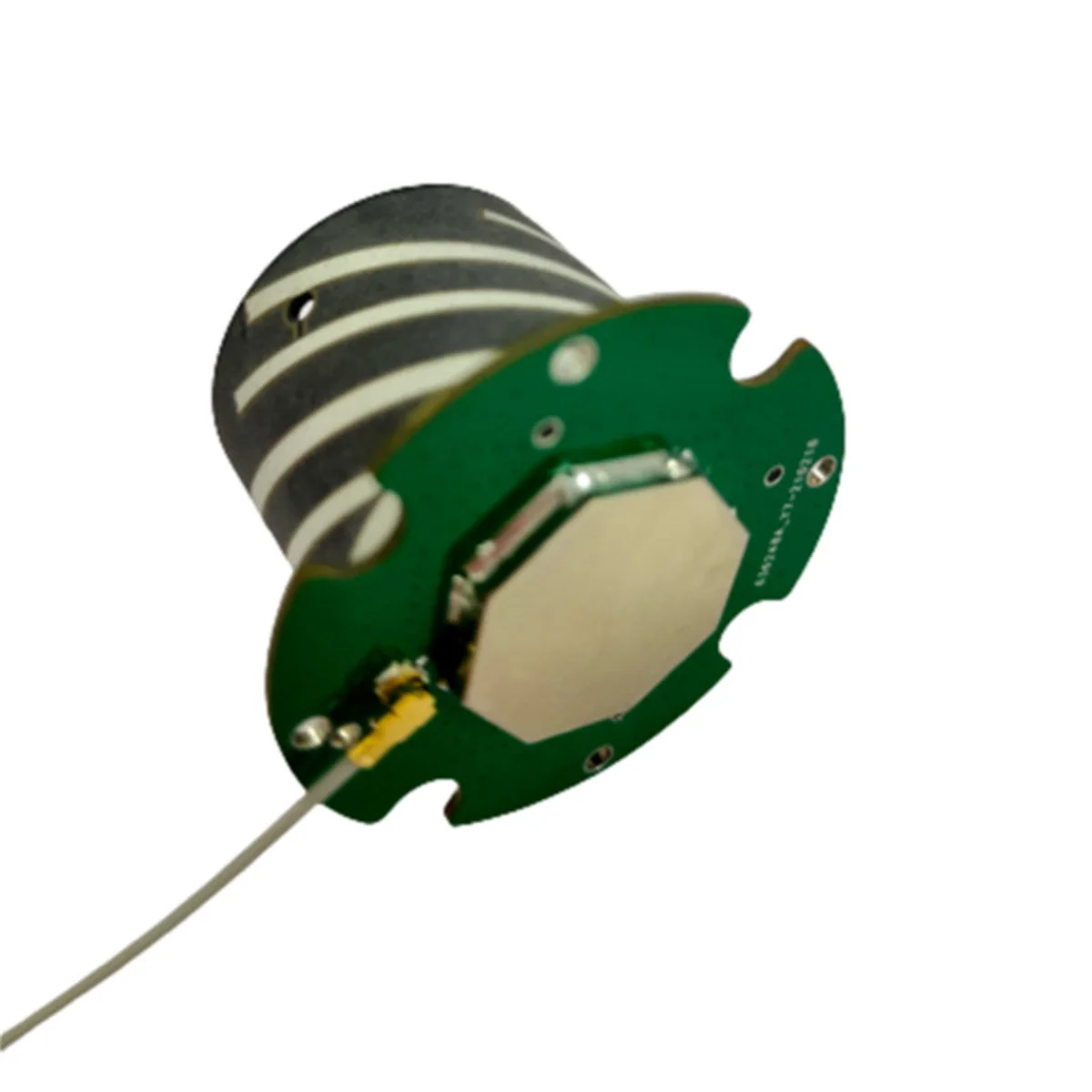

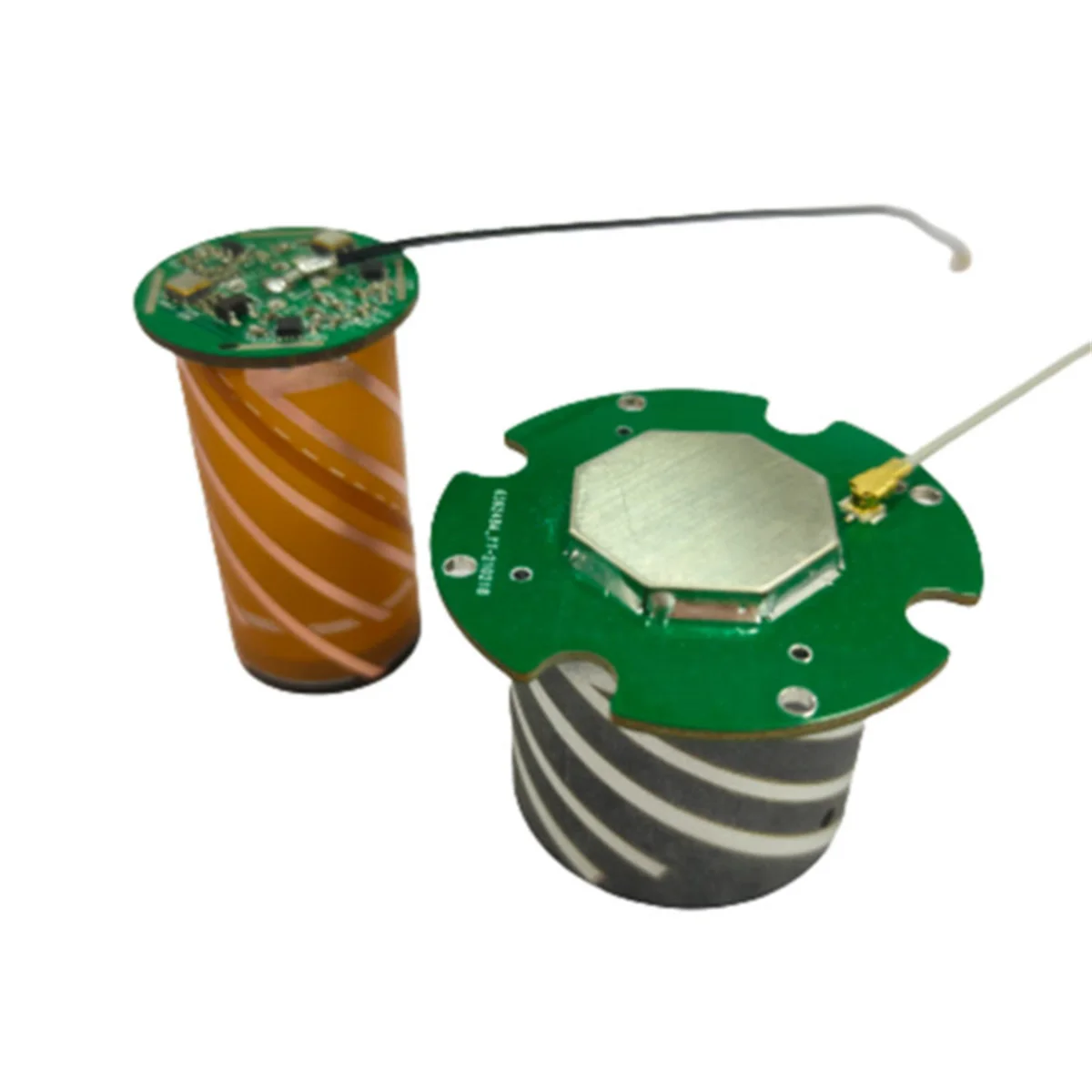

External multiband L1/L2/L5 helical GNSS antenna Aerial Four arm Helical Antenna

Share on (1600599674587):


Price:$32.00 - $45.00

Quantity:


Product Overview

Description









































Products Description

Products Description

























































































































Passive parameters



Frequency range


GPS L1/L2 /L5
BDS B1/B2/B3
GLONASS L1/L2


Polarization


RHCP


Gain


≥2.5dBi


Axial ratio


≤3dB


Horizontal coverage angle


360°


VSWR


≤2.0


Active parameters



LNA Gain


40±2dB(custom)


In-band flatness


1.5dB


Noise Figure


≤2.0dB


Operating Voltage


3-12VDC


Working current


≤40mA


output standing wave


≤2.0


Mechanical properties



Antenna size


Φ42*31.9mm


Weight


≤10g


Connector type


IPEX 1


Cable length


RF1.13-60mm


Environmental characteristics



Relative humidity


95%


Operating temperature


-40℃~+85℃


storage temperature


-55℃~+85℃

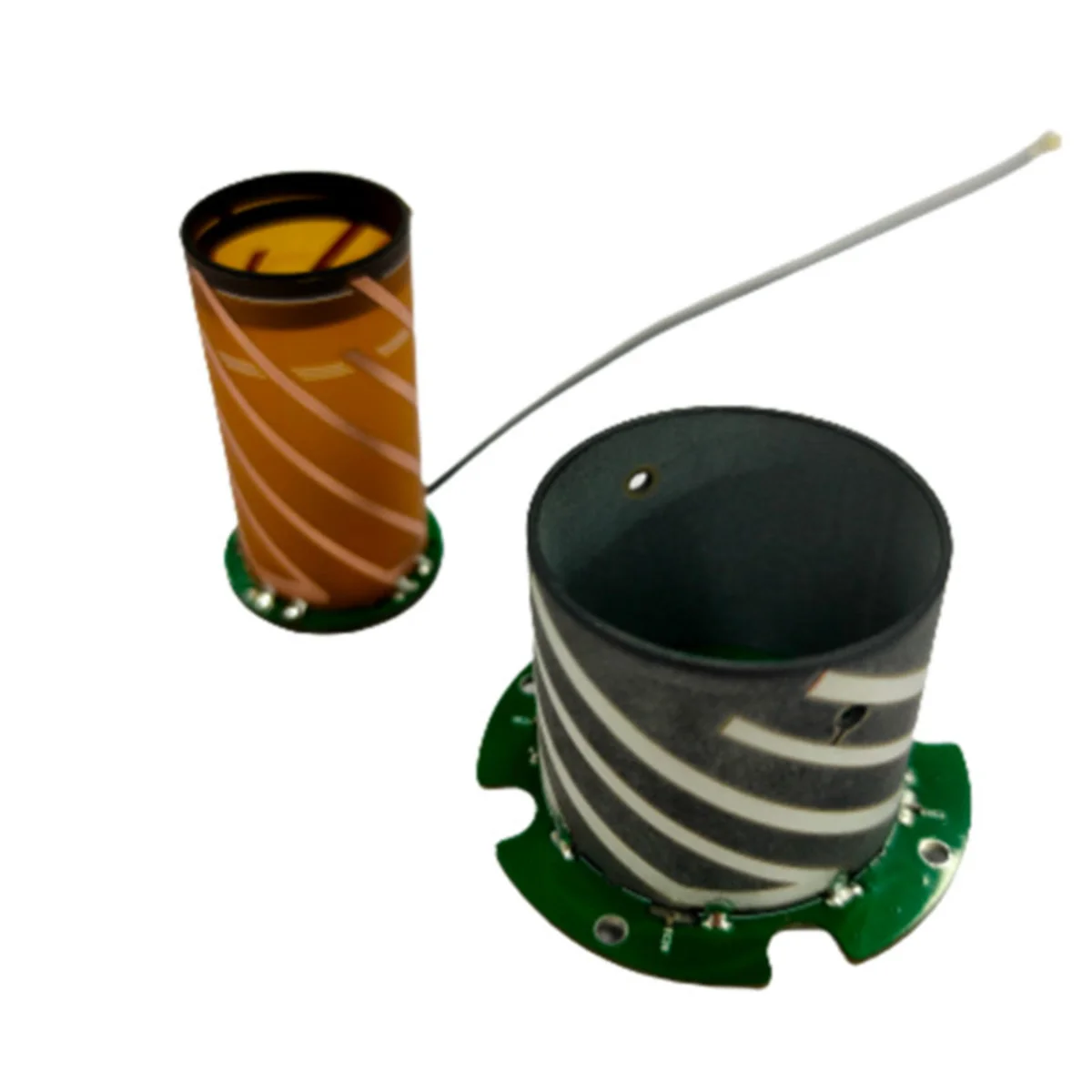

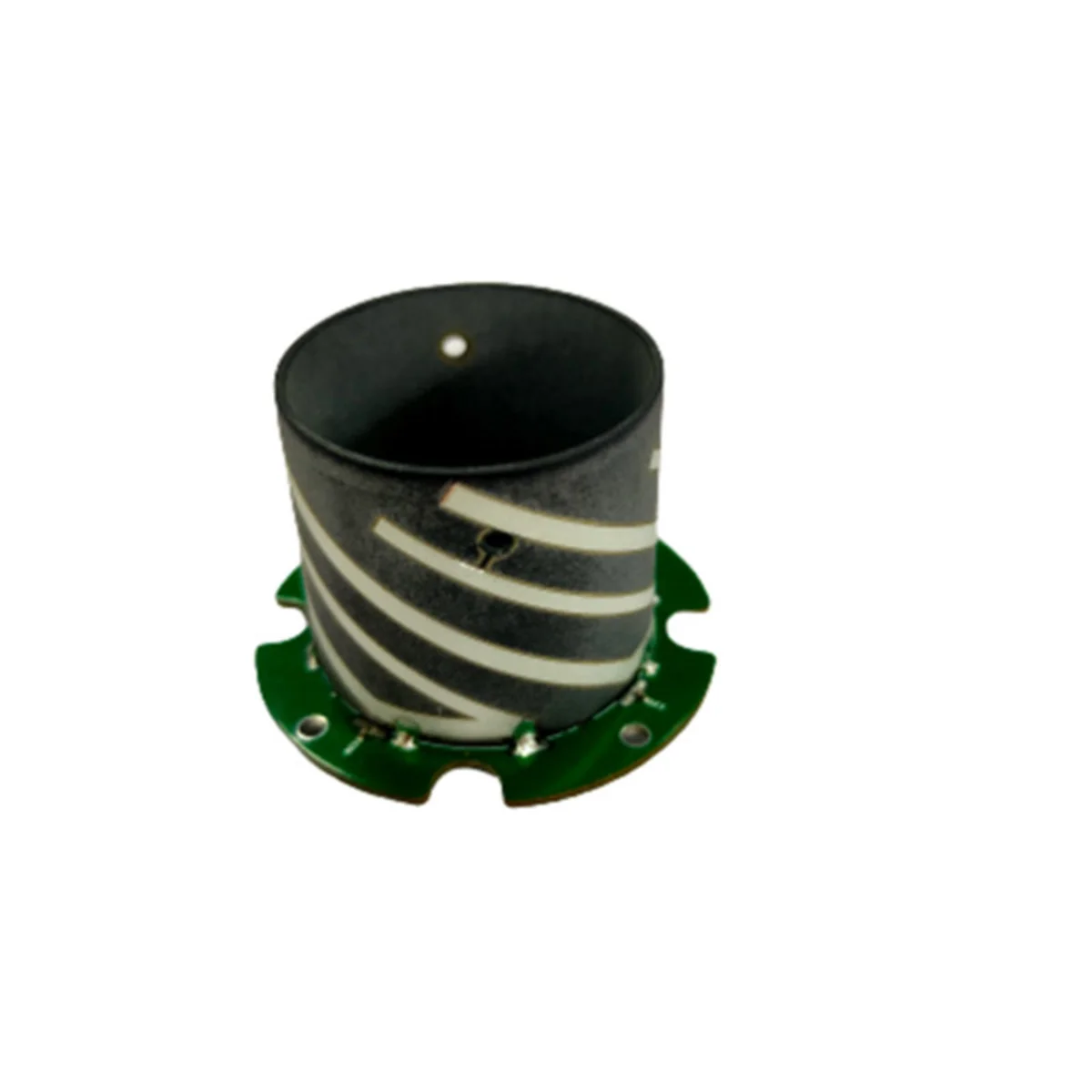

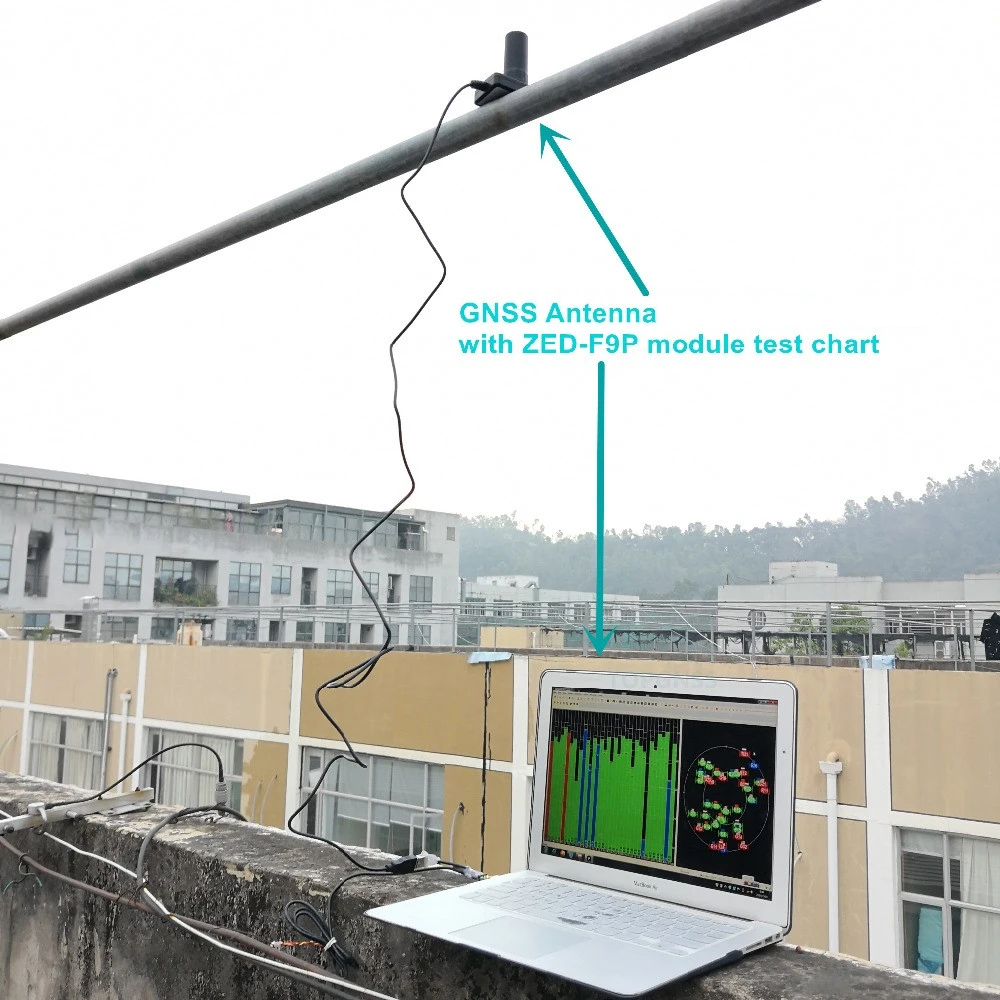

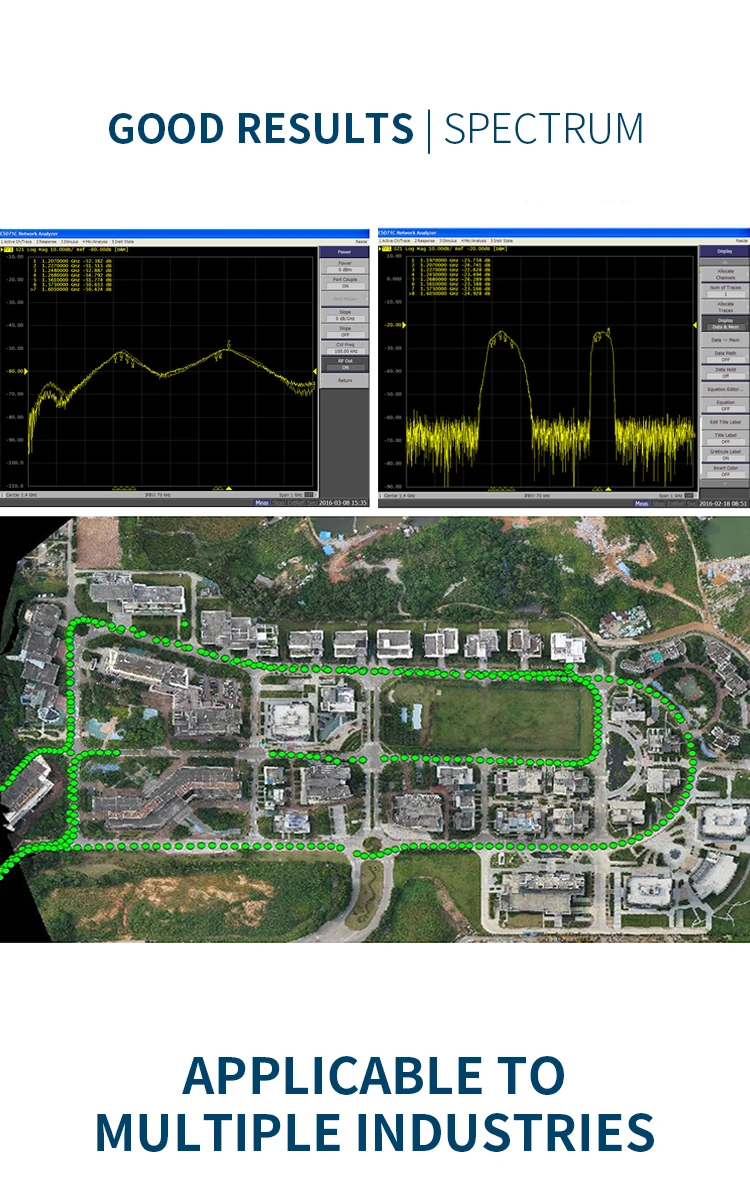

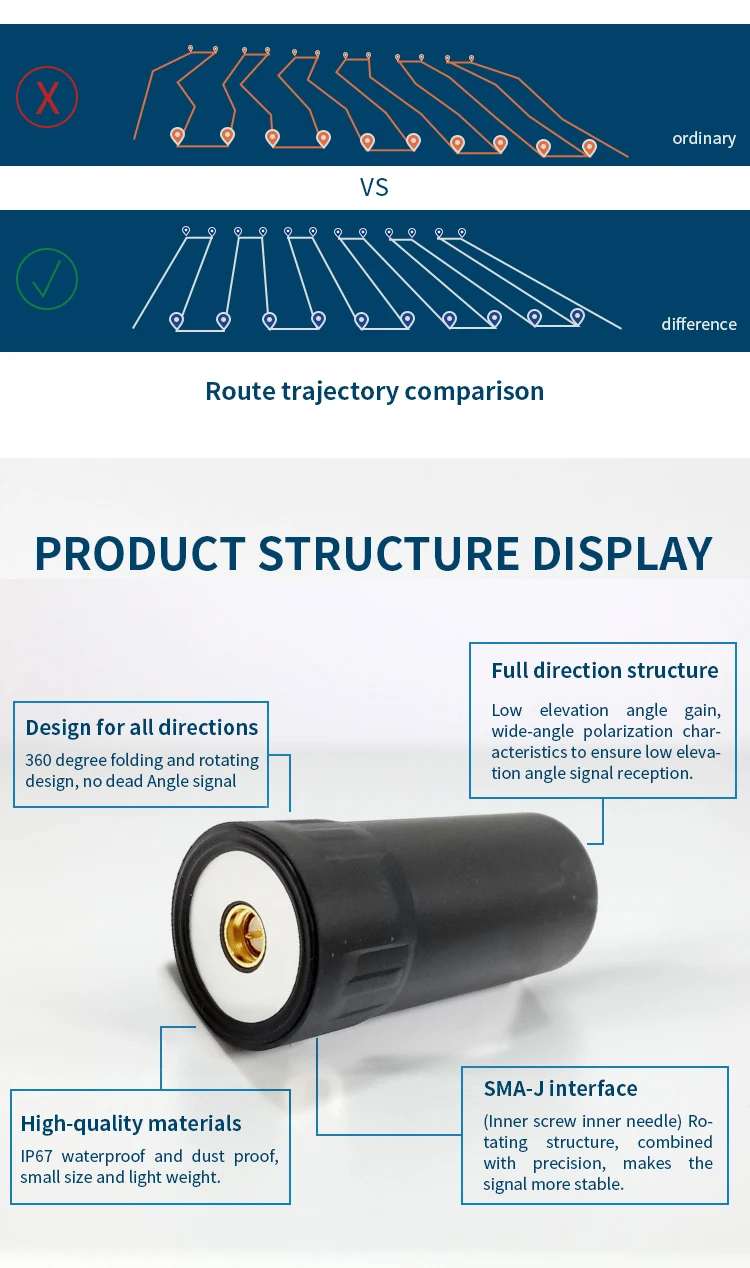

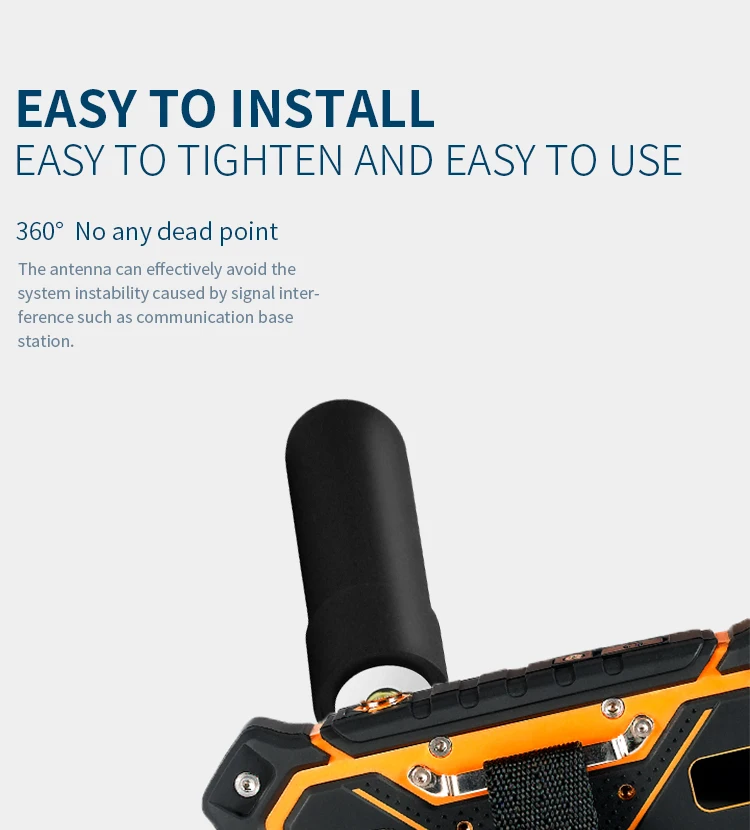

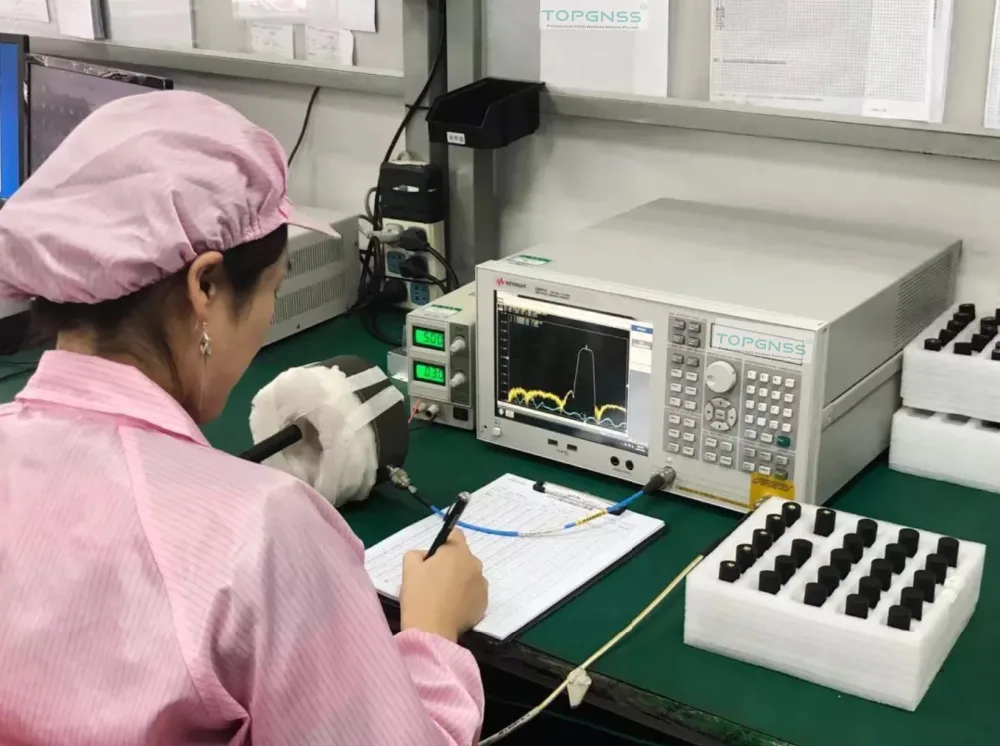

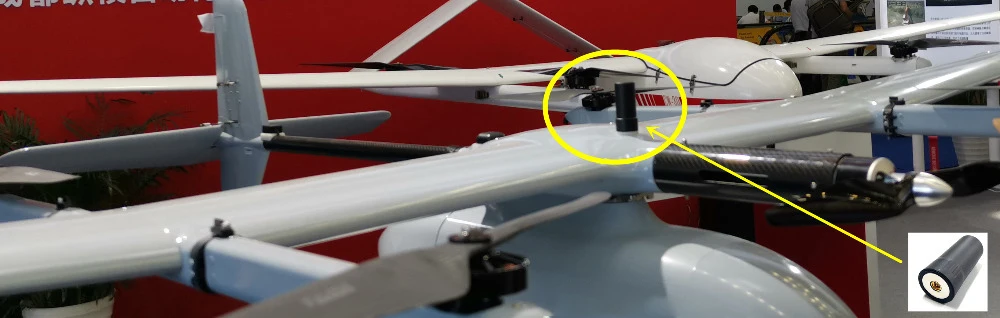

The antenna design adopts a four-arm helical structure, which has a stable phase center and improves the measurement accuracy; The antenna adopts a new material laser engraving design, which increases the reliability of the antenna and can achieve a lower antenna profile; The antenna gain is high, the beam pattern is wide, and it has a good reception effect for low-elevation-angle signals; The antenna is equipped with a high out-of-band suppression low-noise amplifier circuit, which can effectively resist external electromagnetic interference; The antenna is small in size, light in weight and low in power consumption, which can effectively reduce the load of the device and improve the battery life of the device








































\\
