Lab Three Roll Mill B 65
- Category: >>>
- Supplier: Hefei Fanyuan Instrument Co. Ltd.
Share on (1600599687356):
Product Overview
Description

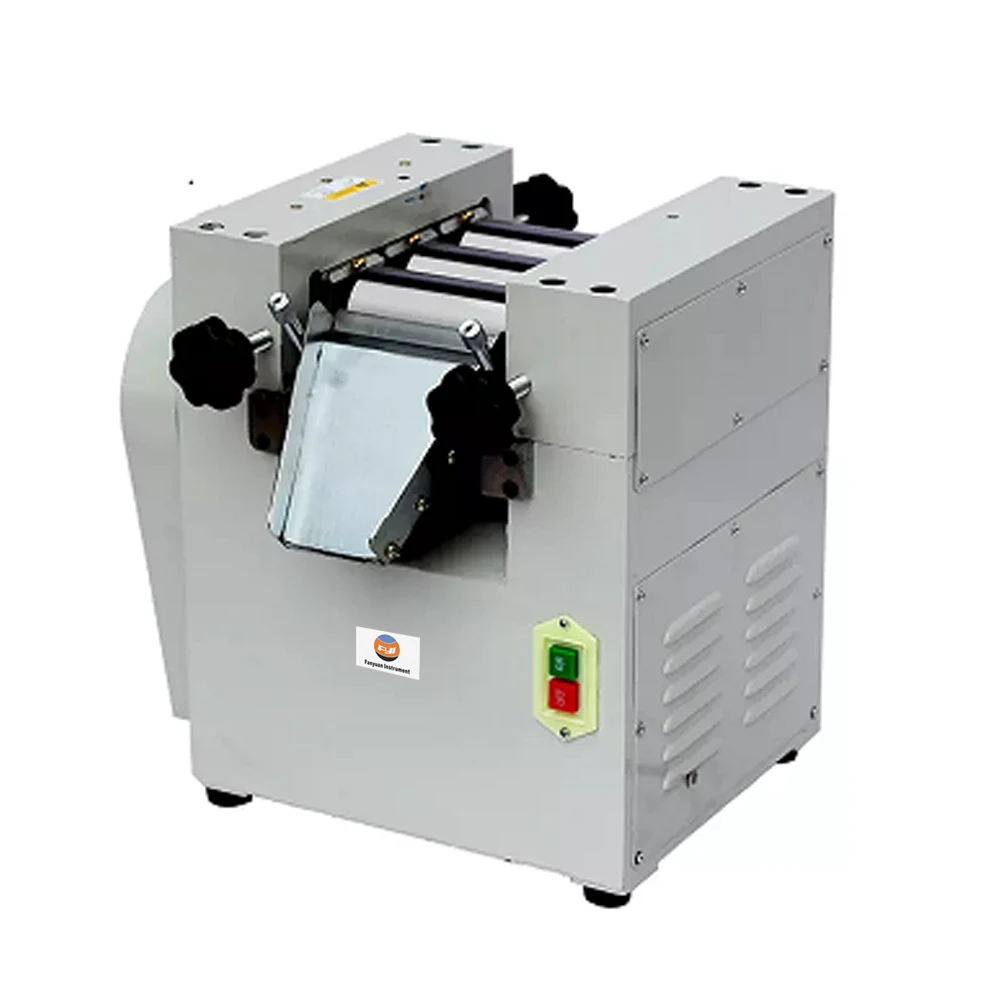

B-65 Lab Three Roll Mill
Product Description
APPLICATION
B-65 Lab Three Roll Mill is used for grinding and dispersing high viscosity and fineness material. It is widely used in printing inks, pigment, plastics and chocolate's grinding test.
Material viscosity:<=3,000,000cps
Production Capacity: 0.5-5kg/h
Application Fields: Suitable for dispersing and grinding materials in industries such as ink, color paste, adhesive, biological, pharmacy, foodstuff, cosmetic, paint, photovoltaic material etc.
FEATURES:
l Manually adjust roller clearance, simple and reliable structure;
l . Suitable for grinding high-viscosity material;
l Cooling jacket roller design
l Hard steel roller material as standard
l Adopt gear rollers power transmission to get more stability and endurance
Specifications
KEY SPECIFICATION
l Power Supply: l Motor Power: l Roller Dia: l Roller length: l Low roller speed: | 110v/60hz Single Phase 0.75kw 65mm 128mm 23r/min | |
l Middle roller speed: l Fast roller speed: | 66r/min 178r/min | |
l Efficiency: l Production fineness l Cooling water inlet: l Material: | 1-10kgs/h 3-10um Cooling water outlet nickel chromium aolly stainless steel | |
l Roller HR: | 50-60 HR | |
l Roller Concentricity: | 5um | |
l Roller treatment: l Frame: | casting and heat treatment Q235 casting process | |
l Overall size: | 440*450*440mm | |
l Nets weight | :80kg | |
Company Information
Trade Shows
Our Services
Installation in customer's lab Training in FYI showroom
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration),30 years focusing on test instruments field,More than 10 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 30 days, If we have inventory, we can arrange shipment within 7 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Engineers available to sevice yarn dyeing machine overseas,after the warranty, the professional after-sale service team will provide perfect technical support on line,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. our products are widely recognized and trusted by users.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
♥ Want to know more information welcome to contact us now!
