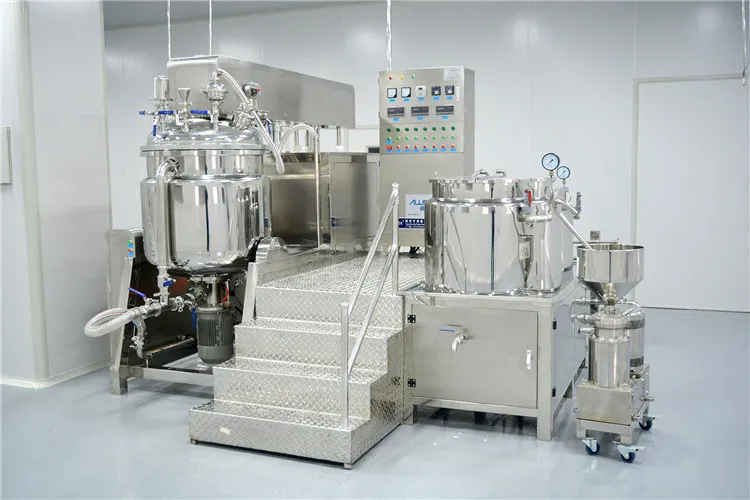

Mayonnaise/Chemicals vacuum homogeneous emulsifying machines
- Category: >>>
- Supplier: Guangzhou Ailusi Machinery Co. Ltd.
Share on (1600599693506):
Product Overview
Description
Product Overview
AILUSI MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard

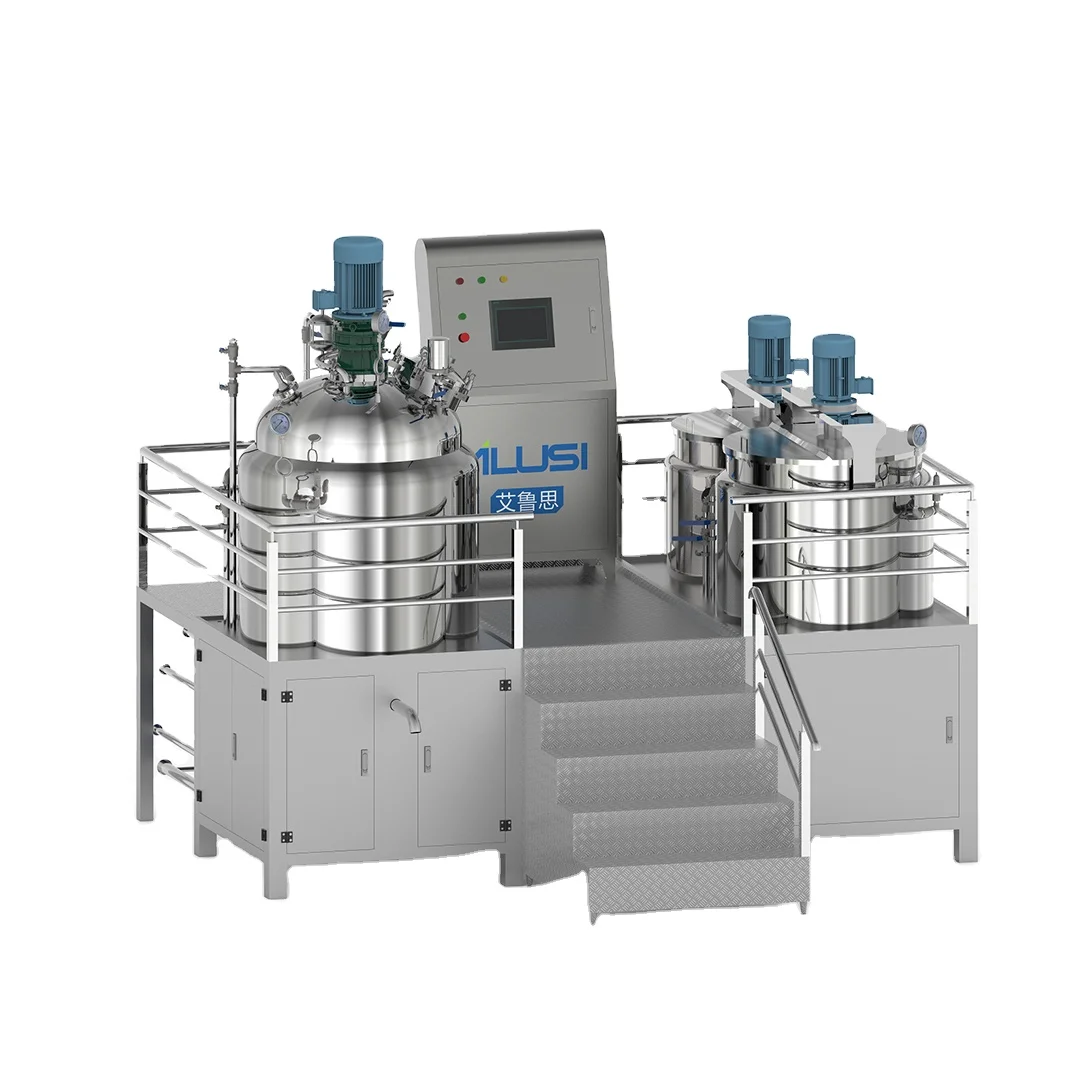

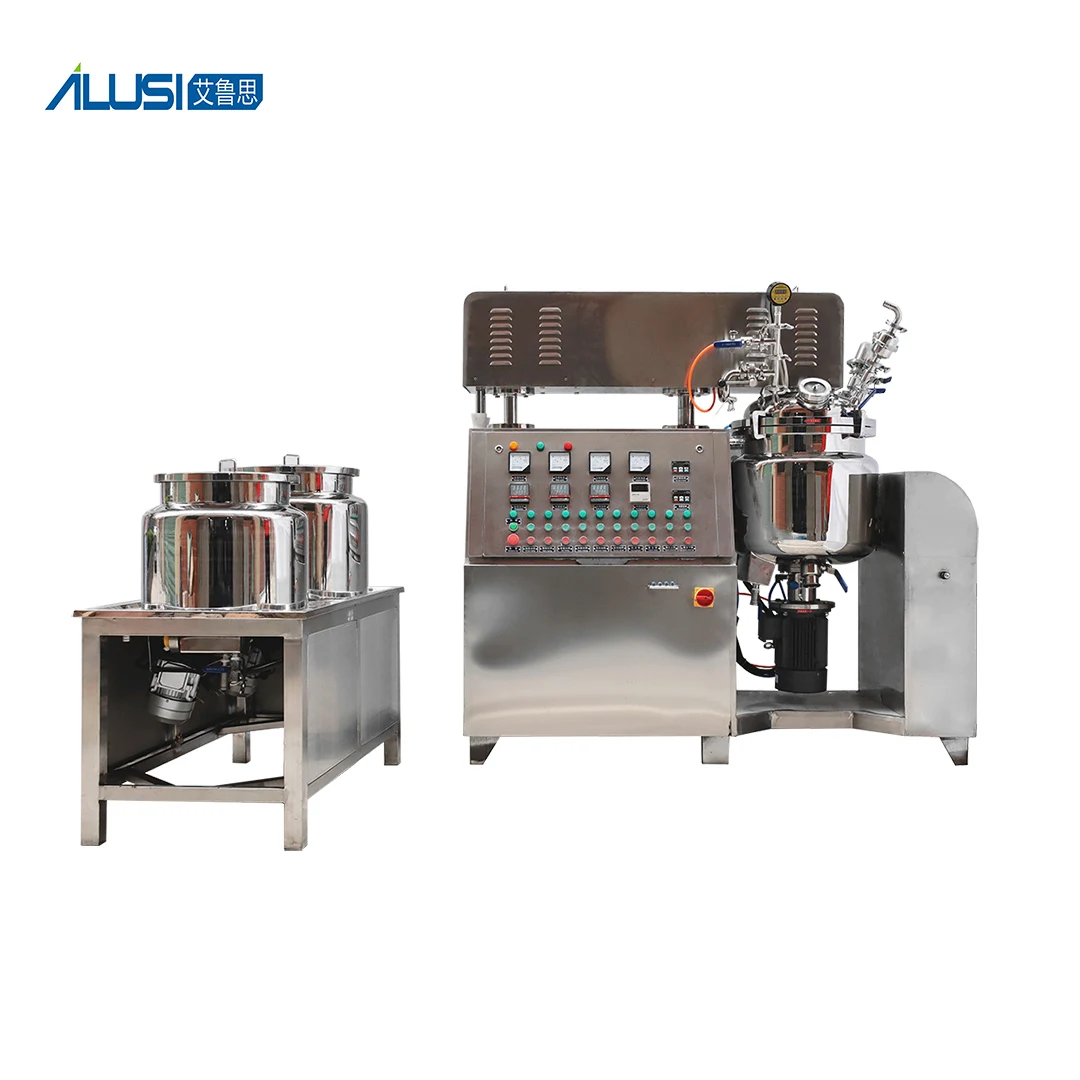

Hydraulic lifting vacuum emulsifier mixer
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
FEATURES AT A GLANCE
Standard configuration
◆ Emulsifier, water phase tanks, oil phase tank
◆ Emulsifier, water phase tanks, oil phase tank
◆ Three-layer tank, steam or electric heating
◆ Variable frequency speed scraper mixing
◆ 3600rpm high-speed homogenizer, fineness 0.2-5um
◆ Vacuum pumps and sync solenoid valves
◆ Hydraulic lifting system
◆ Stainless steel platform ans stairs
◆ Button or HMI operation
◆ Vacuum pumps and sync solenoid valves
◆ Hydraulic lifting system
◆ Stainless steel platform ans stairs
◆ Button or HMI operation

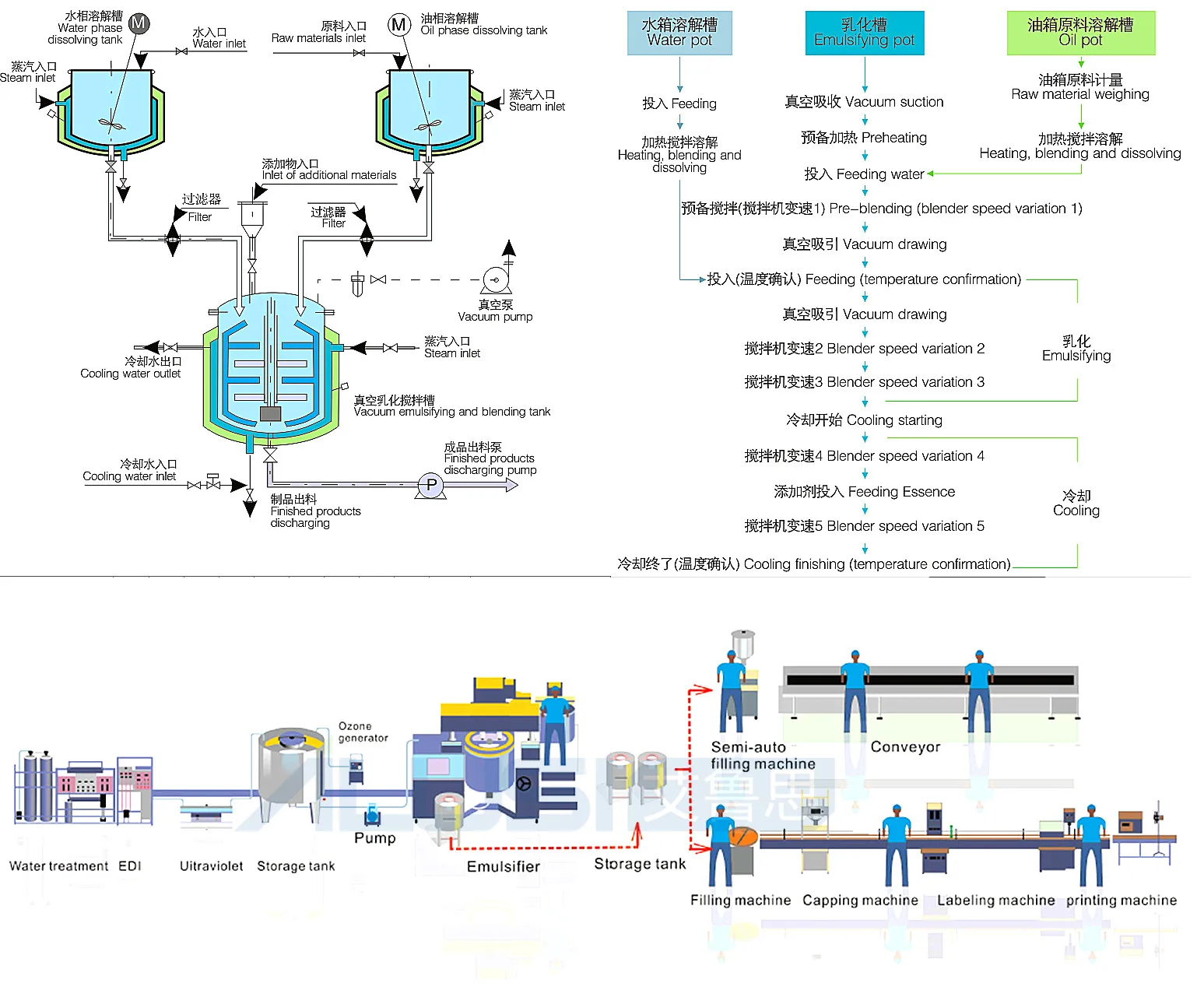

Working Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm – 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
Right elevation
Front elevation
Back elevation
Lid
Mixer
Inside of tank
Water& oil tank
Bottom homogenizer
Homogenizer head
Homogenizer head
Control panel
Hydraulic lifting

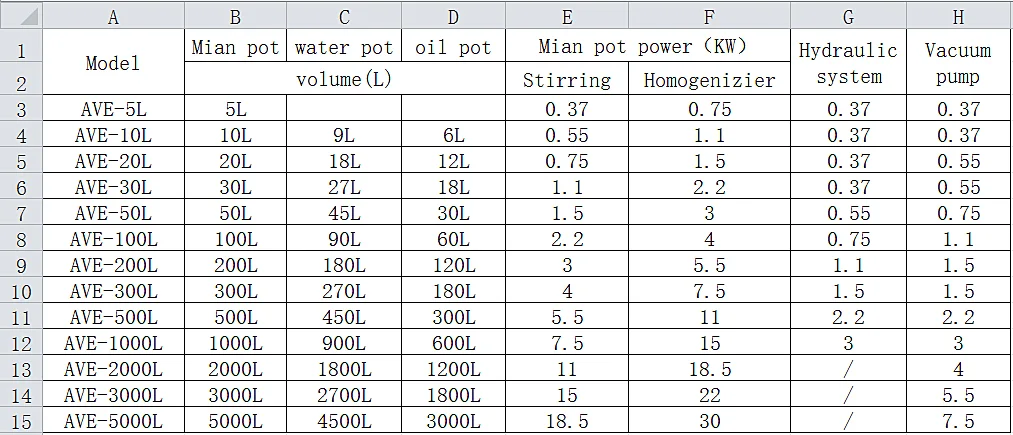

PRODUCT SPECIFICATIONS
No | Model | AVE-100 |
1 | Working capacity | 100L |
2 | Heating method | Steam/electric |
3 | Mixing type | Upper frame oar scrape mixer |
4 | Mixing motor power | 2.2KW |
5 | Mixing frequency | 2.2KW |
6 | Mixing Speed | 0-65rpm |
7 | Homogenizer | Bottom homogenizer with frequency inverter |
8 | Bottom Homogenizer power | 5.5KW |
9 | Speed | 0-3000rpm (50Hz)/0-3600rpm (60Hz) |
10 | Hydraulic lift system | Dual Hydraulic , power: 1.1KW |
11 | Vacuum pump | Water cycle vacuum pump, power: 1.5KW |
12 | Control method | Button control/ HMI |
13 | Frequency converter | Delta/Panasonic/Mitsubishi |
14 | Electrical components | Schneider/Delixi |
15 | Jacket | Double jacket,3 layers |
16 | Tank materials | Inner layer 4mm/SUS316 Middle layer 4mm/SUS304 Outer layer 2mm/SUS304 |
PRODUCT CONFIGURATION
Siemens Motor
Reducer
Delta Frequency inverter
Stator and rotor
Rotor
Materials SUS304&316L(TISCO)
Burgmann Mechanical seal
NSK Bearing
Omron temperature controller
Time Relay
Breaker
AC contactor
Vacuum pump
Hydraulic cylinder
Limit switch
Temperature probe
Vacuum meter
Safe valve
Materials Source
Certifications

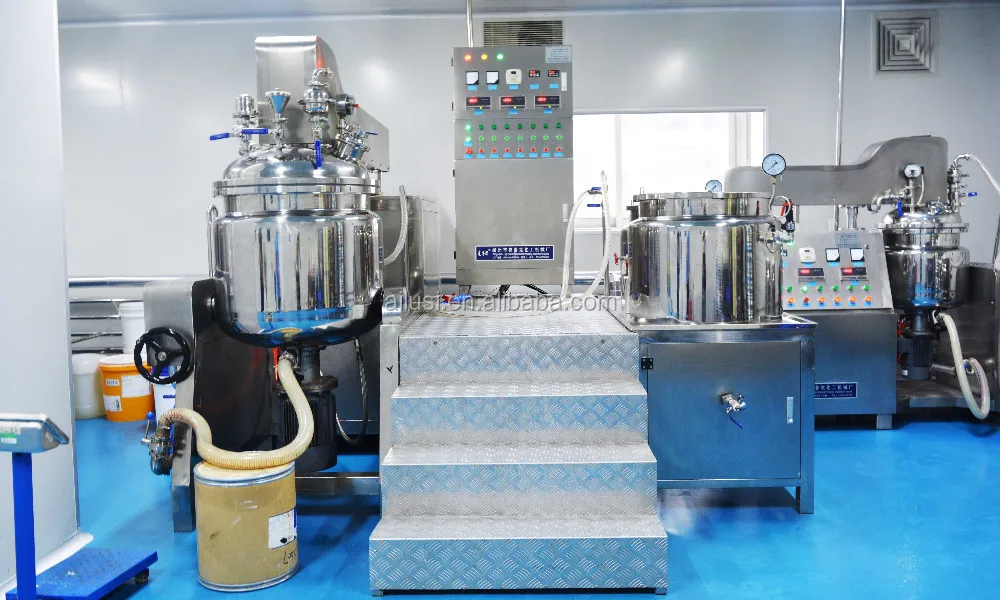

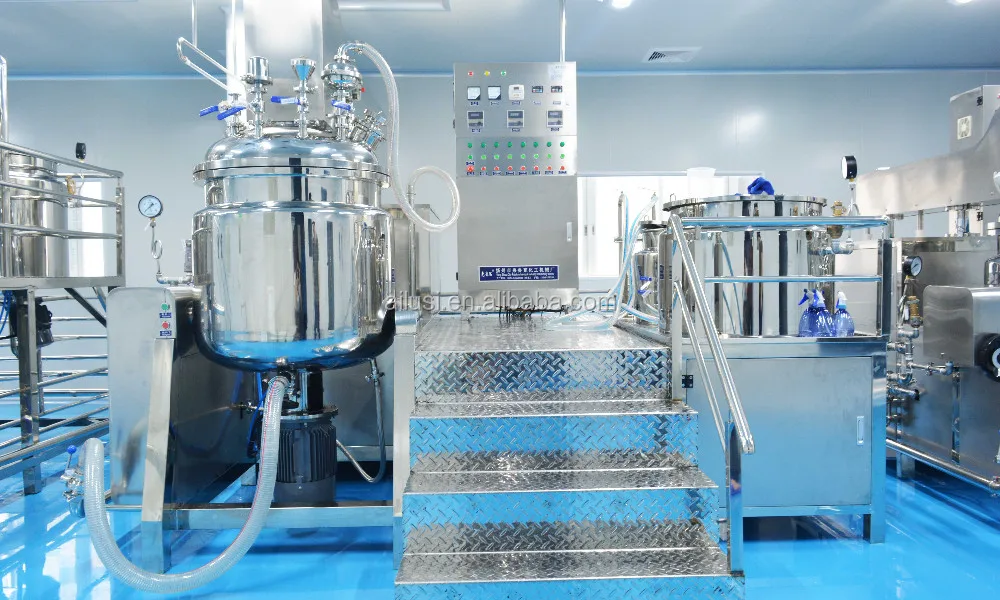

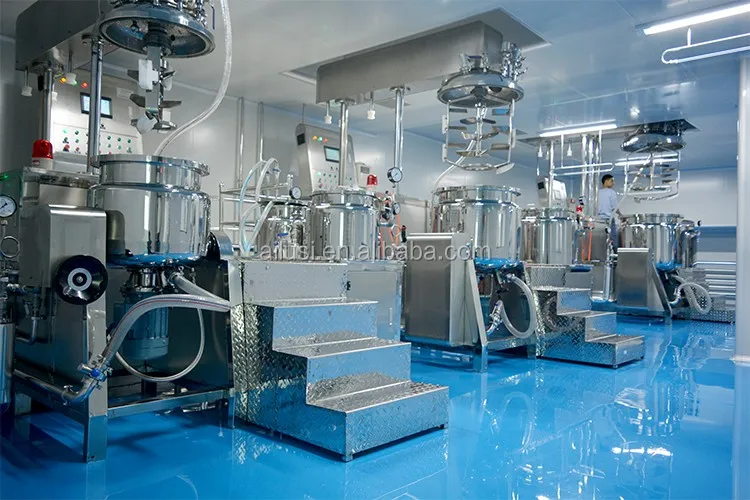

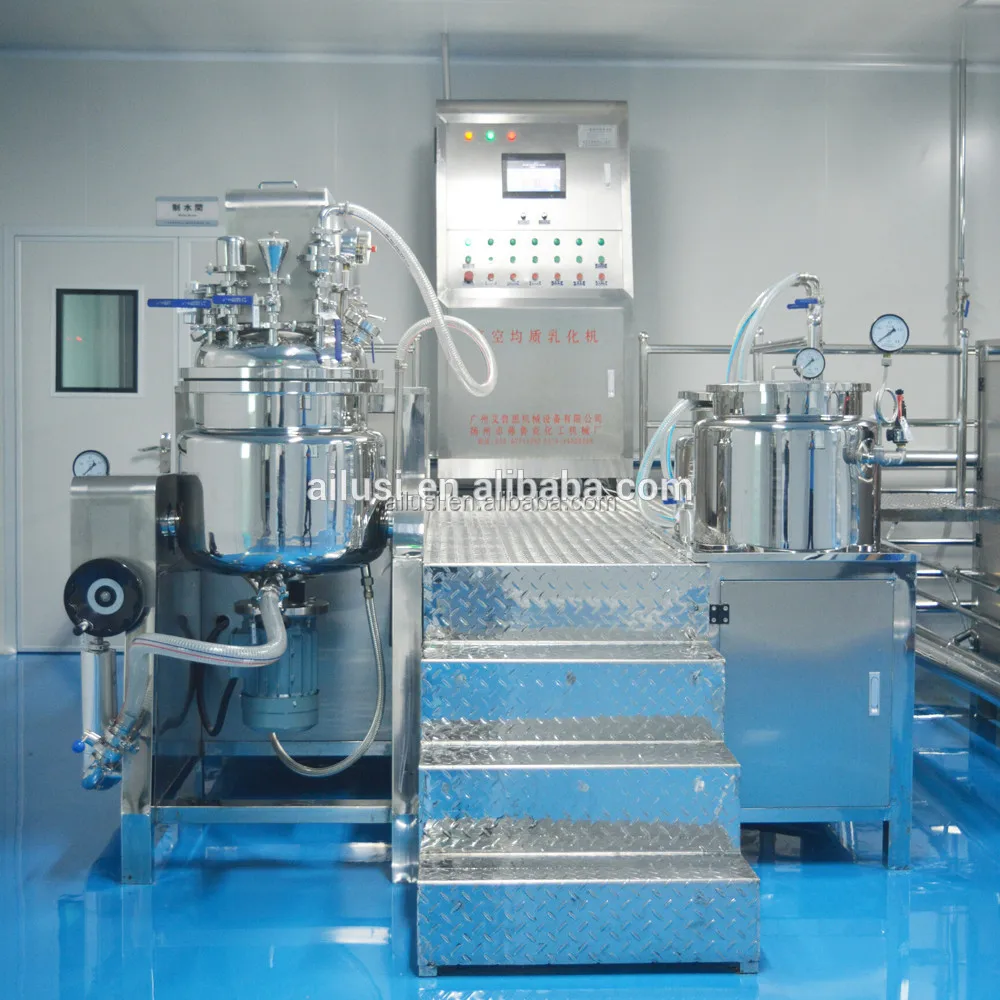

Successful Project
Packing & Delivery
The equipment is packed in imported wooden boxes.
Transportation by sea, air, express and train

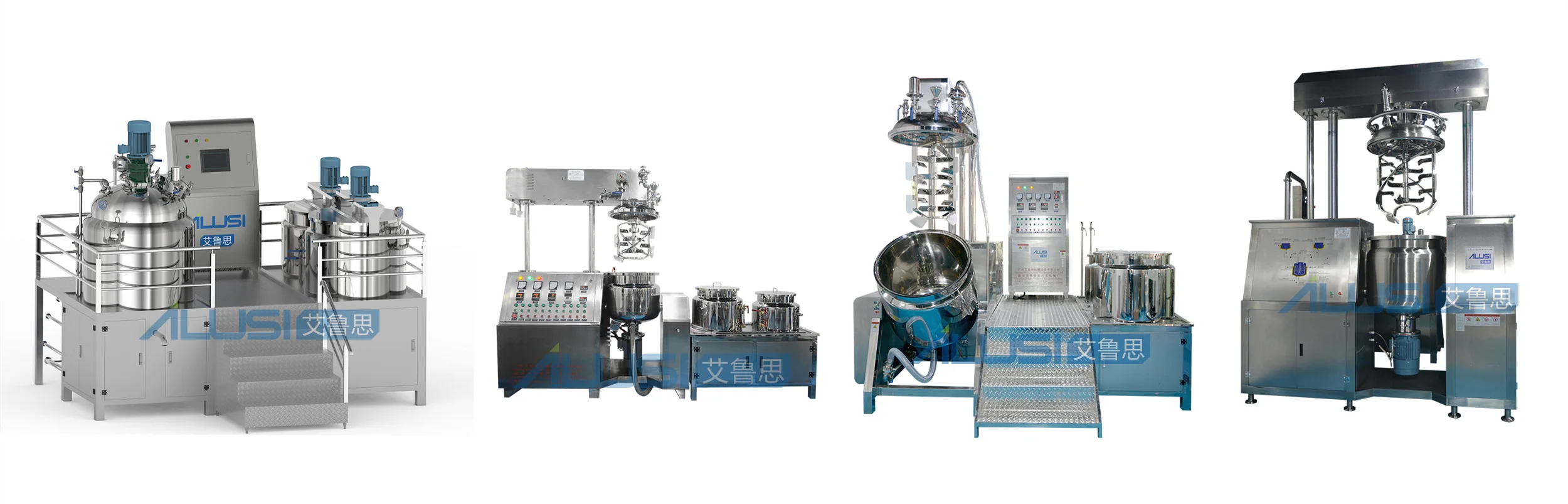

Similar Product
Company Profile
Ailusi, as a cosmetics, pharmaceutical, food, chemical machinery manufacturer located in Jiangsu, China, we provide the whole solution from factory layout design, the whole production line machine design and making, machine installation and fixing.
