ZBR 200 3 PLC TIG coil winding machine
- Category: >>>
- Supplier: Jiangxi Hongjun Environmental Sci-Tech Co. Ltd.
Share on (1600599721092):
Product Overview
Description
Production Description
Brief introduction :
Apply for:

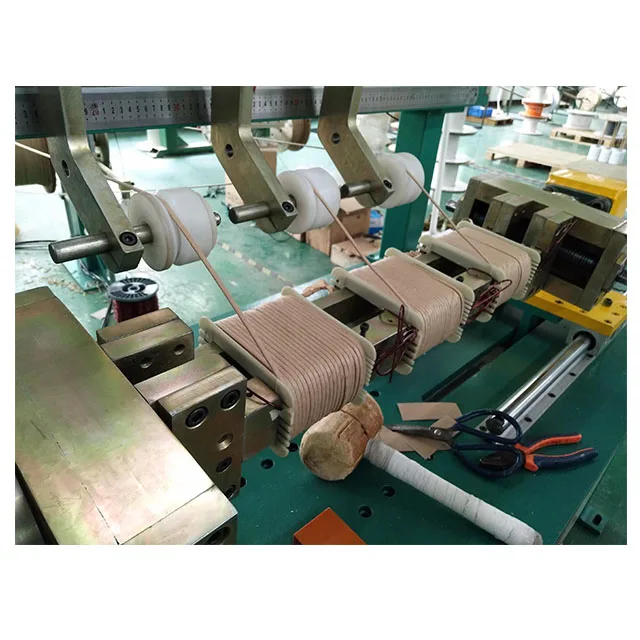

ZBR-200-3 three head clamping reactor wire winding machine is suitable for distribution transformer 、reactor coil winding and other similar technological process wire winding.
Main Features :
Main components :
Main Features :
Under the control of Pneumatic power system、Automatic servo and PLC system , it has high degree of automation\\completed function and strong power features.
Main components :
Winding frame、servo motor wire winding machine 、tension adjustable lay-off racks、Pneumatic system 、PLC control system 、servo motor

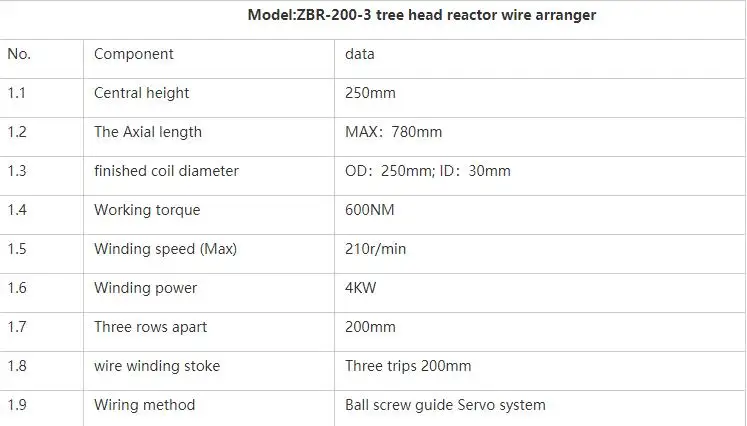

Model:ZBR-200-3 tree head reactor wire arranger | Large-scale transformer CNC control wire winding machine | |||
No. | Component | data | ||
1.1 | Central height | 250mm | ||
1.2 | The Axial length | MAX：780mm | ||
1.3 | finished coil diameter | OD：250mm; ID：30mm | ||
1.4 | Working torque | 600NM | ||
1.5 | Winding speed (Max) | 210r/min | ||
1.6 | Winding power | 4KW | ||
1.7 | Three rows apart | 200mm | ||
1.8 | wire winding stoke | Three trips 200mm | ||
1.9 | Wiring method | Ball screw guide Servo system | ||
2 | Coil material | |||
2.1 | Round wire diameter | φ0.8-3.0mm | ||
2.2 | Flat wire Spec | 5X12mm | ||
3 | Wind clamping equipment | |||
3.1 | chunk distance (standard) | 150mm | ||
3.2 | chunk distance(MAX) | 250mm | ||
3.3 | chunk distance (MIN) | 20mm | ||
4 | Counting digits | five（0-9999.9） | ||

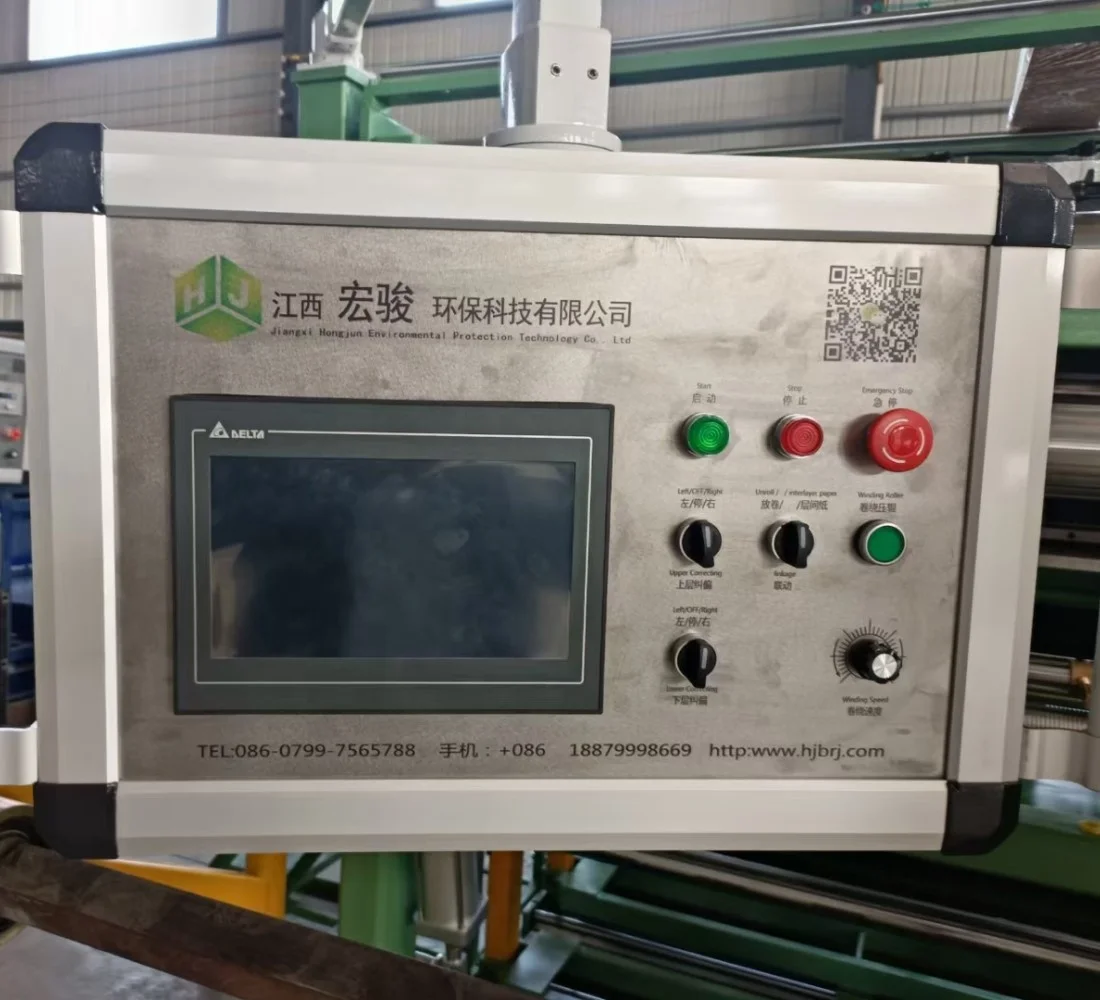

5 | Operation mode | Touch screen | ||
