JUC 31F KSD 01F D5 5 degrees 2A250V normally closed Thermostat temperature switch temperature control switch
- Category: >>>
- Supplier: Shenzhen Xingcheng Technology Co. Ltd.
Share on (1600599748582):
Product Overview
Description
Products Description

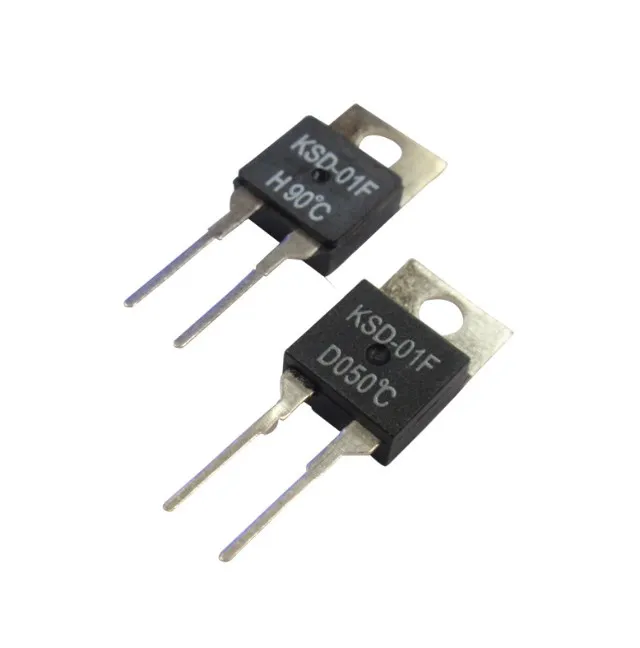

Model: KSD-01F
Technical parameters: System touch temperature thermostat. Sensitive and reliable. Suitable for circuit boards, etc. for temperature control or thermal overload protection.
1. Conditions of Use
① Relative humidity: 95% at +20°C
② Atmospheric pressure: 86-106Kpa
③ Working position: any
2. technical parameter
① Point form: 1D or 1H
② Contact load: 220VAC 1.5A or 24VDC 1.5A
③ Insulation resistance: normal temperature and humidity ≥50MΩ
④ Contact resistance: ≤ 100 mΩ
⑤ Dielectric strength: ≥500VAC
⑥ Weight < 2g
Features: It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life, and little worry about radio.
Precautions:
1. When using contact temperature-sensing installation, the metal cover should be close to the installation surface of the controlled appliance. In order to ensure the temperature-sensing effect, the temperature-sensing surface should be coated with thermal grease or other heat-conducting medium with similar performance.
2. Do not collapse, loosen or deform the top of the cover during installation, so as not to affect the performance.
3. Do not allow liquid to penetrate into the inside of the temperature controller, do not crack the shell, and do not arbitrarily change the shape of the external terminals.
4. When the product is used in a circuit with a current not greater than 5A, the copper core cross-section should be 0.5-1㎜2 wire connection; when used in a circuit with a current not greater than 10A, the copper core cross-section should be 0.75-1.5㎜2 wire connection connect.
5. The product should be stored in a warehouse where the relative humidity is less than 90% and the ambient temperature is below 40°C, which is ventilated, clean, dry and free of corrosive gases.
Technical parameters: System touch temperature thermostat. Sensitive and reliable. Suitable for circuit boards, etc. for temperature control or thermal overload protection.
1. Conditions of Use
① Relative humidity: 95% at +20°C
② Atmospheric pressure: 86-106Kpa
③ Working position: any
2. technical parameter
① Point form: 1D or 1H
② Contact load: 220VAC 1.5A or 24VDC 1.5A
③ Insulation resistance: normal temperature and humidity ≥50MΩ
④ Contact resistance: ≤ 100 mΩ
⑤ Dielectric strength: ≥500VAC
⑥ Weight < 2g
Features: It has the characteristics of stable performance, high precision, small size, light weight, high reliability, long life, and little worry about radio.
Precautions:
1. When using contact temperature-sensing installation, the metal cover should be close to the installation surface of the controlled appliance. In order to ensure the temperature-sensing effect, the temperature-sensing surface should be coated with thermal grease or other heat-conducting medium with similar performance.
2. Do not collapse, loosen or deform the top of the cover during installation, so as not to affect the performance.
3. Do not allow liquid to penetrate into the inside of the temperature controller, do not crack the shell, and do not arbitrarily change the shape of the external terminals.
4. When the product is used in a circuit with a current not greater than 5A, the copper core cross-section should be 0.5-1㎜2 wire connection; when used in a circuit with a current not greater than 10A, the copper core cross-section should be 0.75-1.5㎜2 wire connection connect.
5. The product should be stored in a warehouse where the relative humidity is less than 90% and the ambient temperature is below 40°C, which is ventilated, clean, dry and free of corrosive gases.
