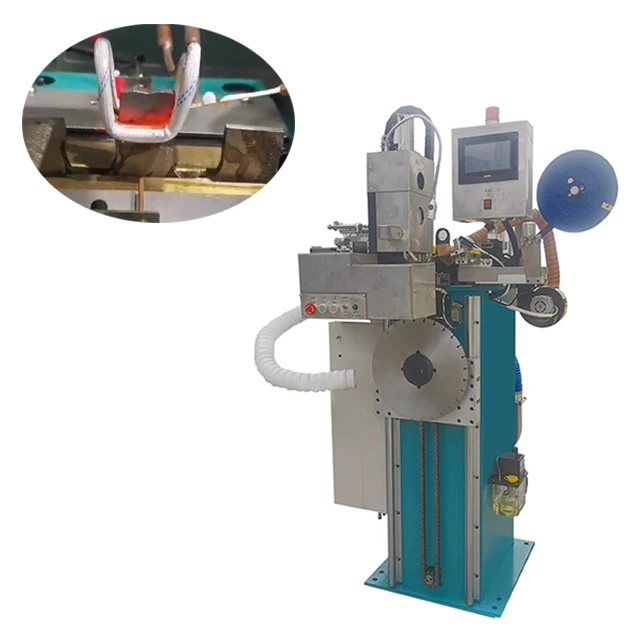

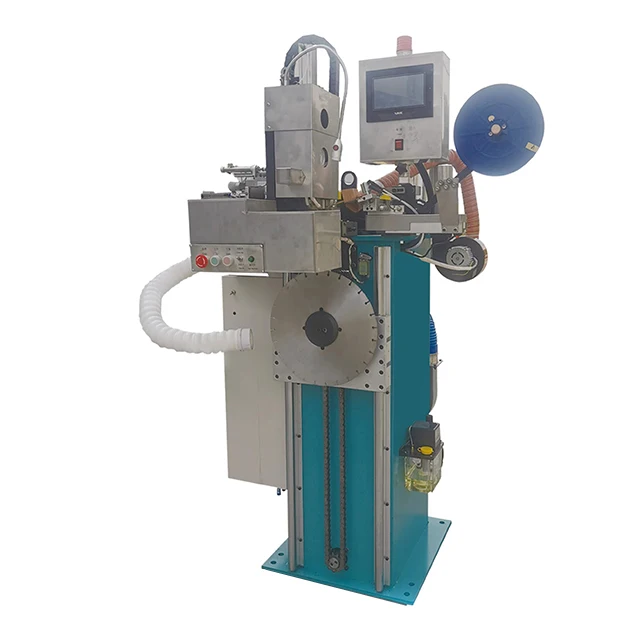

Fully Automatic diamond segment brazing welding soldering machine
- Category: >>>
- Supplier: Huanggang Fuli Electromechanical Technology Co. Ltd
Share on (1600599758156):
Product Overview
Description
Product Overview

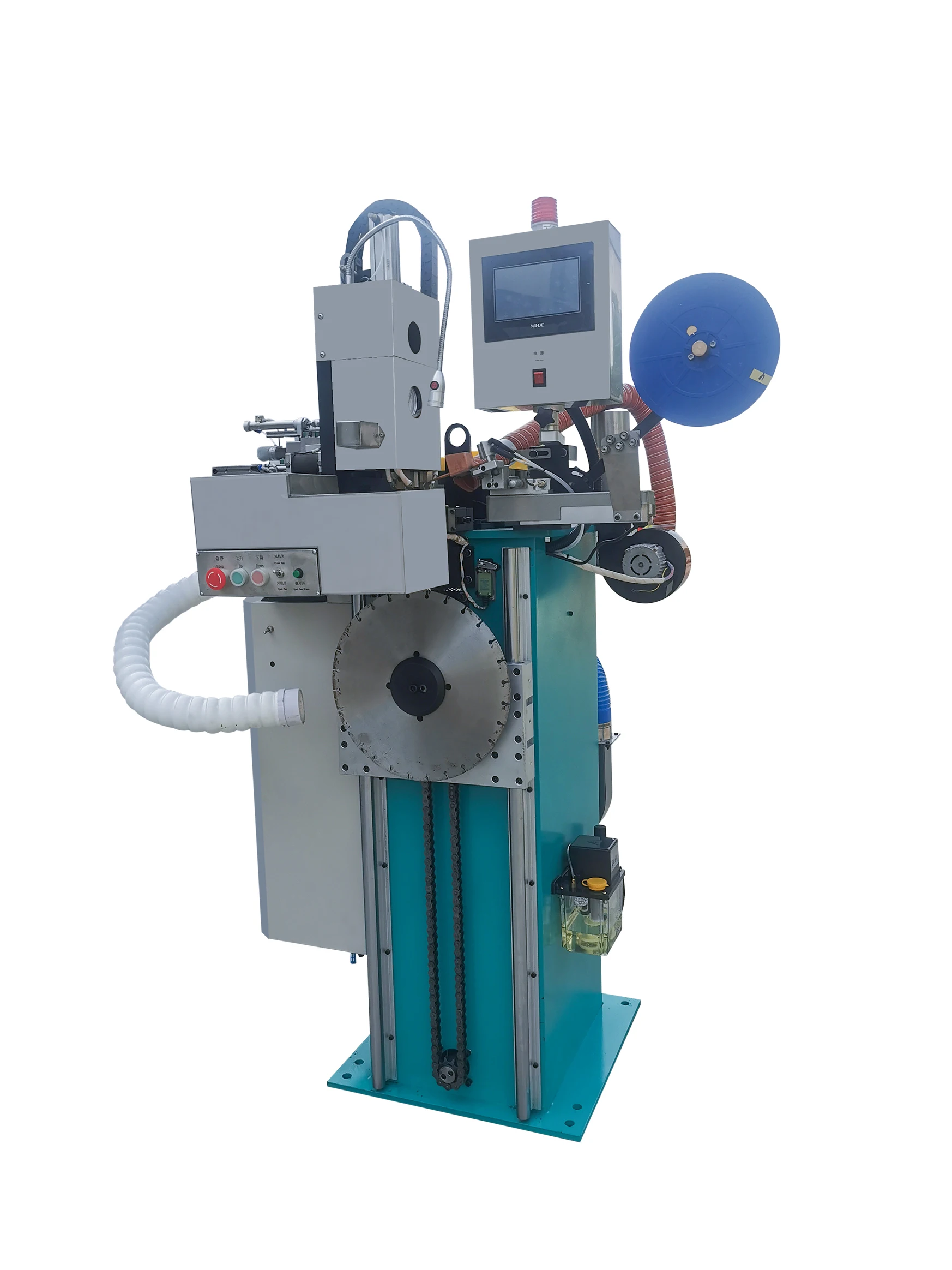

Fully Automatic diamond segment brazing welding soldering machine
1.Automatic Measure blade thickness ,Head motor automatic in the center controlled by closed-loop system
2.According saw blade out of shape ,realization followed automatic in the center .
3.Circular windy Cooling system ,Reducing saw blade out of shape Maximum.
4.Adding clamp system,to make sure welding accuracy effective.
5.Displaying error problem and alarmed automatic.
6.Easier operation,save time and labor,be fast,be convenient.
2.According saw blade out of shape ,realization followed automatic in the center .
3.Circular windy Cooling system ,Reducing saw blade out of shape Maximum.
4.Adding clamp system,to make sure welding accuracy effective.
5.Displaying error problem and alarmed automatic.
6.Easier operation,save time and labor,be fast,be convenient.
FEATURES AT A GLANCE
2.Head motor automatic in the center
3.Circular windy Cooling system
4.Easier operation
5.Segment automatic picking & Fixing system
Cooling system 1
Cooling system 2
Keeping Oil to Machine Smoothly
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | FL-QHJ-1400mm |
2 | Application Range | D300-D1400mm |
3 | Up & Down Distance | 700mm |
4 | Power | 2KW |
5 | Verticality | Less than 0.03mm |
6 | Depth of Parallelism | Less than 0.03mm |
7 | Welding Speed | 3-5s/pcs |
8 | Air Compressor | 0.5-0.8Mpa |
9 | Water Compressor | 0.2Mpa |
10 | Cooling Water Following | 1.5-2M3/H |
11 | Weight | 460kg |
12 | Size | 1150*1200*1700mm |
PRODUCT CONFIGURATION

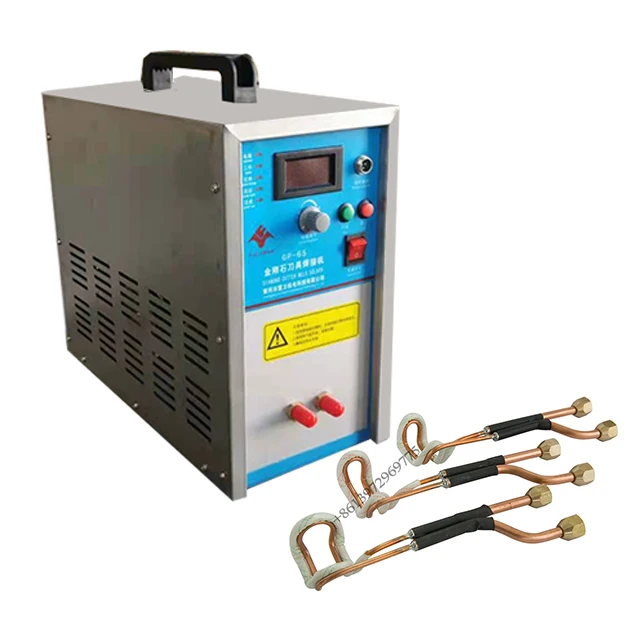

Soldering Pipe

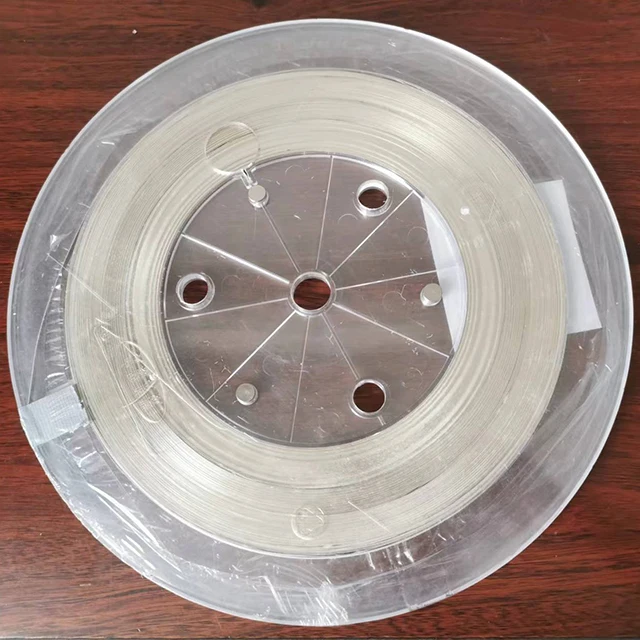

Soldering Strips

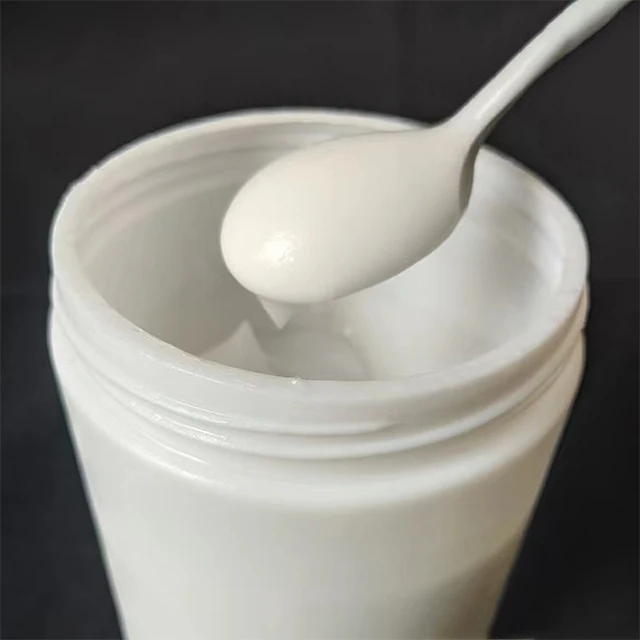

Soldering Flux
SALES AND SERVICE NETWORK

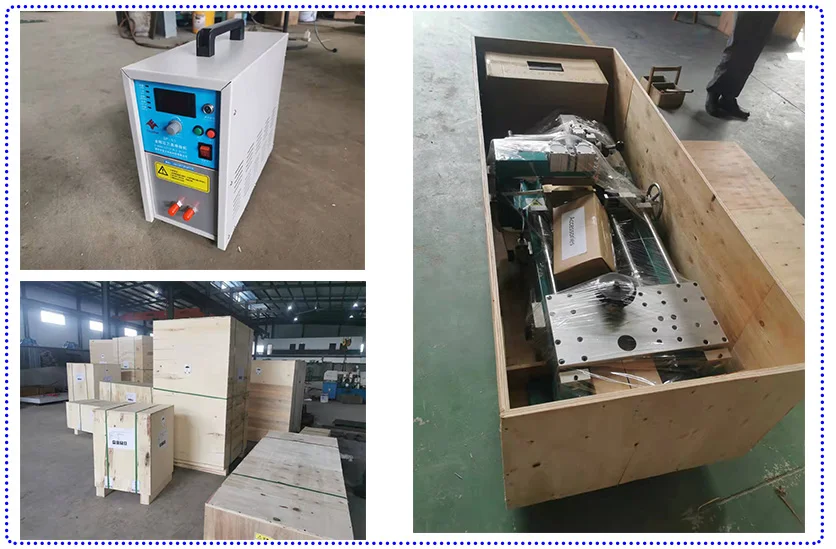

Product packaging
Certifications
