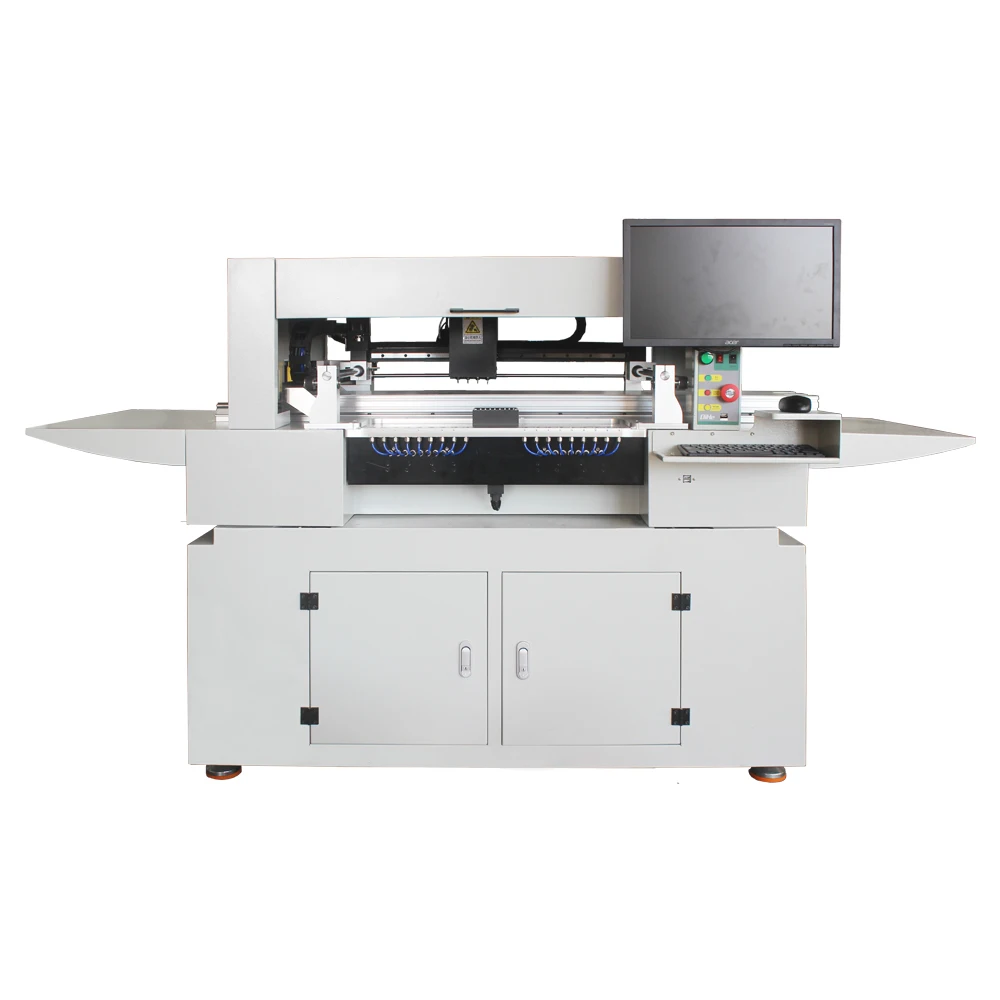

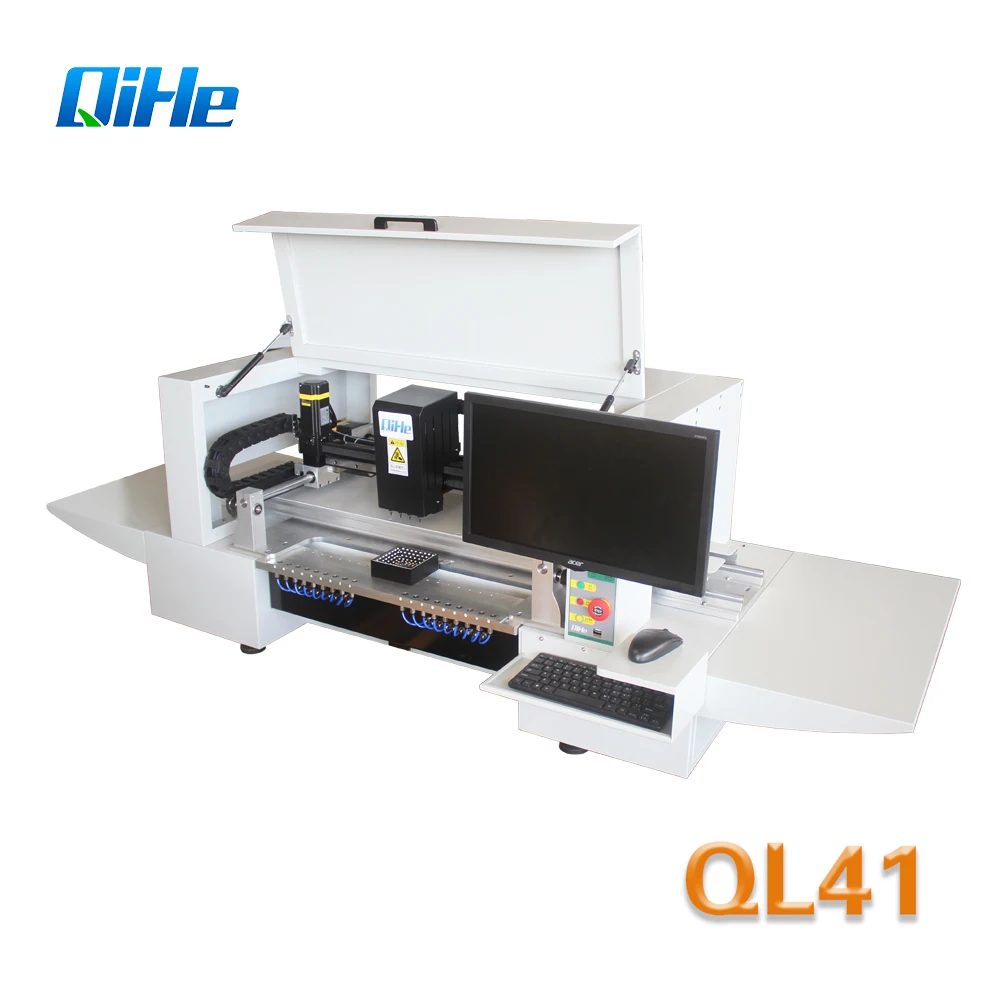

Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery
Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery
Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery
Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery
Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery

Benchtop Type QL41A 4 Placement Heads SMD Pick Place Machine Chip Mounter for Led Lamp Machinery

Share on (1600599760874):


Price:$5,600.00

Quantity:


Product Overview

Description



Product Description

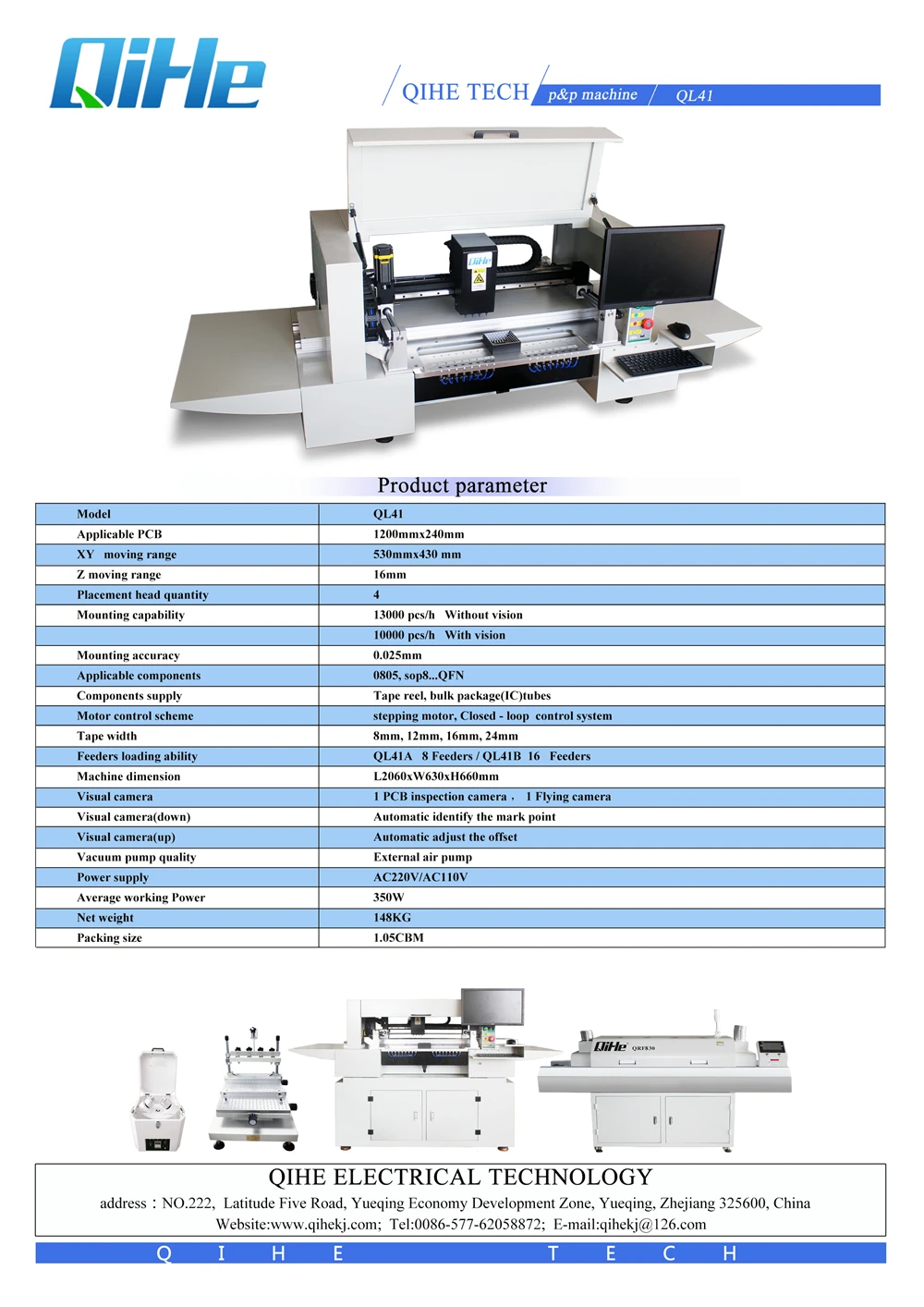

Specification


Model
QL41
Applicable PCB size
1200*240mm
XY moving range
530*430mm
Z moving range
16mm
Placement head quantity
4
Mounting capability
13000CPH vision off
10000CPH vision on
Applicable component
0603,0805-5050,sop8,QFN,LQFP etc.
Motor control scheme
Closed-loop stepper motors
Feeder loading ability
QL41A 8 feeders/ QL41B 16 feeders
Visual system
1 PCB inspection camera, 1 flying vision camera
Power supply
AC220V/110V
Machine dimension
2060*630*660mm
Net weight
148kg
Gross weight
210kg
Volume
1.05CBM
Opition
Machine table
