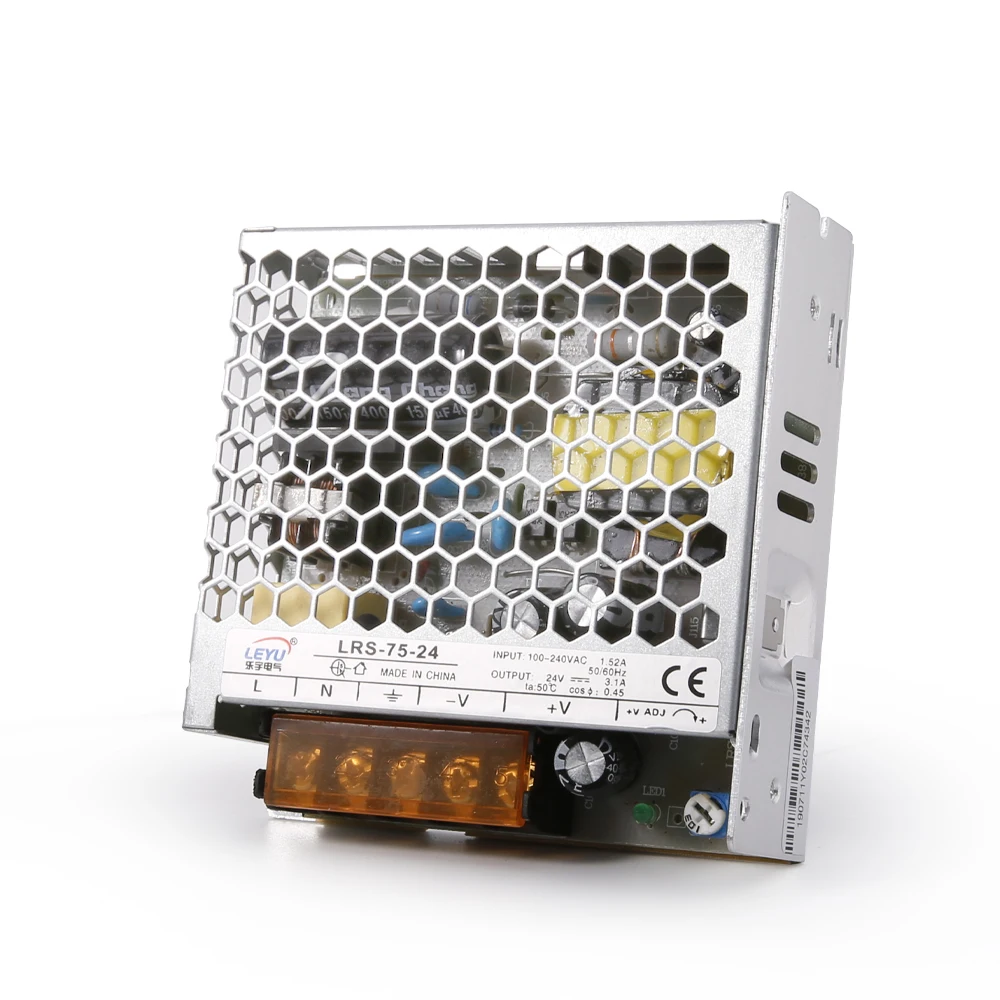

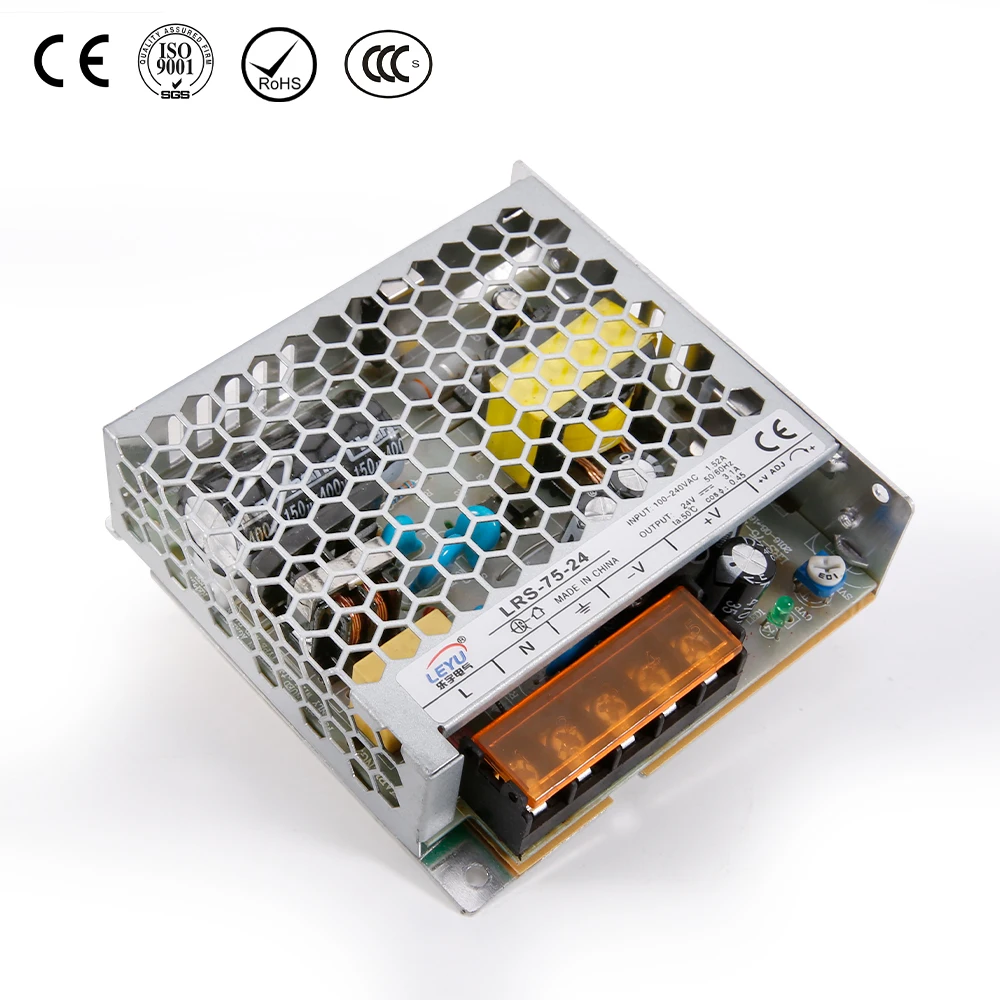

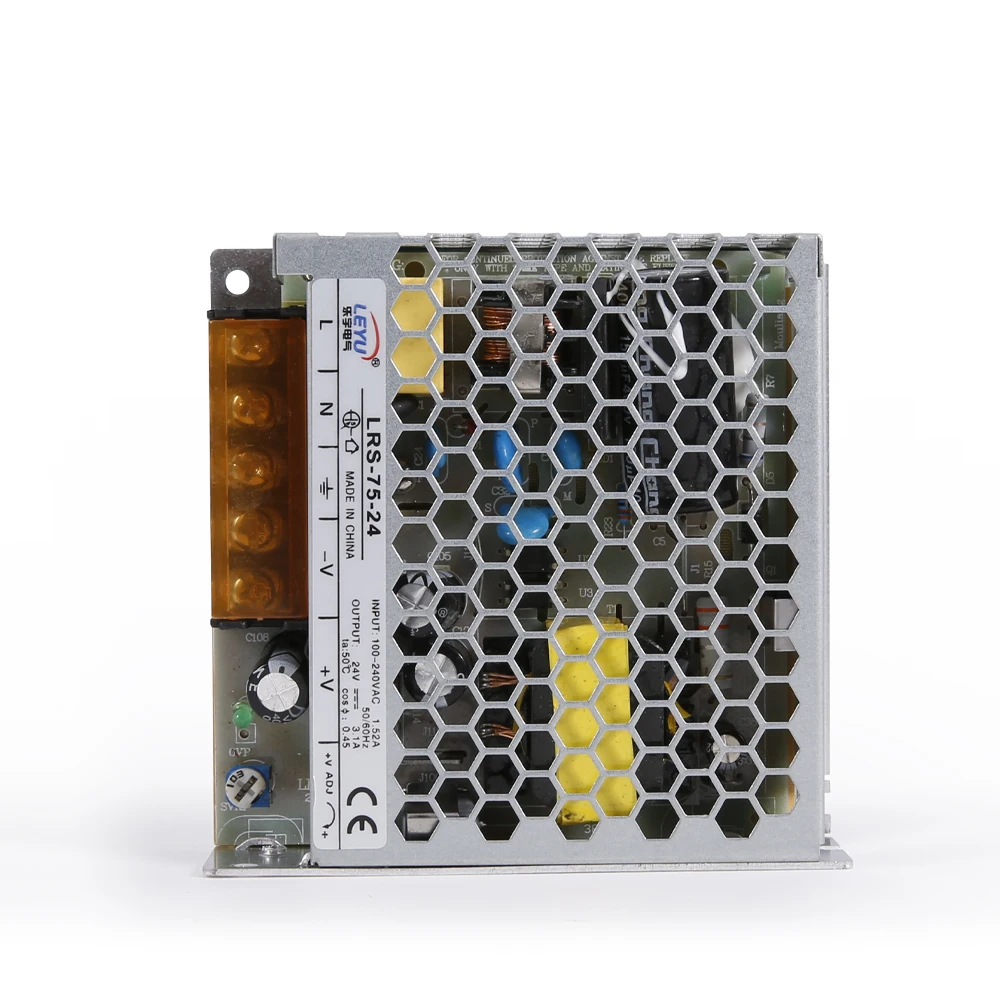

LRS 75 12 adjustable power supply 110V/220VAC to 12V 24V 36V 48V Single Output Switching Power Supply
- Category: >>>
- Supplier: Yueqing Leyu Electric Automation Co. Ltd.
Share on (1600599763477):
Product Overview
Description
Product Description
Specification
SPECIFICATION | |||||||||||
OUTPUT | |||||||||||
Model | LRS-75-5 | LRS-75-12 | LRS-75-15 | LRS-75-24 | LRS-75-36 | LRS-75-48 | |||||
DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V | |||||
Rated Current | 14A | 6A | 5A | 3.2A | 2.1A | 1.6A | |||||
Current Range | 0~14A | 0~6A | 0~5A | 0~3.2A | 0~2.1A | 0~1.6A | |||||
Rated Power | 70W | 72W | 75W | 76.8W | 75.6W | 76.8W | |||||
Ripple & Noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |||||
Voltage Adj. Range | 4.5 ~ 5.5V | 10.2~ 13.8V | 13.5~18V | 21.6~28.8V | 32.4~39.6V | 43.2~52.8V | |||||
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||||
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
Setup, Rise Time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||||||||||
Hold Up Time | 60ms/230VAC 12ms/115VAC at full load | ||||||||||
Voltage Range | 85 ~ 264VAC 120 ~ 373VDC | ||||||||||
Frequency Range | 47 ~ 63Hz | ||||||||||
Efficiency | 86.50% | 89% | 89% | 90% | 91.50% | 91.50% | |||||
AC Current | 1.4A/115VAC 0.85A/230VAC | ||||||||||
Inrush Current | Cold start 50A/230VAC | ||||||||||
Leakage Current | <0.75mA / 240VAC | ||||||||||
Over Load | 110 ~ 150% rated output power | ||||||||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||||
Over Voltage | 5.75~6.75V | 13.8 ~ 16.2V | 18.75~21.75V | 28.8 ~ 33.6V | 41.4~48.6V | 55.2~ 64.8V | |||||
Protection type: shut down o/p voltage, re-power on to recover | |||||||||||
Working Temp. | -30 ~ +70℃ (Refer to “derating curve”) | ||||||||||
Working Humidity | 20 ~ 90% RH non-condensing | ||||||||||
Storage Temp., Humidity | -40 ~ +85℃, 10 ~ 95% RH | ||||||||||
Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||||||||
Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||
Safety Standards | UL60950-1, TUV EN60950-1, EN60335-1/-2-16, CCC GB4943 approved | ||||||||||
Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH | ||||||||||
EMC Emission | Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3 | ||||||||||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A | ||||||||||
Dimension | 99*82*30mm (L*W*H) | ||||||||||
Weight | 0.3Kg | ||||||||||
Packing | 45pcs/carton/14.5kg/0.77CUFT | ||||||||||
