Product Overview
Description
Products Description
Product Name | Porous Microchannel Flat Tubes For Heat Exchangers Of Automotive Air Conditioners, Domestic Air Conditioners, Commercial Air Conditioners And Water Heaters | ||||||
Specification | 58.1*2--8 (Width×Thickness-Number Of Holes) | ||||||
Wall Thickness (Mm) | 0.2-0.5 | ||||||
Inner Rib Thickness (Mm) | 0.18-0.6 | ||||||
R Thickness At Both Ends (Mm) | 0.22-1.2 | ||||||
Tolerance (Mm) | Width±0.05; Thickness±0.02; Wall Thickness±0.03; Inner Rib Thickness±0.03; R Thickness At Both Ends±0.05; | ||||||
Material Alloy Grade | Mainly Divided Into 1 Series And 3 Series 1050/1060/1100/3003/3004/3105/6061/6063/7050/7075 | ||||||
Related Products | H14 H24 H32 H36 H112/T5 T6/T351 ........ | ||||||
Surface Treatment | Light Pipe/Surface Spray Zinc/Surface Precoat Pre Flux/Surface Precoat Sil Flux Flux/Surface Precoat Zn Flux Flux/Surface Precoat Zn Sil Flux/Surface Precoat Li Flux | ||||||
Processing Methods | Hot Extrusion / Extrusion Forming / Surface Zinc Spraying / Winding / Unwinding / Pre-Coating / Length Correction And Cutting | ||||||
Surface Color | Silver White, Silver Gray, White...... | ||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
1050 | ≤0.25 | ≤0.4 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
1100 | ≤0.95（Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.1 | --- | --- | |
3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Details Images

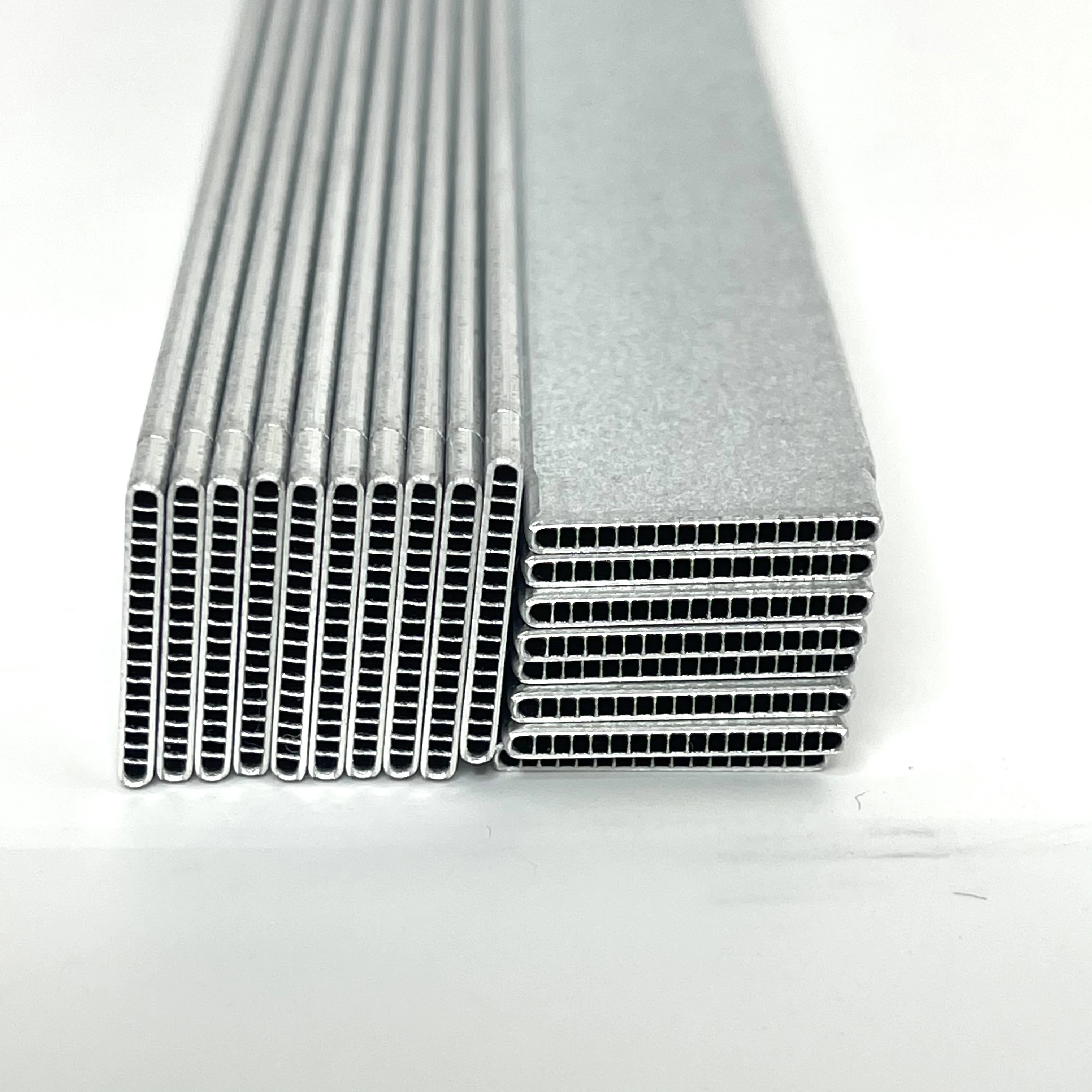

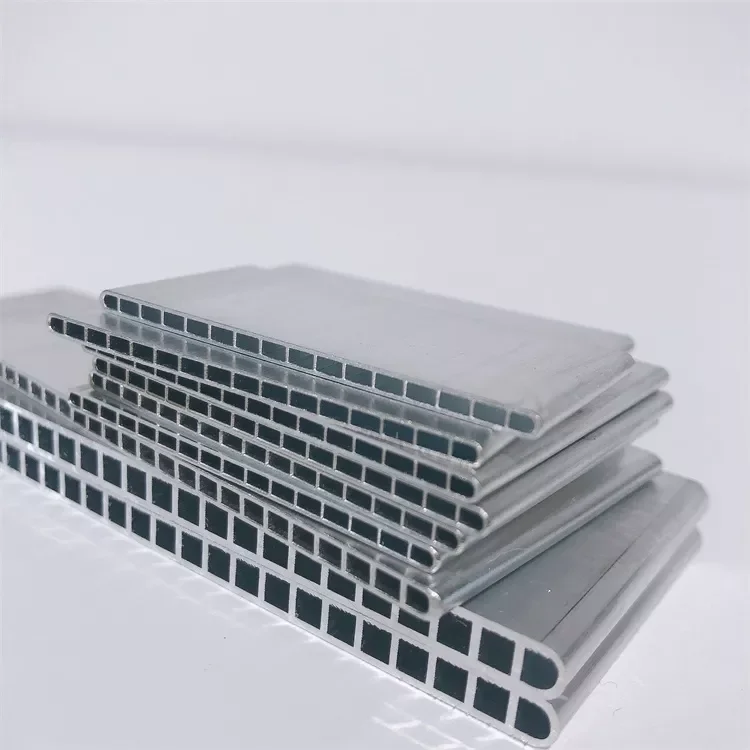

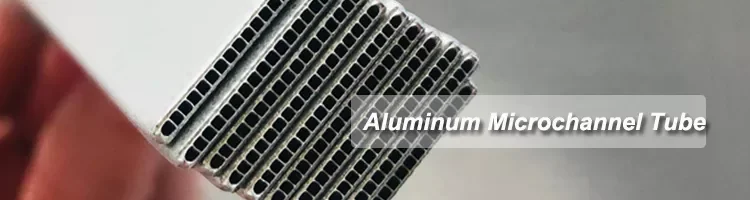

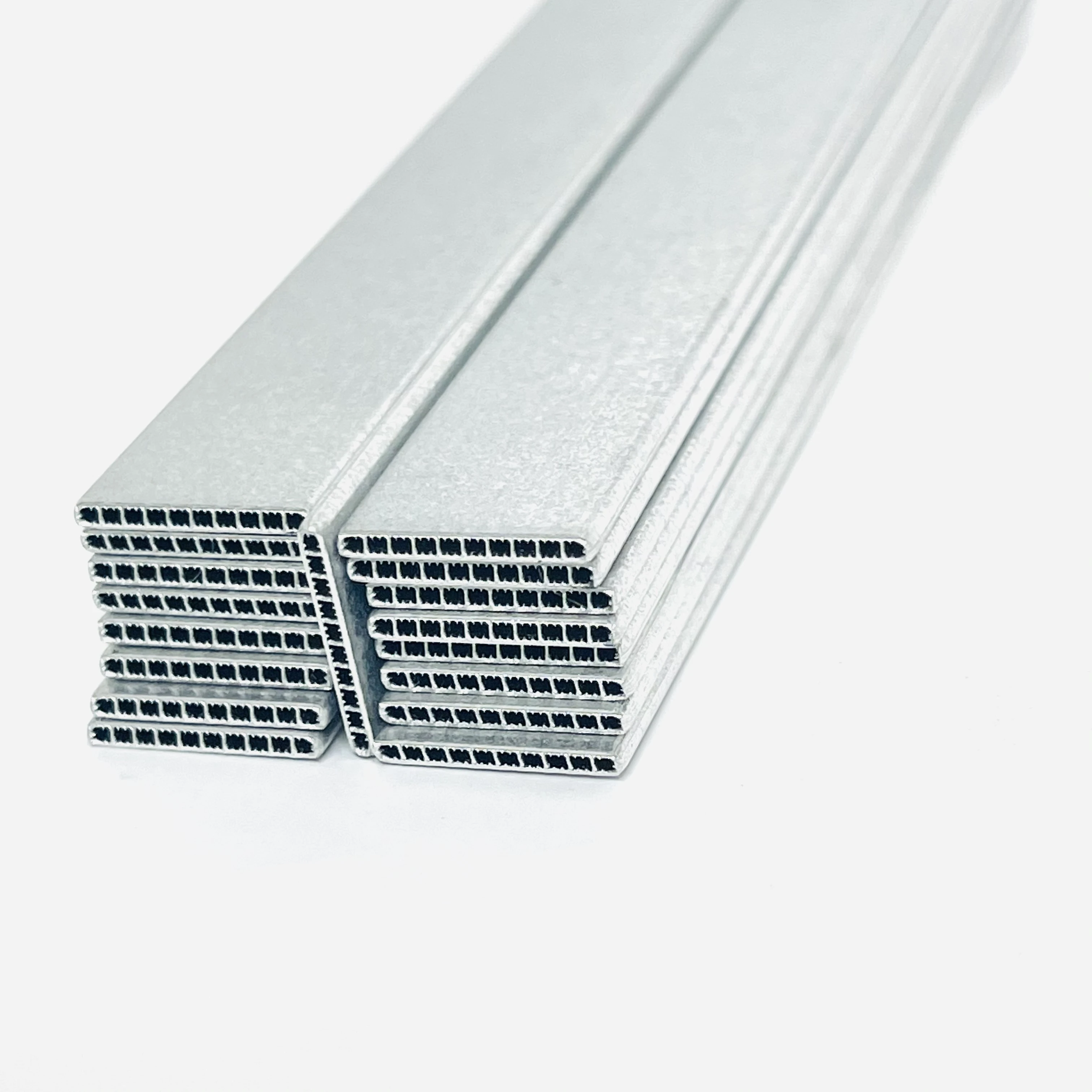

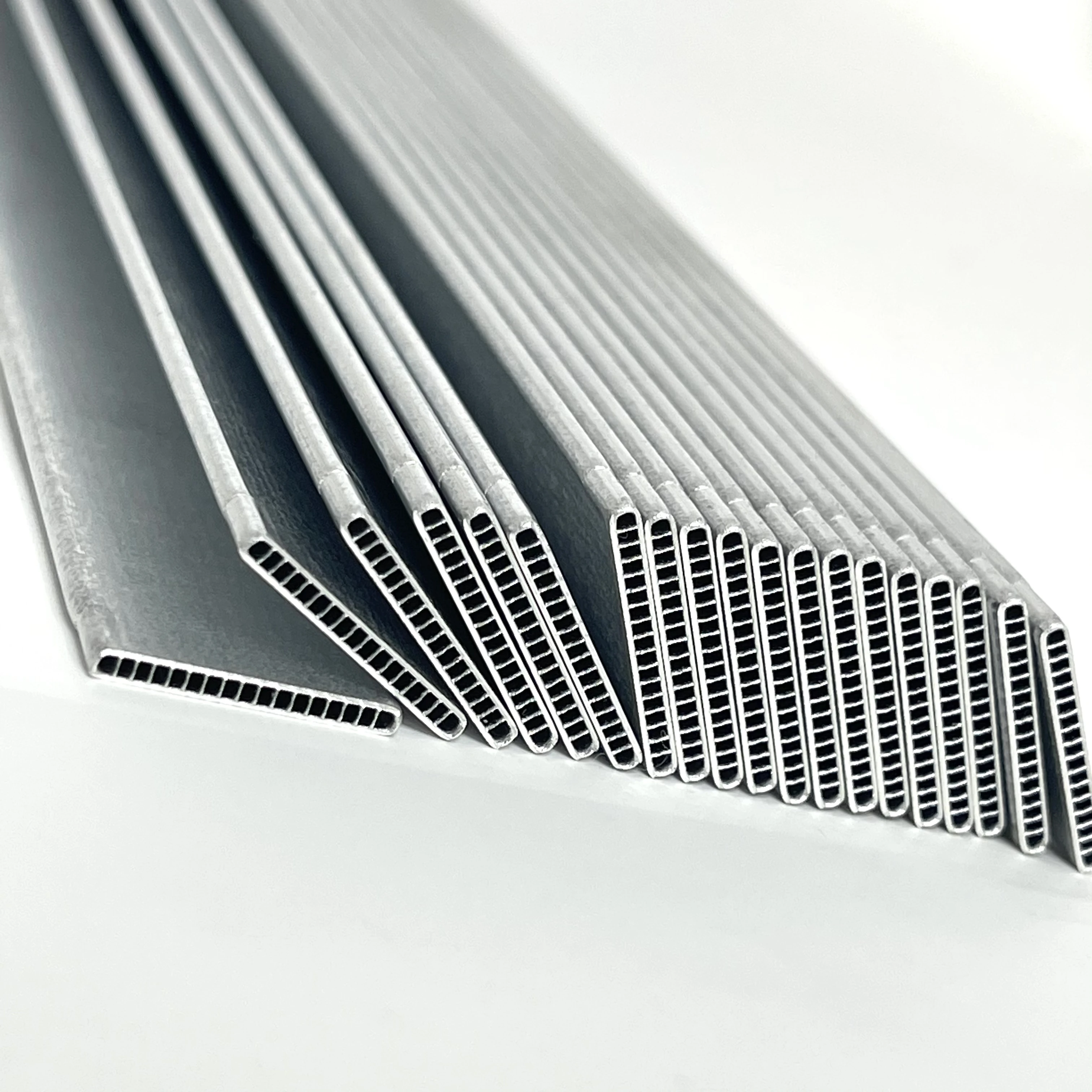

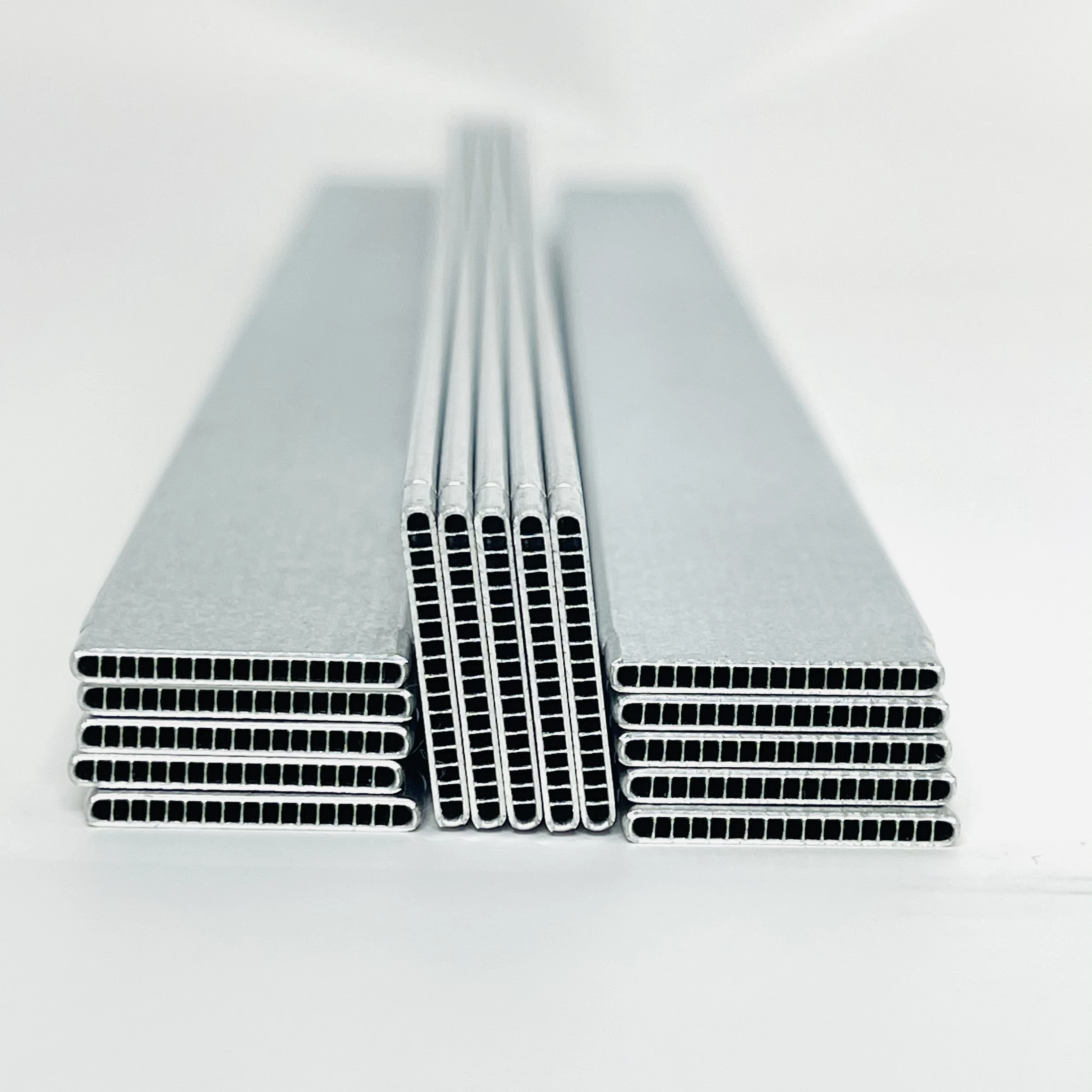

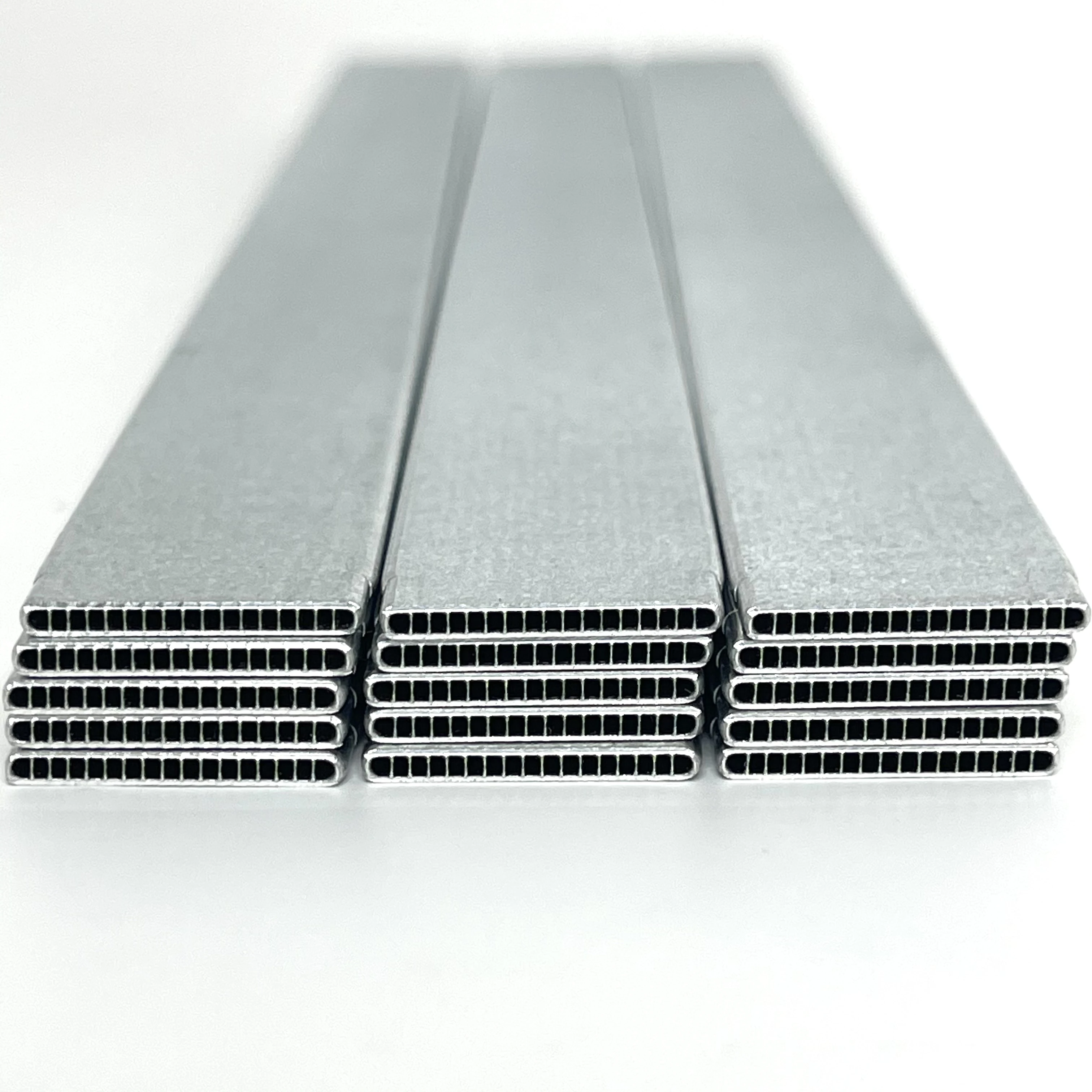

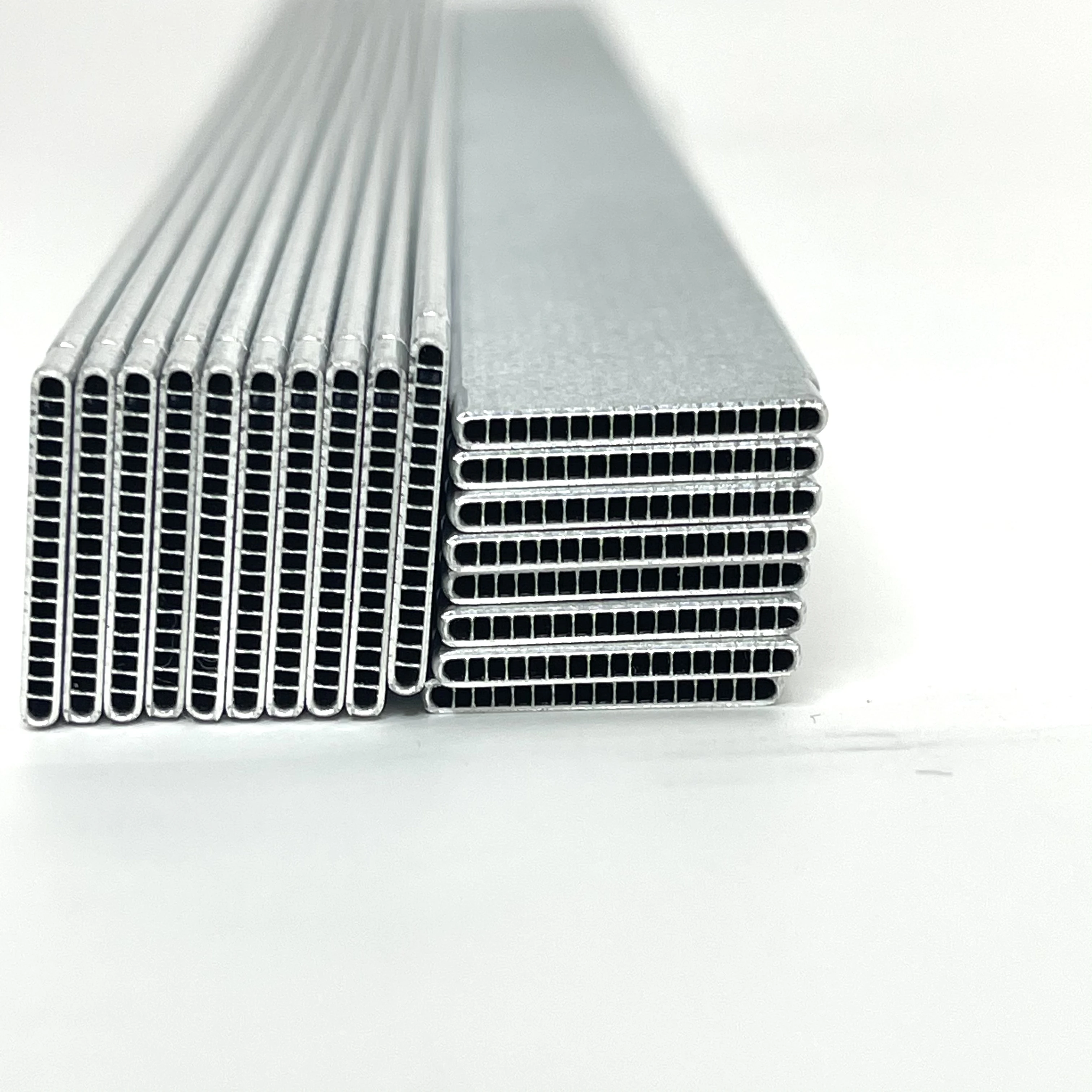

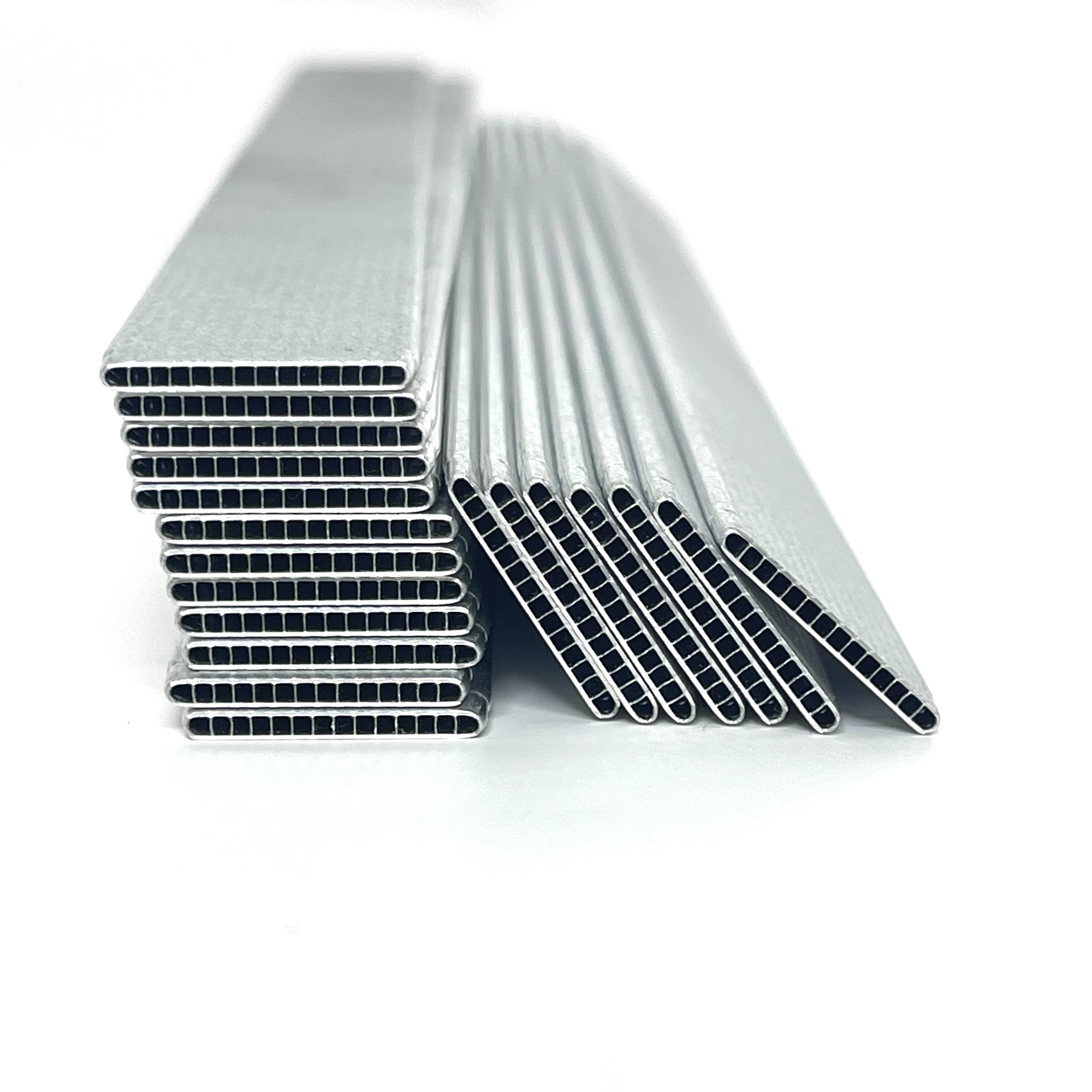

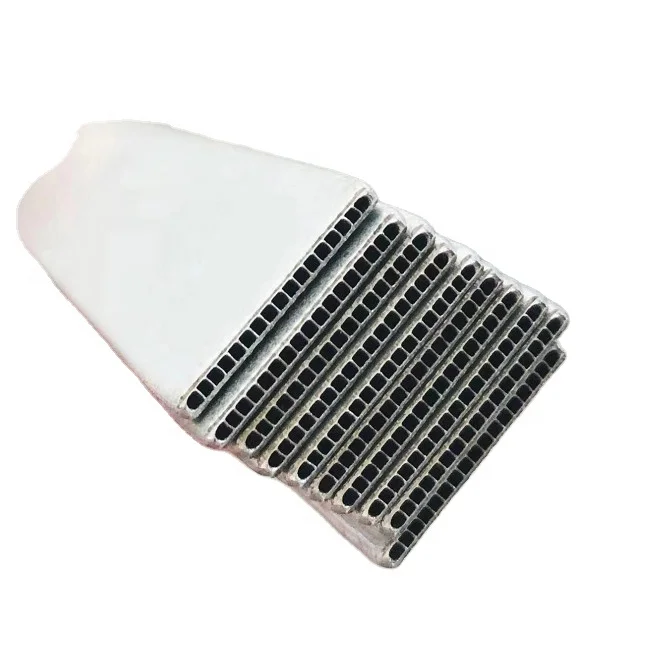

Aluminum Micro-channel tube
is a high-precision extruded aluminum tube, also called multi-port extrusion tube (MPE tube) andaluminum micro multi-channel tube.
It is a thin-walled porous flat tubular material made of refined aluminum rods, formed by hot extrusion, which can be surface
sprayed with zinc corrosion treatment. This flat rectangular extruded tube consists of multiple channels to increase heat transfer
through a high surface/volume ratio and is the core component to carry refrigerant.

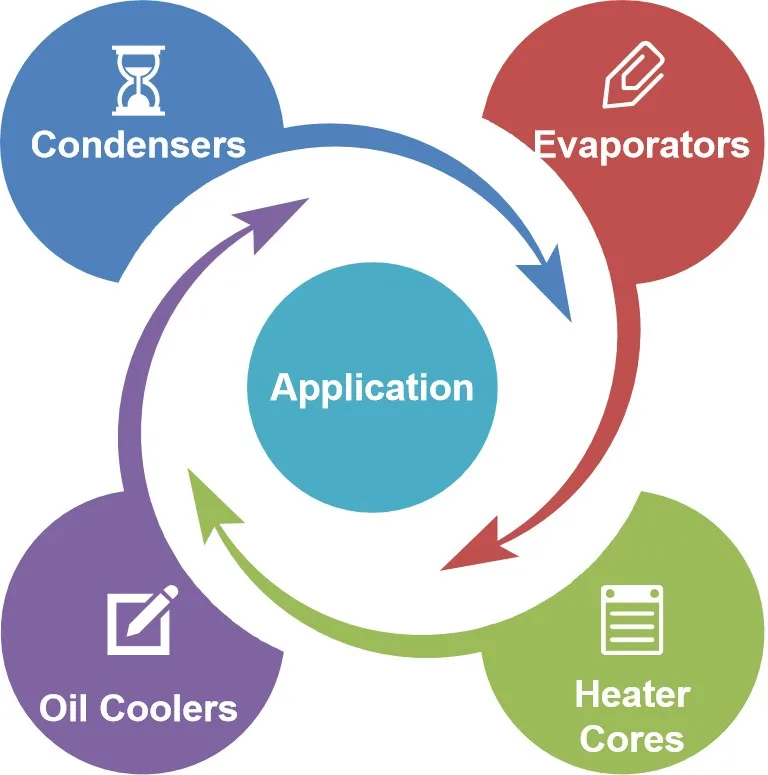

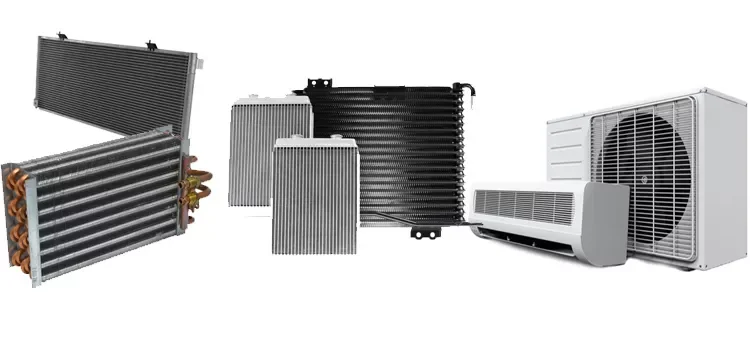

Application
Aluminum Micro Channel Tube(MPE)
-which has large internal space which gives better efficiency for heat transfer. With the
improvement of the tooling, we can make the mpe very precisely,also due to improvement of the aluminium extrusion technology ,an
all-aluminium brazed heat exchangers using MPE will also be lighter in weight while still have the good heat exchange performance
as the cooper and other heavy and expensive metal, now we can find MPEs are primarily used for the following application.
improvement of the tooling, we can make the mpe very precisely,also due to improvement of the aluminium extrusion technology ,an
all-aluminium brazed heat exchangers using MPE will also be lighter in weight while still have the good heat exchange performance
as the cooper and other heavy and expensive metal, now we can find MPEs are primarily used for the following application.
Company Profile
Packaging & Shipping
FAQ
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass
production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;after confirmation, 25-30 days for mass
production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
