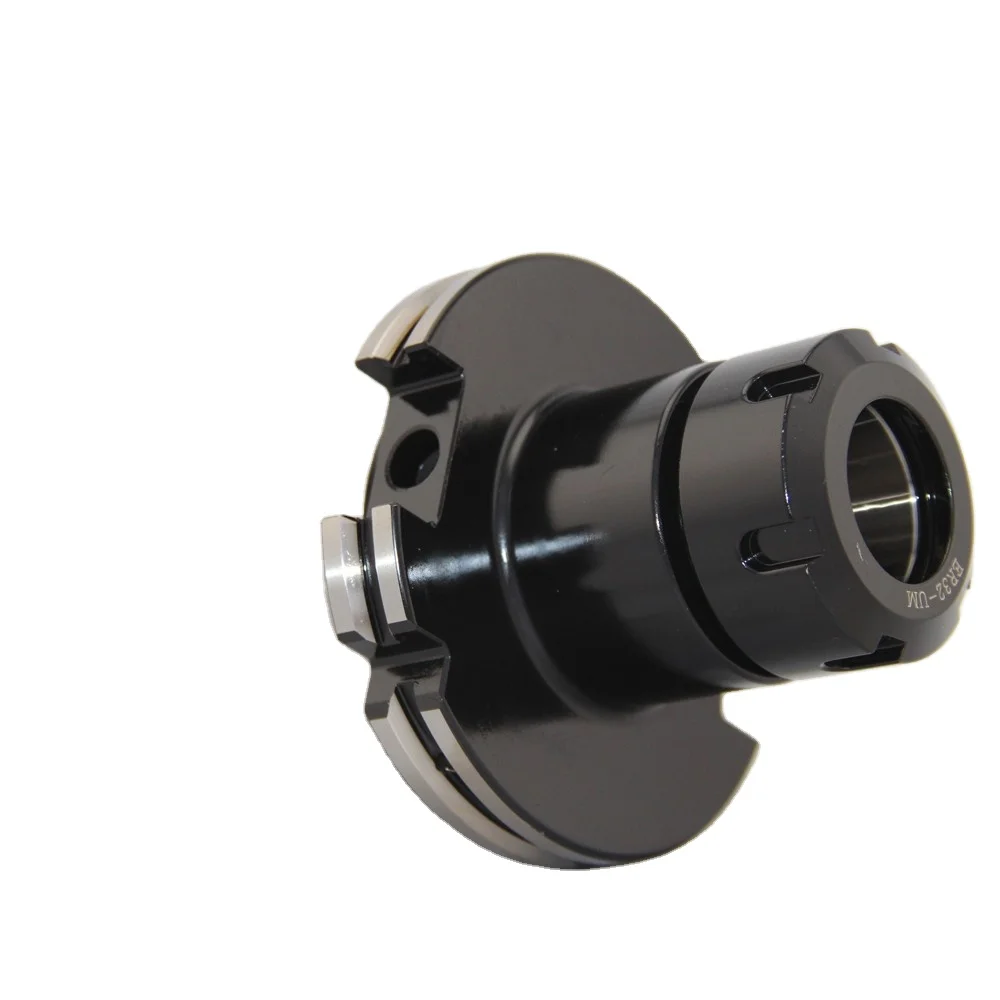

DIN69871 SK50 ER DIN 6499 Collet Chuck CNC clamping Tool Holders
- Category: >>>
- Supplier: Shandong Jinjie Machinery Co. Ltd.
Share on (1600599782804):
Product Overview
Description
Professional Factory Supply SK50 ER Collet Chuck Tool Holder for cnc Machine
INTRODUCTION
Material:Alloy steel
Hardness:HRC55-60
Runout: 0.003 mm
Cooling: AD;
AD/B can be made by request.
Balancing: G6.3/15000 RPM;
Balancing G2.5 can be made by request.
Usage: for clamping tools with straight shank in collets DIN 6499.
Hardness:HRC55-60
Runout: 0.003 mm
Cooling: AD;
AD/B can be made by request.
Balancing: G6.3/15000 RPM;
Balancing G2.5 can be made by request.
Usage: for clamping tools with straight shank in collets DIN 6499.

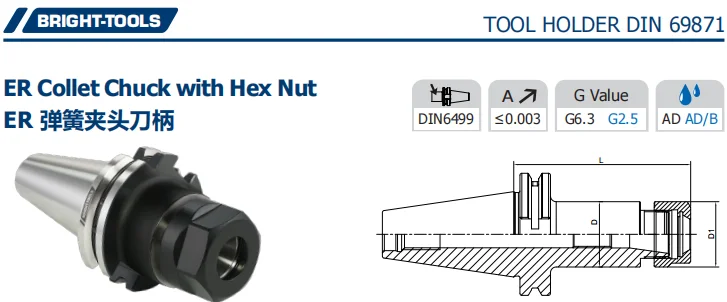

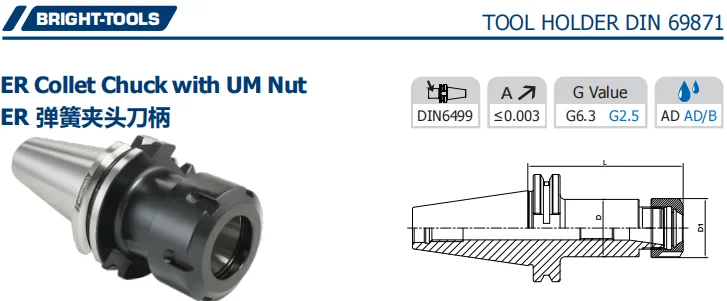

Size | D | D1 | L | Capacity |
SK50-ER16UM-70 | 32 | 32 | 70 | 1-10 |
SK50-ER20UM-70 | 35 | 35 | 70 | 1-13 |
SK50-ER25-60 | 42 | 42 | 60 | 2-16 |
SK50-ER32-70 | 50 | 50 | 70 | 2-20 |
SK50-ER40-70 | 63 | 63 | 70 | 3-26 |
SK50-ER16UM-100 | 32 | 32 | 100 | 1-10 |
SK50-ER20UM-100 | 35 | 35 | 100 | 1-13 |
SK50-ER25-100 | 42 | 42 | 100 | 2-16 |
SK50-ER32-100 | 50 | 50 | 100 | 2-20 |
SK50-ER40-100 | 63 | 63 | 100 | 3-26 |
SK50-ER16UM-160 | 32 | 32 | 160 | 1-10 |
SK50-ER20UM-160 | 35 | 35 | 160 | 1-13 |
SK50-ER25-160 | 42 | 42 | 100 | 2-16 |
SK50-ER32-160 | 50 | 50 | 160 | 2-20 |
SK50-ER40-160 | 63 | 63 | 160 | 3-26 |
SK50-ER16A-70 | 28 | 28 | 70 | 1-10 |
SK50-ER20A-70 | 34 | 34 | 70 | 1-13 |
SK50-ER16A-100 | 28 | 28 | 100 | 1-10 |
SK50-ER20A-100 | 34 | 34 | 100 | 1-13 |
SK50-ER16A-160T | 28 | 28 | 160 | 1-10 |
SK50-ER20A-160 | 34 | 34 | 160 | 1-13 |
SK50-ER16A-200T | 28 | 28 | 200 | 1-10 |
SK50-ER20A-200 | 34 | 34 | 200 | 1-13 |
HIGH PRECISION
Product Information
SK ER Tool Holder 's Body Precision：0.003mm
High concentricity and good processing efficiency, Improve machining efficiency and prolong tool’s life
PRODUCT INFORMATION
Check clearly before purchase
SK ER Collet Chuck Product
Check clearly before purchase

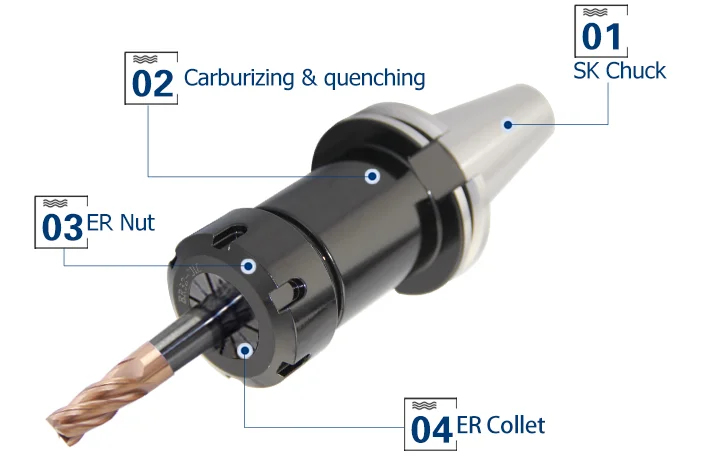

PRODUCT STRUCTURE
High Precision
Sturdy & Durable
Full Specifications
PRODUCT DETAILS
Inner hole grinding
ER Nut
Surface
Carburation and hardening

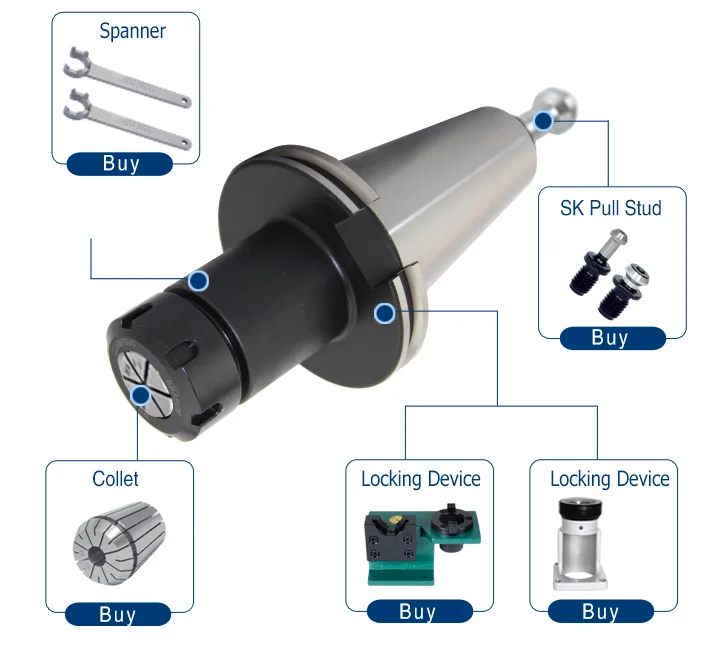

CONNECTION PARTS
Note: Milling cutter, Drill and Tap need to be purchased separately!

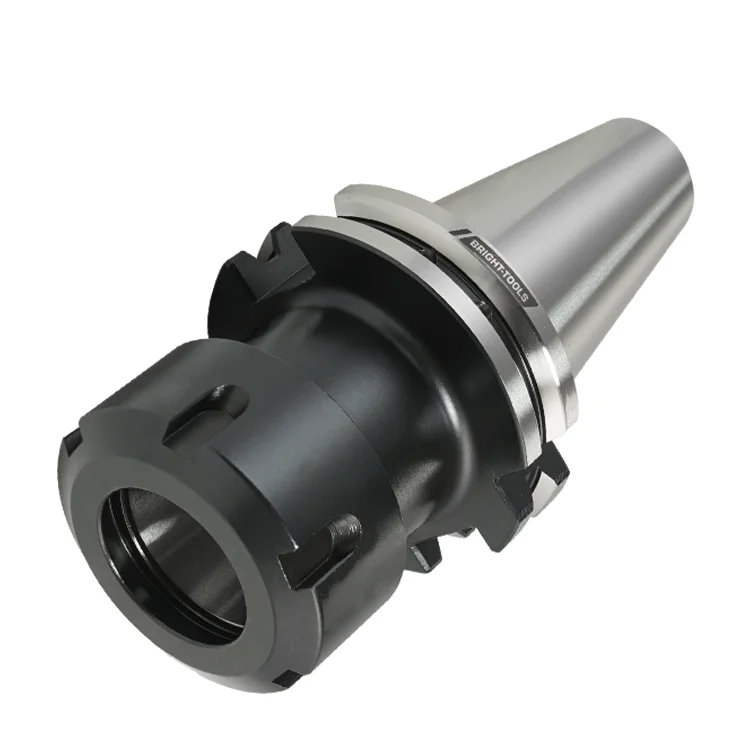

PRODUCT PHOTOS
Jinjie Machinery International Quality High Cost Performance
Also we can be drawings or samples processing. If you are interested, please click here contact us.
About BRIGHT-TOOLS
Shandong Jinjie Machinery Co., Ltd. was established in 2006, with advanced equipment and exquisite workmanship, it can produce BT,NT, HSK, SK, CAT, GOST and other standard CNC tool holder, collets, pull and other tool accessories.
The products have been sold to more than 50 countries and regions, and have been well received by domestic and foreign customers.
W O R K S H O P
Clean Tidy Orderly
