QS Motor 17inch 8000W 72-96V 110-120km/h Electric Motorcycle Kit/Electric Motorcycle Conversion Kit

For 17inch 8000W motor power train kits, it could be used for electric motorcycle, which could be 72V 120KPH.

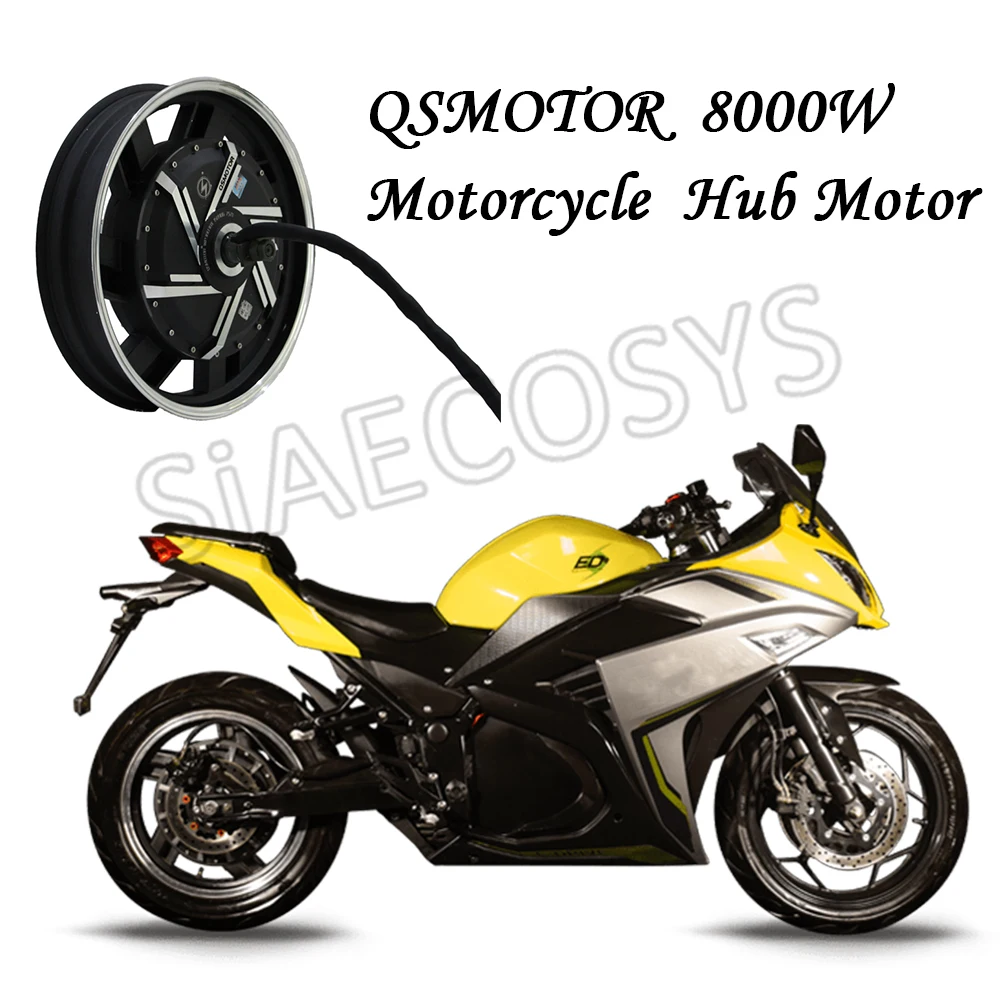

e.g. Electric Motorcycle

E-motorcycle weight, approx 150kg+2*80kg

Speed: peak 120km/h

Climbing slope: 15 degree@230kg

Tire: 150/70-17

One set including below kits

Combo 1

1. 1pcs X QSMOTOR  17X3.5inch 8000W 273 V3 Electric Motorcycle Hub Motor

Cmobo 2

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

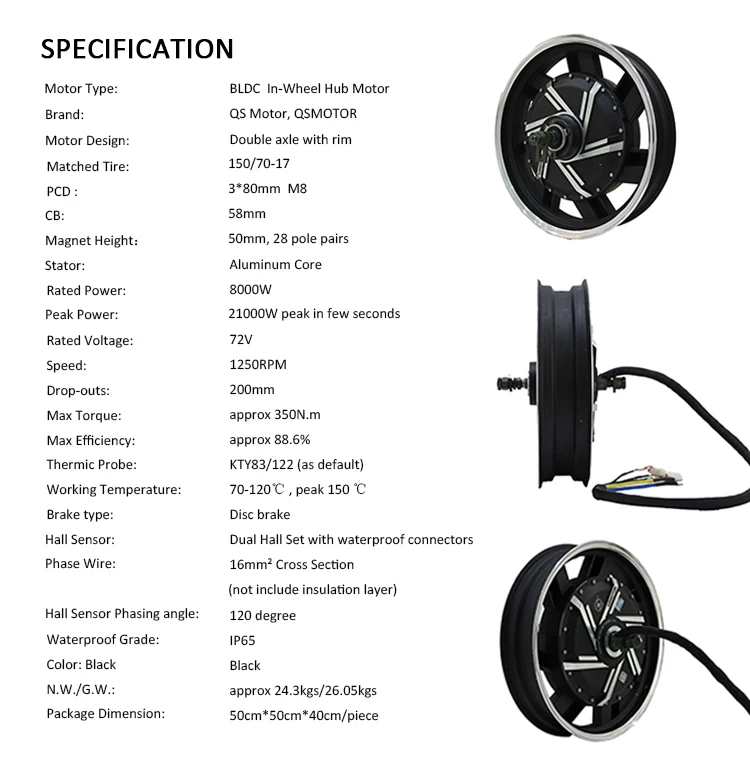

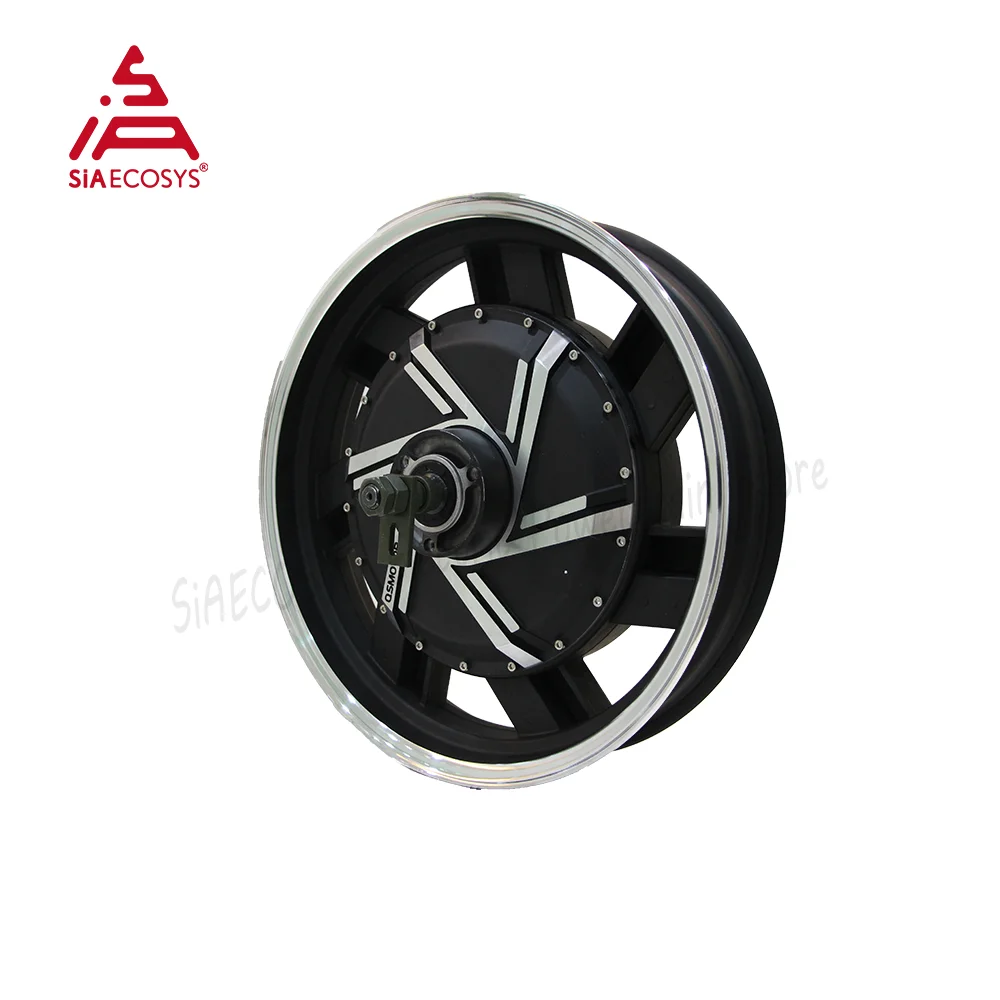

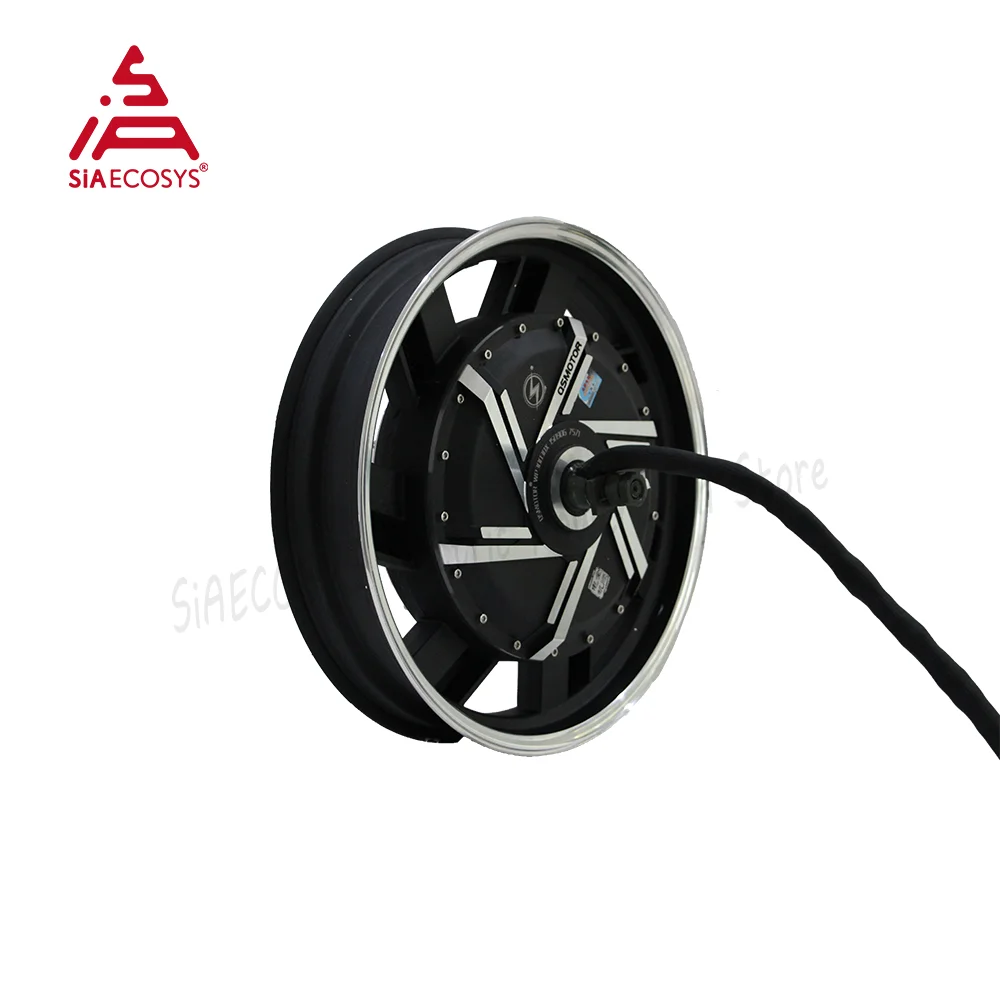

1.QSMOTOR 17X3.5inch 8000W 273 V3 Electric Motorcycle Hub Motor

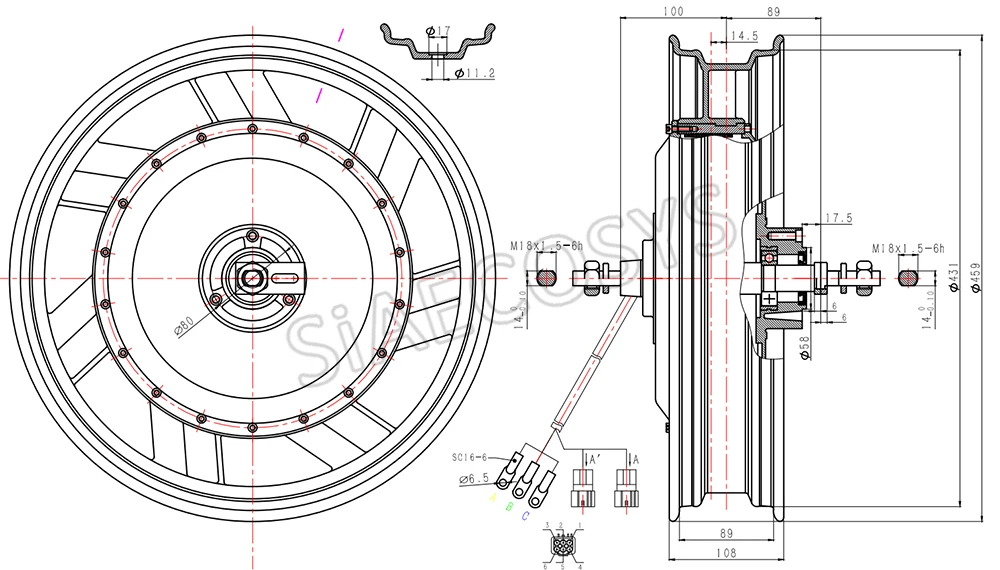

Drawing

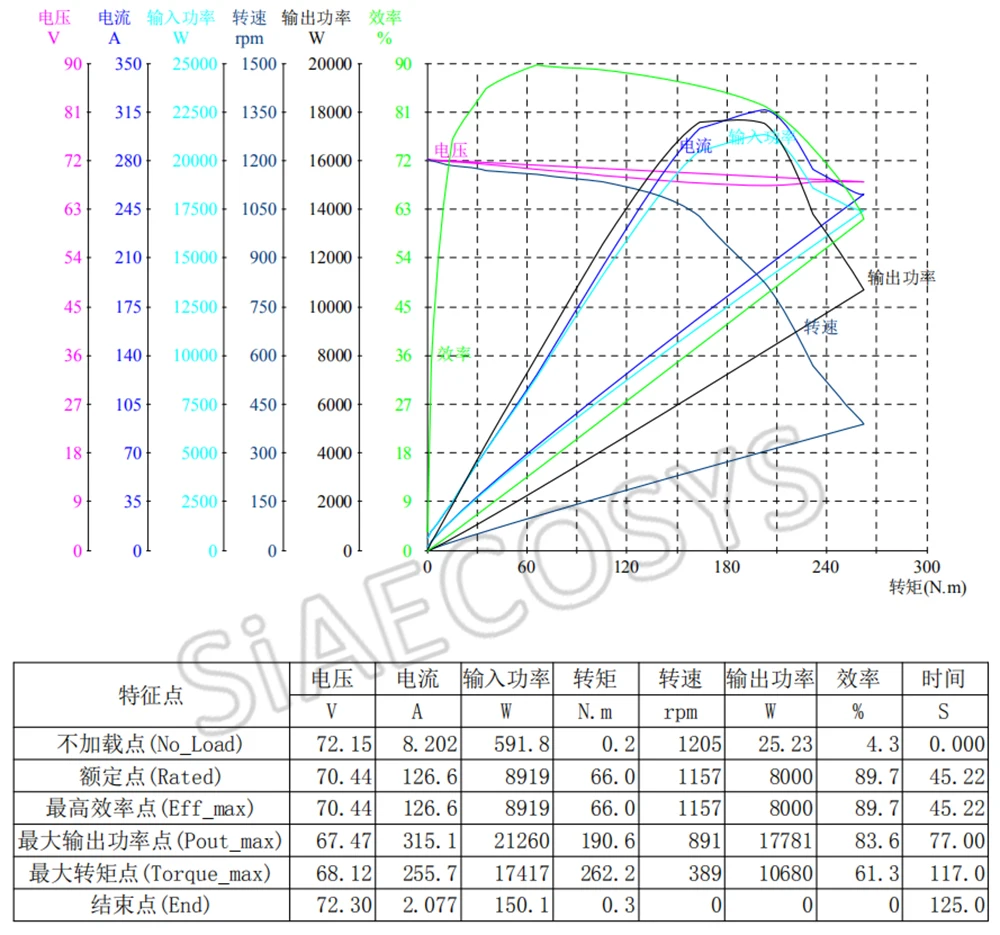

Test Report

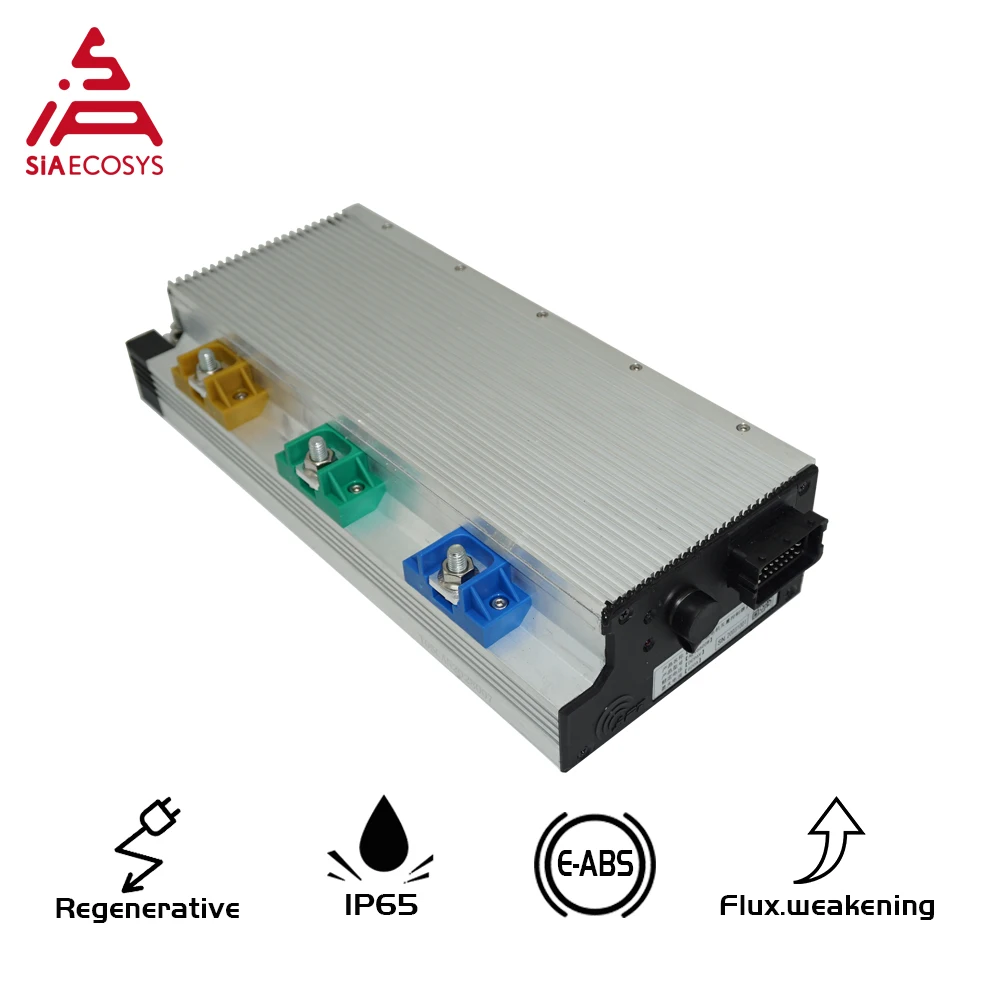

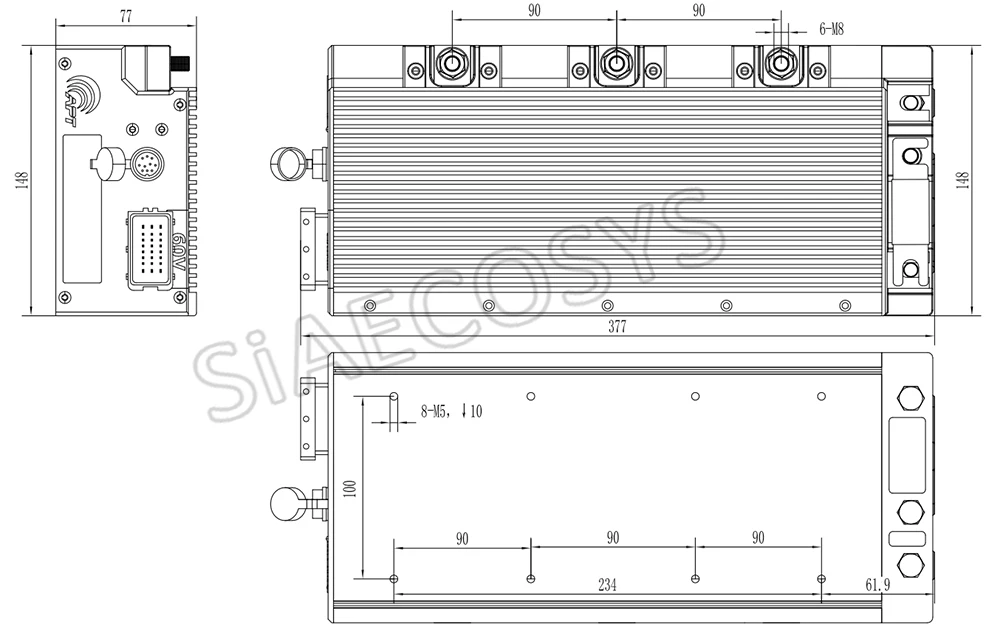

2.  APT96600 Sinusoidal Wave BLDC Motor Controller

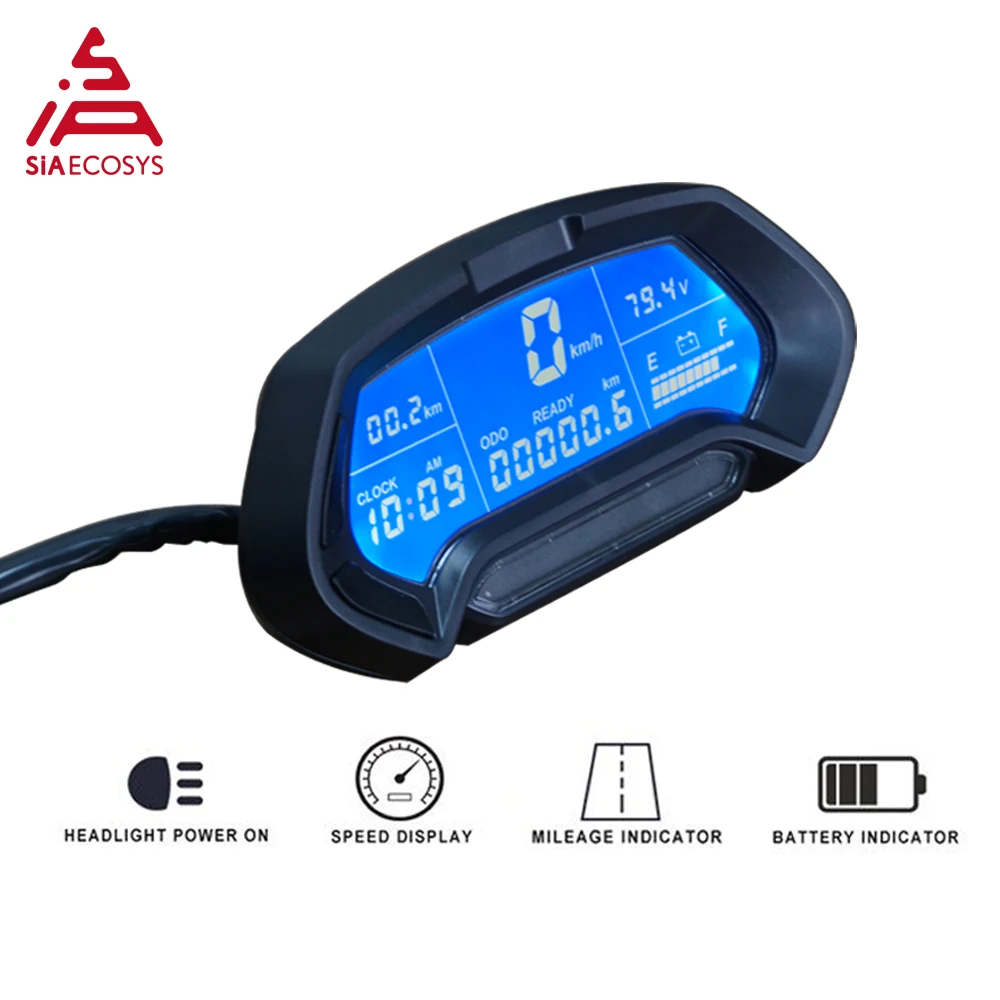

shown Time, driving distance, speed, voltage, electric quantity

1. Speedometer Size: 185mm*90mm*80mm

2. Net weight: 0.35kg

3. work voltage: 48v-120v rated

Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.
