Wholesale Inconel 625 Sheet Widely Used Nickel Alloy Plates
- Category: >>>
- Supplier: Jiangsu Xinhua Alloy Co. Ltd.
Share on (1600599815837):
Product Overview
Description
Product Description

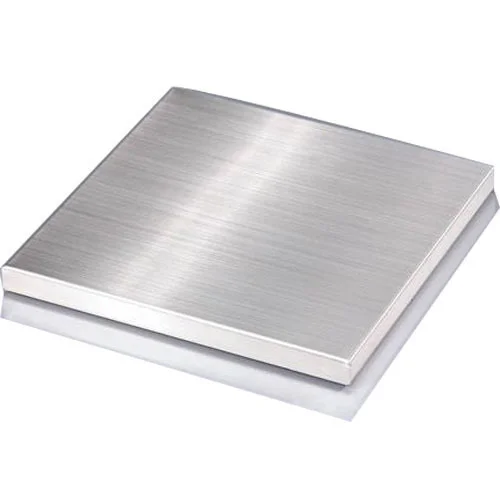

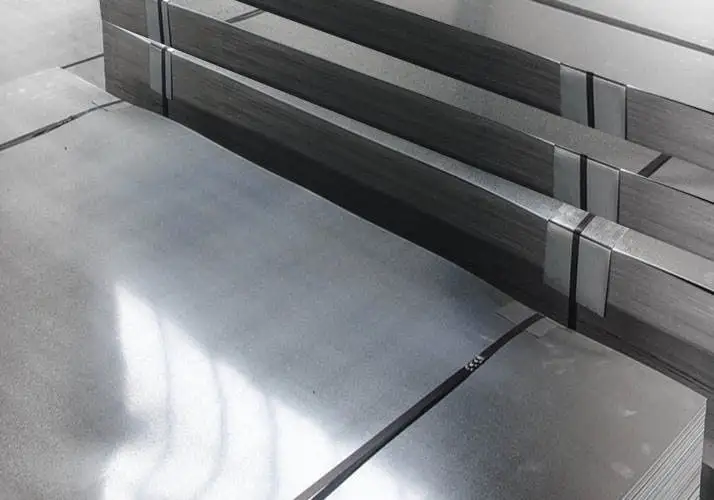

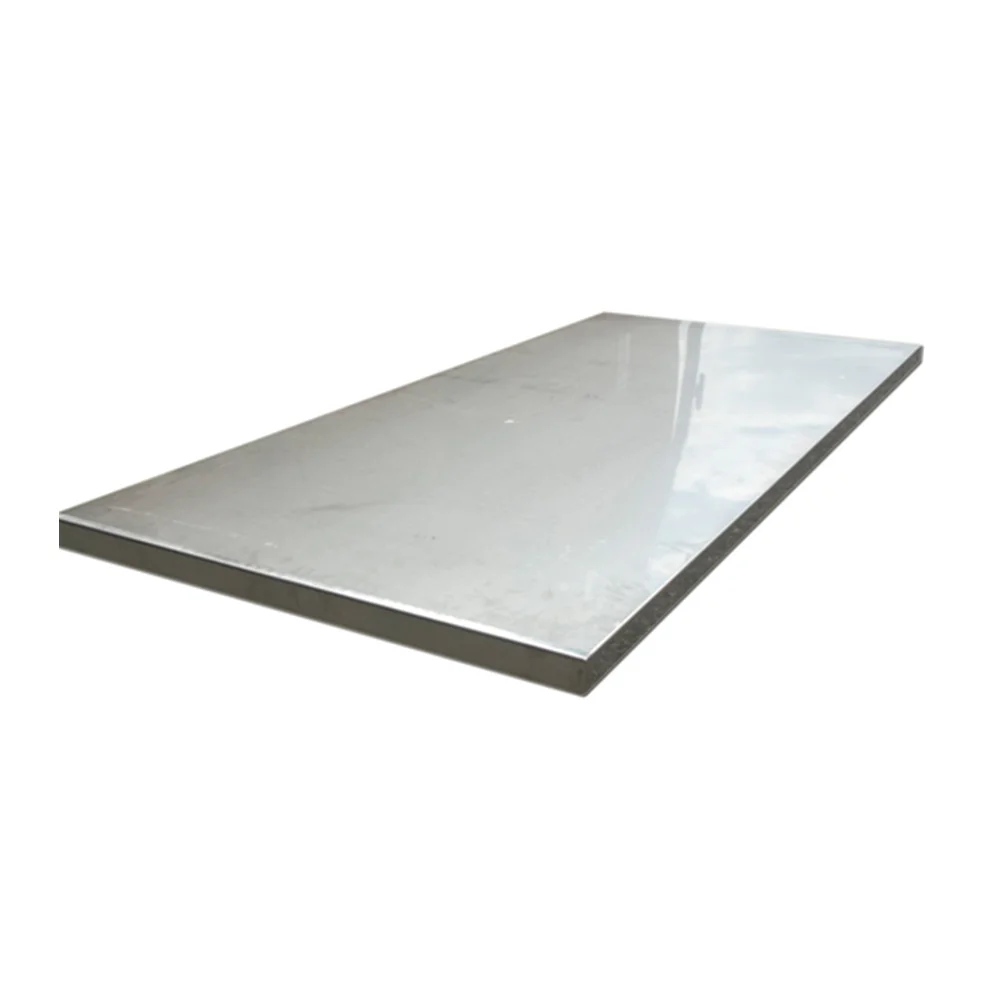

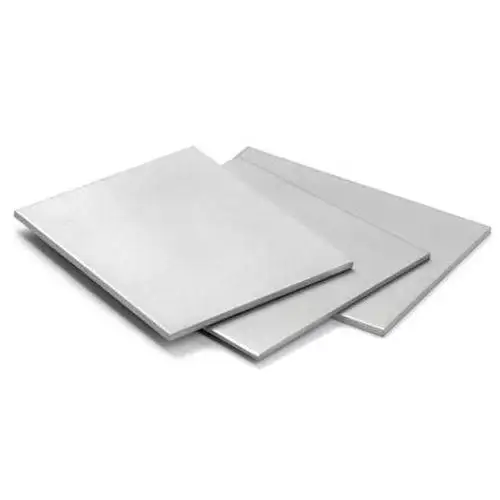

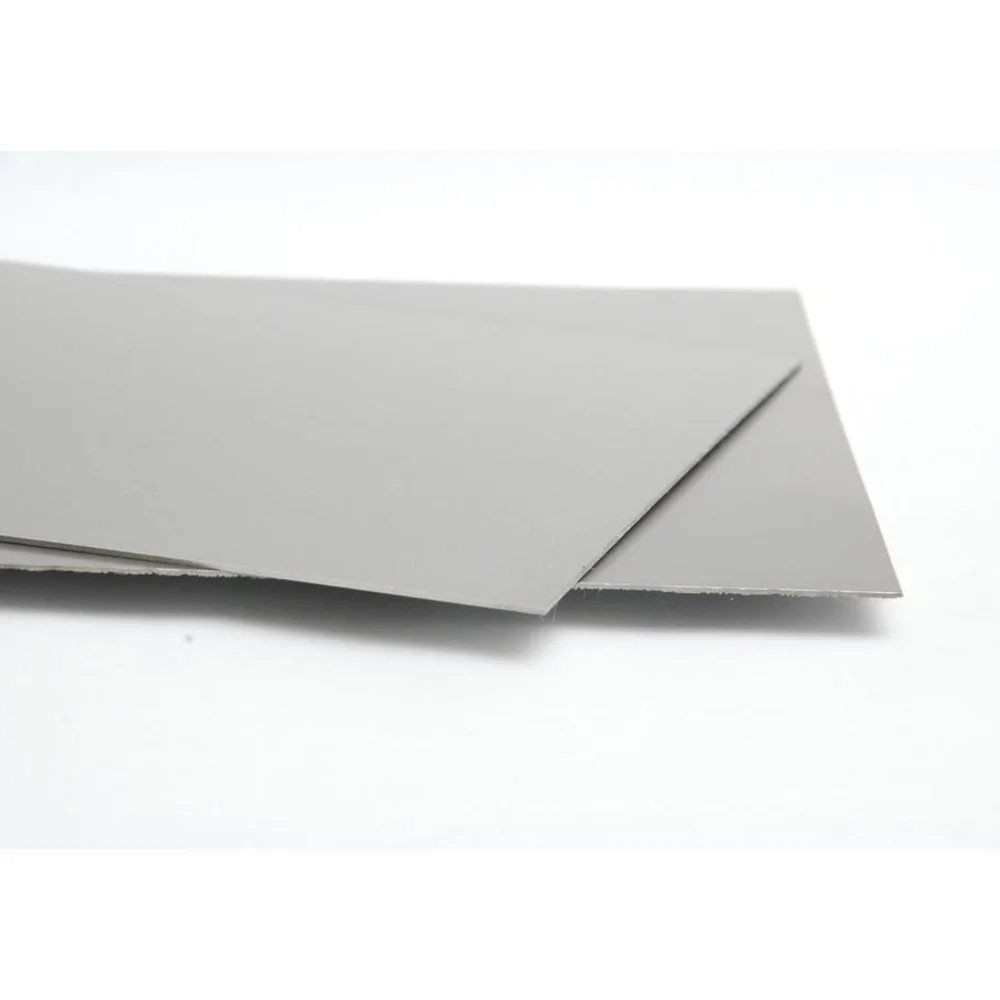

Alloy 625 Sheet Widely Used Nickel Alloy Plates
Alloy 625 has a high level of pitting and crevice corrosion resistance to chloride contaminated media, such as sea water, neutral salts and brines. Alloy 625 is used in chemical processing, aerospace and marine engineering oil & gas, pollution control equipment and nuclear reactors.
Alloy 625 Specifications
UNS | W.Nr |
N06625 | 2.4856 |
Alloy 625 chemical composition
Grade | % | Ni | Cr | Mo | Nb | Fe | Al | Ti | C |
625 | Min | Bal. | 20 | 8 | 3.15 | ||||
Max | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | ||
Grade | % | Mn | Si | Co | P | S | |||
625 | Min | ||||||||
Max | 0.5 | 0.5 | 1 | 0.015 | 0.015 |
Alloy 625 Mechanical properties(Min Value at 20℃)
Tensile Strength σb/MPa | Yield Strength σp0.2/MPa | Elongation σ5 /% |
760 | 345 | 30 |
Alloy 625 Standards
Bar | Forging | Sheet/Strip | Wire | Pipe |
ASTM B446 | ASTM B564 | ASTM B443 | ASTM B446 | ASTM B444 ASTM B704 ASTM B705 |
Application
Application filed:
(1)aerosapce components
(2)food processing equipment
(3)Chemical processing
(4)Telecommunications
(1)aerosapce components
(2)food processing equipment
(3)Chemical processing
(4)Telecommunications
Ocean Engineering

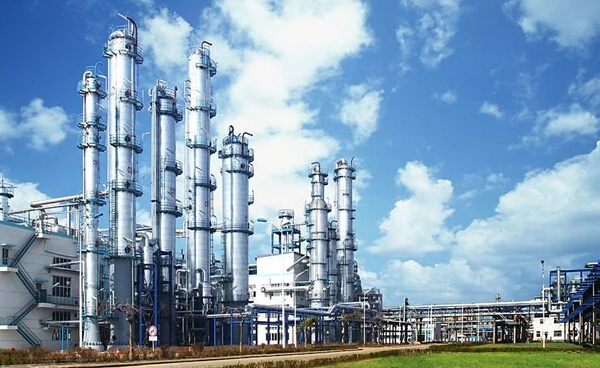

Chemical

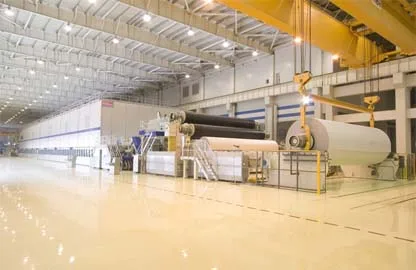

Paper Making
Food

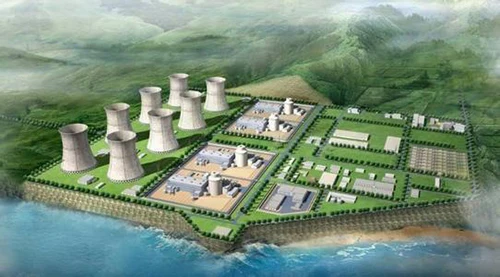

Nuclear
Car
Recommend Products
Packing & Delivery
1.Packing
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
Standard export packing, carton with plywood case for safety
Wire: below dia 1.0mm, packed in spool; Above 1.0mm, packed in coil
Strip, Bar & Tube, Sheet: Packed in Nylon Polybag first
Welding wire: TIG, 5KGS / box, MIG, 15kgs /spool
The goods can be packed as the clients demand.
2.Delivery time
We can do the order 45-50days upon receive the 30% deposit or L/C document.
Customer Photos

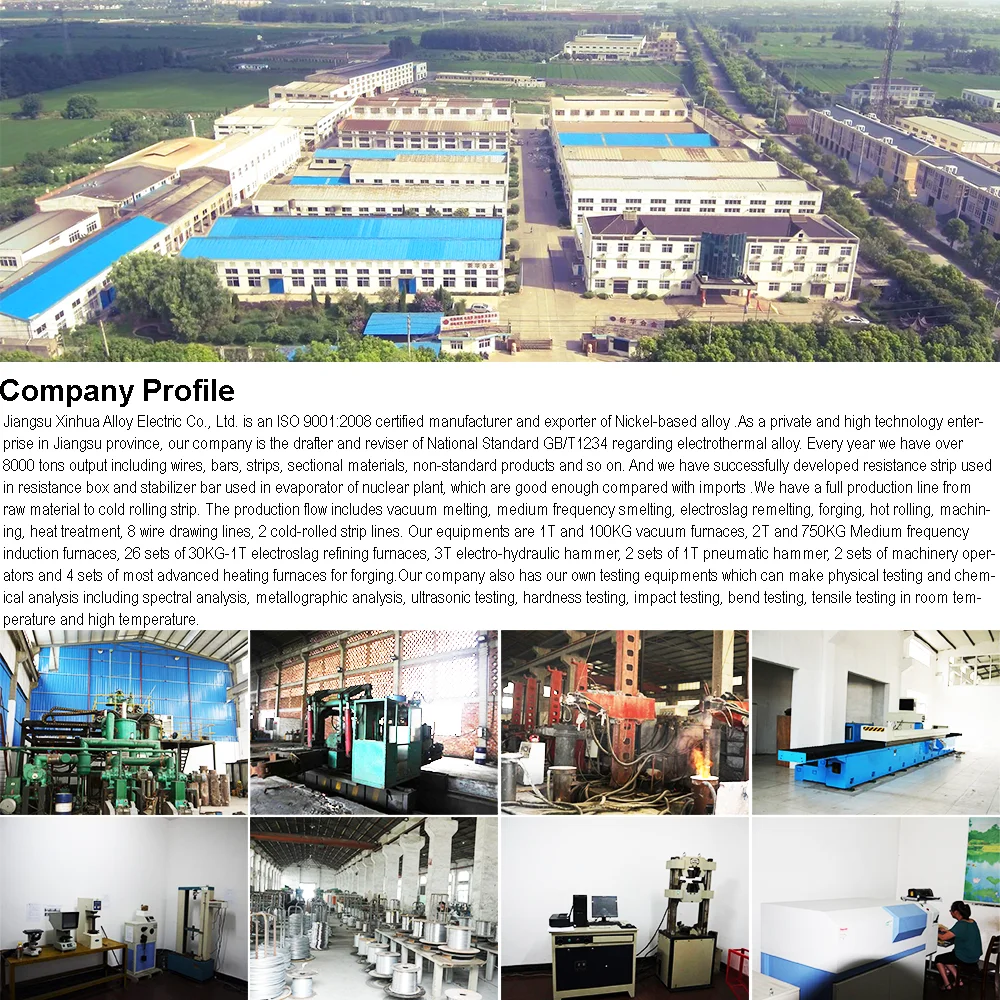

Company Profile
The reason why you choose us
1. The Leading manufacturer of nickel based alloy Porducts
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
2. The drafter & Reviser Of National Standard GB/T1234 regarding Electrothermal Alloy.
3. Over 20 years experience
4. Small quantity, short time delivery
If we have stocks, we can ship from a minimum of 1 kg sample in a few days.We also manufacture custom-order materials in amounts
of 100 kg and up (Some materials are allowed 50 kg) in as few as 3 weeks.
5. High-precision thickness
We guarantee thickness tolerances that cannot be reproduced by competitors.
Example:
t <0.30mm Tolerance ±1 - 3 μm guaranteed
0.30 mm≤t Tolerance ± 1% guaranteed
6. complete QC system & Advanced physical and chemical testing center
For each production processing, we have complete QC system for the chemical compostion and Physical properties. After production,
all the goods will be tested, and the quality certificate will be shipped along with goods.
7. Effective and strong technical support and custom-made solutions
We provide customed solutions to your problems with our strong technologies and well versed knowledge of materials acquired
through our more than 20 experience.
8. Choose the appropriate base metals for your needs
We carefully balance quality, delivery time and price,procure various base metals from all over the world.We manufacture
appropriate products to your needs.
9. Reliable certificate (ISO 9001/ROHS/BV/SGS/TUV)
Our products meet the standards, such as ASTM, ASME, AMS, DIN, JIS etc. The third party testing is available for us.
Certifications
FAQ
Do you provide free samples?
Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
