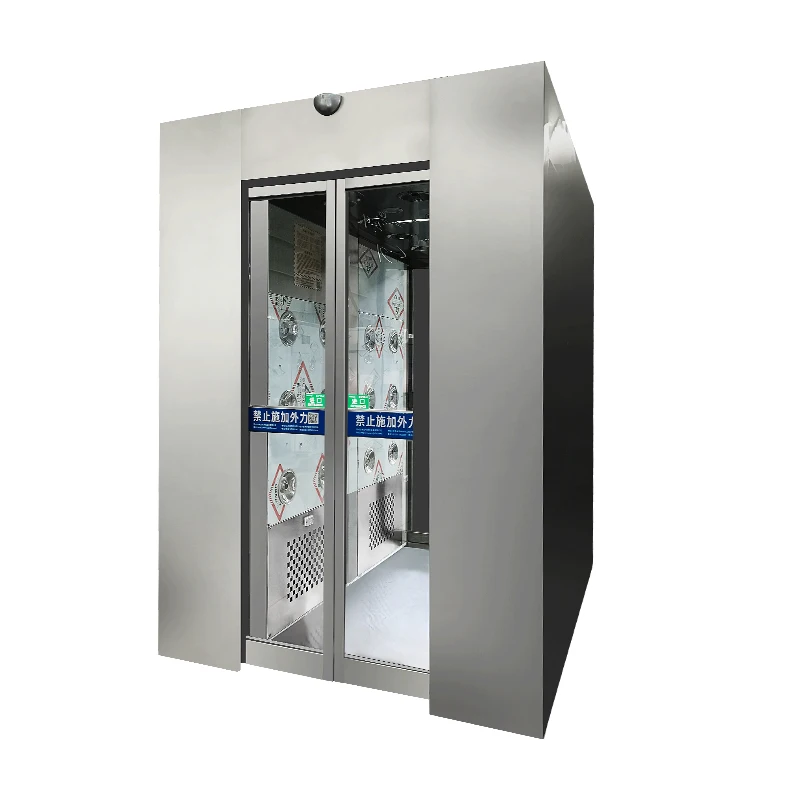

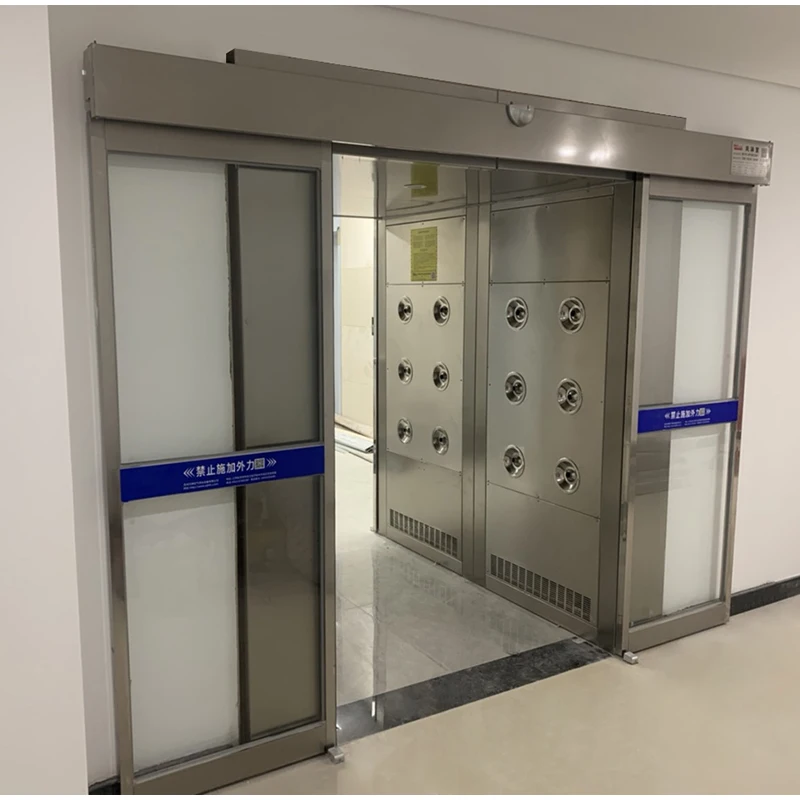

High Quality Manufacturer Air Shower Machine Industrial Dust Free Air Shower Room
- Category: Air Cleaning Equipment >>>
- Supplier: Weihui Lipu Machinery Co. Ltd.
Share on (1600599834372):
Product Overview
Description
Lipu machinery is a professional air shower production manufacturer ,entered the industry for 15 years by the users of the trust and support.
The main product air shower is exported to all over the world ,with EU CE certification, quality assurance and the best price.
The main product air shower is exported to all over the world ,with EU CE certification, quality assurance and the best price.
Specification
air shower
The cleanroom air shower is the necessary passage for personnel to enter and exit the clean room, and at the same time, it functions as a closed chamber of the air lock chamber. In order to reduce a large amount of dust particles caused by personnel entering and leaving, the air showers air flow filtered by the high-efficiency filter is sprayed onto the surface of the person/cargo by the rotatable nozzles on both sides of the box, effectively and quickly removing the dust particles. Cleanroom air shower Filtered by the primary and high-efficiency filters and recirculated to the air showers area.

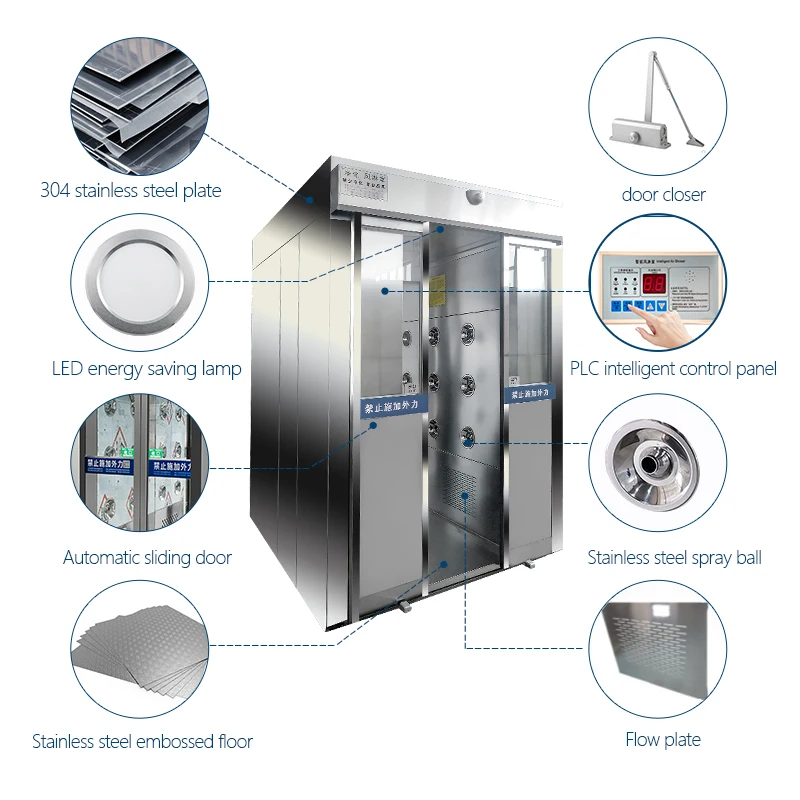

Specification & features:
Our air shower's advantages and functions are as follows:
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, control blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;
6) Two-side blowing, left and right, stainless steel nozzles.
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel.
Our air shower's advantages and functions are as follows:
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, control blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;
6) Two-side blowing, left and right, stainless steel nozzles.
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel.
Regular size air shower | ||||||||
Model | LPFIS-WLB1-1 | LPFIS-WLB2-1 | LPFIS-WLB2-2 | LPFIS-WLB3-2 | ||||
Product name | Single Person Single Blowing | Double Person Single Blowing | Double Person Double Blowing | Multiple Person Double Blowing | ||||
Casing Material | External: Painted Cold-Rolled Steel Plate/ Stainless steel Internal: Stainless steel 201/304 | |||||||
Nozzle number | 6 | 12 | 24(each side has 12 pieces) | 24(each side has 12 pieces) | ||||
Diameter of nozzle | Diameter 30mm | |||||||
Velocity | ≥20m/s | |||||||
Air shower time | 0-99s(adjustable) | |||||||
Filter | 600*600*120(1pcs) | 600*600*120(2pcs) | 600*600*120(4pcs) | 600*600*120(4pcs) | ||||
Light | LED 1 No. Built-in type | |||||||
Outside Dimension W*L*H(mm) | 1200*1000*2100 | 1200*1500*2100 | 1400*1500*2100 | 1400*1920*2100 | ||||
Inside Dimension W*L*H(mm) | 800*920*1980 | 800*1420*2000 | 800*1420*2000 | 800*1420*2000 | ||||
Blower | 220/380V,50Hz or according to Client Needs | |||||||
Max power(W) | 500 | 1100 | 2200 | 2200 | ||||
Interlock | Electric Interlock Or Mechanical interlock | |||||||
Weight(kg) | 200 | 300 | 400 | 300 | ||||
Size, material and shape can be customized | ||||||||
Our Advantages

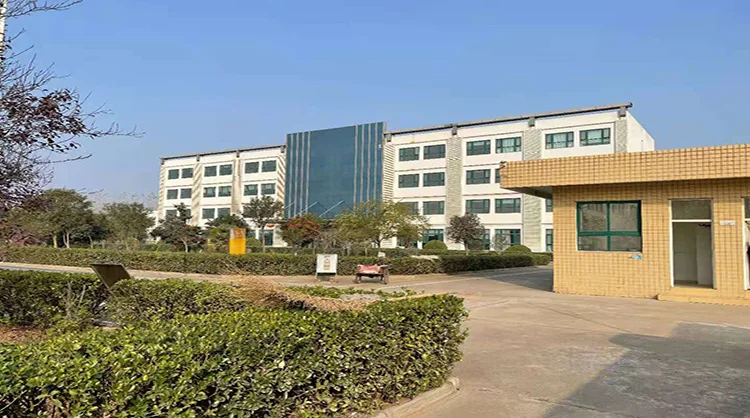

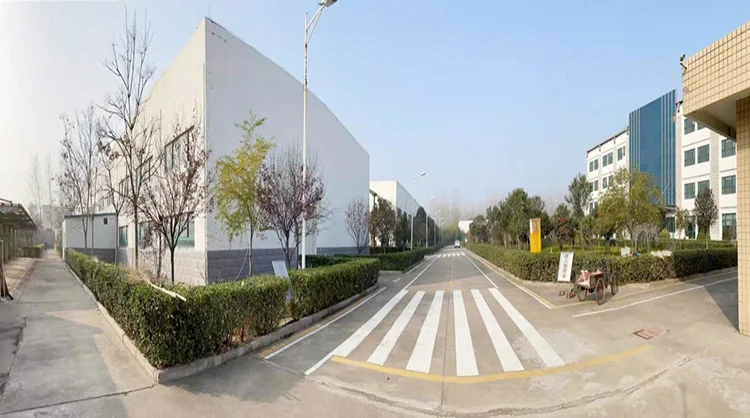

Company Profile
Air Shower Manufacturer and Supplier
Weihui Lipu Machinery Co., Ltd. is a professional air shower production manufacturer,entered the industry for 15 years by the users of the trust and support.The main product air shower is exported to all over the world,with EU CE certification,quality assurance and the best price.
The company's main products are module clean room,air shower, fan filter unit,pass box,and other cleaning equipment.Accept
customers' non-standard customized. We are willing to strengthen cooperation with all industries with first-class technical
strength and first-class after-sales service. We sincerely welcome overseas customers to patronize and negotiate business.
customers' non-standard customized. We are willing to strengthen cooperation with all industries with first-class technical
strength and first-class after-sales service. We sincerely welcome overseas customers to patronize and negotiate business.

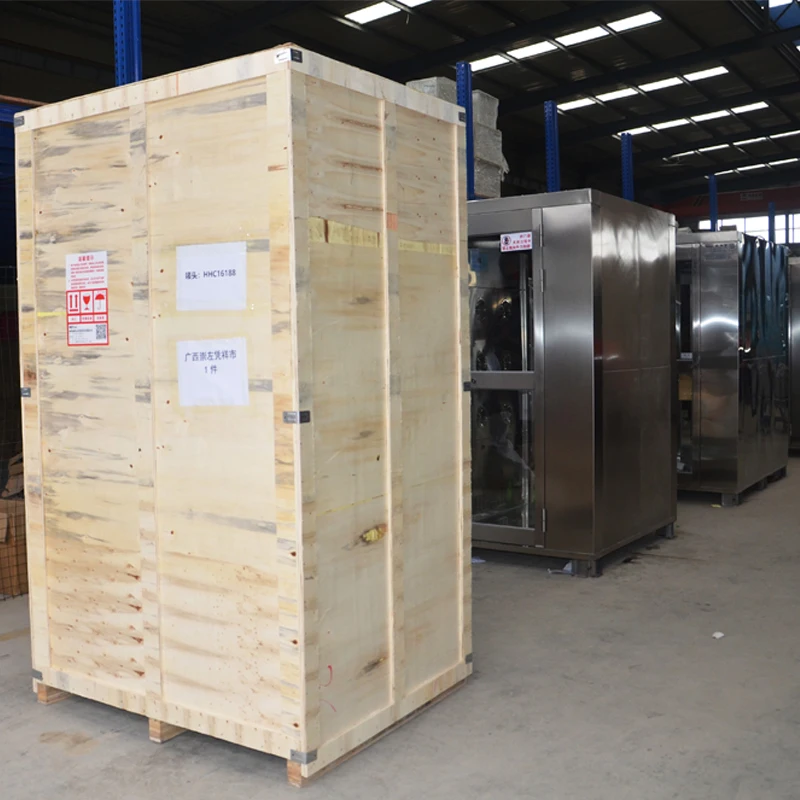

Packing & Delivery

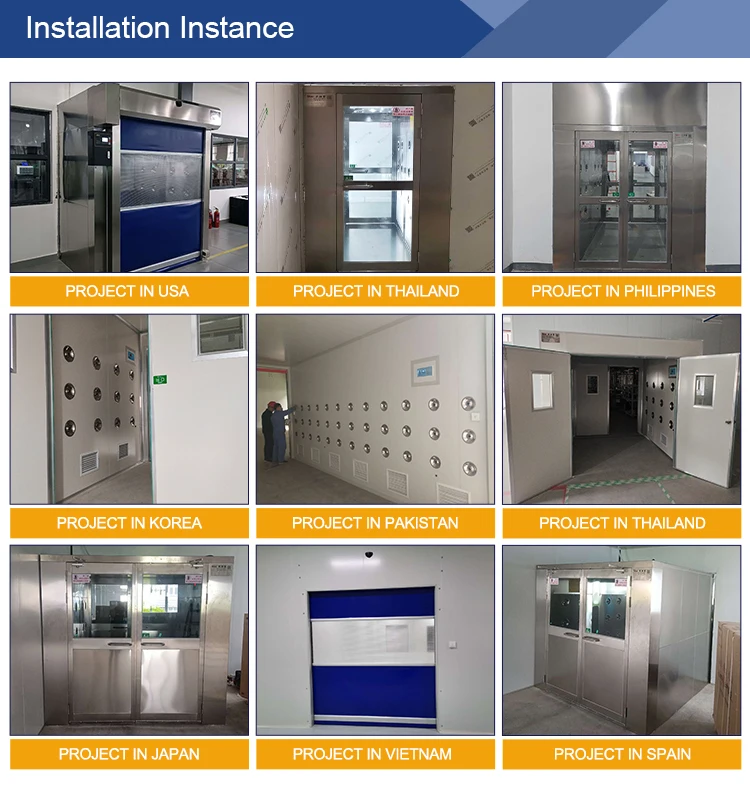

Installation Instructions
Contact Information
FAQ
Q1:Are you a trading company or a manufacturer?
A1:We are direct manufacturer , and welcome to visit our factory anytime you like .
Q2:How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q3:Can you produce according to the samples?
A3: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. And we have 100% rigorous test before delivery.
Q4: How long is your warranty? Can we extend?
A4: 12 months after installation and commissioning. Warranty can be extended with extra charge.
Q5:How about your after sale service?
A5:We will reply you within 24hours by email or phone.
If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem.
A1:We are direct manufacturer , and welcome to visit our factory anytime you like .
Q2:How can we guarantee quality?
A2: Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q3:Can you produce according to the samples?
A3: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. And we have 100% rigorous test before delivery.
Q4: How long is your warranty? Can we extend?
A4: 12 months after installation and commissioning. Warranty can be extended with extra charge.
Q5:How about your after sale service?
A5:We will reply you within 24hours by email or phone.
If we have local agent,we will arrange him to your site within 24 hours to assist you to shoot the problem.
