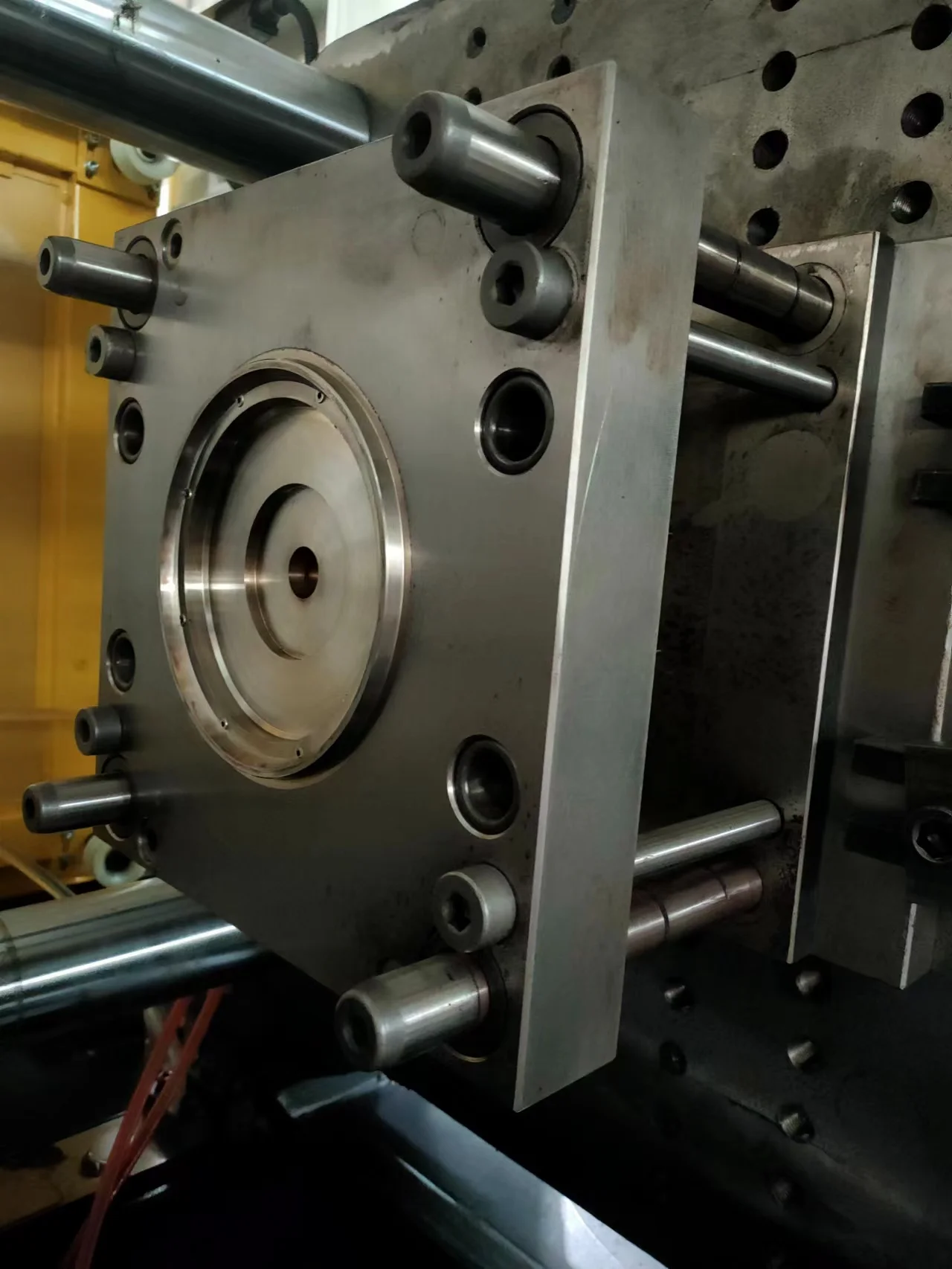

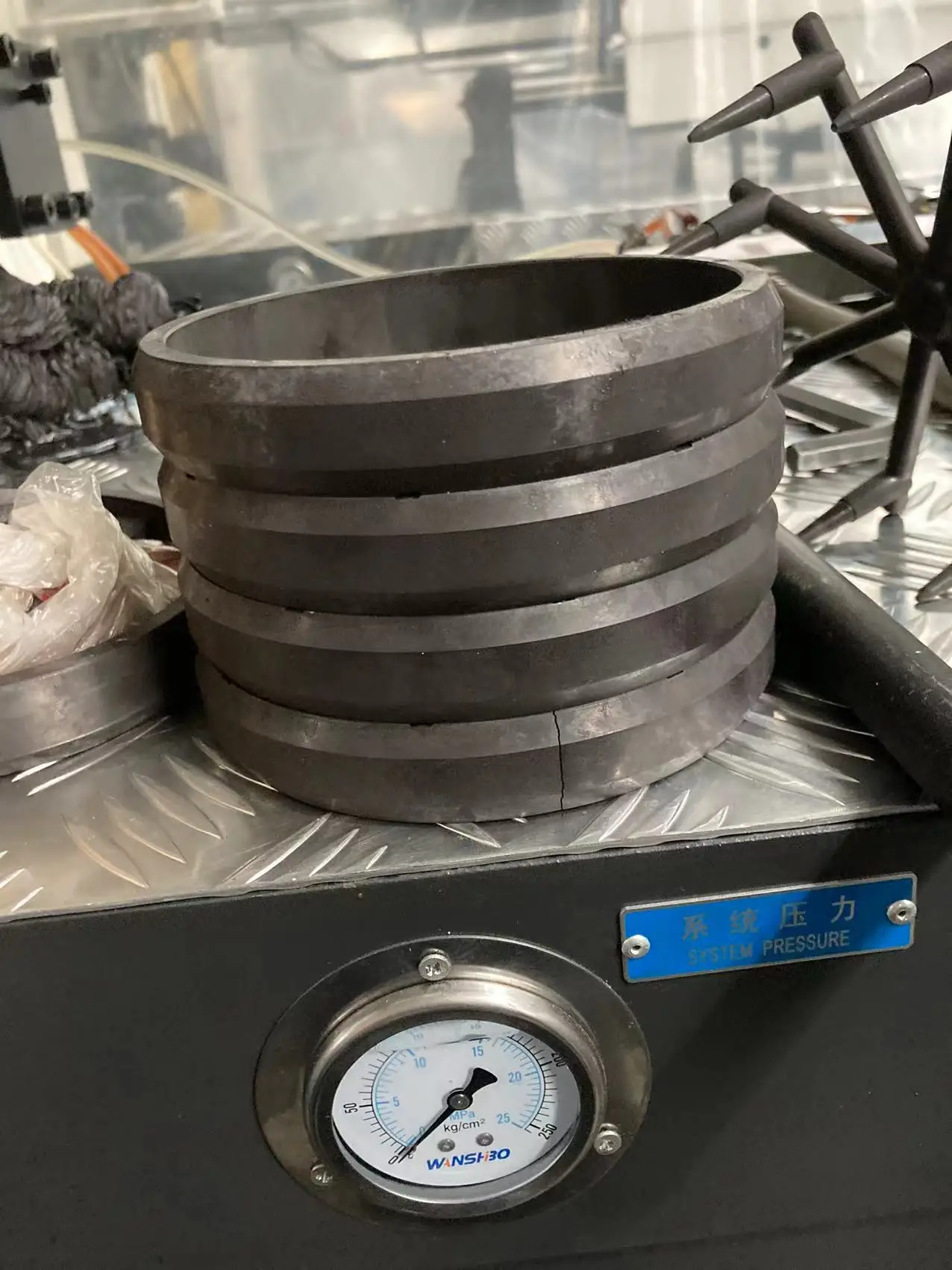

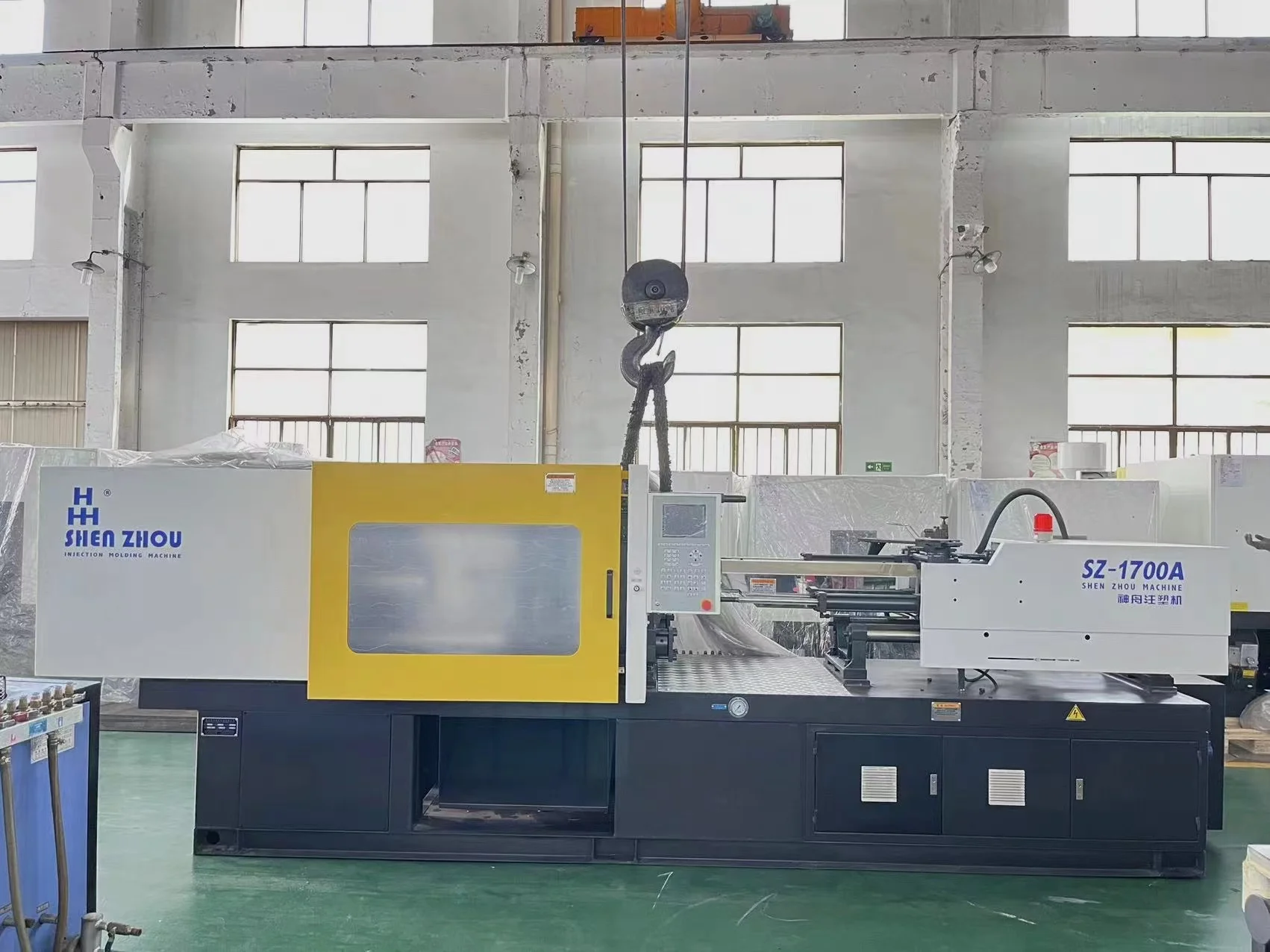

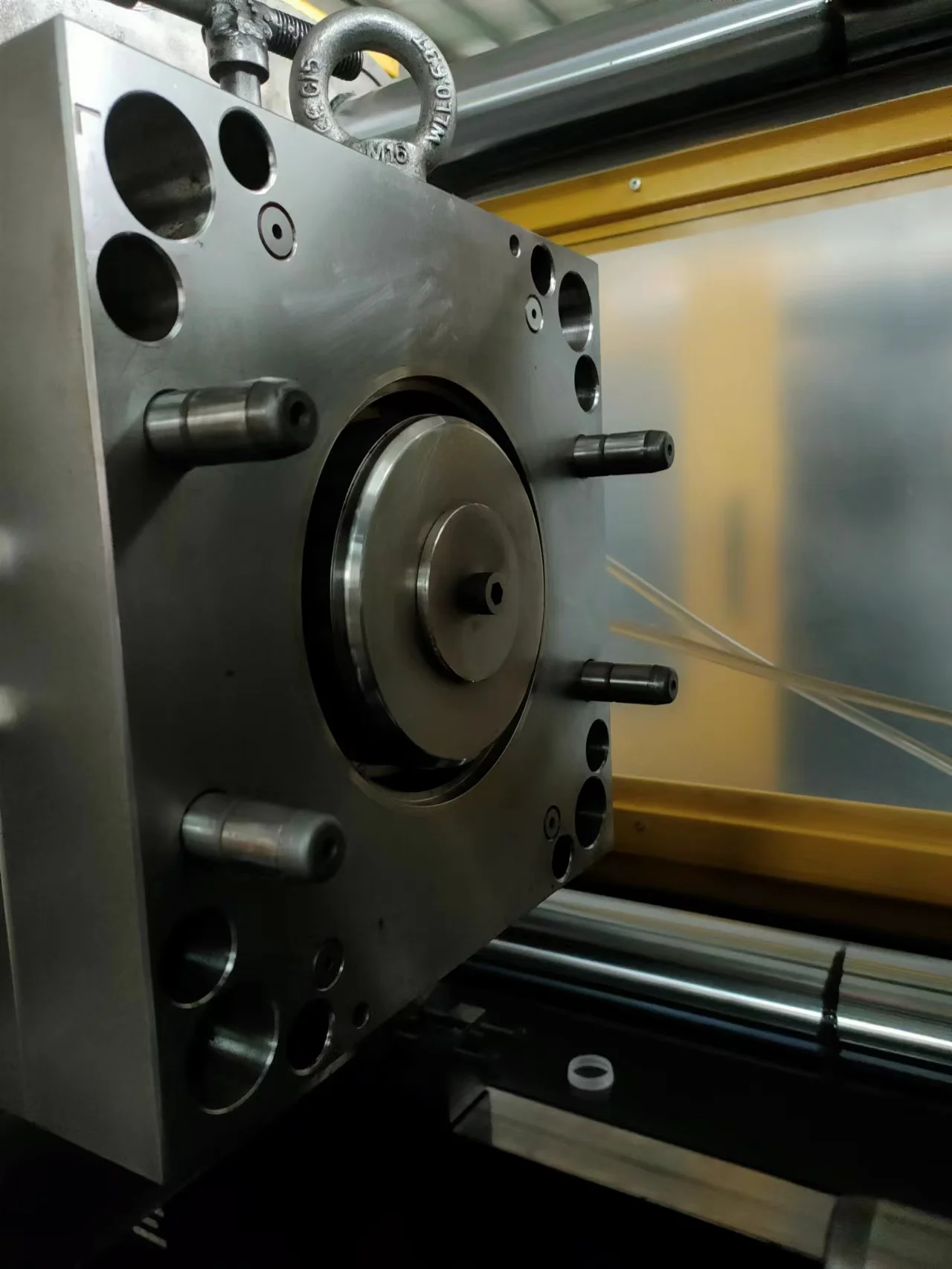

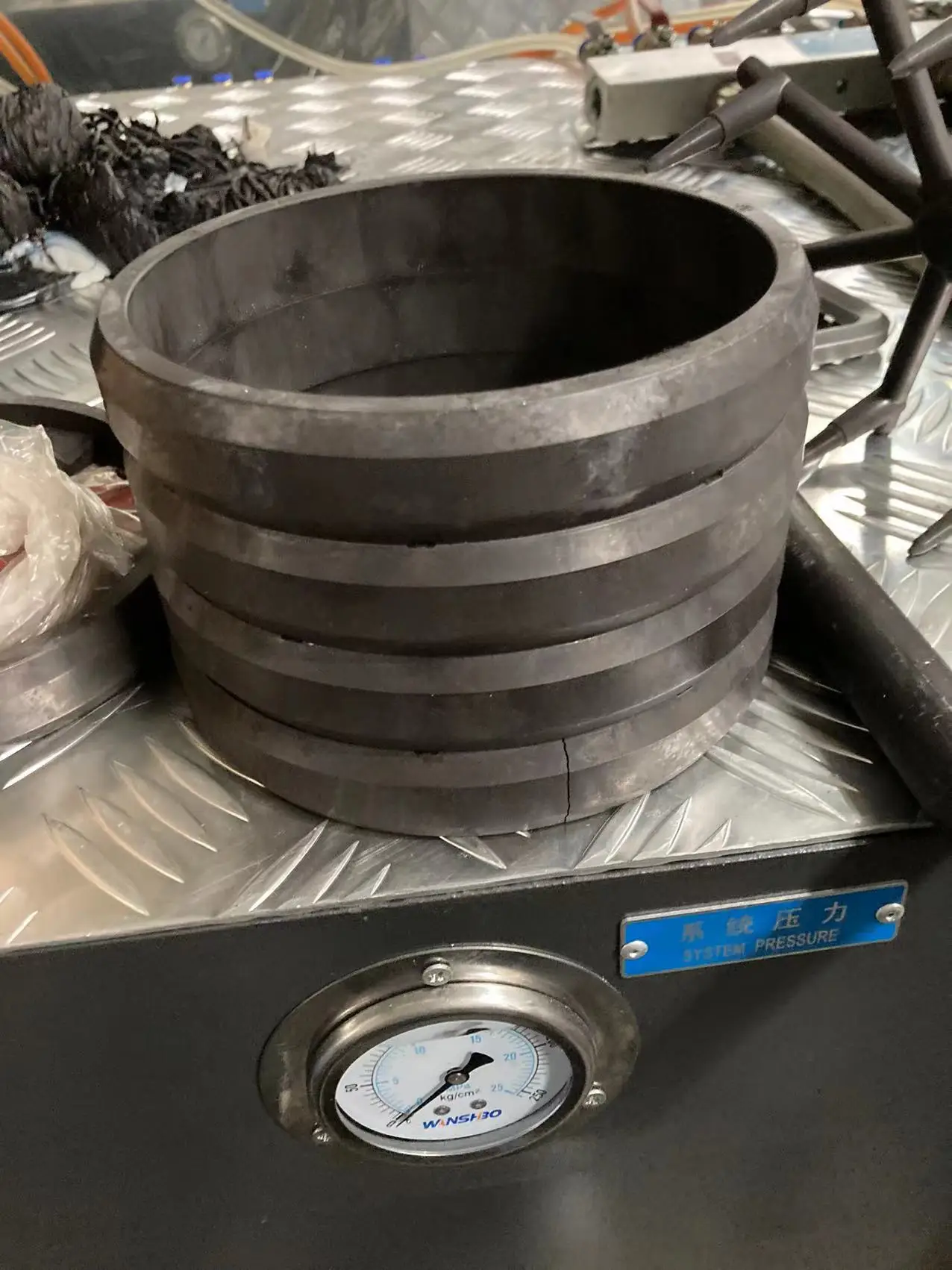

Magnetic Ring Mini Injection Mold Molding Machine Inyectora De Plastico
- Category: >>>
- Supplier: Zhangjiagang Shen Zhou Machinery Co. Ltd.
Share on (1600599845688):
Product Overview
Description
3D SHOW ROOM
VR

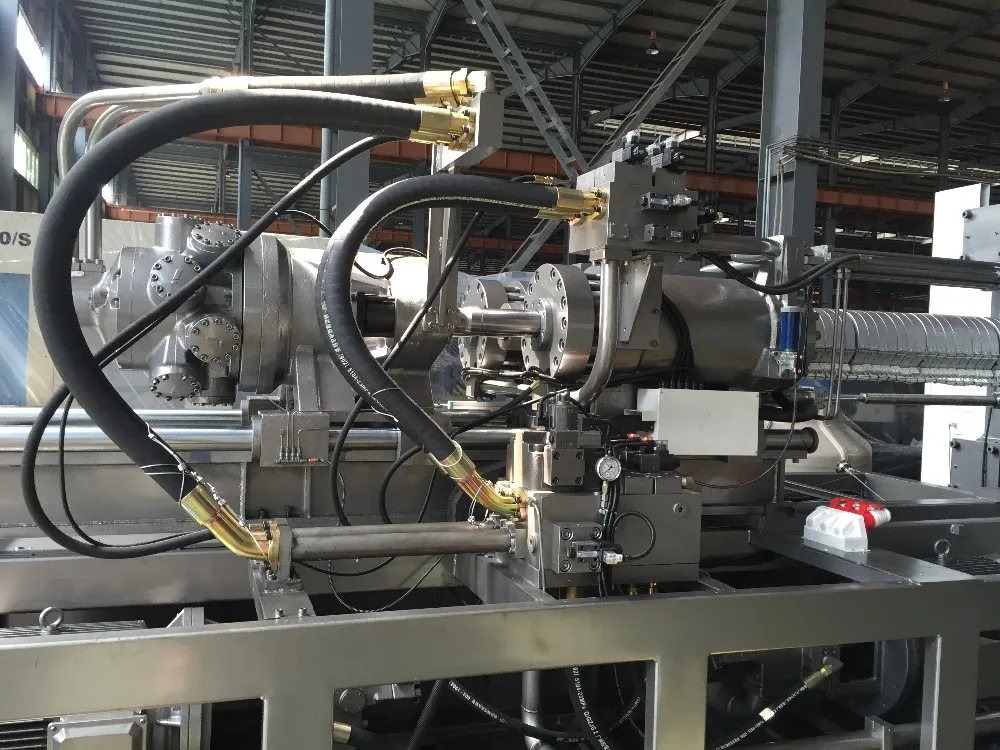

Product Description
●Proportional pressure and flow control with fine adjustment and precision.
●Know-how manifold design,compact,reasonable and fast respond.
●Imported world famous hydraulic valves.
●Imported world famous hydraulic sealing rings.
●Imported technology hydraulic hose and fittings.
●Low noise hydraulic system.
●Precision oil filter and oil cooler.

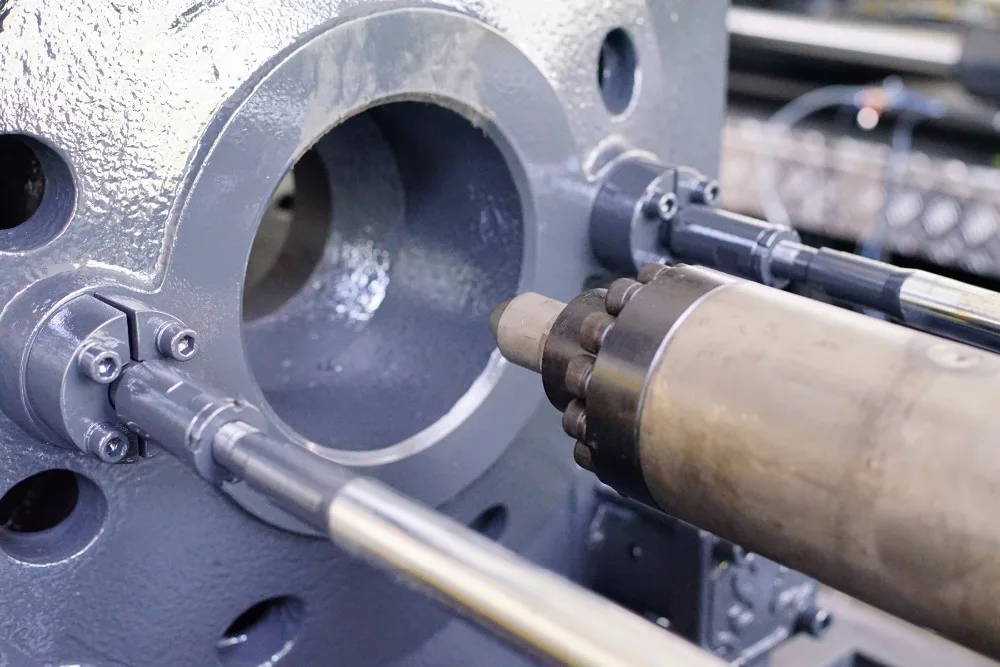

●Nitrided screw and barrel with long service life.
●Smelted screw with big L/D ratio with good plasticizing and color-fixing.
●Double injection cylinder of compact construction and good equilibrant.
●Transducer control injection stroke.
●The speed of low speed and large torque hydraulic motor can be adjusted.
●Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
●Injection-catriage can be used for slacking,re-feedingor fixed-feeding.
●Speed and pressure of injecting and holding controlled by time or position.
●Equipped with reverse device to be easily removed and cleaned.
Technical Parameter
Hydraulic pump
ECKERLE—GERMANY
Proportional Valve
YUKEN-JAPAN
Reversing Valve
YUKEN-JAPAN
YUKEN-JAPAN
Hydraulic Motor
ZY—ITALY
Oil Hose
KIMBERLER —GERMANY
Computer
TECHMATION —TAIWAN
Limit Switch
OMRON-JAPAN
Proximity Swith
FORTEK—TAIWAN
Soild State Relay
RORTEK —TAIWAN
Contactor
SCHNEIDER—FRENCE
Air—break Switch
SCHNEIDER—FRENCE
Servo Motor
PHASE—ITALY
项目 ITEM | 单位UNIT | SZ—1700A | |||||||
注射装置 INJECTION UNIT | |||||||||
螺杆直径 | SCREW DIAMETER | mm | 45 | 50 | 55 | ||||
螺杆长径比 | SCREW LID RATIO | L/D | 23.3 | 21 | 19.1 | ||||
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 358 | 442 | 534 | ||||
注射质量(PS料) | SHOT WEIGHT(PS) | g | 326 | 402 | 486 | ||||
注射压力 | INJECTION PRESSURE | Mpa | 219 | 178 | 147 | ||||
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 142 | 175 | 212 | ||||
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 20.1 | 26.5 | 34.2 | ||||
螺杆驱动扭矩 | SCREW TORQUE | N.m | 1250 | ||||||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 200 | ||||||
洼射行程 | INJECTION STROKE | mm | 225 | ||||||
合模装置 CLAMPING UNIT | |||||||||
合模力 | MAX.CLAMPING FORCE K | KN | 1700 | ||||||
移模行程 | MAX.OPENING STROKE | mm | 460 | ||||||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 480×480 | ||||||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 180-500 | ||||||
模板最大开距 | MAX.DAYLIGHT | mm | 960 | ||||||
液压顶出力 | EJECTOR FORCE | KN | 45.2 | ||||||
液压顶出行程 | EJECTOR STROKE | mm | 115 | ||||||
液压顶出杆总数 | EJECTOR QUANTITY | 5 | |||||||
其它 OTHER | |||||||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 15 | ||||||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||||||
料简加热功率 | HEATING POWER | KW | 13.6 | ||||||
加热区段 | HEATING ZONE | 4 | |||||||
机器外形(LxWxH) | SIZE | m | 5.3×1.35×1.9 | ||||||
机器净重 | NET WEIGHT | t | 5.6 | ||||||
油箱容积 | OIL TANK CAPACITY | L | 420 | ||||||
国际公认型号 | INTERNATIONAL DESIGNATION | 1700—785 | |||||||

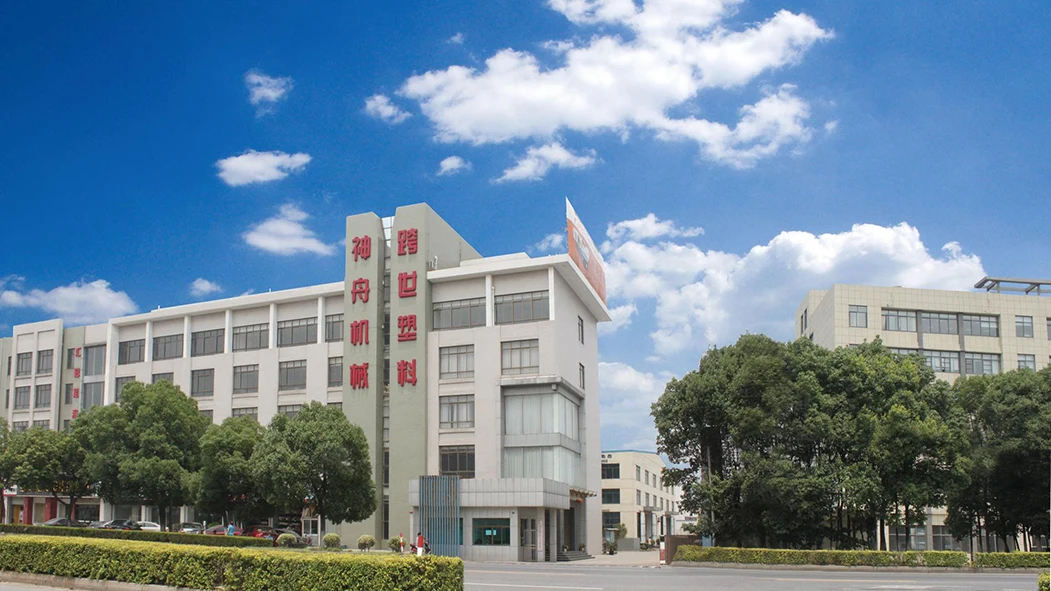

Company Profile

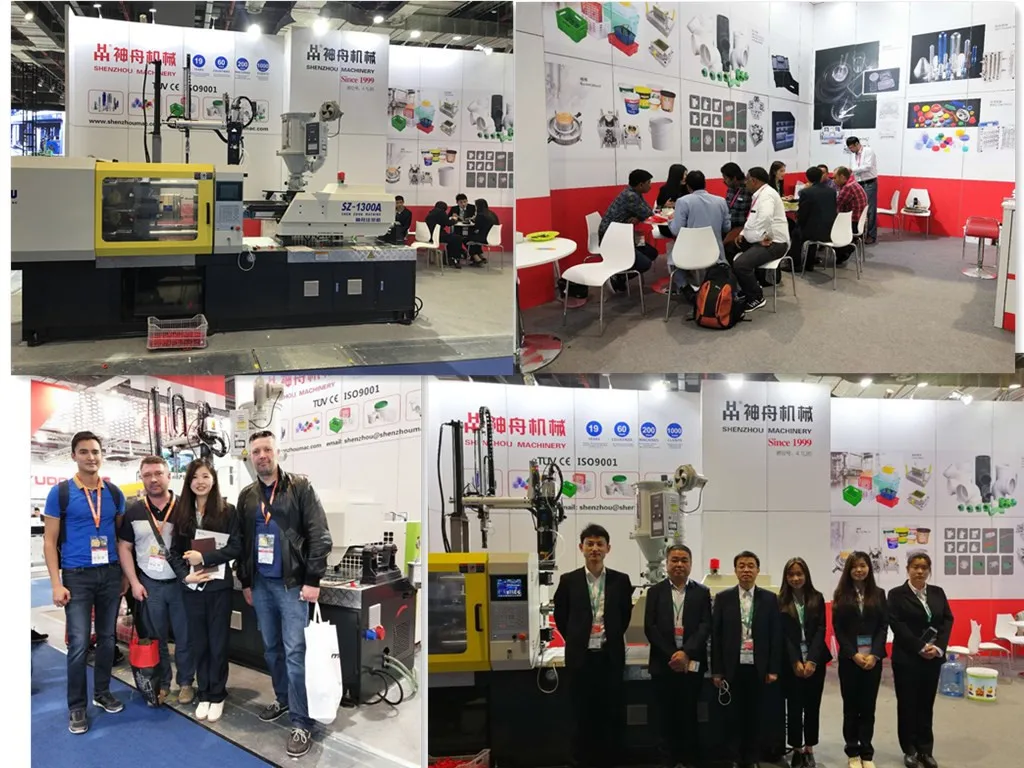

Exhibition

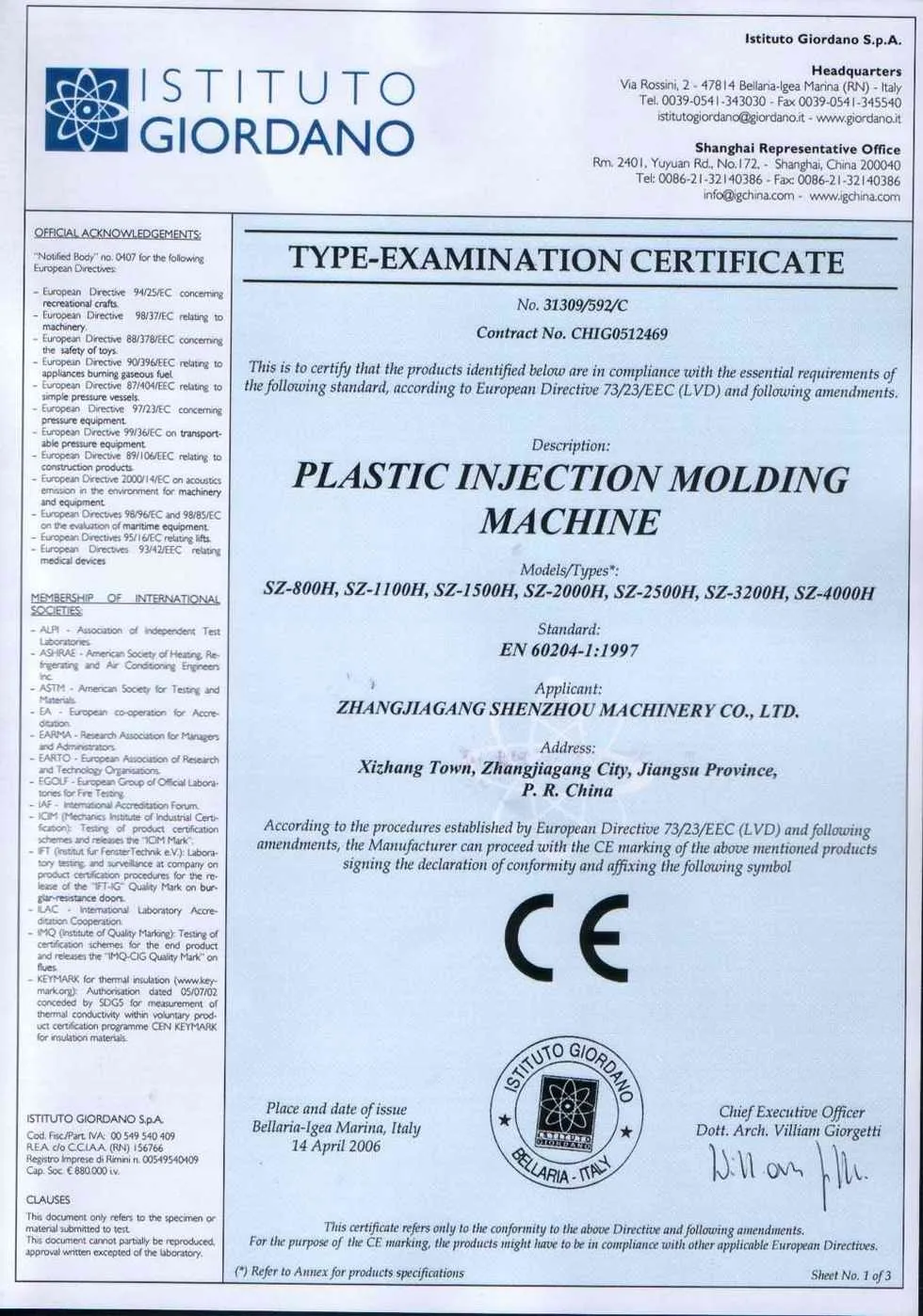

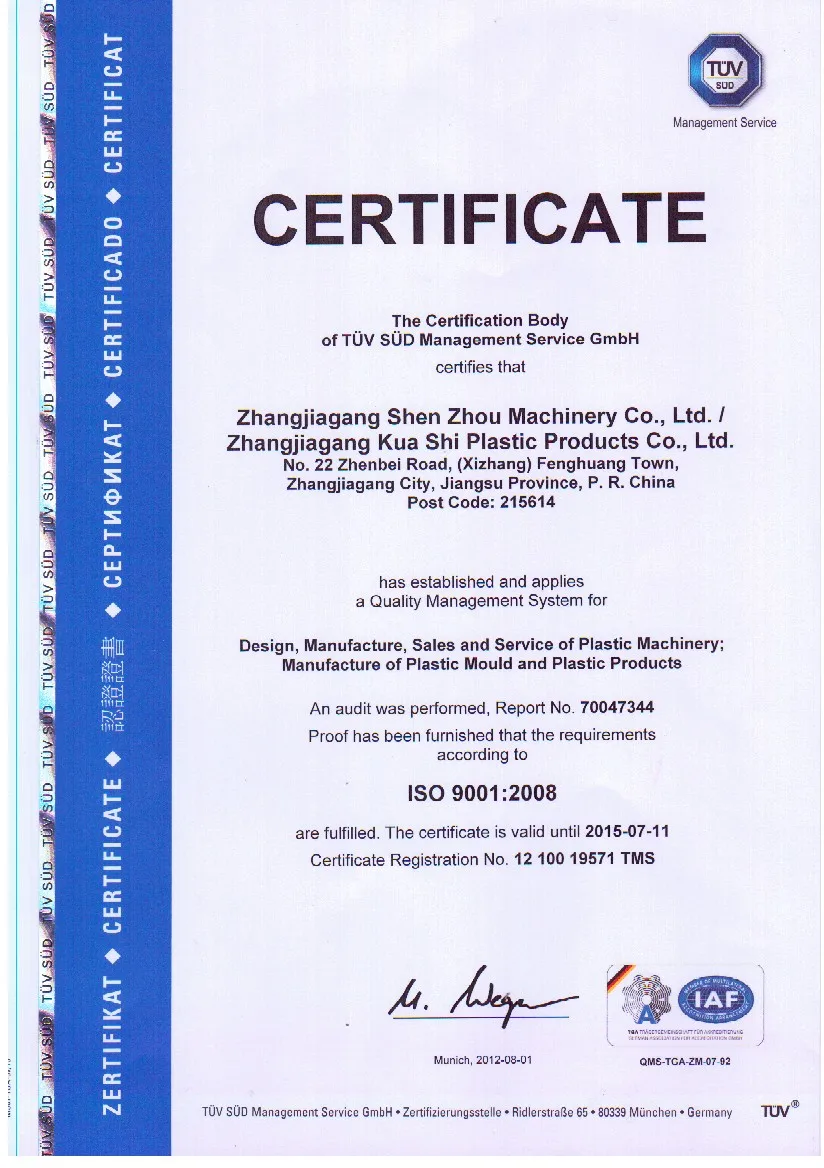

Certifications
Why Choose Us
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
Packing & Delivery
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.
FAQ
1.Q:Are you a factory or trading company?
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. Old customers will enjoy more price concessions.
5.Q:How is your machine different from other businesses？
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you!
