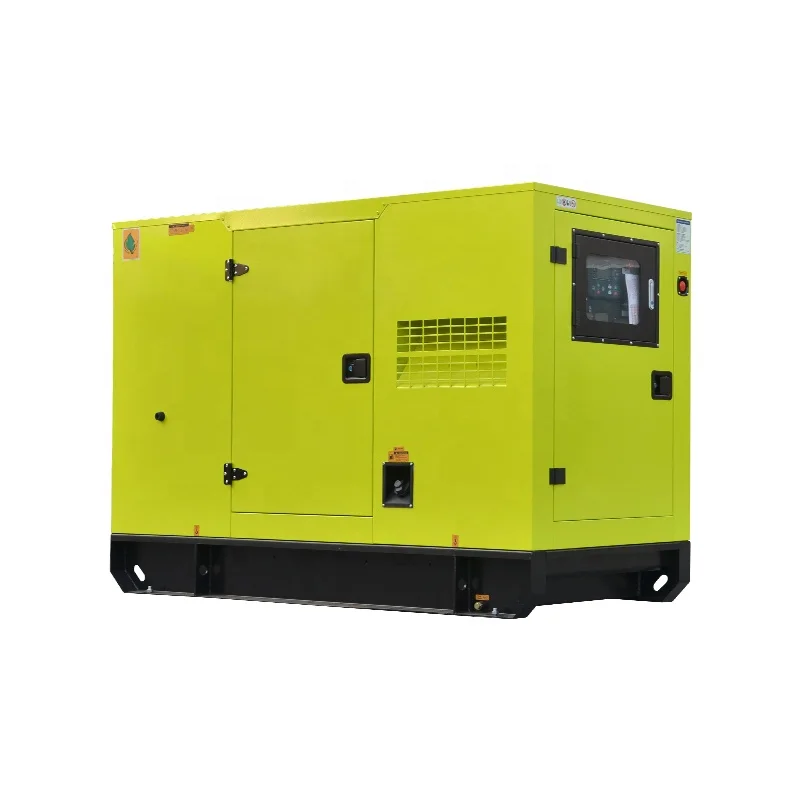

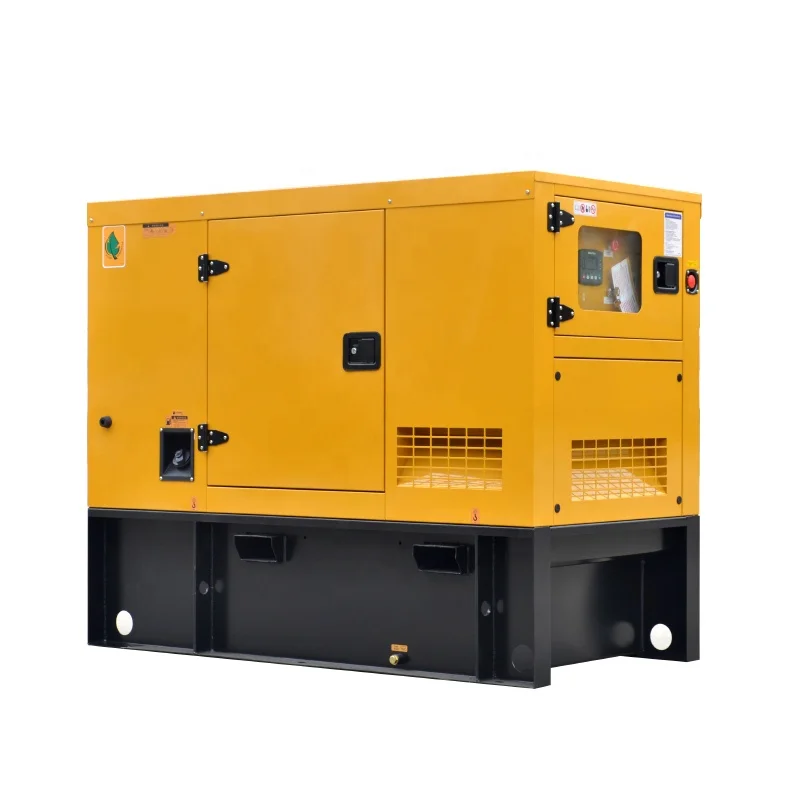

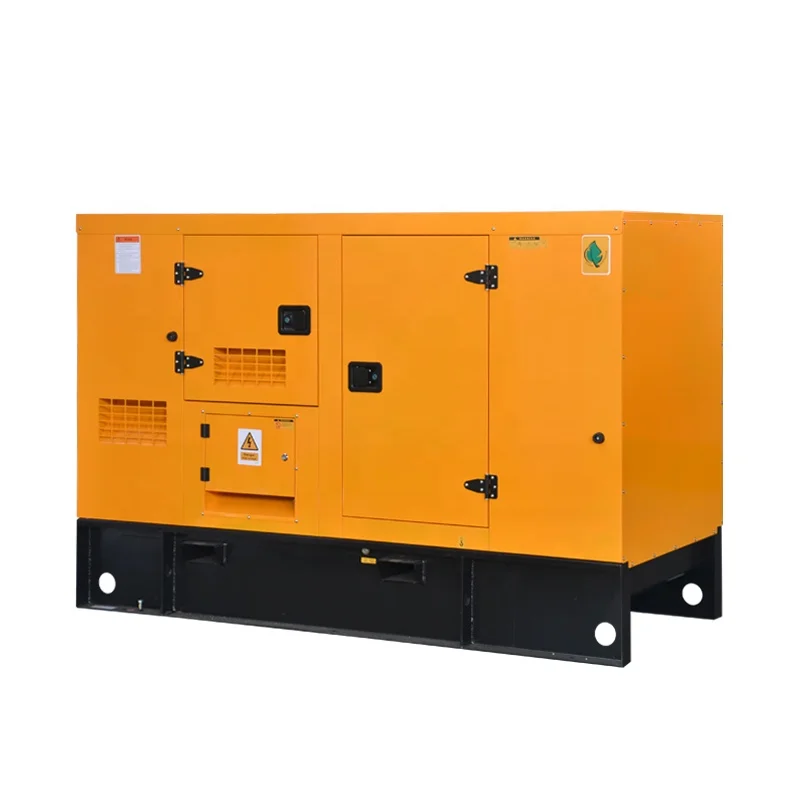

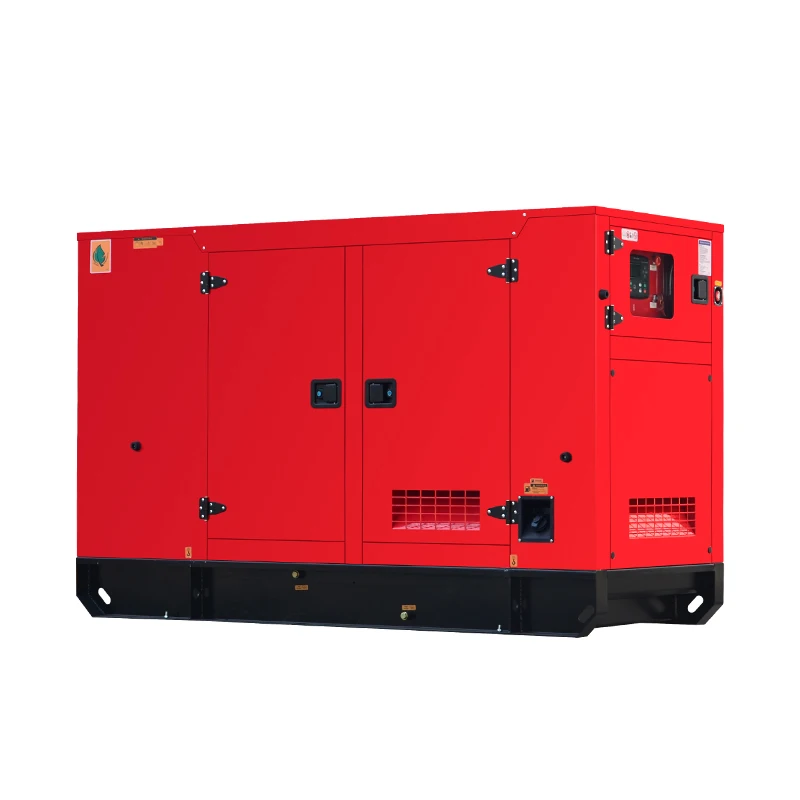

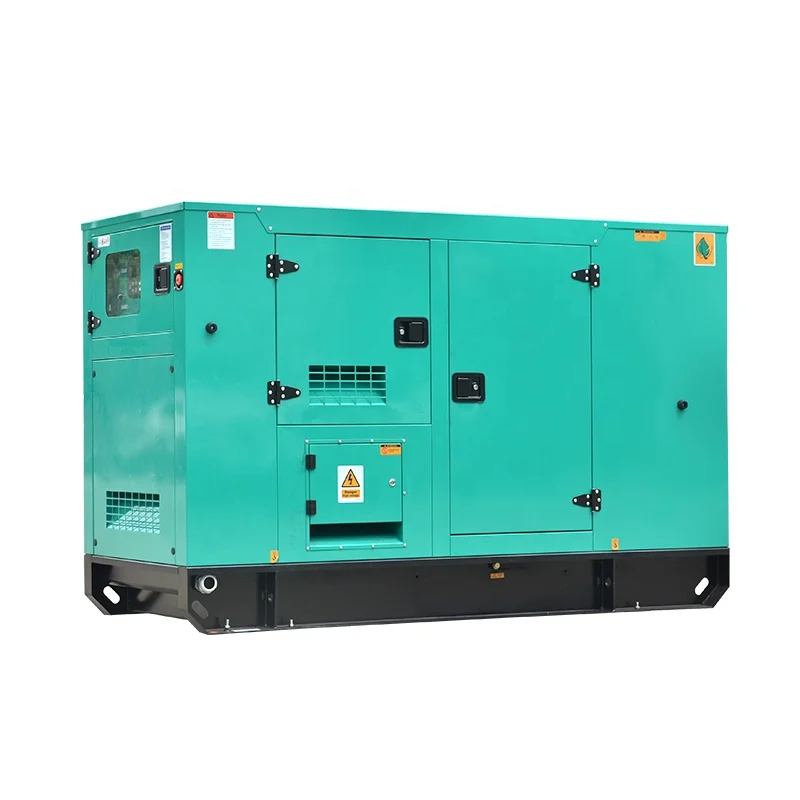

40kw silent type air cooled diesel generator 50kva generator set powered by deutz engine
- Category: >>>
- Supplier: Taizhou Flying Dragon Machinery Equipment Co. Ltd.
Share on (1600599877943):
Product Overview
Description
Diesel Generator Details | |
| Model | CLDY-40GF |
| Power | 40KW|50KVA |
| Current | 76A |
| Frequency | 50 HZ |
| Voltage | 380/220V |
| Optional Type | Open / Rainproof / Silent / Trailer / Containerized |
| Size of Open Type | 1500*700*1100mm |
| Size of Silent Type | 2400*1000*1560mm |
| Diesel Engine Details | |
| Brand/Model | Duetz F4L913T |
| Prime Power | 41KW |
| Standby Power | 45KW |
| Aspiration | Naturally |
| Cylinders No. | 4 |
| Bore*Stroke(mm) | 100*120 |
| Displacement(L) | 3.77 |
| Starting Method | DC 12V electrical Start |
| Fuel Consumption(g/kw.h) | 207 |
| Alternator Details | |
| Optional Brand | Stamford /ABB/Leroy Somer |
| Output Power | 40KW |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulattion Grade | H |
| Protection Grade | IP23 |
| Controller Details | |
| Brand | Deepsea/ComAp/Smartgen |
| Standard | Optional |
| Diesel Engine | Weatherproof/Sounproof canopy |
| Alternator | ATS |
| Control Panel | Water heater |
| Starting Batteries and battery connect wires | Oil heater |
| Circuit Breaker | Battery charger |
| Water cooled Radiator | Fuel tank |
| Steel base frame | / |
| Silencer and flexible exhaust pipe | / |
Plywood case or pallet packing as below:
Any interest in Flying Dragon,please contact us.Thanks
