Hot Forging Forming Hydraulic Press 1000 Tons Fast Forging Forming Hydraulic Press
- Category: >>>
- Supplier: Shandong Weili Heavy Industry Co. Ltd.
Share on (1600599936015):
Product Overview
Description
Products Description
YW32-1250T
Composition Structure:
The hot forging hydraulic press (free forging hydraulic press, fast die forging hydraulic press) consists of two parts: body and
hydraulic system. The body structure has upper beam, lower beam, column composition closed frame, to bear all the working load.
The working cylinder is fixed on the upper beam, and the working cylinder is equipped with a working plunger, which is connected
with the movable beam. The movable beam is guided by four columns and reciprocates between the upper and lower beams. The upper die (or anvil) is fixed on the lower surface of the movable beam, and the lower die (or anvil) is fixed on the workbench of the
lower beam.
Product Paramenters
Specification | Unit | YW32-1250T |
Nominal pressure | kN | 12500 |
Liquid maximum working pressure | Mpa | 25 |
The maximum travel oil cylinder | mm | 800 |
The largest open | mm | 1200 |
Effective area of the workbench(L·R) | mm | 1100 |
Effective area of the workbench(F·B) | mm | 1100 |
Fast forward speed | mm/s | 200-250 |
Work into the speed | mm/s | 10-25 |
The return rate | mm/s | 200-250 |
The motor | kw | 55x2 |
Ejector pressure | kN | 1200 |

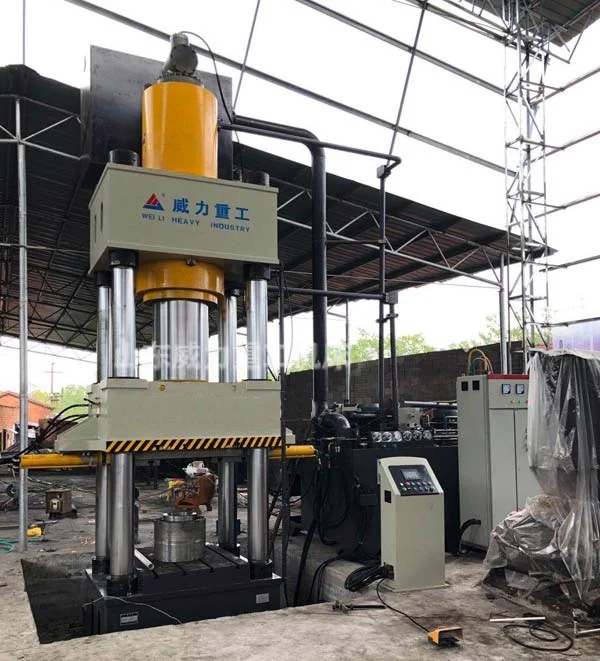

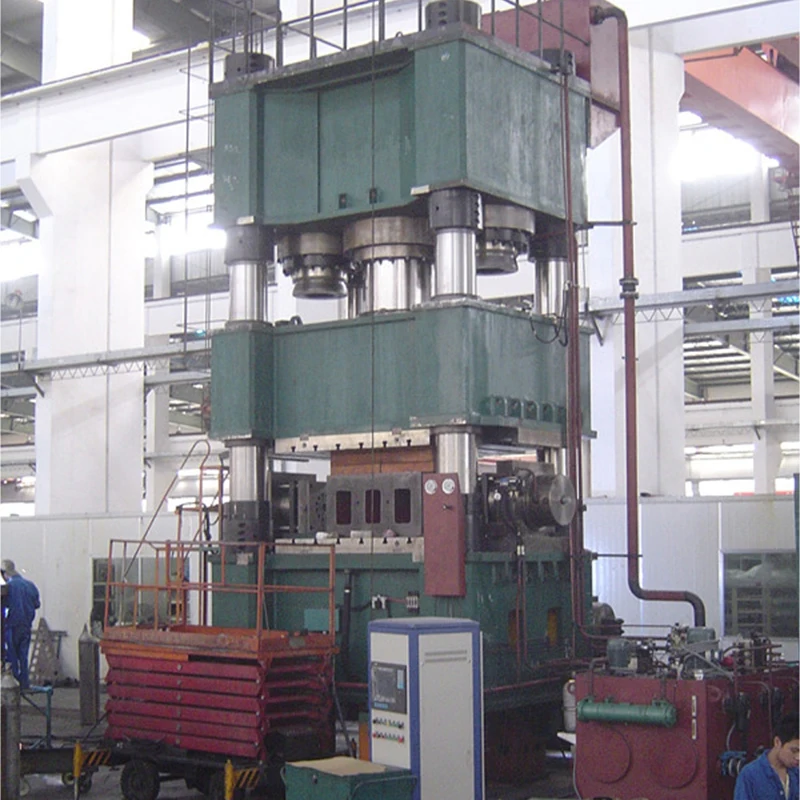

Machine picture
Working principle:
When the high-pressure liquid enters the working cylinder, a lot of pressure will be generated on the working plunger, which will push the plunger and the movable beam downward, so that the blank will produce plastic deformation. The return cylinder is fixed on the lower beam, and the return plunger is connected with the movable beam. During the return journey, the working cylinder passes low pressure, and the high-pressure liquid enters the return journey cylinder to push the return journey plunger and movable beam upward to return to the original position and complete the working cycle.
A working cycle of hot forging hydraulic press (free forging hydraulic press, fast die forging hydraulic press) includes filling
stroke, working stroke, stop and return, which is realized by the control system controlling the action of various valves in the hydraulic system. Hydraulic system includes all kinds of pumps, containers (oil tank, liquid tank, etc.), valves and connecting pipes. Hot forging hydraulic press (free forging hydraulic press, fast die forging hydraulic press) Advantages:
1, the pressure energy can be simple and accurate preset, servo motor direct drive, fast running speed.
2, no structural dead point, as well as sliding card dead, make the product more uniform.
3, close to the bottom dead point, the slider speed is very fast, the mold extrusion material time is very short, prolong the life of the mold.
4, servo motor direct drive, simple structure, low maintenance cost
5, vibration and noise is small, will not disturb the people, meet the requirements of environmental protection;
6, high efficiency, especially upsetting, the efficiency is many times higher than forging hammer;
7, the price is low, with the equivalent of the forging hydraulic press price is much lower than the hammer (such as 4000 tons forging hydraulic press is much lower than the hammer price)
8, the foundation cost is low, than the foundation cost of forging hammer to save more than half, the factory does not require shock proof.
9, forged workpiece inside and outside the combination of good uniformity, reliable quality, less defects.
stroke, working stroke, stop and return, which is realized by the control system controlling the action of various valves in the hydraulic system. Hydraulic system includes all kinds of pumps, containers (oil tank, liquid tank, etc.), valves and connecting pipes. Hot forging hydraulic press (free forging hydraulic press, fast die forging hydraulic press) Advantages:
1, the pressure energy can be simple and accurate preset, servo motor direct drive, fast running speed.
2, no structural dead point, as well as sliding card dead, make the product more uniform.
3, close to the bottom dead point, the slider speed is very fast, the mold extrusion material time is very short, prolong the life of the mold.
4, servo motor direct drive, simple structure, low maintenance cost
5, vibration and noise is small, will not disturb the people, meet the requirements of environmental protection;
6, high efficiency, especially upsetting, the efficiency is many times higher than forging hammer;
7, the price is low, with the equivalent of the forging hydraulic press price is much lower than the hammer (such as 4000 tons forging hydraulic press is much lower than the hammer price)
8, the foundation cost is low, than the foundation cost of forging hammer to save more than half, the factory does not require shock proof.
9, forged workpiece inside and outside the combination of good uniformity, reliable quality, less defects.

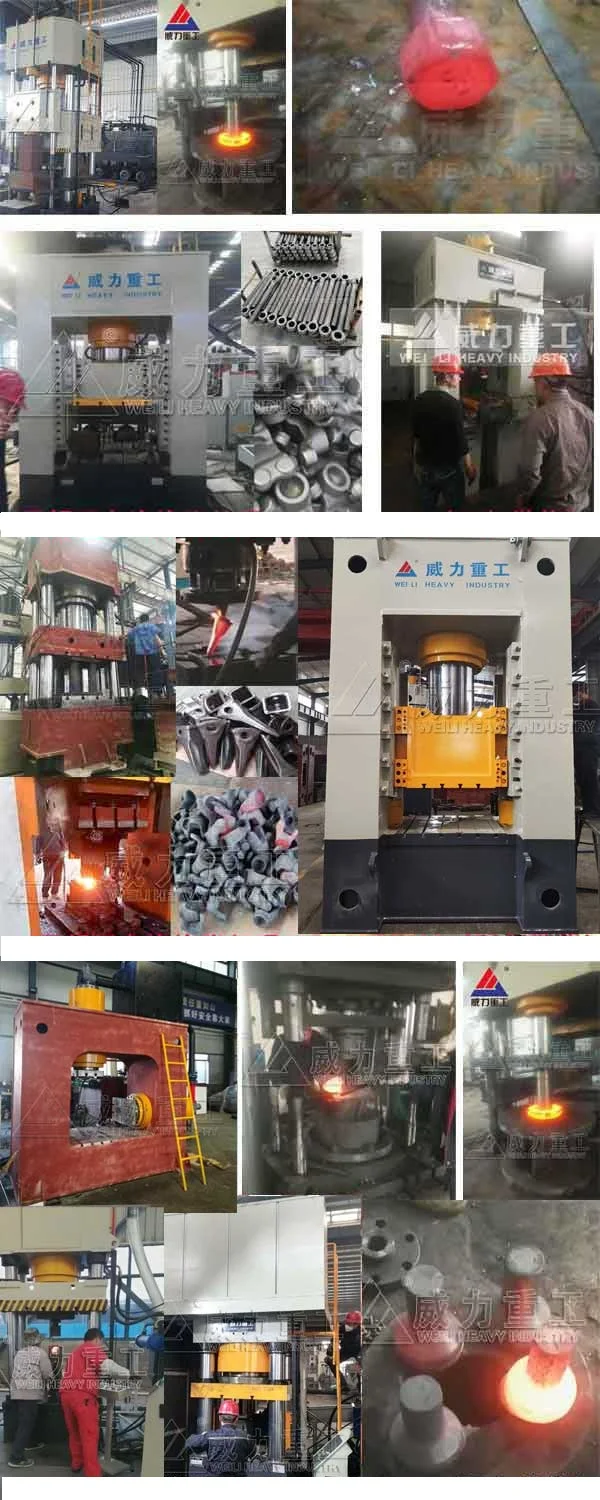

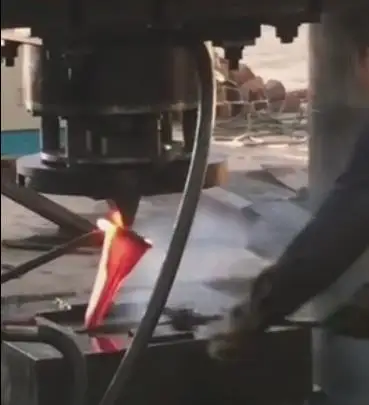

Produce feature
Product packaging

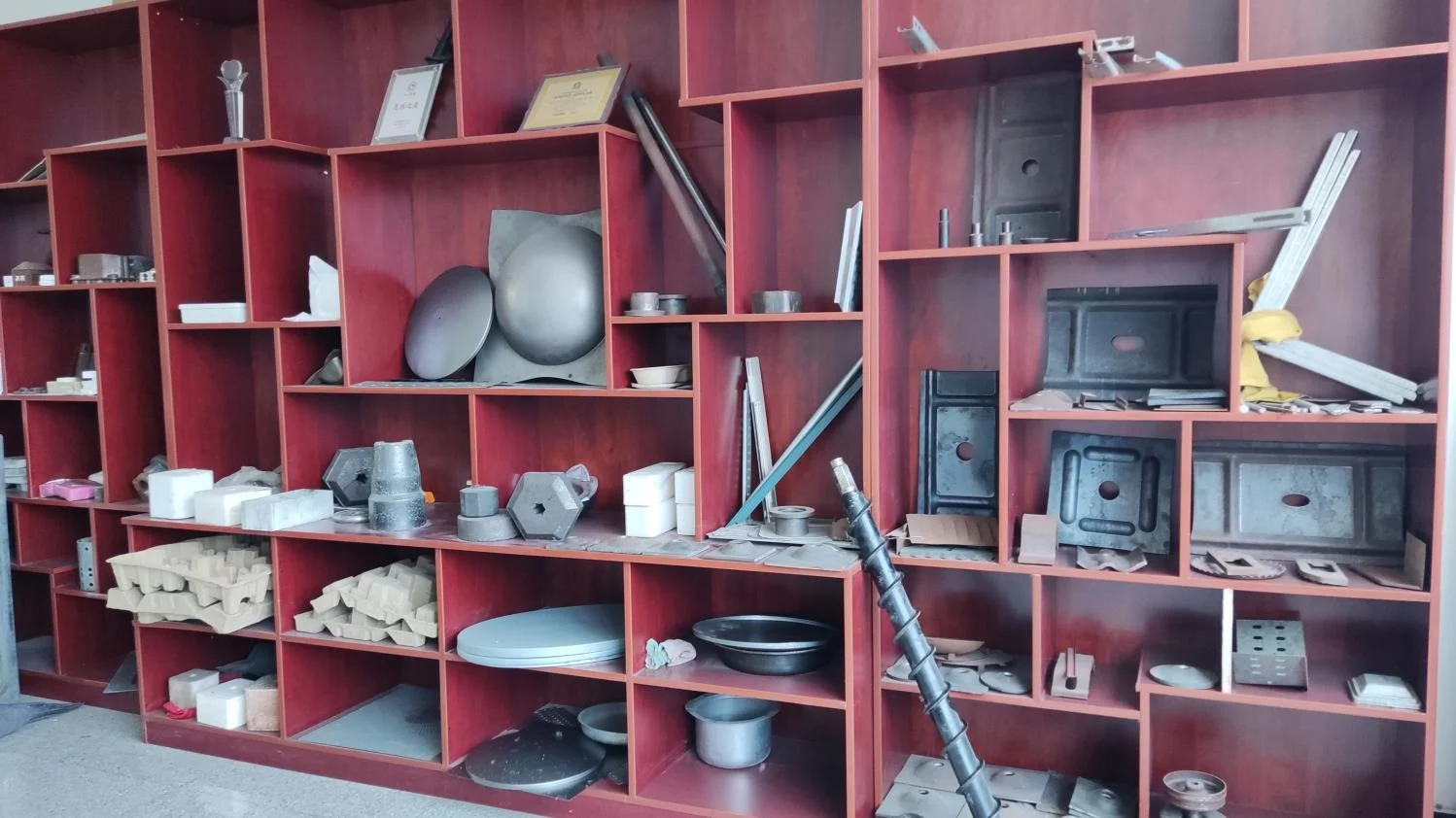

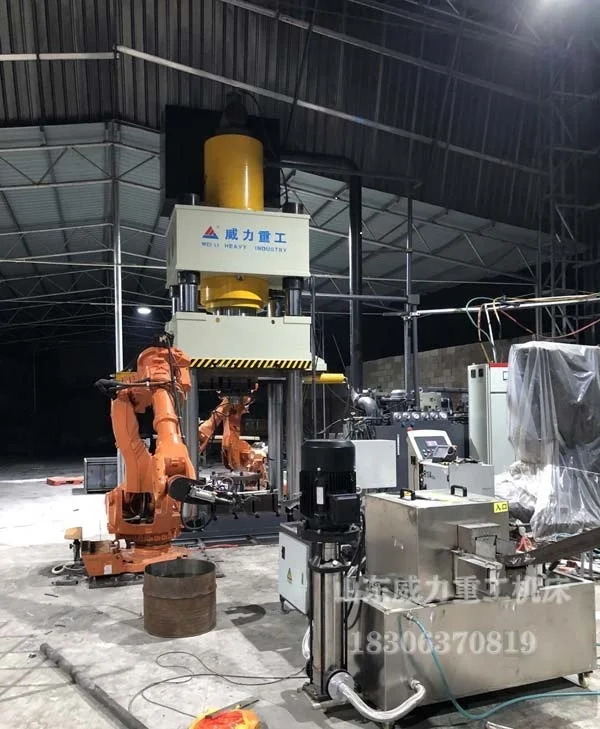

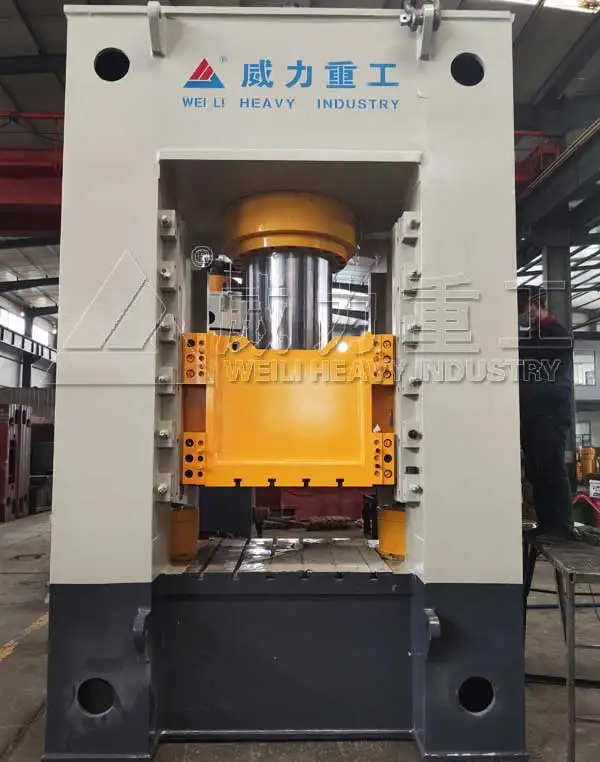

Some products
