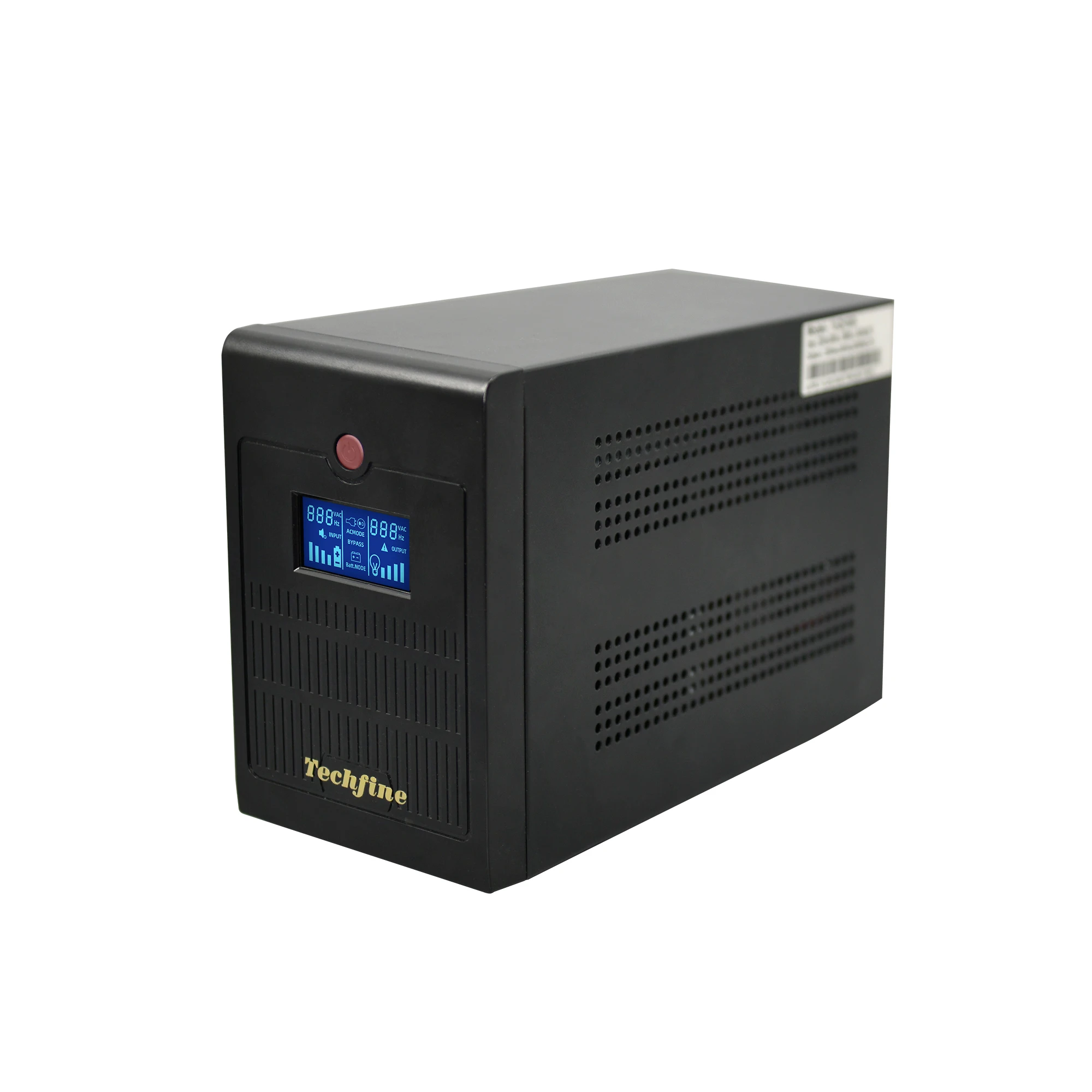

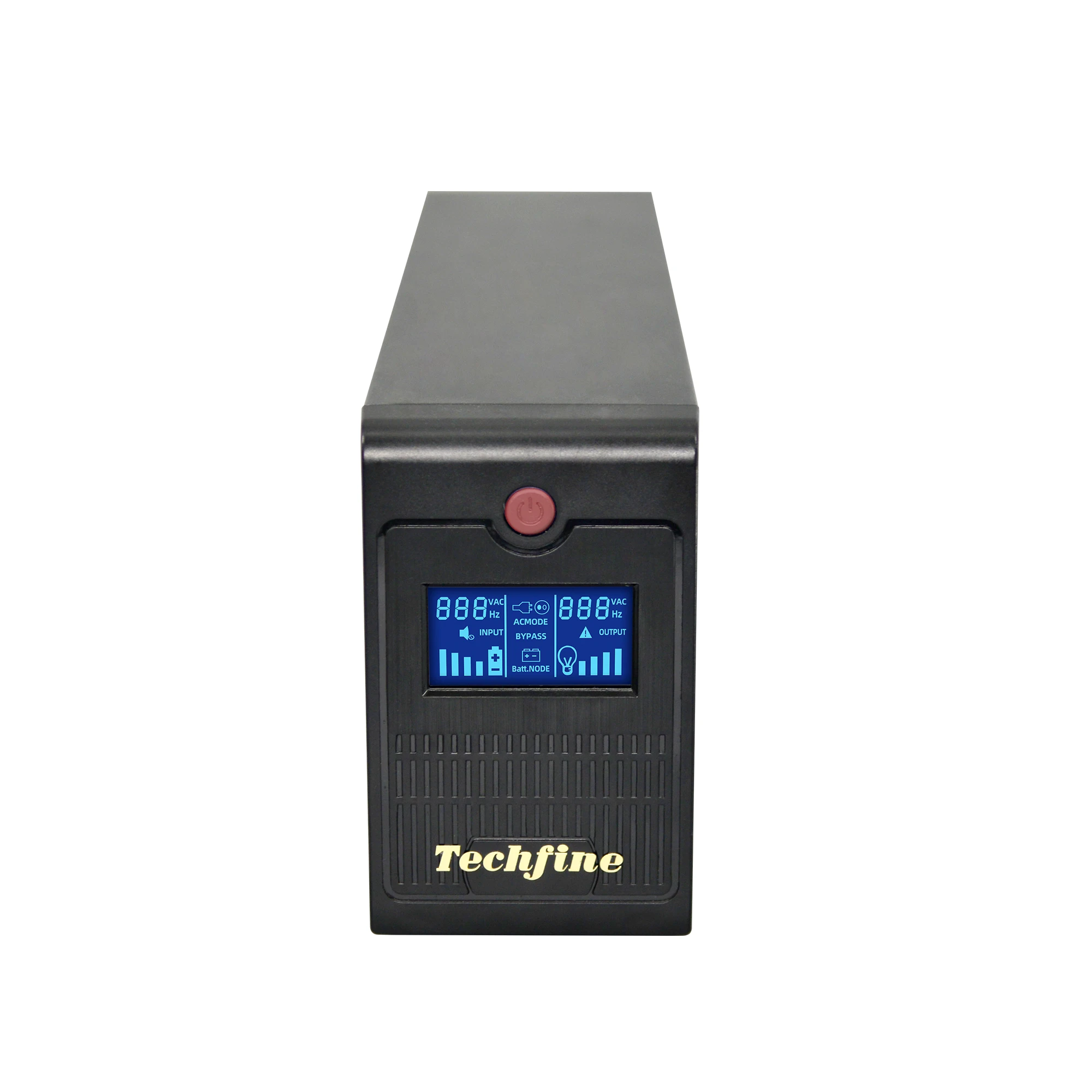

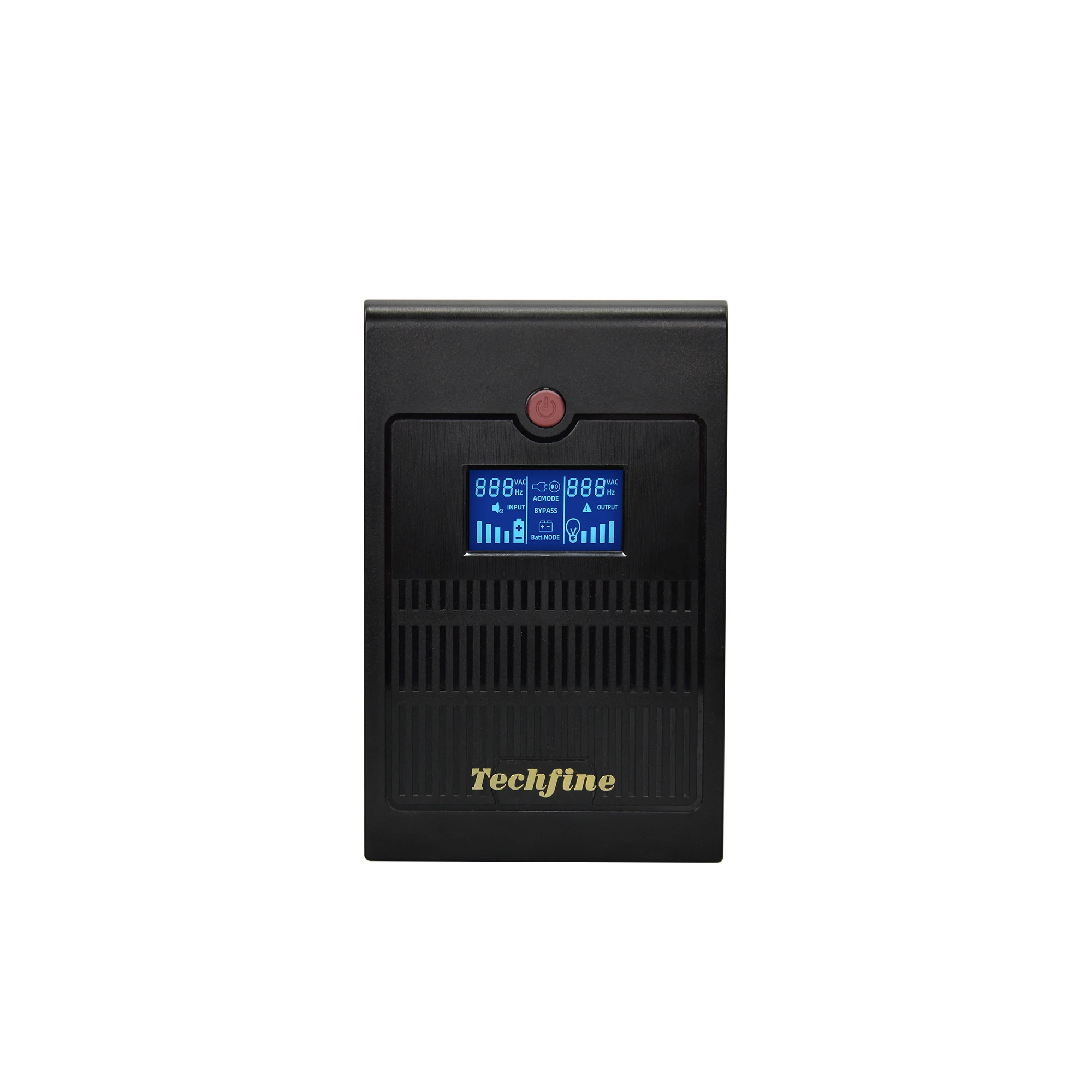

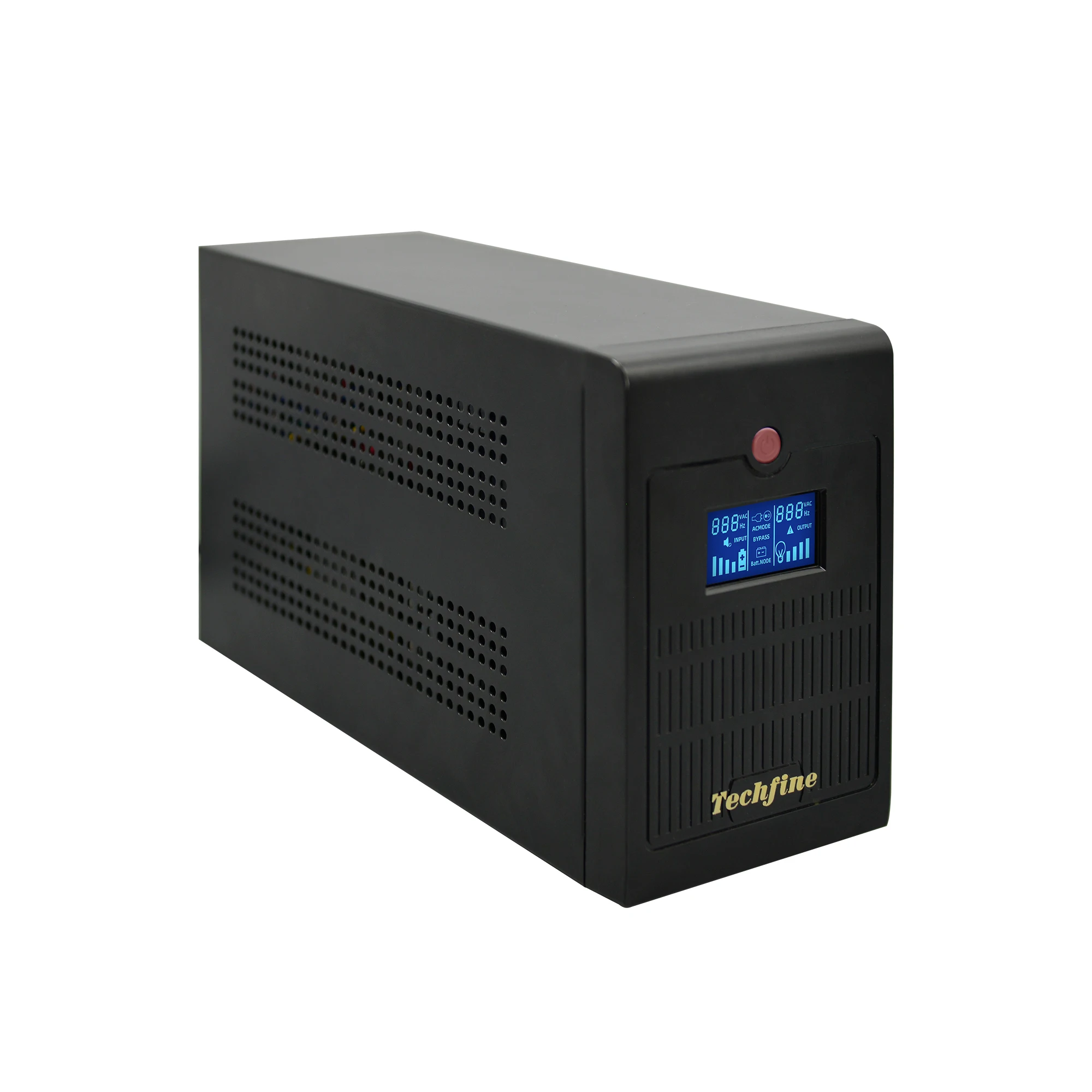

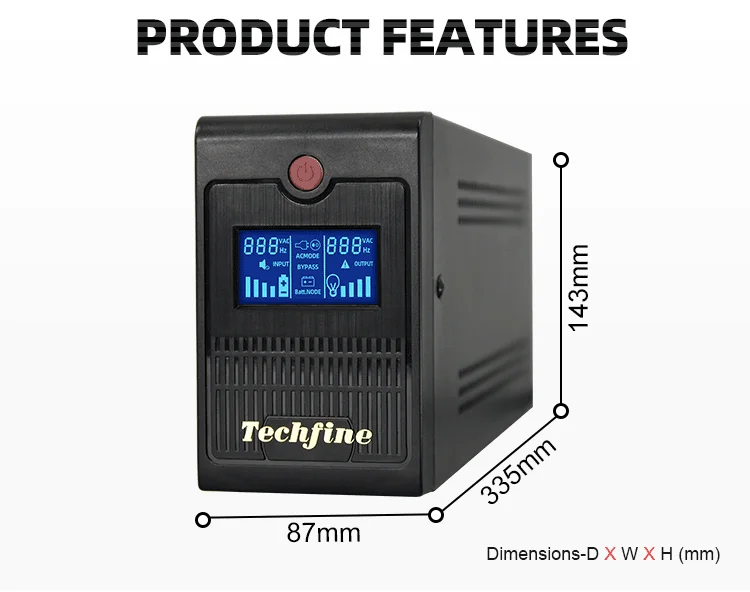

Techfine 1200VA 720W 50Hz UPS uninterruptible power supply 24V Offline UPS for Computer
- Category: >>>
- Supplier: FOSHAN KOMISTAR ELECTRONIC CO. LTD
Share on (1600599970325):
Product Overview
Description
Features:
Simple, compact and generous machine appearanceSuper wide mains input range
Excellent microprocessor to ensure reliable operation
Automatic adjustment of the AC mains power boost, step-down, stable voltage output
Mains restart function
Output modified sine wave
Automatic charge in off-mode
Cold start function
Compatible generators
Excellent microprocessor to ensure reliable operation
Automatic adjustment of the AC mains power boost, step-down, stable voltage output
Mains restart function
Output modified sine wave
Automatic charge in off-mode
Cold start function
Compatible generators
Application：
1. PC/Fax/Modem
2.Small server/Lan
3.Cash-counting
4.Attendance machine
5.Miniature Terminal Equipment
6.SOHO Equipment
3.Cash-counting
4.Attendance machine
5.Miniature Terminal Equipment
6.SOHO Equipment
Model | 650VA | 800VA | 1200VA | 1500VA | 2000VA | 3000VA | |||||
Capacity | 650VA /360W | 800VA /480W | 1200VA /720W | 1500VA /900W | 2000VA /1200W | 3000VA /1600W | |||||
Input | |||||||||||
Voltage | 220VAC | ||||||||||
AC Mains Input Voltage Range | 145-280 VAC (same as AC mains) | ||||||||||
Frequency | 50 Hz | ||||||||||
Output | |||||||||||
Voltage Range(Battery Mode) | ±10% | ||||||||||
Frequency Range(Battery Mode) | 50 Hz ±1 Hz | ||||||||||
Transfer Time | ＜6ms | ||||||||||
Waveform(Battery) | Modified sine wave | ||||||||||
Battery | |||||||||||
Battery Type & Quantity | 12V7.2Ah x 1 | 12V 9Ah x 1 | 12V 7.2Ah x 2 | 12V 9Ah x 2 | 12V 9Ah x 2 | 12 V 7 Ah x4 | |||||
Battery Charging Tiime | 6 hours charge to 90% | ||||||||||
LED Indicators | |||||||||||
AC Mode | Green light | ||||||||||
Battery Mode | Red light flash | ||||||||||
Audible Alarm | |||||||||||
Battery Mode | Alarm beeps every six seconds | ||||||||||
Low Battery | Alarm beeps every second | ||||||||||
Overload | Alarm beeps twice every second | ||||||||||
Fault | Alarm beeps continuously | ||||||||||
Protection Function | |||||||||||
Comprehensive Protection | Overload, deep discharge and over-charge protection | ||||||||||
Environment | |||||||||||
Temperature And Humidity | Relative humidity 0-90% and temperature 0- 40°C (No-condensing) | ||||||||||
Noise | less than 40dB at one meter distance | ||||||||||
Physical Function | |||||||||||
FAQ
Q1: Are you a manufacturer or a trading company?
Our factory covers an area of 150000 square meters, with more than 40 R&D teams. Our products sales cover more than 100 countries and regions around the world.
Q2: How about the delivery time?
Ready sample; 7 working days for bulk order after your deposit is confirmed.
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on ---All series UPS pass different labor testing according to different countries’
requirements.
requirements.
Q4: Do you support OEM/ODM?
Our factory have OEM service for our customers, we only need hundreds or even dozens of sets can have the OEM service, which can help you lower the threshold and facilitate market development.
Q4: Can I have a sample order?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
