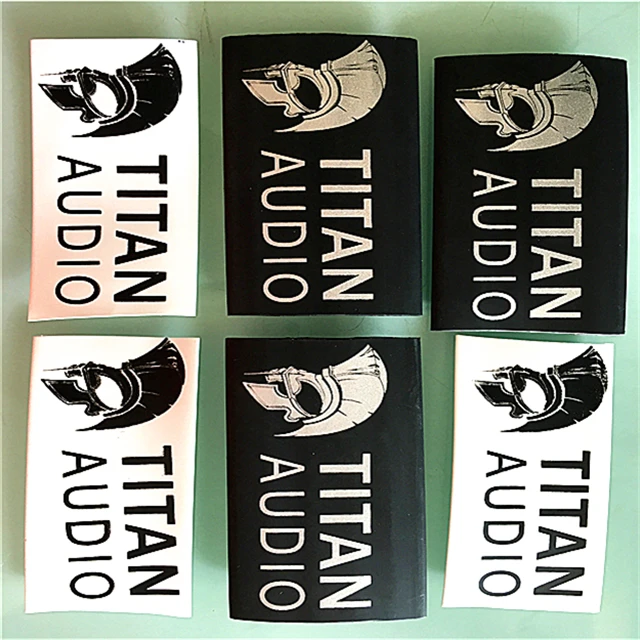

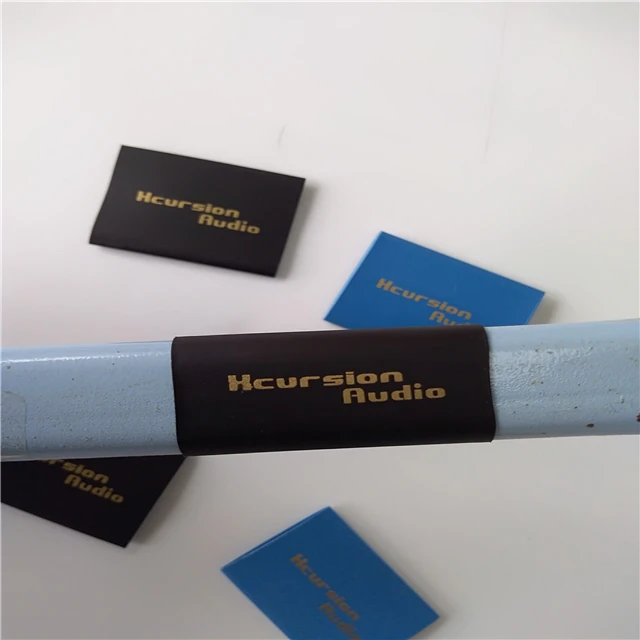

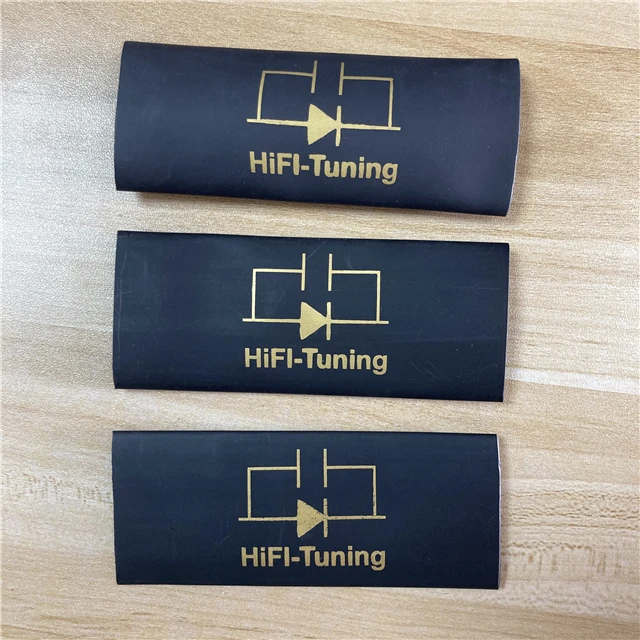

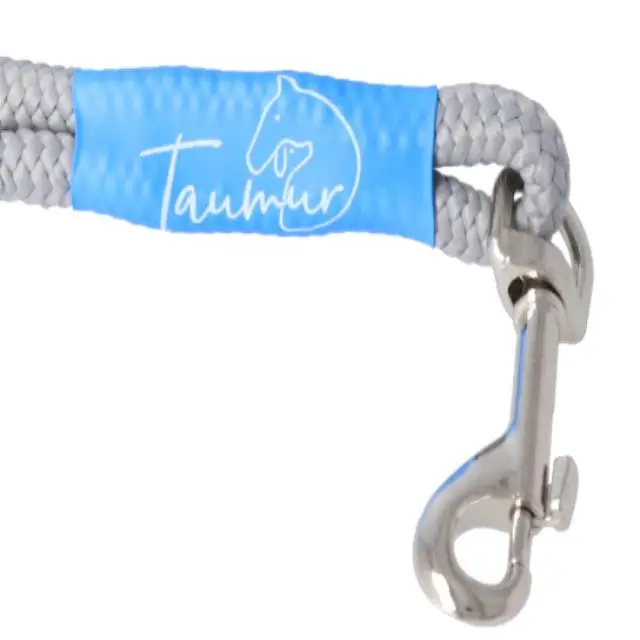

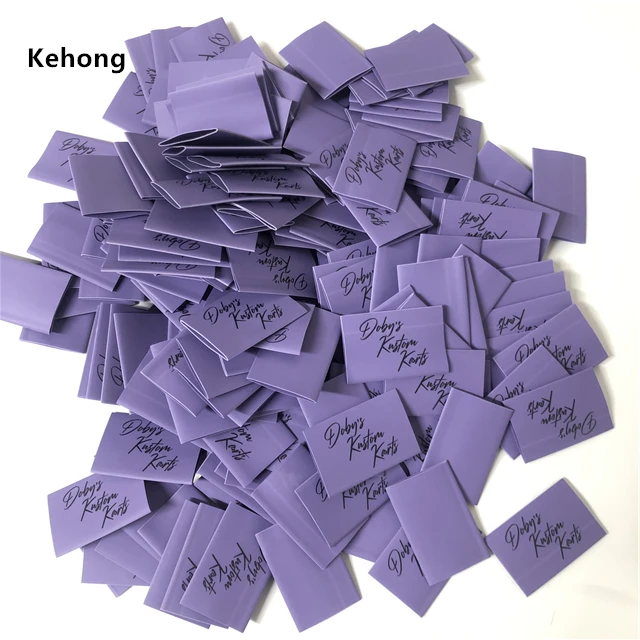

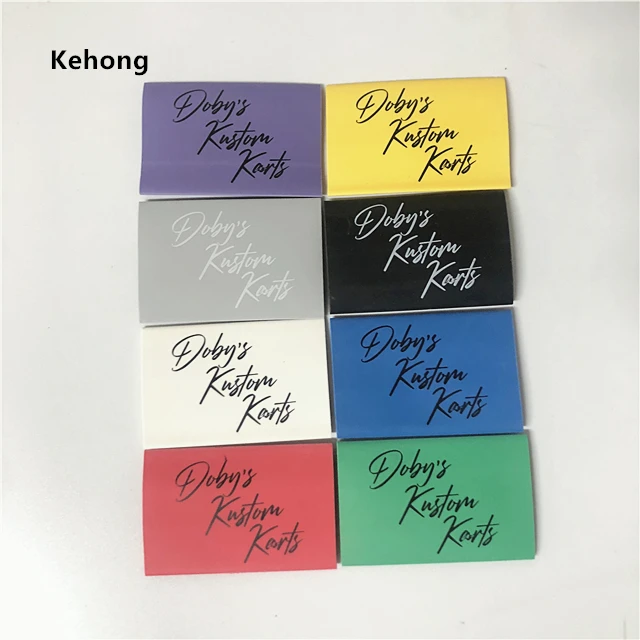

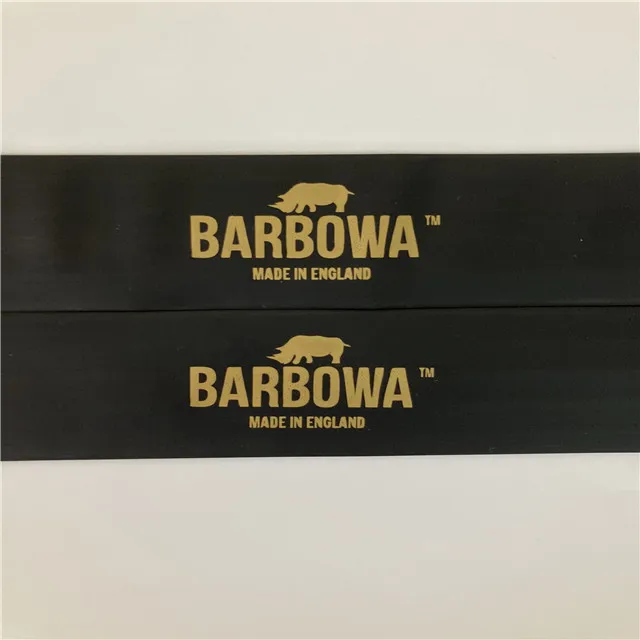

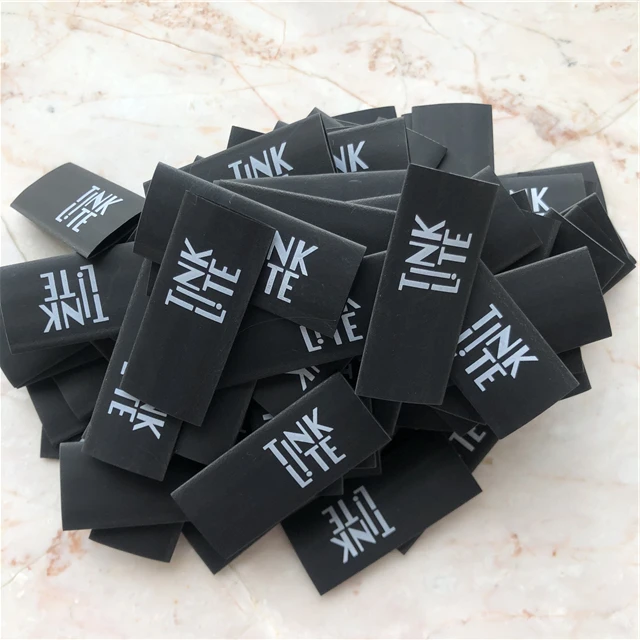

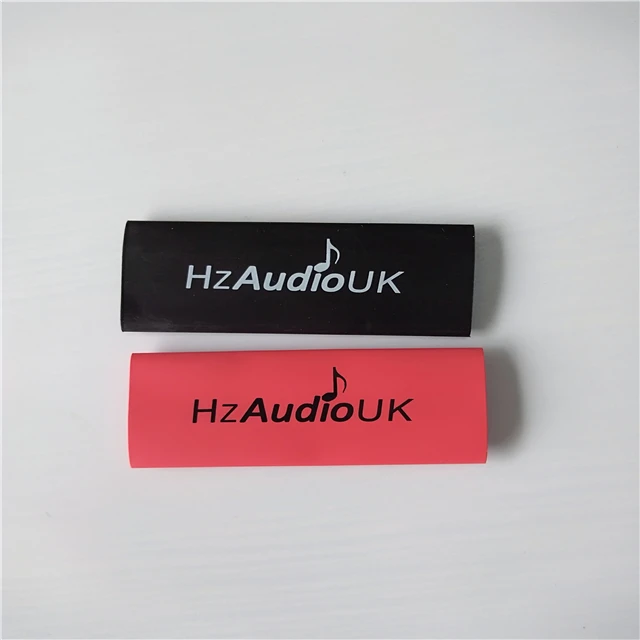

New custom logo printing 2:1 pe heat shrink tubing tube with glue inside

Product Overview

Description

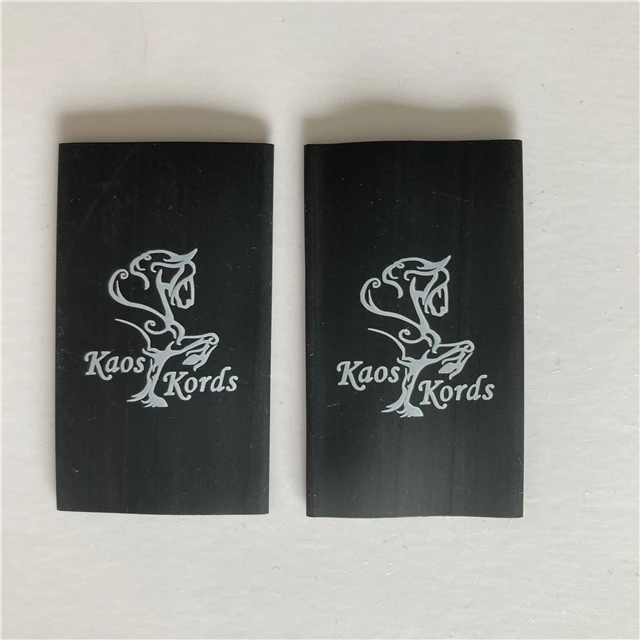

New custom logo printing Heat shrinkable glue black tube



Model: G-2X

Dual wall, flexible polyolefin tubing with glue



1) Application

G2 (2:1) is a flexible, dual wall, irradiated heat-shrinkable, flame-retardant, manufactured by co-extrusion of polyolefin and hot-melt adhesive, adhesive coated with good stickness and outer is flexible, irradiated cross-linked polyolefin. The adhesive can stick the material of both sides of connecting entirely and seal the point connecting. It is widely used to seal and protect interconnections, jointsand components from fluids, moisture and corrosion and repair damaged wire insulation, etc.



2) Features/Benefits

Shrink ratio: 2:1.

Flexible of both outer tubing and inner adhesive.

Adhesive bonds to outer tubing and surface below to form a positive environmental seal.

Good mechnical, electrical and chemical properties.

Adhesive bonds to a wide variety of plastics, rubbers and metals.

Conform to European RoHS(2002/95/EC)environmental directive.



3) Operating Temperature Range

Operating temperature range: -55℃~110℃

Minimum shrink temperature: 80℃

Minimum full recovery temperature: 110℃



4) Specifications/Standards

UL224 125℃ 600V

UL Approval

AMS-DTL-23053/4 class2



5) Specification values





6) Product sizes

Size		As supplied	After recovery			Standard Package
Inch	mm	Internal Diameter (mm)	Internal Diameter (mm)	Total Wall Thickness(mm)	Adhesive thickness(mm)	Spool Length
						m/spool
1/16	1.6	1.6	0.8	0.60±0.15	0.3±0.1	200
3/32	2.4	2.4	1.2	0.70±0.15	0.35±0.1	200
1/8	3.2	3.2	1.6	0.70±0.15	0.35±0.1	200
3/16	4.8	4.8	2.4	0.80±0.15	0.4±0.1	100
1/4	6.4	6.4	3.2	0.80±0.15	0.4±0.1	100
5/16	7.9	7.9	3.9	0.90±0.15	0.45±0.1	100
3/8	9.5	9.5	4.8	0.90±0.15	0.45±0.1	1.22
1/2	12.7	12.7	6.4	0.95±0.20	0.45±0.1	1.22
5/8	15.9	15.9	7.9	0.95±0.20	0.45±0.1	1.22
3/4	19.1	19.1	9.5	1.0±0.20	0.45±0.1	1.22
1	25.4	25.4	12.7	1.1±0.20	0.50±0.1	1.22
1 1/4	31.8	31.8	15	1.15±0.20	0.50±0.1	1.22
1 1/2	38.1	38.1	19	1.25±0.20	0.50±0.1	1.22
1 3/4	44.5	44.5	22	1.35±0.20	0.55±0.1	1.22
2	50.8	50.8	25.4	1.5±0.25	0.60±0.1	1.22



Wall thickness includes adhesive wall thickness.



7) Ordering information

Standard color:Black(-BK)

Nonstandard color:White(-WH), red(-RD), yellow(YL), blue(-BL), green(-GR),clear(-CL, not flame-retardant)

Nonstandard size

Special sizes are available upon request.

Standard packaging

1.22 m/length or on spools. Cut pieces are available upon request.

Ordering description:Specify product type, size and color.



=
