HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK
HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK

HUGEROCK T80 8 Inch Biometric Fingerprint Scanner Gps Hardware Rugged Ip67 Tablet Industrial Android Smart Pos Terminal MTK

Share on (1600600029320):


Price:USD 285.00 - USD 300.00

Quantity:


Product Overview

Description

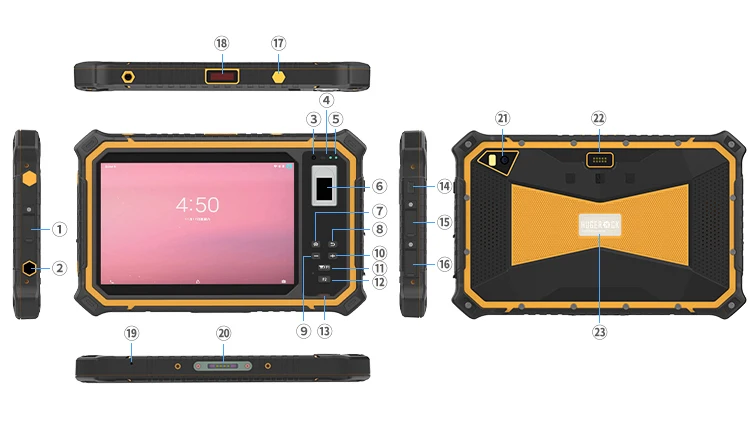

Appearance






1. Type-A(Sealed Cover)
2. M8 aviation connector(optional)
3. Front camera
4. Light sensor
5. Charge lamp

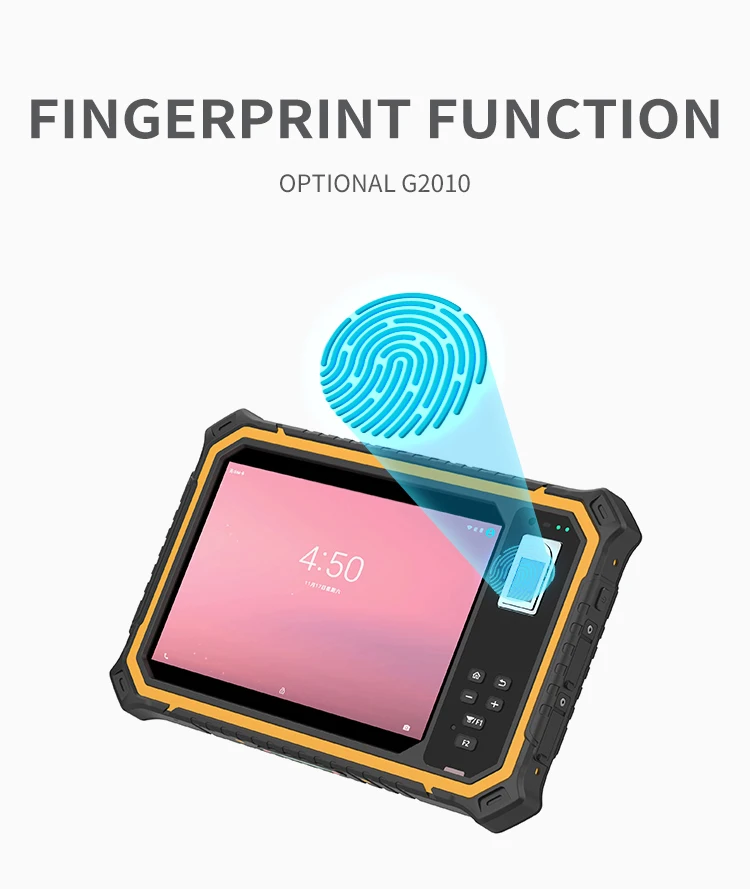

6. Fingerprint module(optional)
7. Home button
8. Back button
9. Volume Down
10. Volume Up
11. Scan button/defined button
12. Defined button
13. Speaker
14. Power button
15. SIM/TF(Sealed Cover)
16. Type-c(Sealed Cover)
17. SMA interface

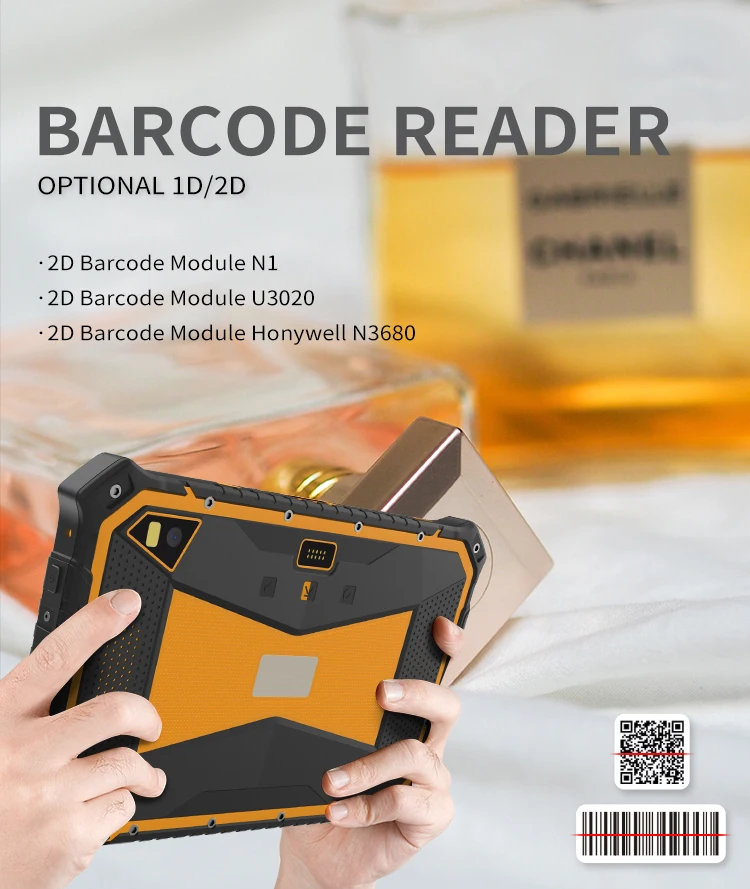

18. Barcode module
19. Mic
20. 4pin Pogo pin(magnetic)(Optional)
21. Main camera
22. 10PIN expansion interface
23. Nameplate

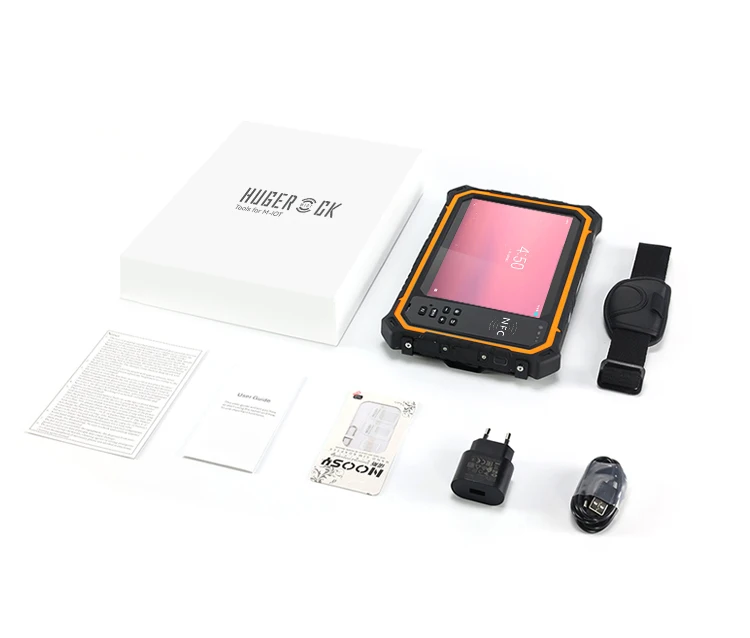

Product packaging




Products Description
















Specification--T80(2021)


Hardware
CPU
ARM Cortex A73 octa-core (2.0GHz )
GPU
Arm Mali--G72 MP3
RAM
8G
Internal Memory
128G
External Memory
Micro SD card ( T-FLASH card), max 256GB
Main Camera
13.0MP(AF) with flash led
Sub Camera
5.0MP
Battery
18900mAh

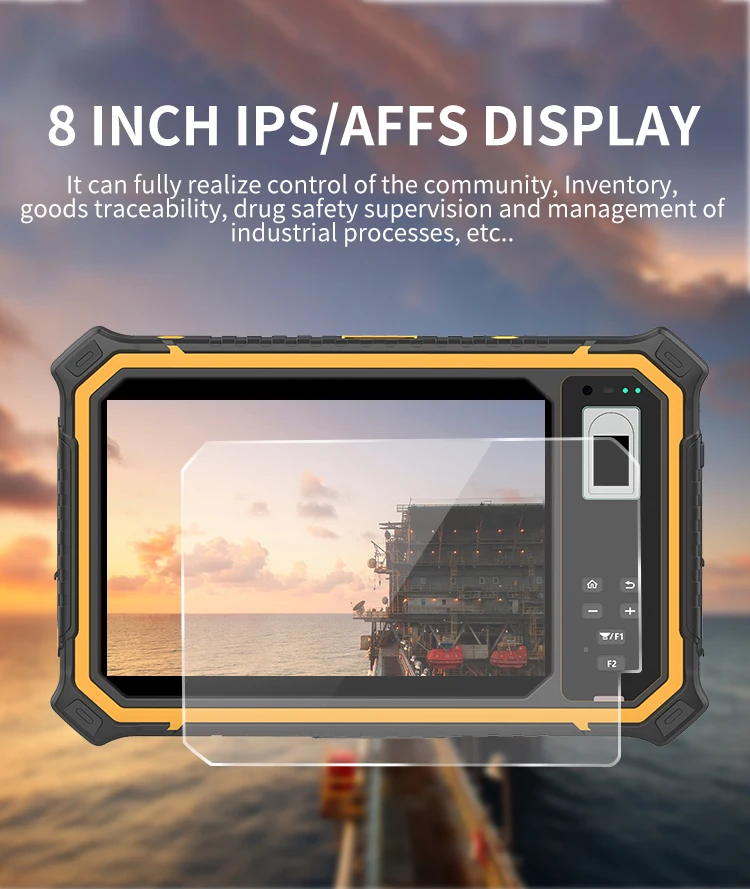

Display
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable
Touch Panel
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen


IO/Sensor/Navigation
SIM Card
Nano sim card*2
TF Card
Micro SD card(T-FLASH card); max 256GB
Charging interface
Type-C & 4pin pogo pin (magnetic)
Data interface
USB Type-A(Host)*1, Type-C(OTG)*1
UART（optinal）
UART TTL3.3 X2 onboard
RS232（optinal）
RS232X1
RS485（optinal）
RS485X1
Gravity sensor
support
Motion sensor
support
Direction Sensor
support
Magnetic Field
support
Gyro sensor
support
Rotation Vector
support
Light-sensor
support
Acceleration sensor
support
Temperature pressure sensor
Optional
Charger
5.0V 2A-10W
Navigation
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）


Appearance

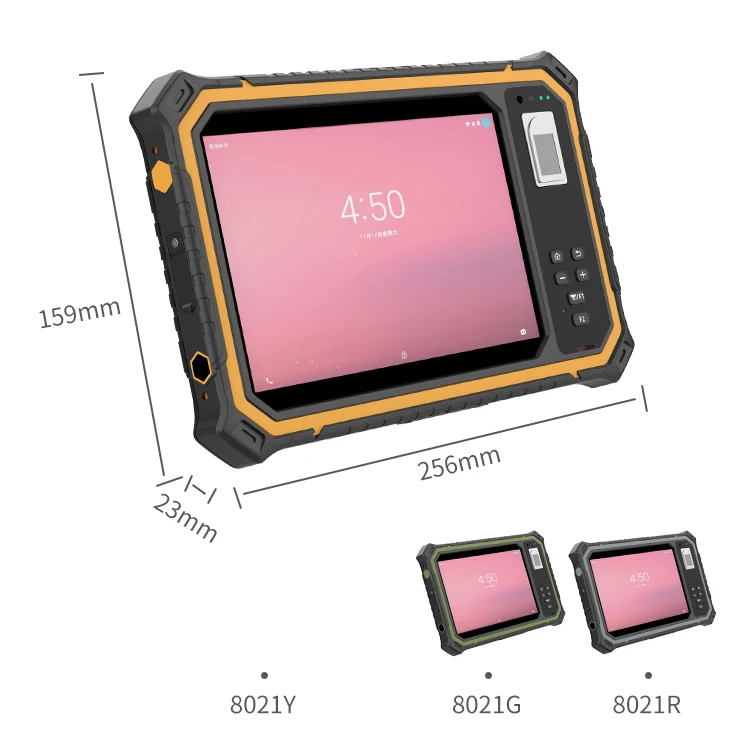

Size
256*159*23mm（L×W×H）
Weight
1015g
Color & Material
Black&yellow ; Black&green ; Black&Gray


Communications & Networking
Phone Call
GSM /WCDMA/CDMA 1X/VoLTE
2G
GSM/CDMA 1X/EDGE/GPRS/WAP
2G Band
GSM（B2/3/5/8）
3G
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
3G Band
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1
4G
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
4G Band
TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
WI-FI
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
Bt
4.2 Low Energy (LE)


Industrial & Reliability Design
Shake-proof
1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof /IK
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
Waterproof
Class 7 ( IEC 60529 )
Dustproof
Class 6 ( IEC 60529 )
Reliability
MTBF>5000h；MTTR
Operating temperature
-20°C to 55°C
Storage Temperature
-40°C to 70°C
RH
5% to 95%
Operating Altitude
Max: 4,500 m（15,000 feet）


Certification/OS/Software
Certification
3C/FCC/CE/ROHS/IP67 (IEC 60529)
Language
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc
OS
Android 10.0/ 11.0


Package/Warranty terms/OEM
Warranty
24 months
OEM/ODM
Support
Package
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit(optional)SIM Card Ejector x 1

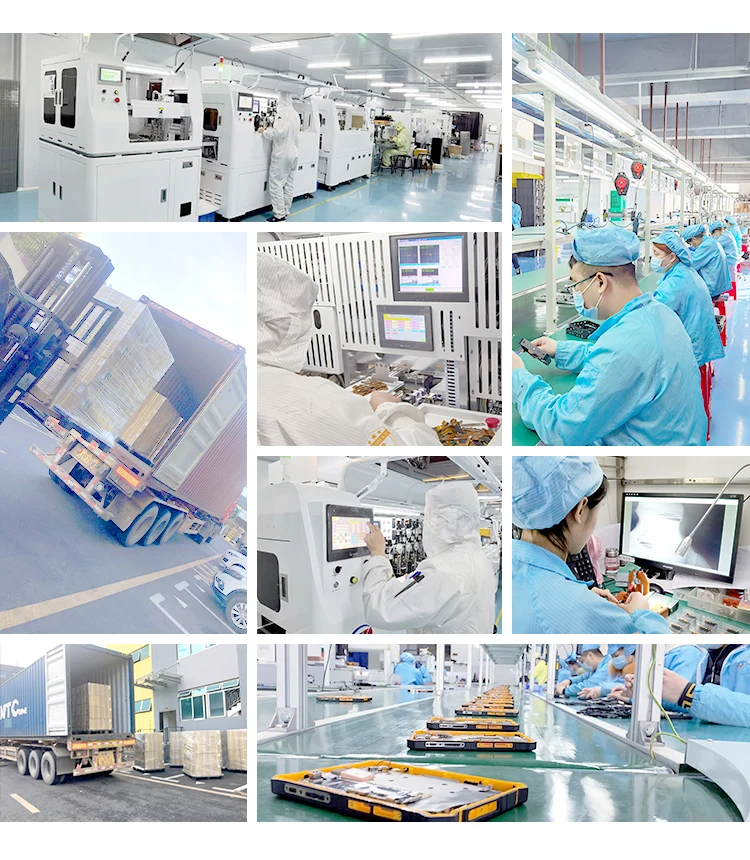

Factory strength

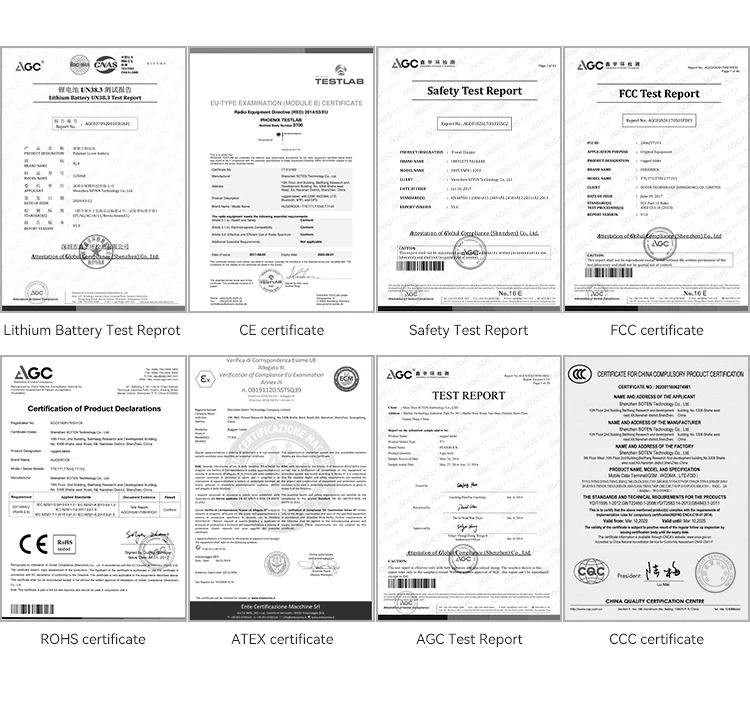

Certifications






FAQ


Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?

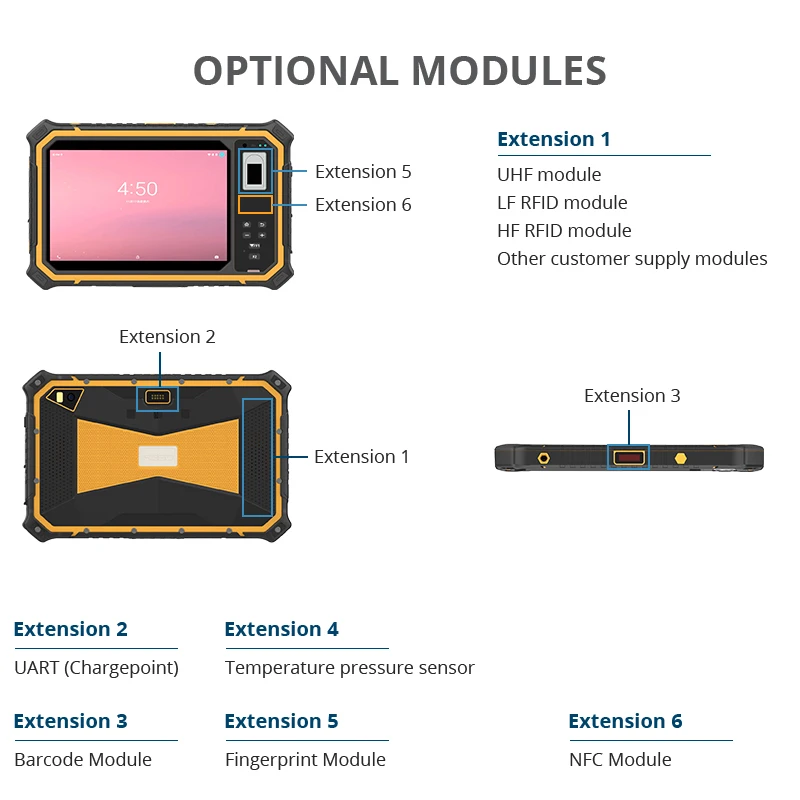

A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance .

Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.

Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences.
