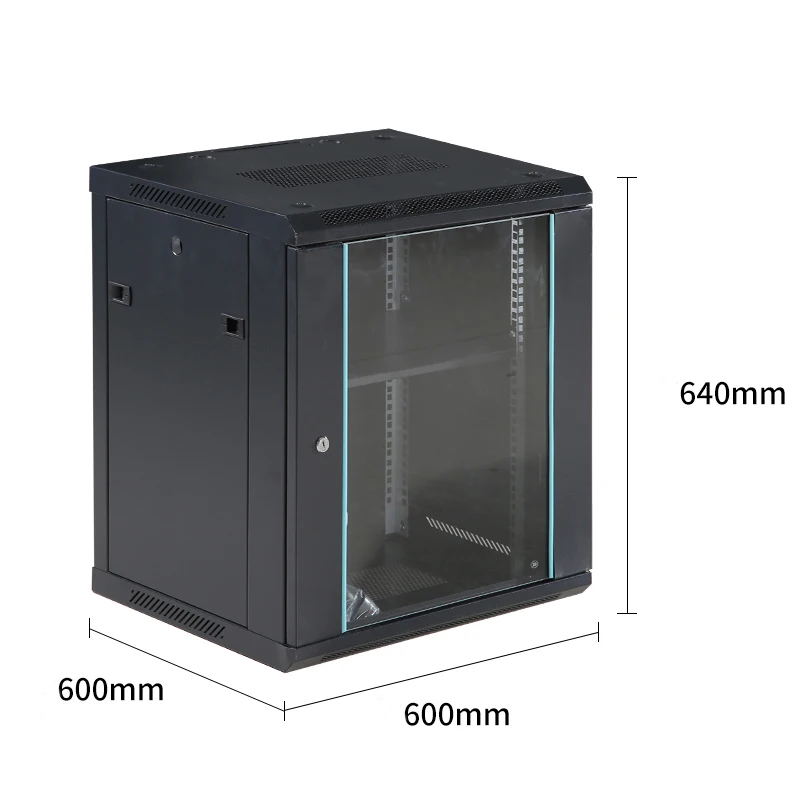

Углубление 12 U серверный шкаф настенный сетевой шкаф серверная стойка
- Category: Network Cabinets >>>
- Supplier: Hebei Huateng Yizhou Electrical Equipment Co. Ltd.
Share on (1600600324142):
Product Overview
Description
Basic information | ||||||||
1) standard | Conforms to ANSI/EIARS-310-D, DIN41491; PART1, iec297-2, DIN41494; PART7, GB/ t3047.2-92 standard Compatible with metric ETSI and 19" The international standard | |||||||
2) material | Galvanized installation profile, SPCC cold rolled steel | |||||||
3) the thickness of the | Mounting profile: 1.2mm, others: 0.6mm | |||||||
4) Surface finish | Degreasing, picking, phosphating, powder coating | |||||||
5) protection | IP20 | |||||||
6) Loading capacity | 100kg | |||||||
7) color | RAL9004(Black) / RAL7035(Grey) | |||||||
Rack Cabinet Functions | ||||||||
1) galvanized installation profile 2) Safe, firm and reliable 3) Easy to maintain equipment 4) Two types of packaging: Assemble packages to save labor costs, ready for resale or use Removable packaging saves space and shipping costs, making it easy to assemble 5) All kinds of optional accessories: PDU, fan, shelf, bracket, cable tray, etc. 6) Certification: ISO 9001:2000 7) Provide OEM/ODM services | ||||||||
Cabinet Applications: | ||||||||
Small, medium, and large servers DVRS, security devices, and routers Junction boards and switches Telephone system and PABX Network and communication equipment UPS equipment Install devices in other racks | ||||||||
Details Images
Main Component | ||||||||||||
No. | Component Name | Quantity | Unit | Material Specification | Surface Finish | Note | ||||||
1 | Cabinet body | 1 | Pc | SPCC cold rolled steel T0.9 | Power coated | Welded | ||||||
2 | Mounting profile | 4 | Pc | SPCC cold rolled steel T1.5 | Galvanization | --- | ||||||
3 | Front Door | 1 | Pc | Tempered glass 5mm | Powder coated | Or Hexagonal Mesh Door | ||||||
4 | Back panel | 1 | Pc | SPCC cold rolled steel T0.9 | Power coated | --- | ||||||
5 | Side panel | 2 | Pc | SPCC cold rolled steel T0.9 | Power coated | --- | ||||||
6 | Mounting tray | 1 | Pc | SPCC cold rolled steel T0.9 | Power coated | --- | ||||||
7 | Little round lock for front door | 1 | Pc | Steel | Galvanization | With 2 keys | ||||||
8 | Castor | 4 | Pc | Plastic | --- | Only for 12U and above | ||||||
9 | Installing back panel | 1 | Pc | SPCC cold rolled steel T1.5 | Power coated | --- | ||||||
10 | M6 B-head screw and M6 square nut | 10 | Pc | Steel | Galvanization | --- | ||||||

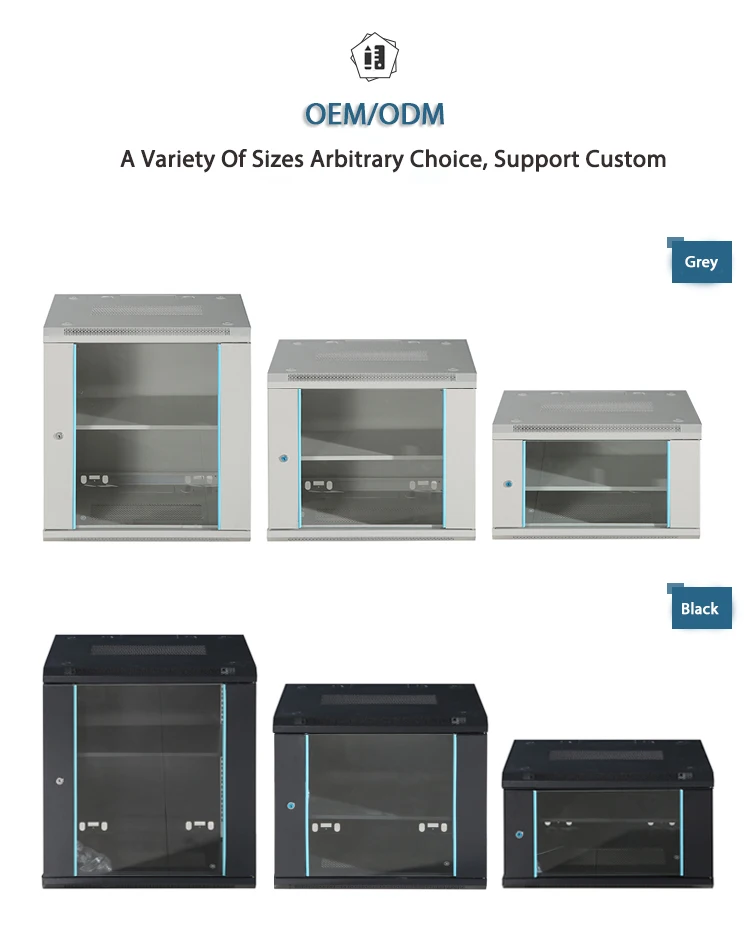

More Specification | ||||||||||
Model No. | Capacity(U) | High*Width*Depth(mm) | Model No. | Capacity(U) | High*Width*Depth(mm) | |||||
MT6406 | 6 | 350*600*450 | MT6606 | 6 | 350*600*600 | |||||
MT6409 | 9 | 500*600*450 | MT6609 | 9 | 500*600*600 | |||||
MT6412 | 12 | 640*600*450 | MT6612 | 12 | 640*600*600 | |||||
MT6415 | 15 | 800*600*450 | MT6615 | 15 | 800*600*600 | |||||
MT6418 | 18 | 1000*600*450 | MT6618 | 18 | 1000*600*600 | |||||
Company Profile
Packing & Delivery
FAQ
Q: How can you make sure your quality control?
A: We have passed the quality certification, and there are quality inspectors,
which are produced in strict accordance with international standards.
which are produced in strict accordance with international standards.
Q: How about your design ability? Do you offer OEM service?
A: We have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement "business secret contract"for your design safe.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
4. why should you buy from us not from other suppliers?
The company has more than 20 years of design and development experience, with advanced manufacturing technology and processing machinery, has a professional design and development team, in 29 provinces, 31 sales outlets with distribution service outlets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
A: We have our own design department, and have offer design service for thousands of cooperative partner. OEM accept and offer confidentiality agreement "business secret contract"for your design safe.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
4. why should you buy from us not from other suppliers?
The company has more than 20 years of design and development experience, with advanced manufacturing technology and processing machinery, has a professional design and development team, in 29 provinces, 31 sales outlets with distribution service outlets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
