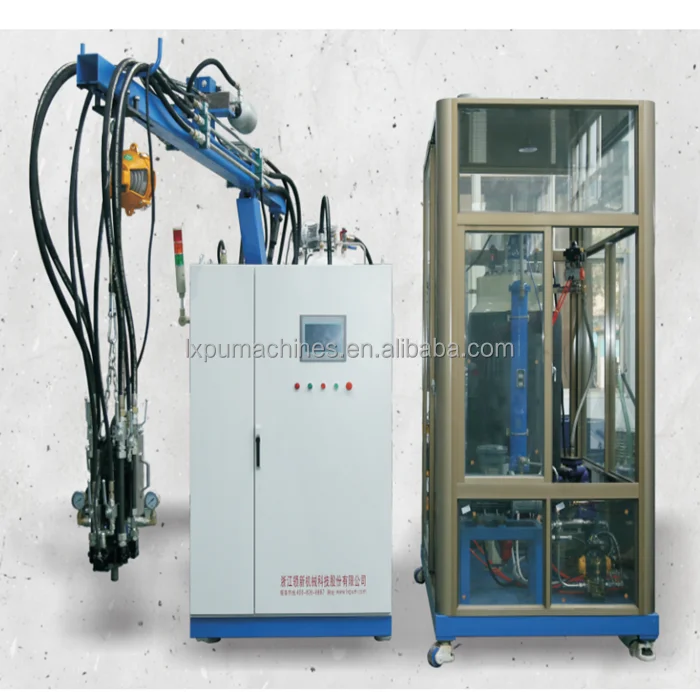

Pentamethylene Cyclopentane Polyurethane PU Foam Making Mixing Injection Molding Machine /High Pressure Cyclopentane PU Machine

Product Overview

Description

Technical Parameter:
Injection output: 2-5000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:28~48~150
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Total power: 35-70kw
Color( customizable): White/Red/Blue
Weight: 2000Kg-2500Kg
Dimension: 4200(L)*2000(W)*2900(H)mm

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Main Description :
(1) -- With safety protection by anti riot glass and aluminum alloy arround the machine.
(2) -- There is a draining wind device on the safety cover;with safe wind exhaust system.
(3) -- Have wind pressure switch to ensure the good working of the fans.
(4) -- Cyclopentane gas detector is installed in the enclosure and connects with the control system.
(5) -- With explosion-proof pressure sensor for high and low pressure exchange system.
(6) -- Explosion-proof mixing motors for tank A & explosion-proof deceleration motor for metering pump.
(7) -- Pneumatic components also use explosion-proof type, and have good anti static and grounding measures.
(8) -- Automatic material feeding system is adopted with multi-point monitoring for the material level,avoid overflowing of raw material.
(9) -- Pneumatic controller for nitrogen gas at the mixing head.



Our company:

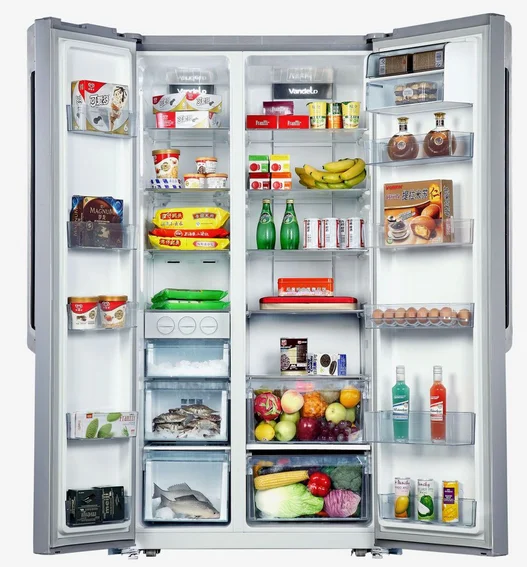

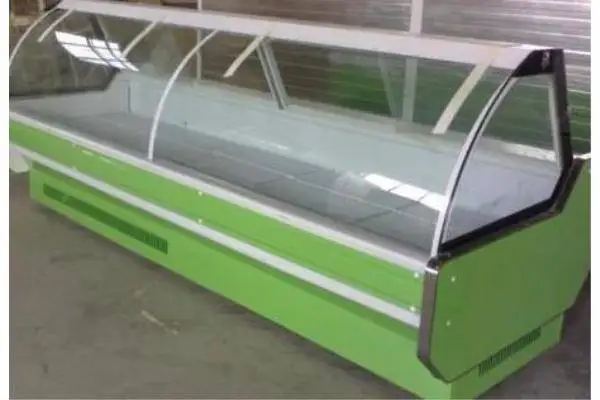

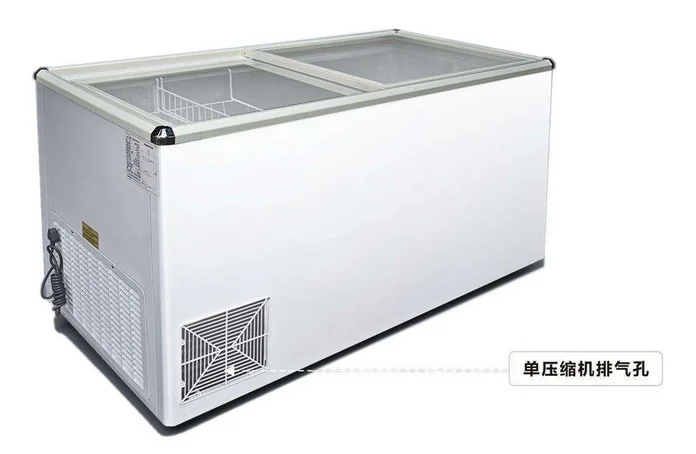

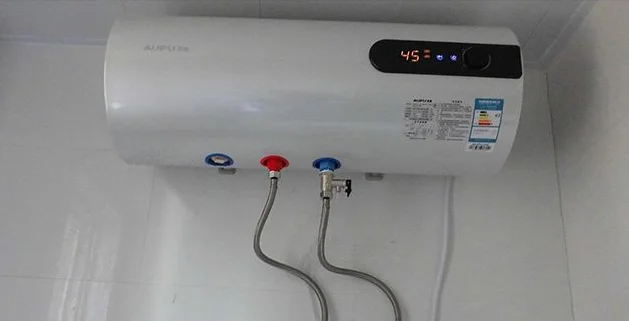

Part of PU Products can be made by our machines:

Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
