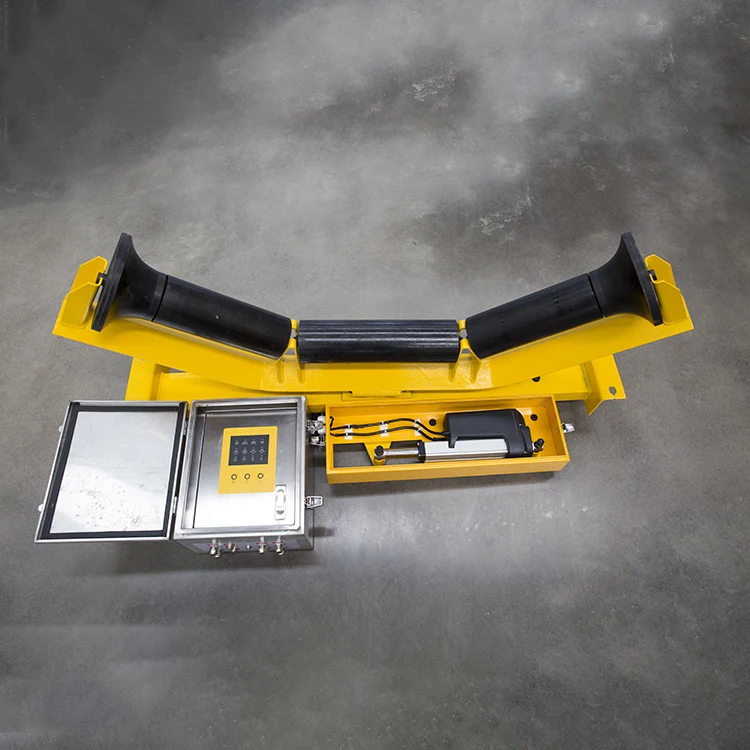

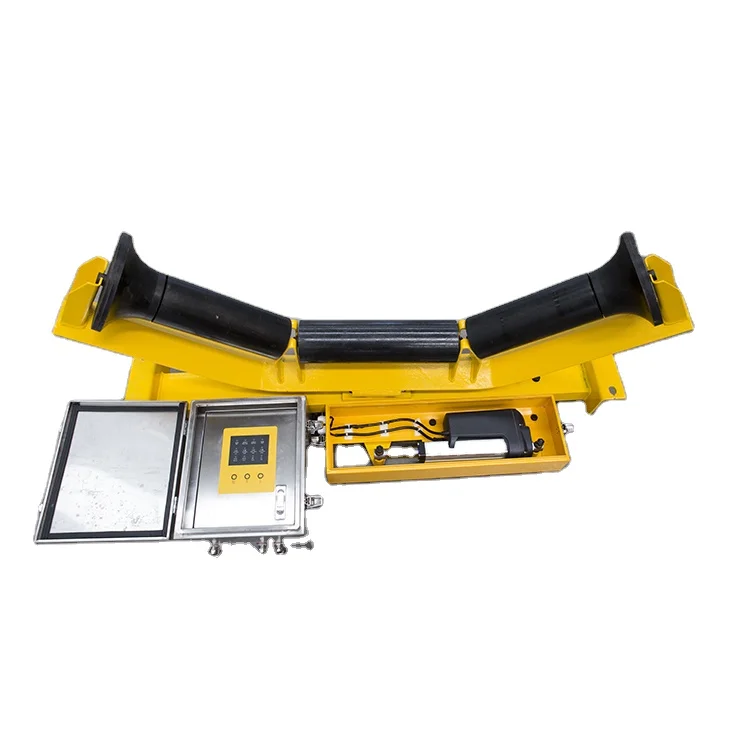

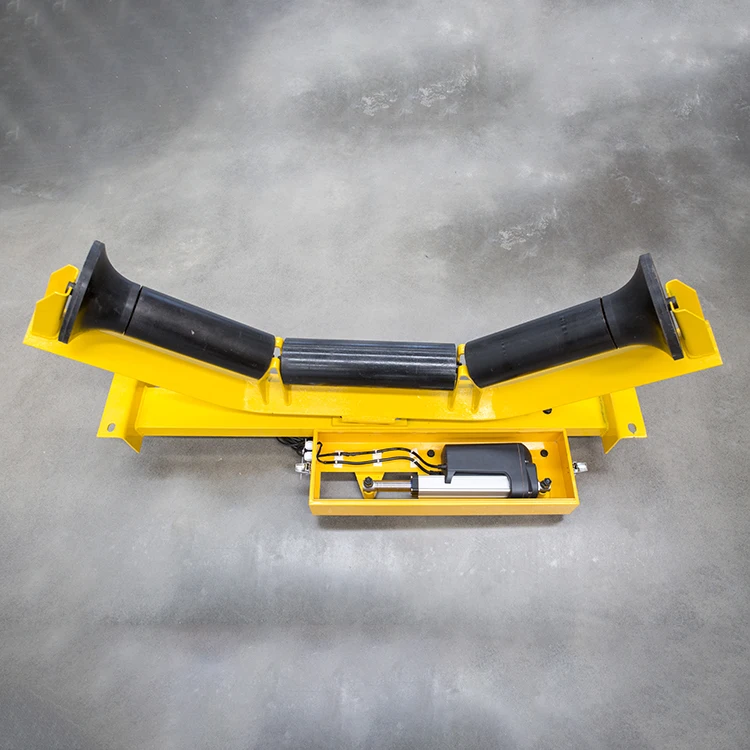

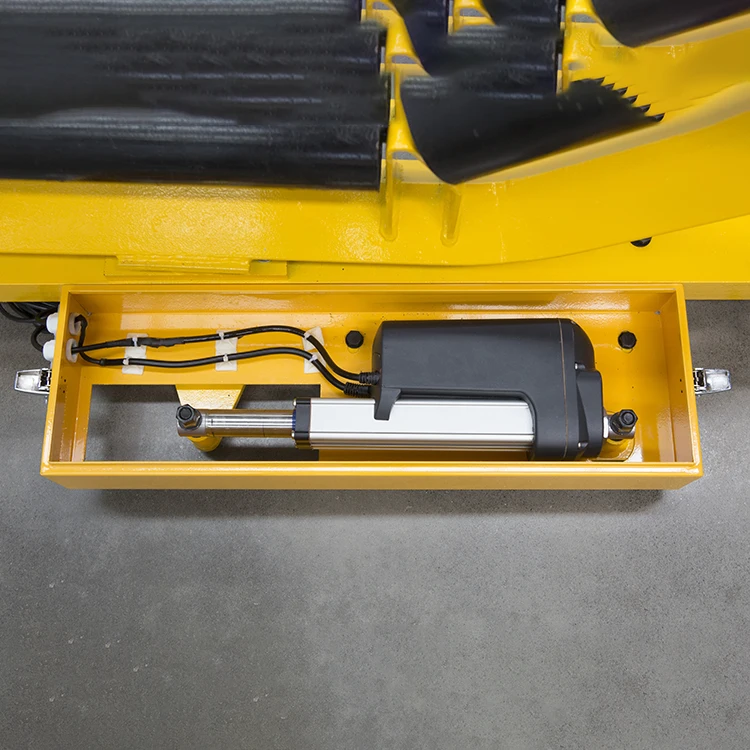

Electric belt alignment device can automatically detect whether the conveyor belt in operation is out of alignment, and timely adjust the conveyor belt so that it can run on the ideal path.
The electric belt alignment device developed by our company is sensitive, reliable, adaptable to work in harsh environment, and easy to install and maintain. It is an ideal electric alignment device for belt conveyor and can be widely used in various belt conveyor systems.


Characteristic
The control box is made of stainless steel with strong corrosion resistance.
Modular components, easy to install.
The shell has high protection level, good sealing, and can be used in harsh environment.

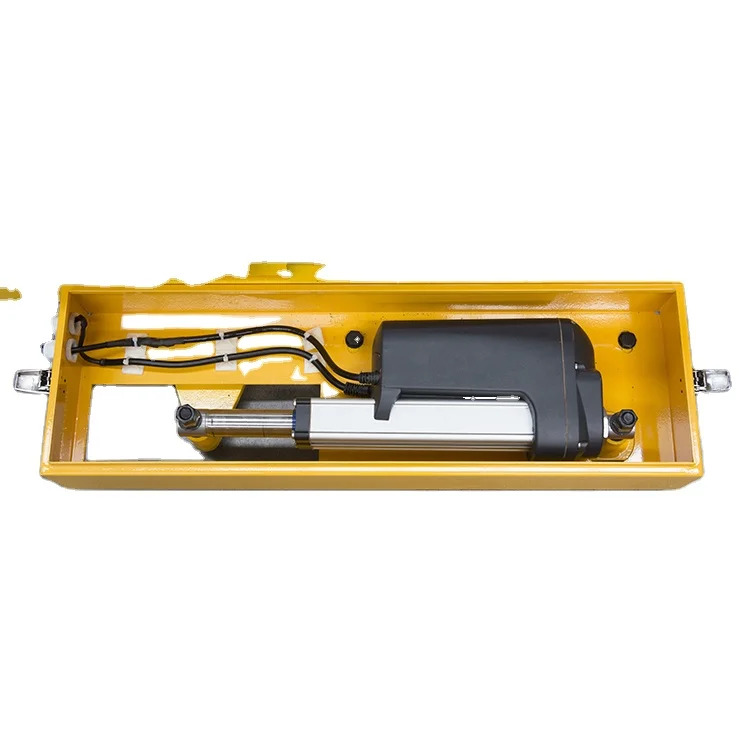

Large thrust electric push rod, flexible and stable movement.
Using single chip computer as control unit, it has fast response speed, high precision and small error.
Intelligent design suitable for reversible belt conveyor.








Ambient temperature
-40℃~50℃
Relative humidity
0~95%
Atmospheric pressure
80 kPa ~110kPa
Output mode and quantity
1×SPDT
Contact rating
AC380V 5A DC24V 5A
Power consumption of the whole machine
200W
Protection level
Control box:IP54，Belt alignment sensor: IP65
