Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio
Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio

Anytone 268 DMR Two way radio Digital and Analog single band VHF UHF Radio walkie talkie with AES 256 Radio

Share on (1600600657935):


Price:$74.00 - $79.00

Quantity:


Product Overview

Description







Product Description

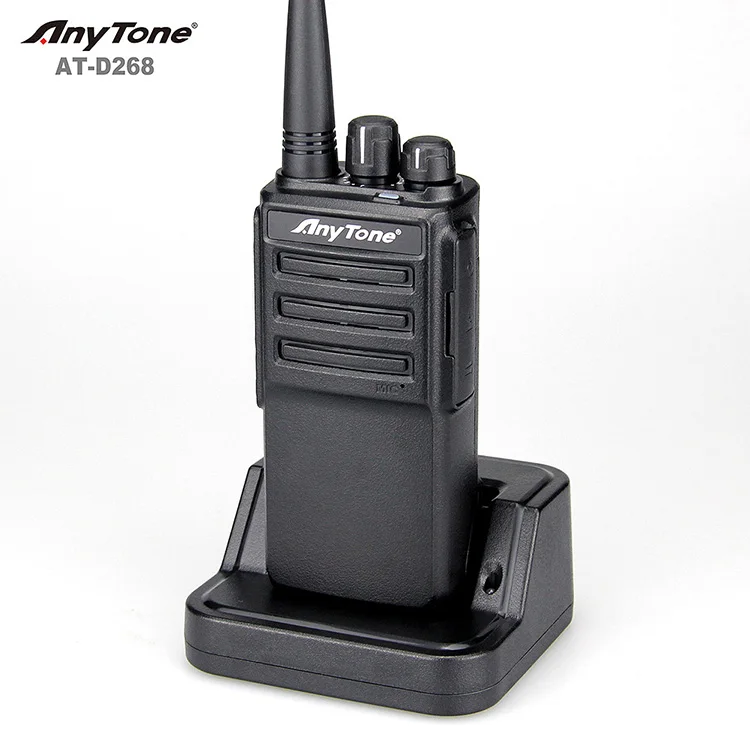

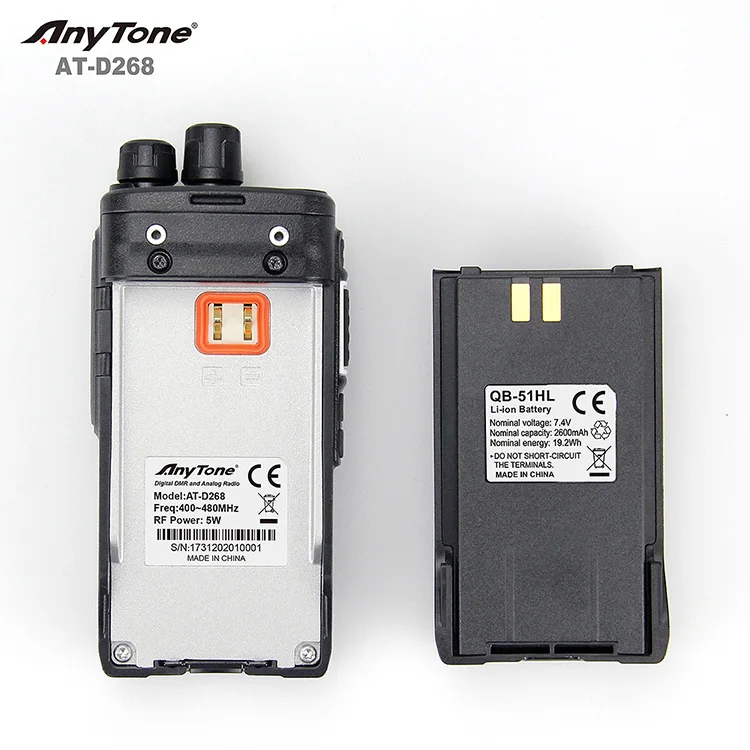

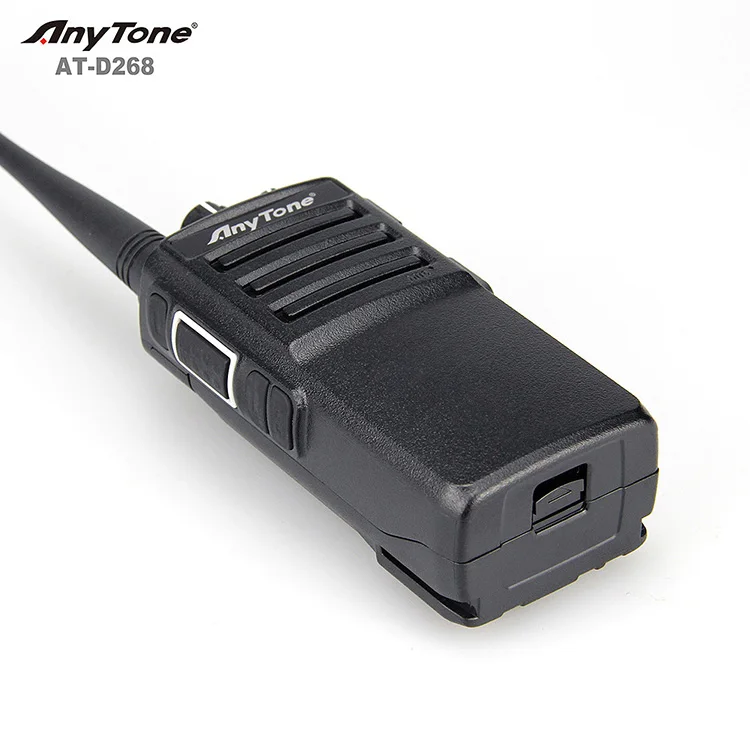

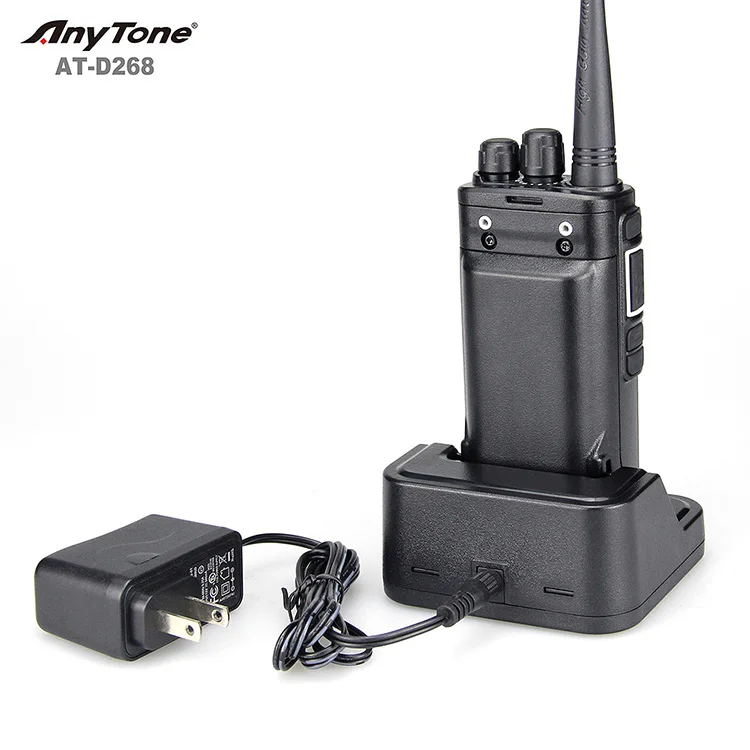

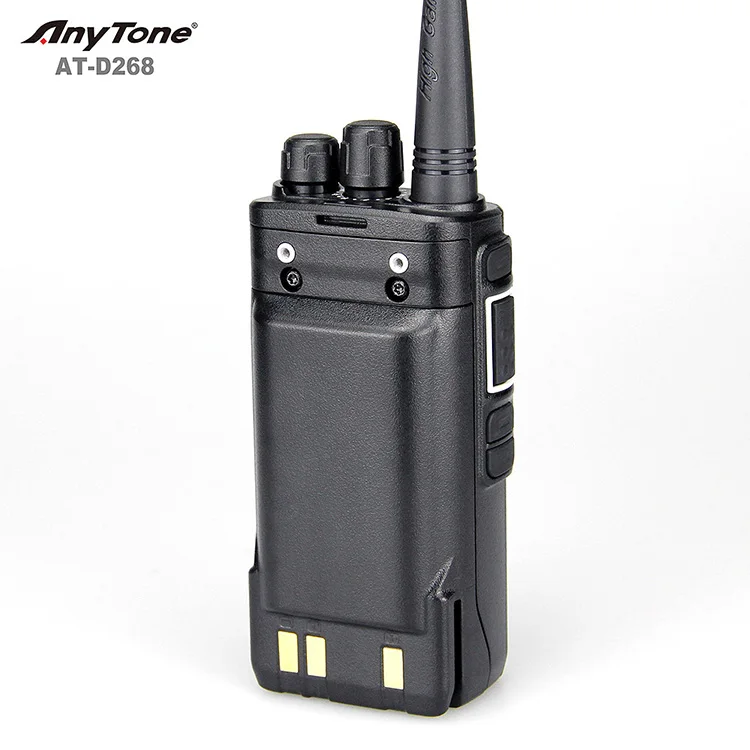

MODEL NO.: AT-D268 Single band
Frequency range:
136-174MHz; or 400-480MHz

Functions:
1.Auto-senses digital or analog
2.256 channels
3.Voice prompting
4.10,000 talk groups
5.CTCSS/DCS;DTMF/2TONE/5TONE
6.AES256 Encryption function
7.VOX function
8.Monitor function
9.Digital Voice recording for 14 hours(standard)
10.Digital & Analog voice recording for 500 hours(optional)
11.Emergency alarm(with GPS data transmission)
12.GPS with anaglog APRS location reportaing and digital APRS location reporting(optional)
13.GPS/APRS/Bluetooth funtion(optional)




General
General
Frequency Range
VHF: 136-174MHz UHF: 400-480MHz
Channel Capacity
256 channels
Channel Spacing
25KHz (Wide Band) 12.5KHz (Narrow Band)
Phase-locked Step
5KHz, 6.25KHz
Operating Voltage
 7.4V DC ±20% /(3000mAh)
Frequency Stability
±2.5ppm
Operating Temperature
-20℃~ +55℃
Size
127×57×32mm (with battery pack)
Weight
208g (with battery pack, antenna)
Receiving Part
Wide band
Narrow band
Sensitivity(12dB SINAD)
≤0.25μV
≤0.35μV
Digital Sensitivity
0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%)
Adjacent Channel Selectivity
≥70dB
≥60dB
Intermodulation
≥60dB
≥60dB
Spurious Rejection
≥70dB
≥70dB
Blocking
84db
Hum & Noise
≥45dB
≥40dB
Audio Distortion
≤5%
Audio Power Output
1000mW/16Ω
Transmitting Part
Wide band
Narrow band
Power Output
5W/1W
Modulation limit
±5.0KHz@ 25KHz
±2.5KHz@ 12.5KHz
Adjacent Channel Power
≥70dB
≥60dB
Hum & Noise
≥40dB
≥36dB
Spurious Emission
≤-36dB
≤-36dB
4FSK Digital Modulation
12.5KHz（data）7K60FXD 12.5KHz（data+voice）7K60FXE
Audio Distortion
≤5%
Error rate
≤3%


Recommend Products




Company Profile


Below is our factory introduction, for more detail informations, plz contact sale16833@qxdz.cn






FAQ


1. who are we?
We are based in China, China, start from 2003,sell to Western Europe(11.11%),Eastern Asia(11.11%),Mid East(11.11%),Oceania(11.11%),Africa(11.11%),Southeast Asia(11.11%),Eastern Europe(11.11%),South America(11.11%),North America(11.11%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
two way radio,mobile radio,cell phone repeater,CB radio

4. why should you buy from us not from other suppliers?
Since 1993, we are specializing in the design and production of wireless communication products. Our 30-member R& D team has regularly developed new products and completed OEM/ODM projects for Two way radio, Mobile radio, CB radio, Cellphone repeater.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
