Лидер продаж 2022, гранулятор медной проволоки малой емкости, аппарат для переработки лома кабеля по заводской цене
- Category: >>>
- Supplier: Nanjing Fante Machinery Manufacture Co. Ltd.
Share on (1600600748901):
Product Overview
Description

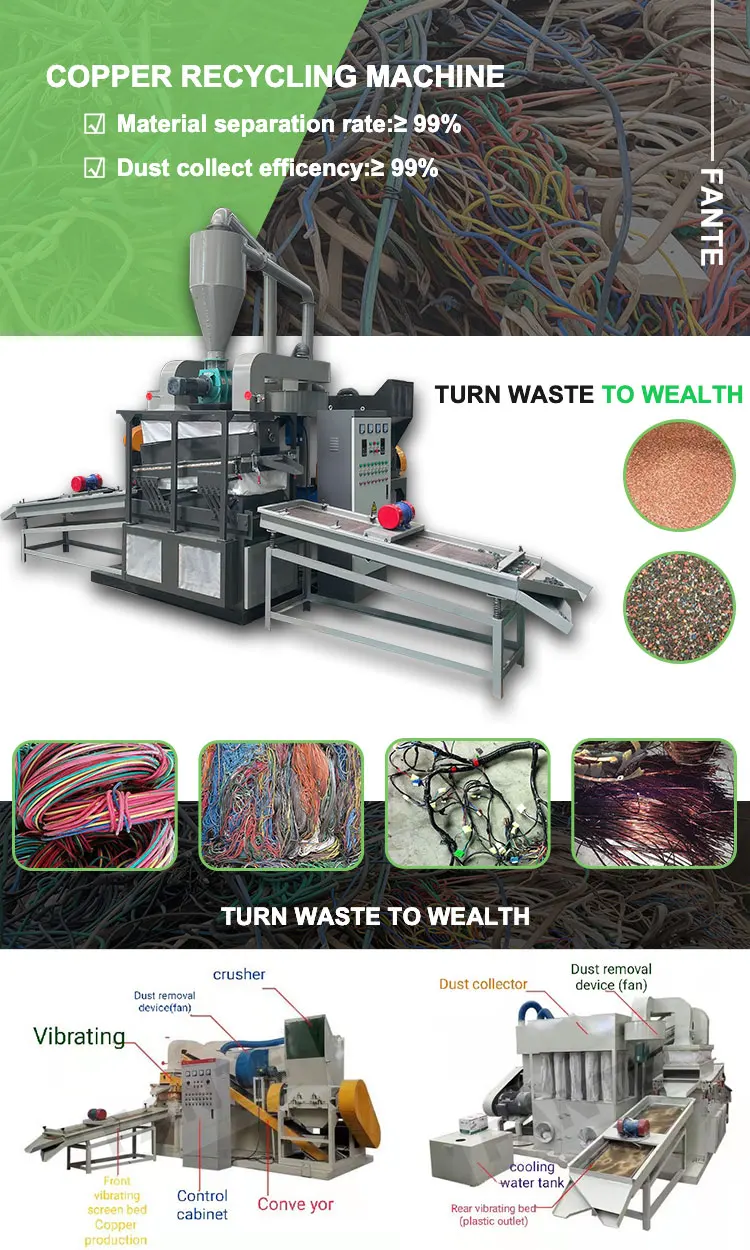

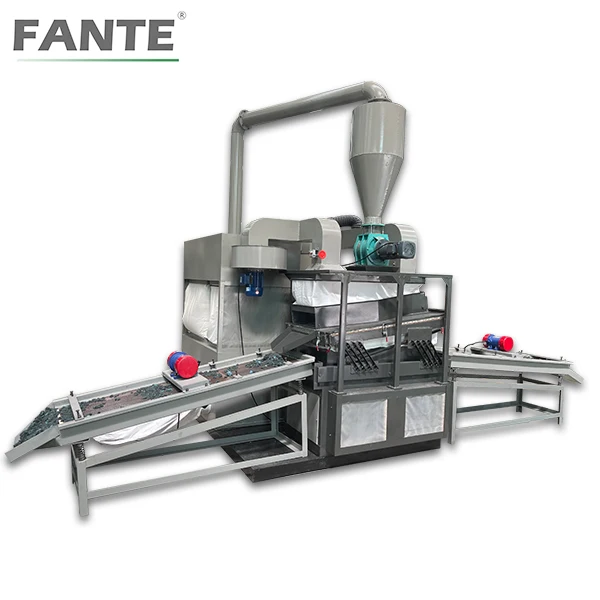

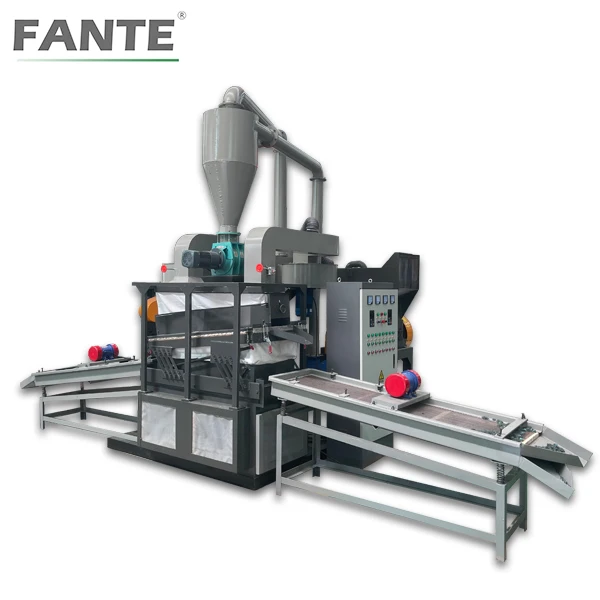

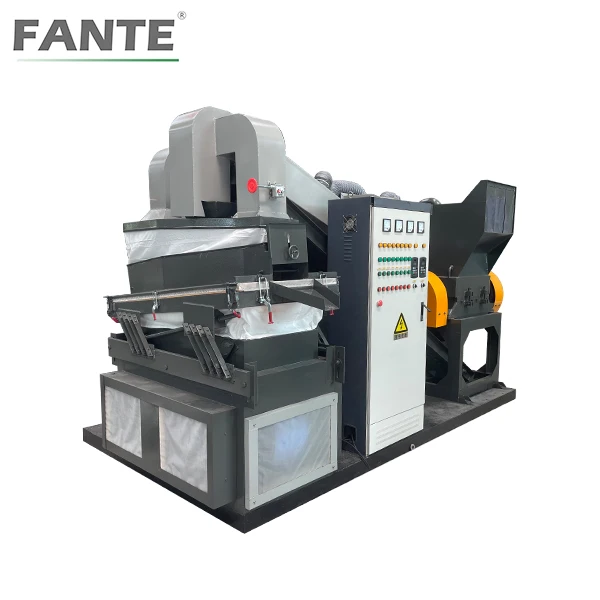

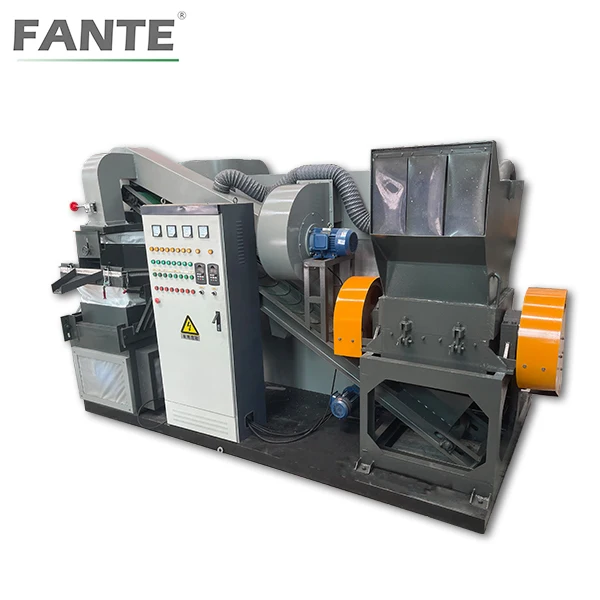

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
For the small capacity, the cable wires raw materials can be put into the al-in-one machine directly, after crushing, it will using the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

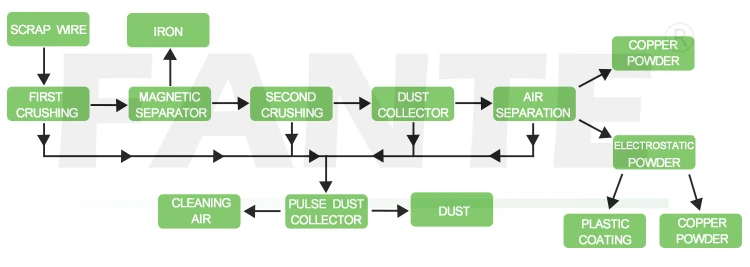

For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.

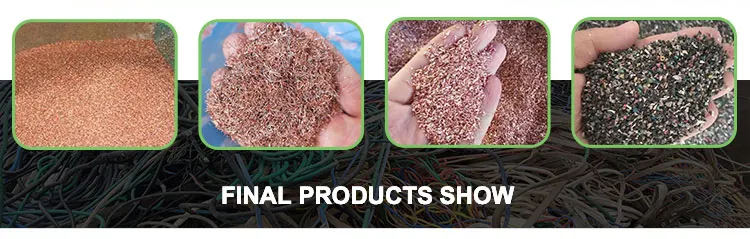

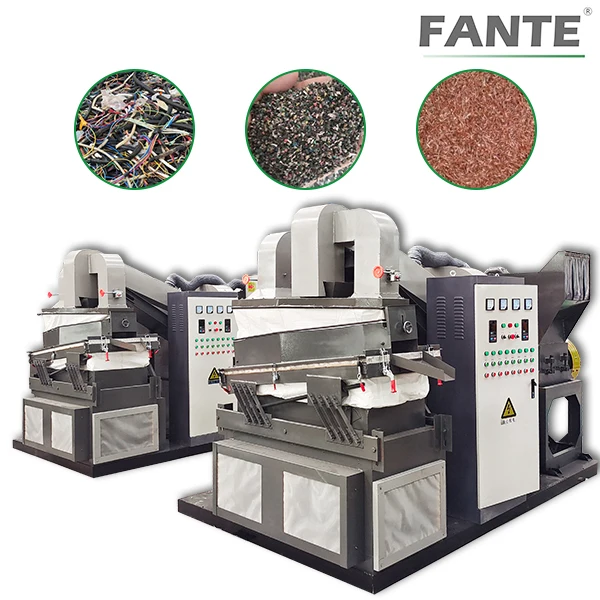

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.
Product Parameters
Model | FTCR-600 | FTCR-800 | FTCR-1000 |
Power(Kw) | 43 | 65 | 80 |
Yield（Kg/h) | 300-500 | 600-800 | 900-1200 |
Feed diameter（mm） | 1-30 | 1-30 | 1-30 |
Discharge size（mm） | 1-5 | 1-5 | 1-5 |
Weight(Kg) | 3000 | 5000 | 7800 |
Dimensions（m） | 3.2X2X2.5 | 3.5X2X2.5 | 4X2X2.5 |

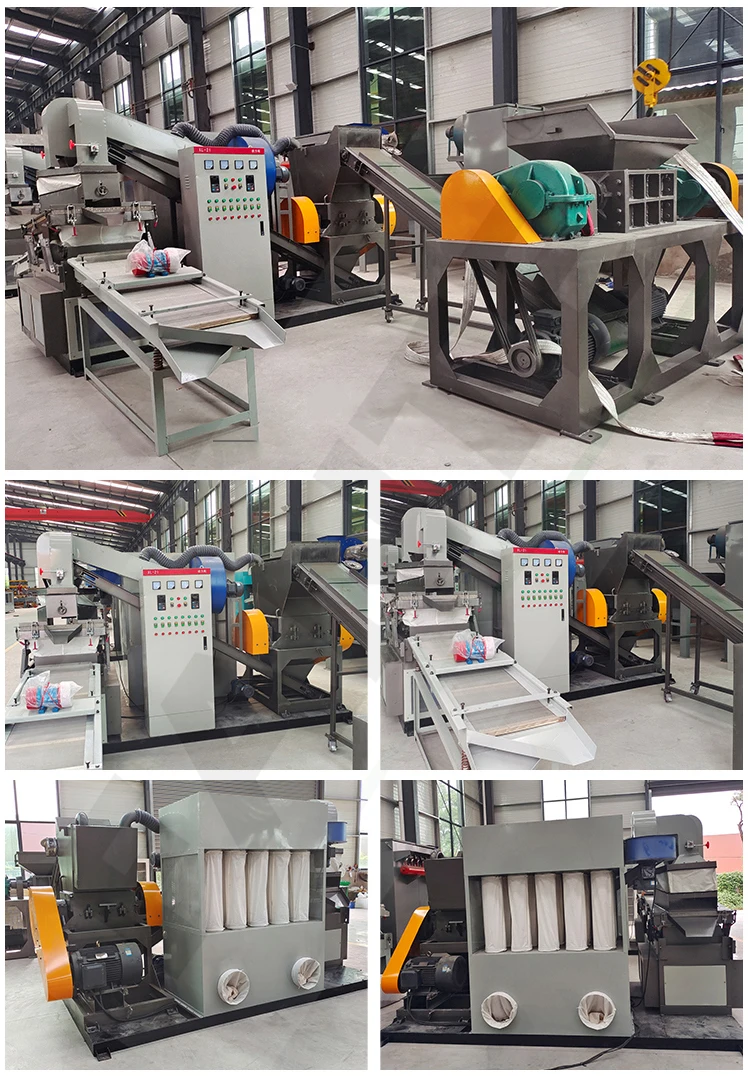

Product Show

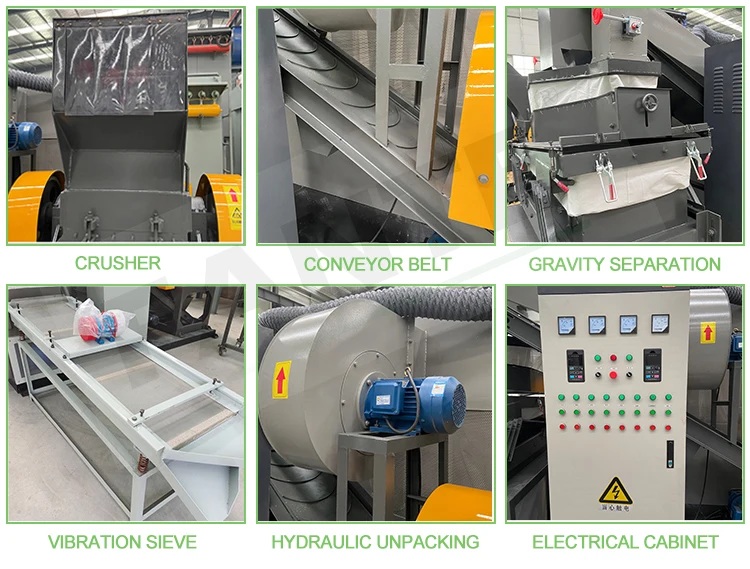

Product Details
Certificate
ANY QUESTION PLEASE FREE TO ASK US
