High Efficieccy Suitable for Metal Powder/Carbon Powder/Silicon Powder V Type Mixer V Shape Powder Mixer
- Category: >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (1600600830487):
Product Overview
Description
Products Description

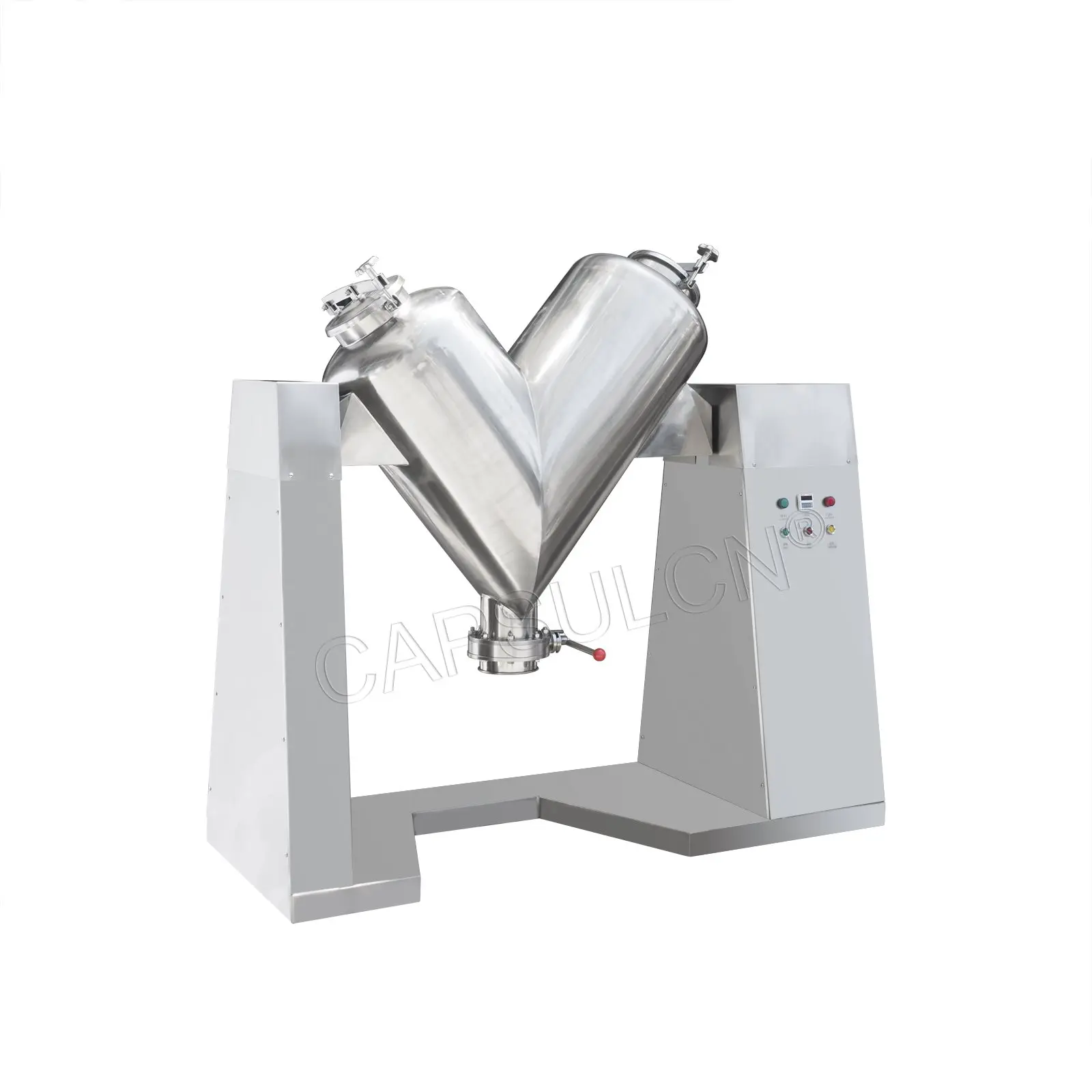

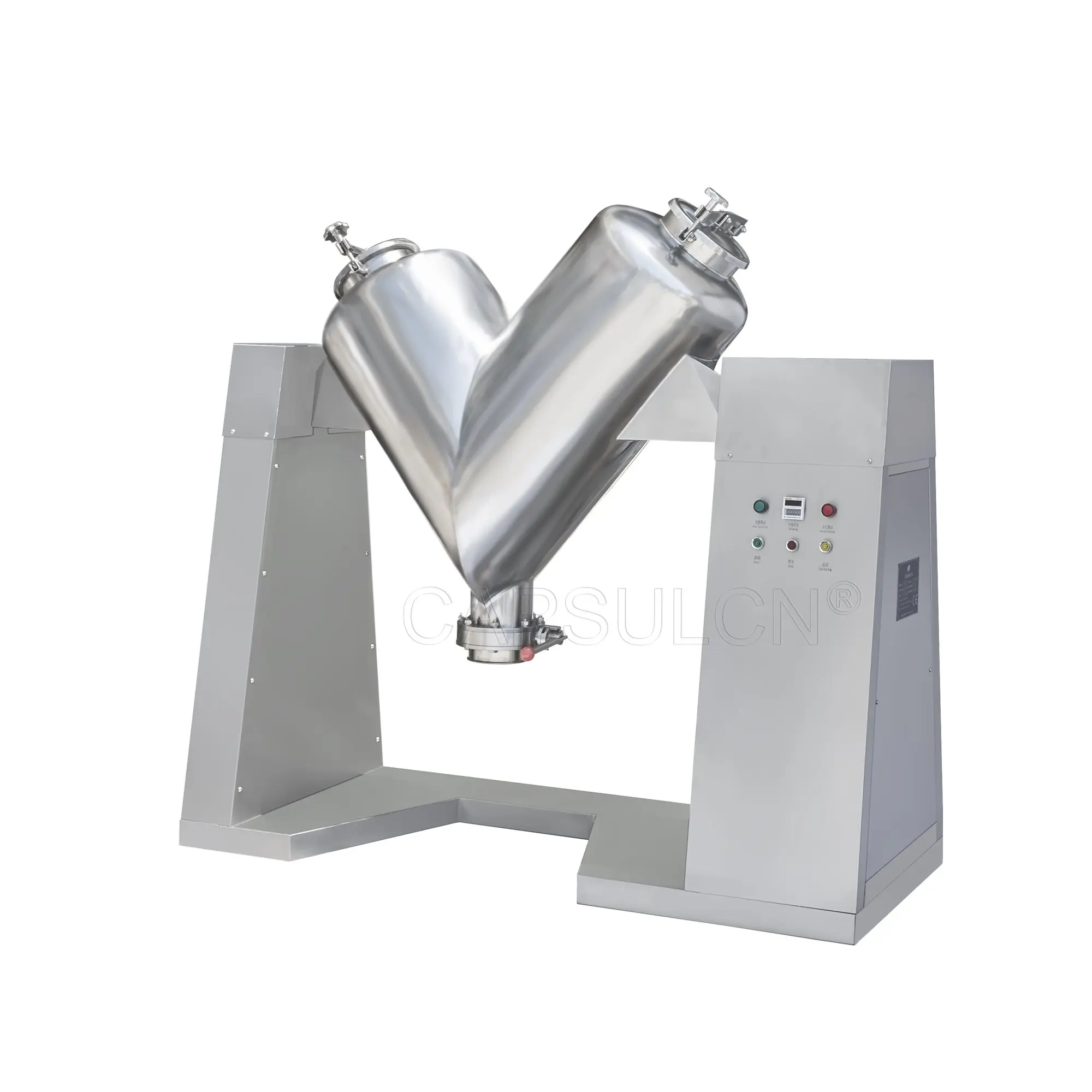

V Type Vertical Food Dry Powder Mixing Machine

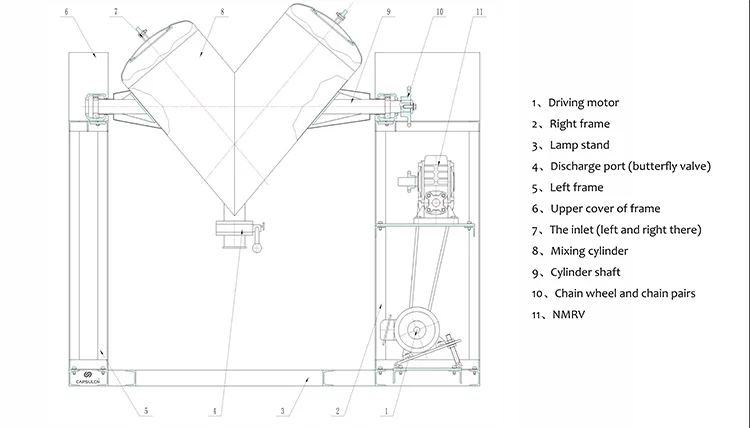

Main Structure Features：

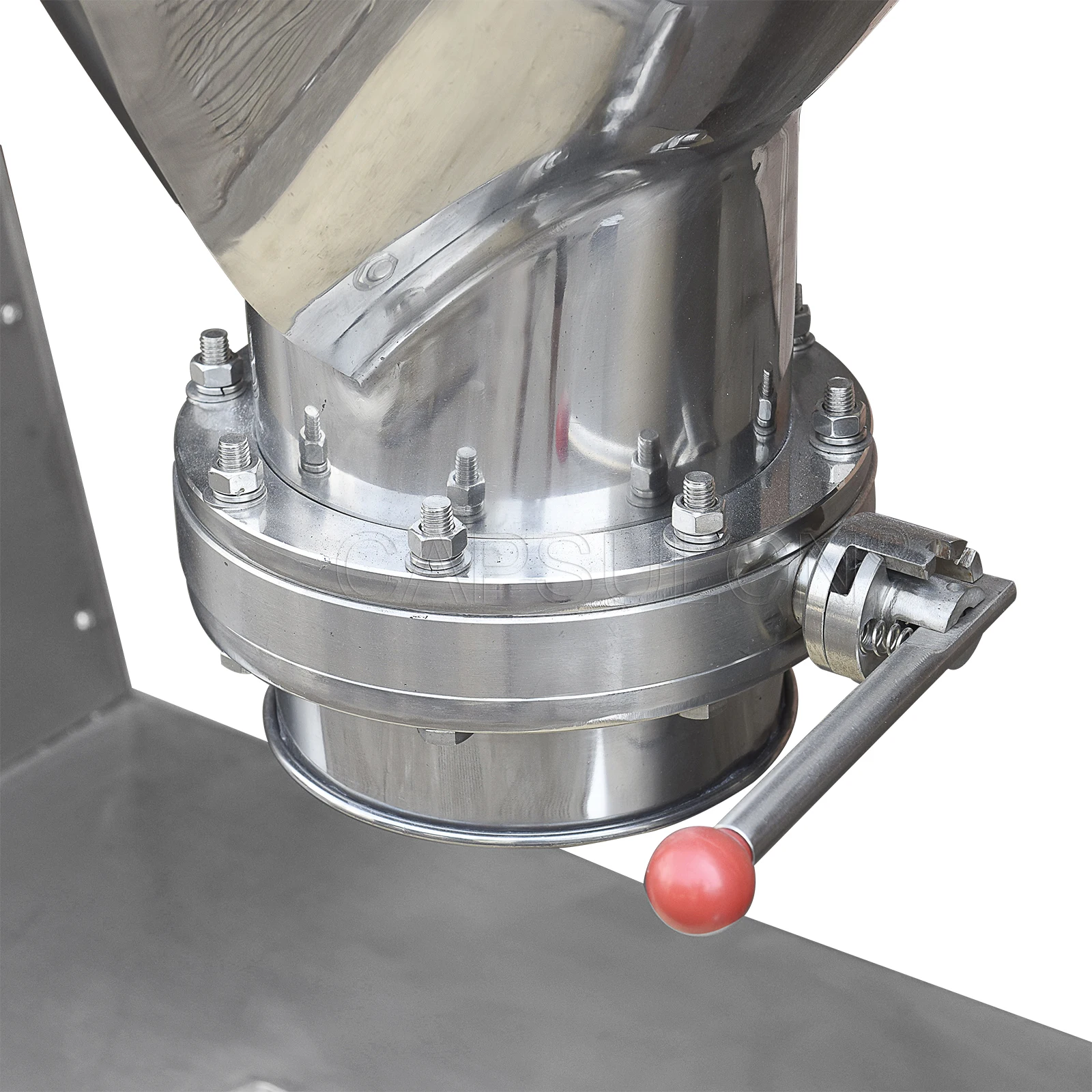

This machine adopts labor feeding and enclosed flapper valve for discharging. It will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing. So the material particles can remain intact. The mixing barrel is made of stainless steel, which won’t pollute the material. Besides, this machine has timing device, which can control the mixing time of materials.
Working Principles：
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
Main Application
Wide range of applications
The machine is fully sealed and dust- free operation be in line with the dust- free processing requirements.
Used in the pharmaceutical, chemical, foodstuffs industries and scientific research units.
This machine is mainly used for the uniform mixing of powder, granular and other materials in various industries.

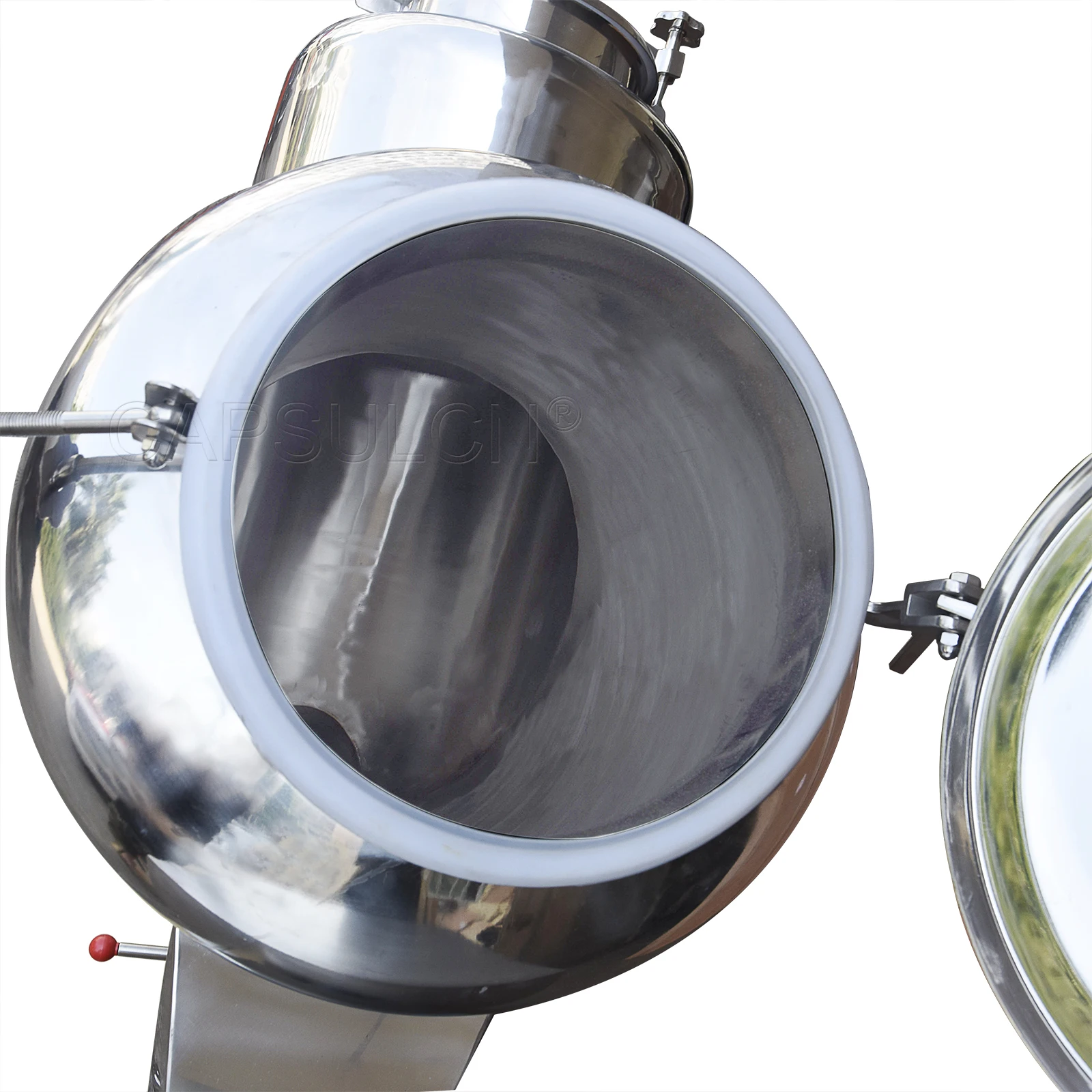

Details Images
Operation and Maintenance：

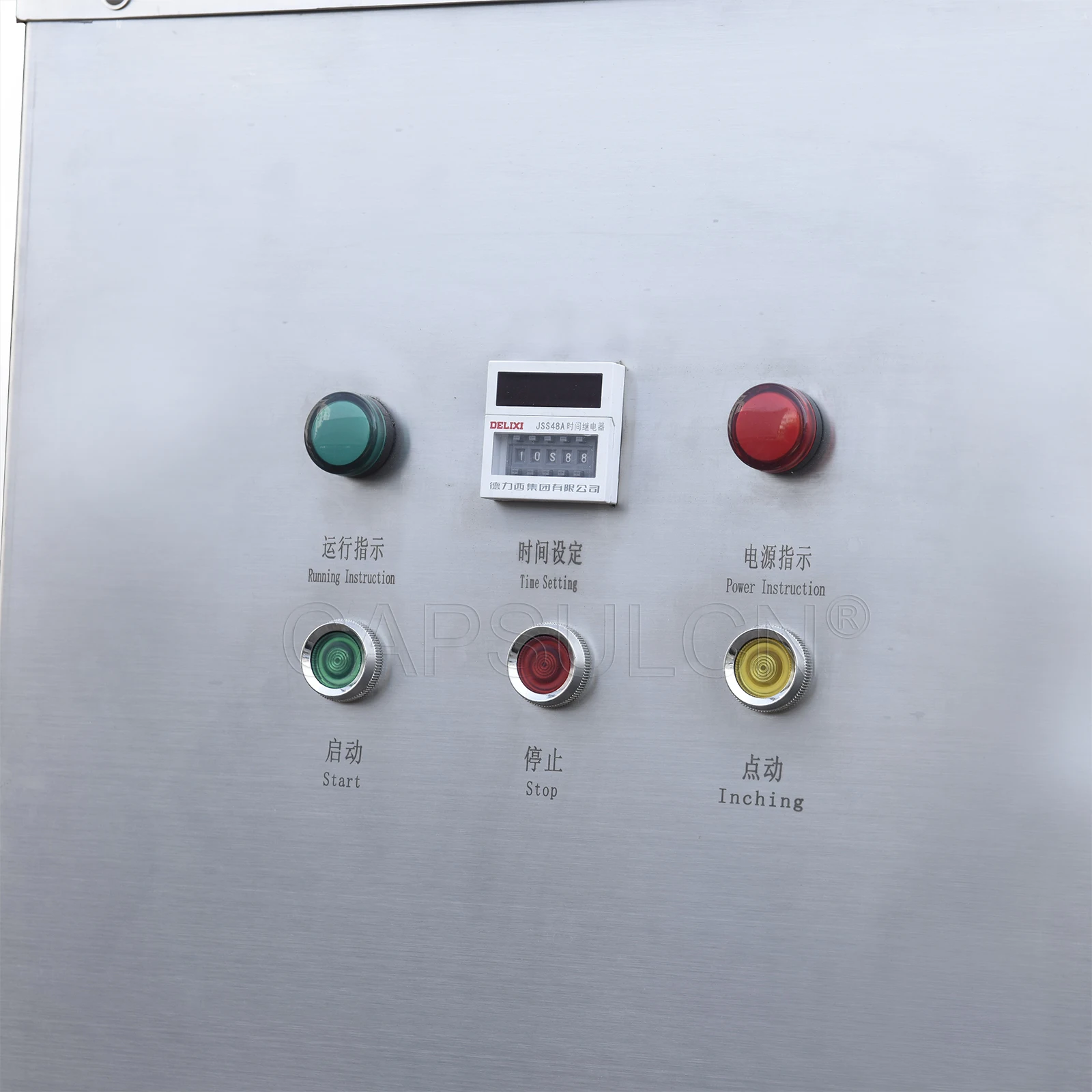

1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5. Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
Product Paramenters
Model | V-50 | V-100 | V-200 | V-300 |
Volume | 50L | 100L | 200L | 300L |
Max. Filling Capacity | 20L | 40L | 80L | 120L |
Best Filling Capacity | 14L | 28L | 56L | 84L |
Power | 0.75KW | 1.1KW | 1.5KW | 1.5KW |
Rotational Speed | 20r/min | 15r/min | 15r/min | 15r/min |
Dia. Of barrel | Φ300mm | Φ350mm | Φ450mm | Φ500mm |
Dia. Of Inlet | Φ160mm | Φ250mm | Φ300mm | Φ300mm |
Dia. Of Outlet | Φ80mm | Φ80mm | Φ100mm | Φ100mm |
Dimensions(mm) | 1350x450x1160 | 1900x800x1190 | 2010x850x1440 | 2220x900x1470 |
Weight(kg) | 183kg | 236kg | 300kg | 400kg |
(Don't Worry! We have several Models. We can recommend you according to your requirement. ) Contact us>>
Recommend Products
Why Choose Us
Pre-sale service
1. Support product customization, any requirements you need can be customized according to your requirements.
2. Sample test on our counting line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
2. Sample test on our counting line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4. The engineer overseas services, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.

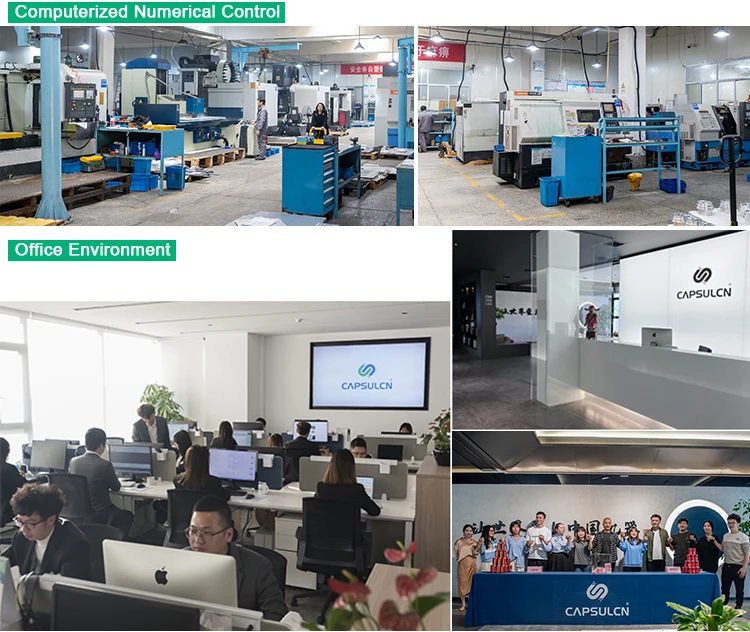

Company Profile
