Product Overview
Description
Product Description
1.Product Description
(1)Introduction

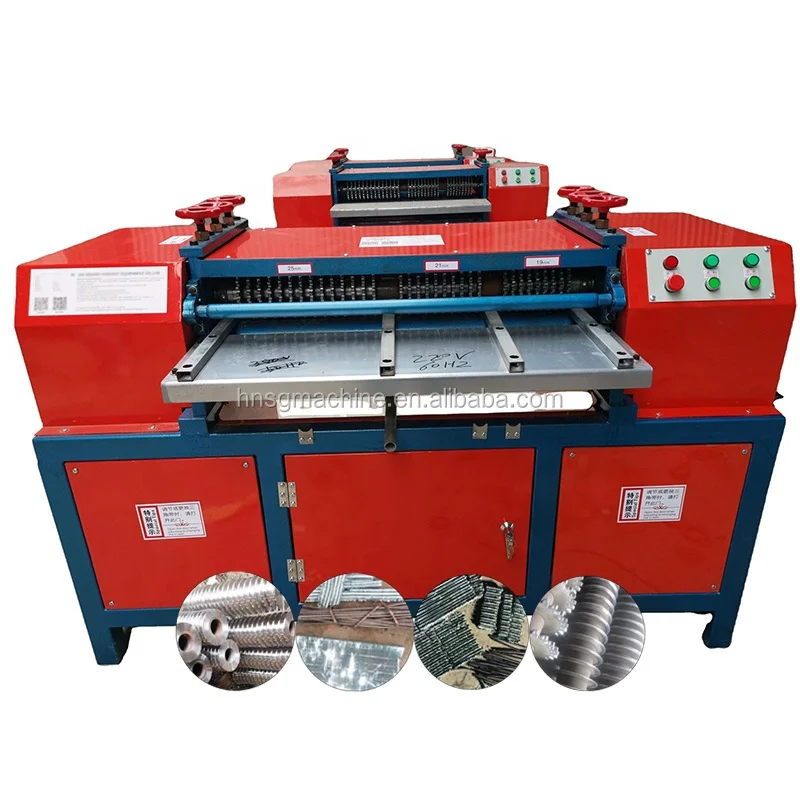

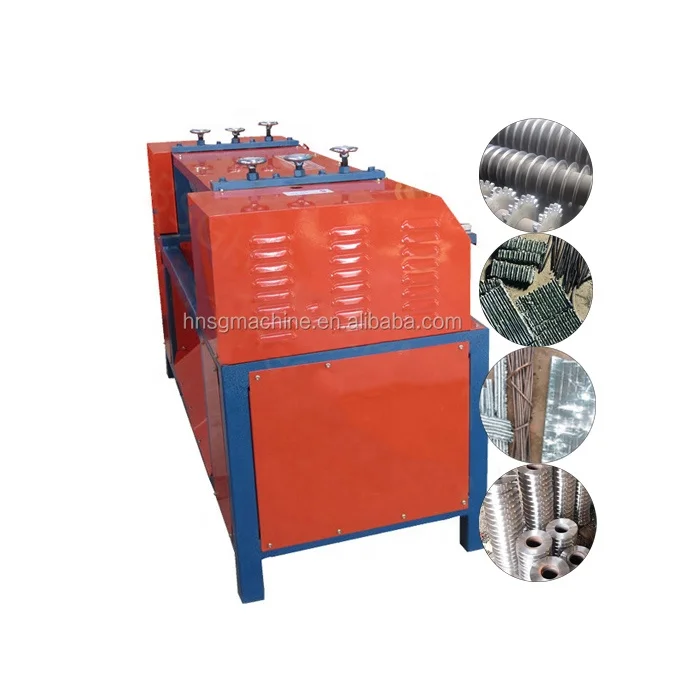

SHUGUANG Radiator stripper machine is an environment-friendly equipment, used for separating copper pipes from aluminum. Radiator stripper machine suitable for air conditioner radiator(AC radiator), car radiator and water tank radiator.
(2)Component
SHUGUANG Radiator stripper machine is consisted of a frame, two motors, two speed reducers, material feeding part, material separation part, transmission part and so on.

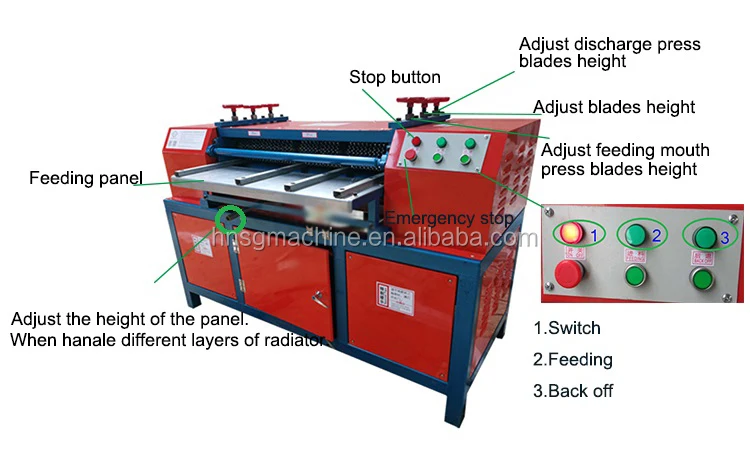

By the working panel part:
* Top red button is stop button;
* Down red button is emergency stop button.
SHUGUANG Radiator stripper machine is consisted of a frame, two motors, two speed reducers, material feeding part, material separation part, transmission part and so on.
By the working panel part:
* Top red button is stop button;
* Down red button is emergency stop button.

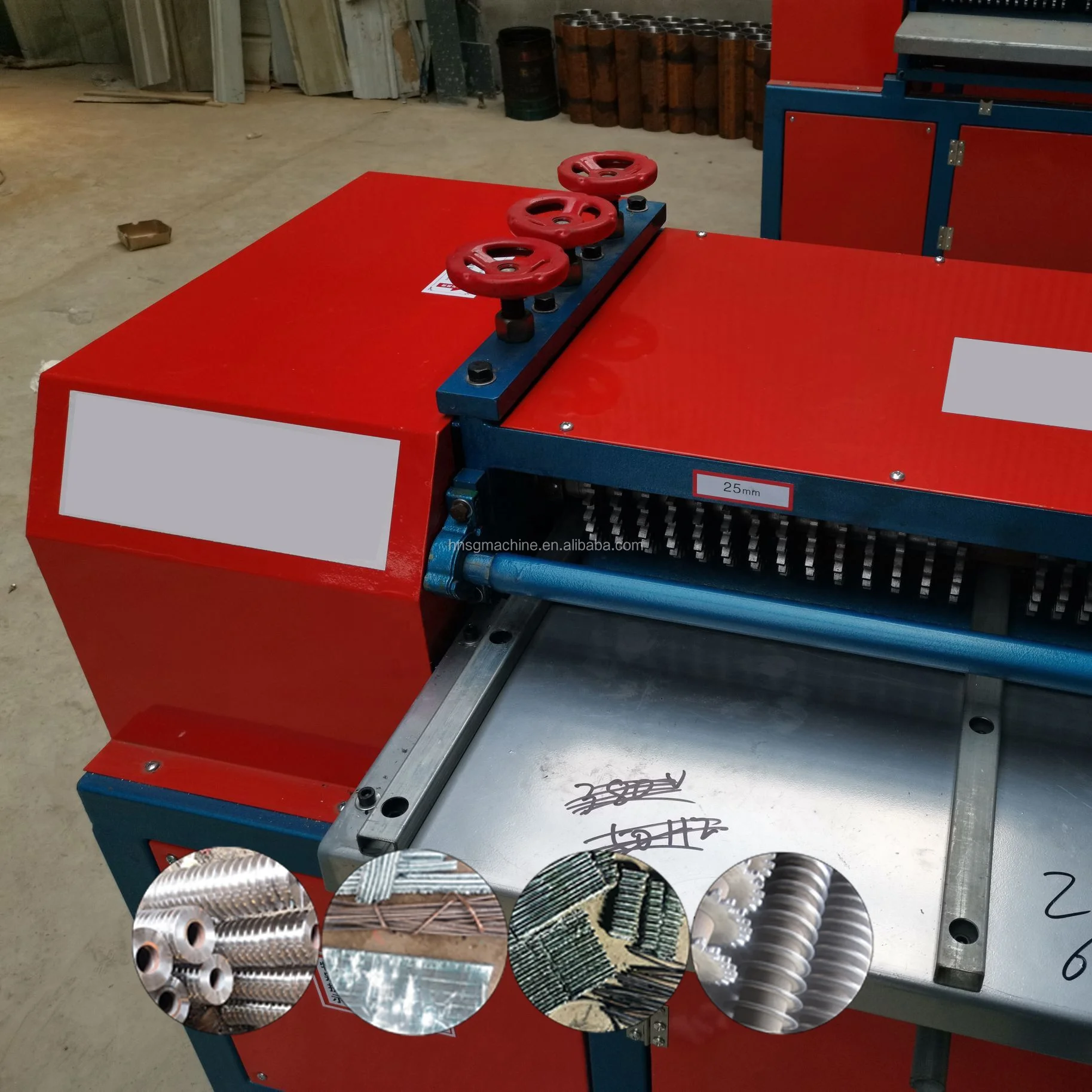

It is 25mm, 21mm and 19mm for the main radiator in the market. If you need other center distance, then we can customized it for you.
♦When the radiator center distance is 25mm, it can process 14 pieces copper pipe. The processing width is 360mm;
♦ When the radiator center distance is 21mm, it can process 10 pieces copper pipe. The processing width is 220mm;
♦When the radiator center distance is 19mm, it can process 9 pieces copper pipe. The processing radiator big width is 180mm.
| Radiator stripper machine | |
| N.W./G.W. | 600KG/650KG |
| Mea | 1800*900*1350mm |
| Power | 3+4KW |
| Capacity | 3000KG/Day |
| Voltage | 380V or Customized |
| Speed Reducer | 2 Sets |
| Click here for more information | |

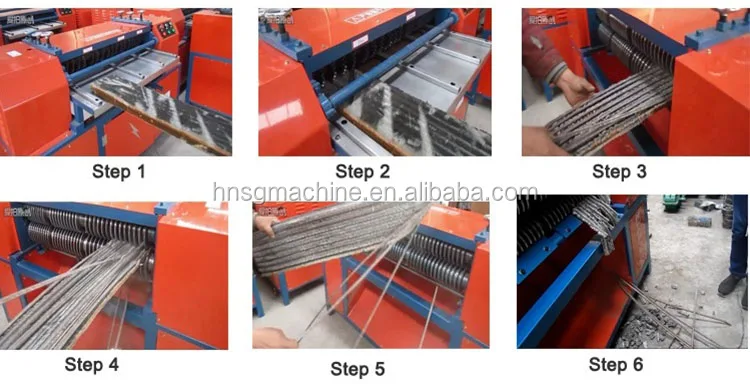

2.Working Process
layer&2layers radiator process
(1) Step1&Step2: Put radiator on feeding panel and then push it enter the processing area;
(2) Step3&Step4: Radiator pass by separation part and transmission part;
(3) Step5&Step6: Copper pipe and aluminum foil separate properly.

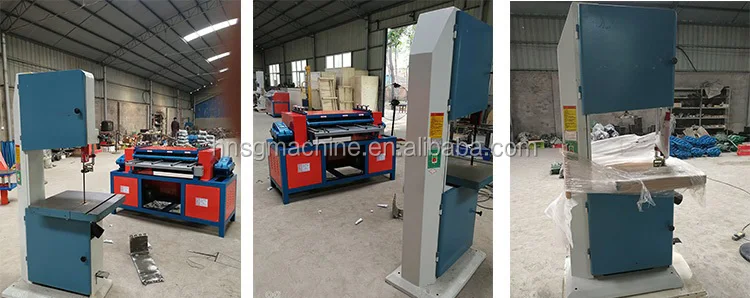

3.Manufacturing Processes
4.Product Application Range
Mainly used for radiator recycling, it can process various kinds of radiator ,such as AC radiator ,car daditor, water tank radiator and so on.
Related Products
Certifications
FAQ
Q1:What is the physical address of your factory ?
A1:Xingou Industrial Park,Gongyi City,Zhengzhou City,Henan Province,China.
Q2:How to get to your factory ?
A2:You can fly to Beijing,Shanghai or Guangzhou airport,then transfer to Xinzheng International Airport,we will pick you up there.
Q3:How long it takes to drive to your factory from Xinzheng airport?
A3:2 hours

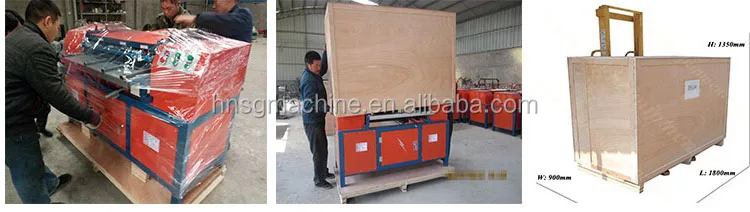

Q4:What is the Packing details ?
A4:Plywood case or Wooden case
Packing method can be also changed according to the clients' special requirement
Q5:Payment terms
A5:30% deposit by T/T,70% balance by T/T before shipment
30% deposit by TT,70% balance by L/C is also accepted if customers request
