Building Prefabricated House Structural Steel Building Warehouse Hangar Price

Product Overview

Description



Building Prefabricated House Structural Steel Building Warehouse Hangar Price





ITEMS		SPECIFICATION
Main Steel Frame	Colum	Q235,Q355 Welded H Section Steel
	Beam	Q235,Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System	Roof  System	Roof Panel (EPS/Fiber Glass Wool/Rock Wool/PU Sandwich Panel or Steel Sheet Cover) and Accessories
	Wall System	Wall Panel (Sandwich Panel or Corrugated Steel Sheet
Window System	Aluminum Alloy Window/ PVC Window/Skylight
Door System	Sliding Sandwich Panel Door/Rolling Metal Door/PVC Door
Others	PVC Rainspout,Gutter etc
Wind Resisitance Grace	12 Grades
Earthquake-resistance	8 Grades
Structure life span	Up to 50 years
Temperature	Suitable temperature -50℃~+50℃
Certification	CE, SGS, ISO9001:2015, ISO 14001:2015
Finishing Options	Vast array of colors and textures available
Paint Options	Alkyd painting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.) or Galvanized.

Technical information of low cost prefabricated steel structure building:

Wind resistance: Grade 11(wind speed≤111.5km/h)

Earthquake resistance: Grade 7

Live load capacity of roofing: 0.5kn/m2

External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

Second floor load capacity: 150 kg/m2

Live load of corridor is 2.0kn/ m2





Characteristics

1. Different types and sizes according to customer’s demand: large or small, wide span, single span or multiple spans.

2. Low cost and maintenance advantages.

3.Fast construction and easy installation: time saving and labor saving, all the items are factory-made.

4.Reduced construction waste, long using lifespan: up to 50 years.

5. Nice appearance.

6. Others: environmental protection, green building house, energy saving,  stable structure, High quake-proof, water proof and fire proof, and energy conserving.

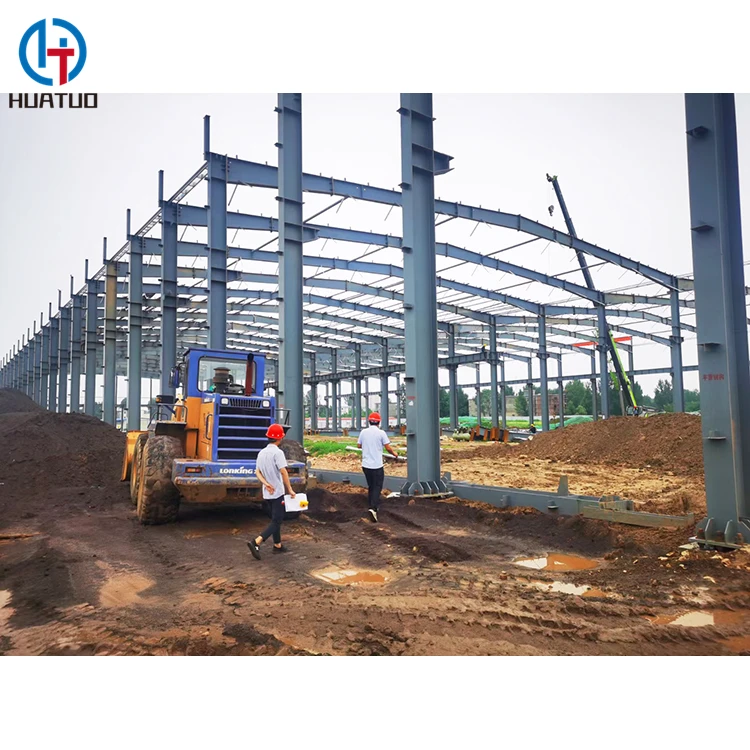

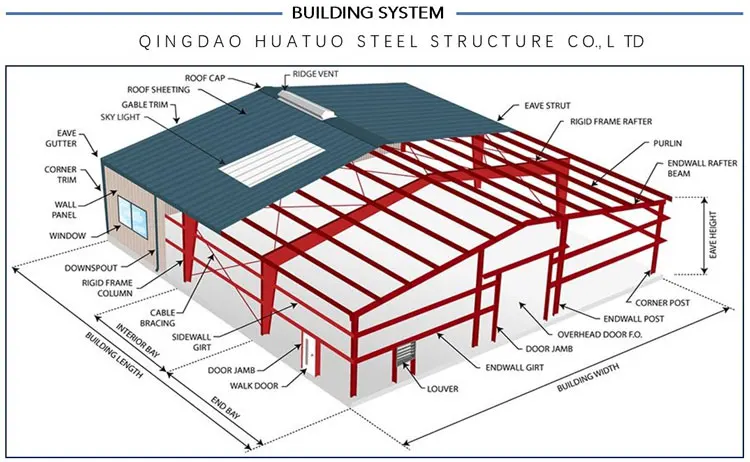

Steel structure warehouse has features of high fire resistance, strong corrosion resistance. Steel structure workshop is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss. The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. Composite panel for roof and wall can also be used in our system such as polystyrene, glass fiber, rock wool, polyurethane sandwich panel which have good thermal insulation, heat insulation, fire-retardant performace. The wall of the steel structure maintenance also can use brick wall. The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.



Some of Materials







Production:
1. According to the steel structure construction drawings.
2. We can also use the materials and drawings provided by customers to manufacture products.
3. Quality control runs through every link of production.
4. Any reasonable inspection method, such as the third party quality inspection, customer on-site quality inspection, can be used.
after-sale service:
1. We will provide steel structure building installation drawing after production.
2. If required by customers, send technican to guide the installation on site.
Additional services:
If you need us to check other factories, or if you need us to check container loading, we are happy to help.

1.Common type of the industrial building?

Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other types also could be designed and manufacturer as per customers’ request.

2.What’s the quality grade of the steel structure components?

Reply: Q355 is used for main steel structure, Q235 is used for secondary steel structure.

3.How about the delivery time?

Reply: Usually, about 25-30 days after the order confirmed, also depends on the fabrication quantity.

4.How about the derust grade?

Reply: Ball blasting Sa 2.5 on main steel structure, manual derust St2.0 on secondary steel structure.

5.What kind panel used for the roof and wall?

Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel performs well on the heat insulation, sound insulation. Common sandwich materials are EPS, rock wool, glass wool and PU.

6.How to install it?

Reply: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.
