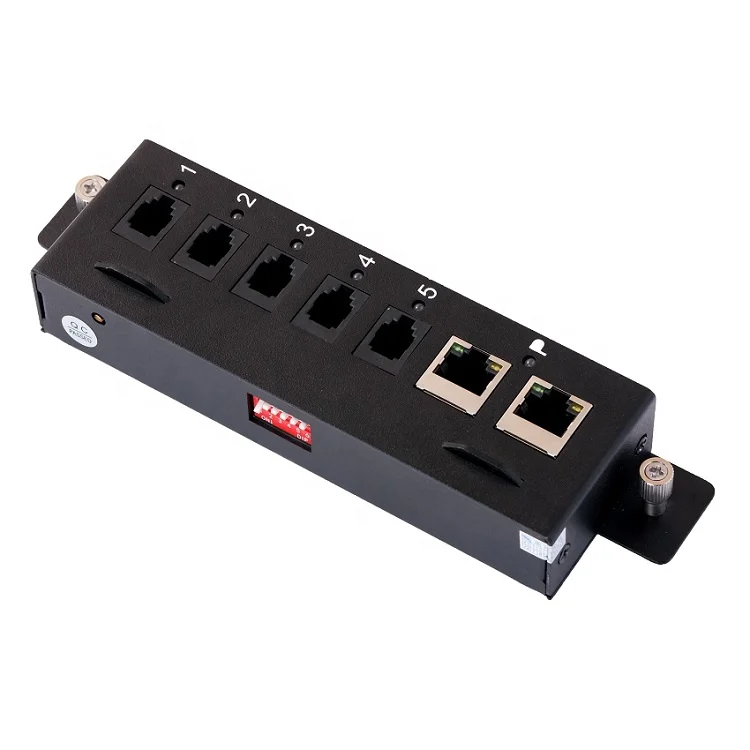

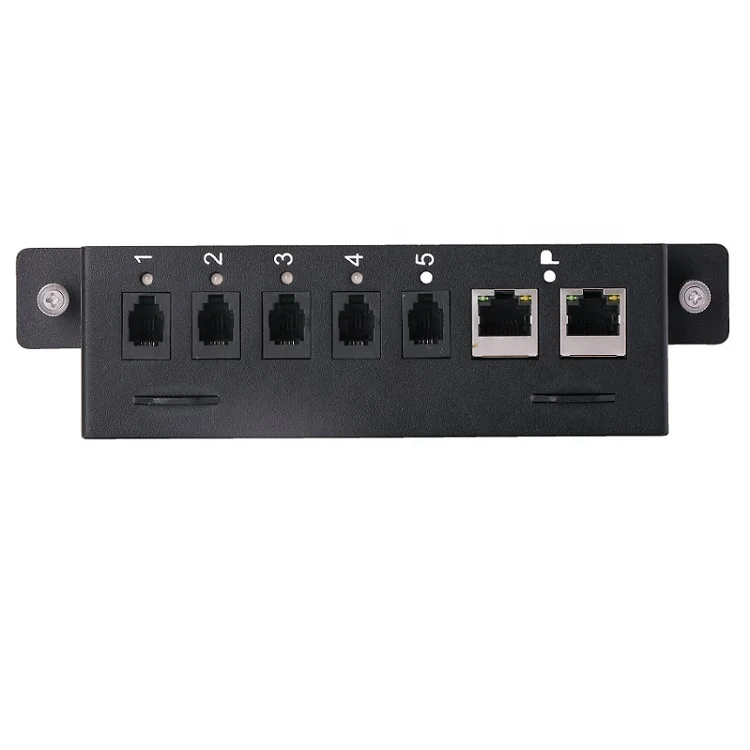

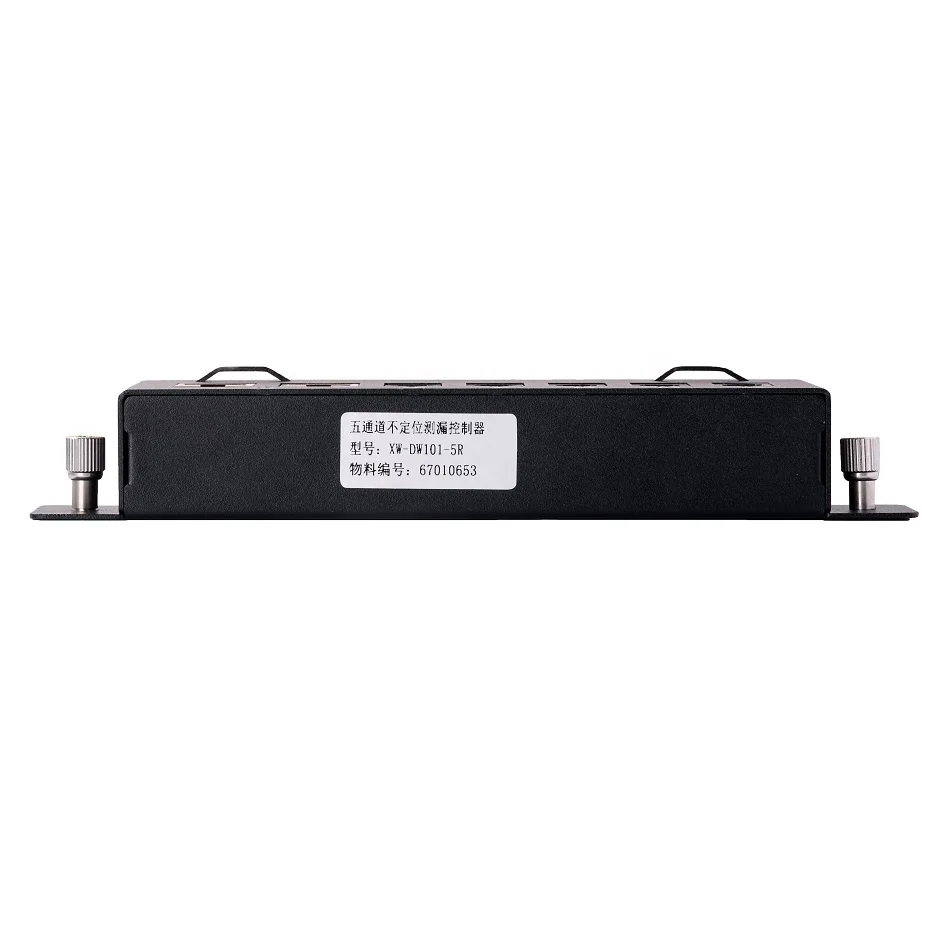

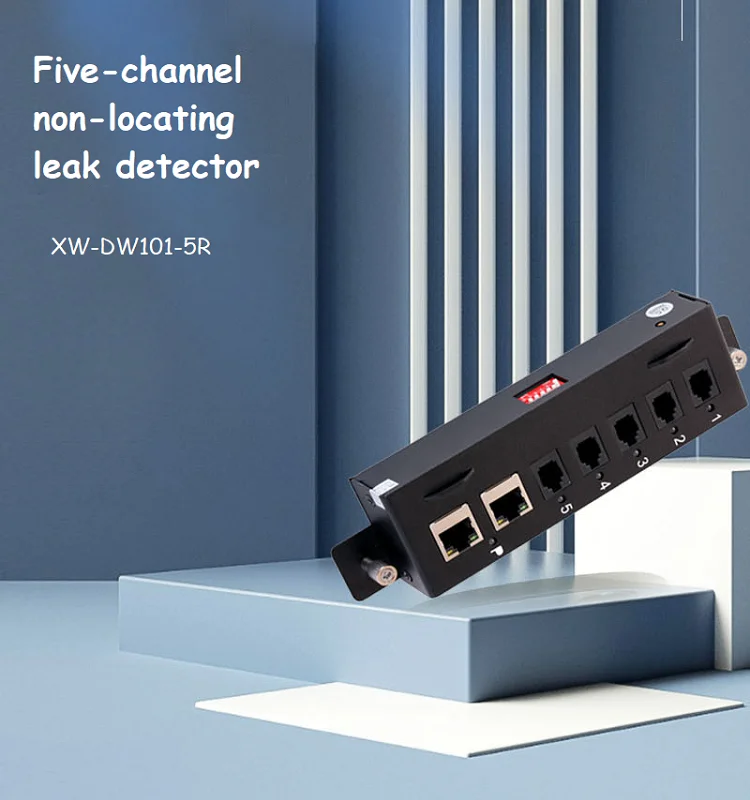

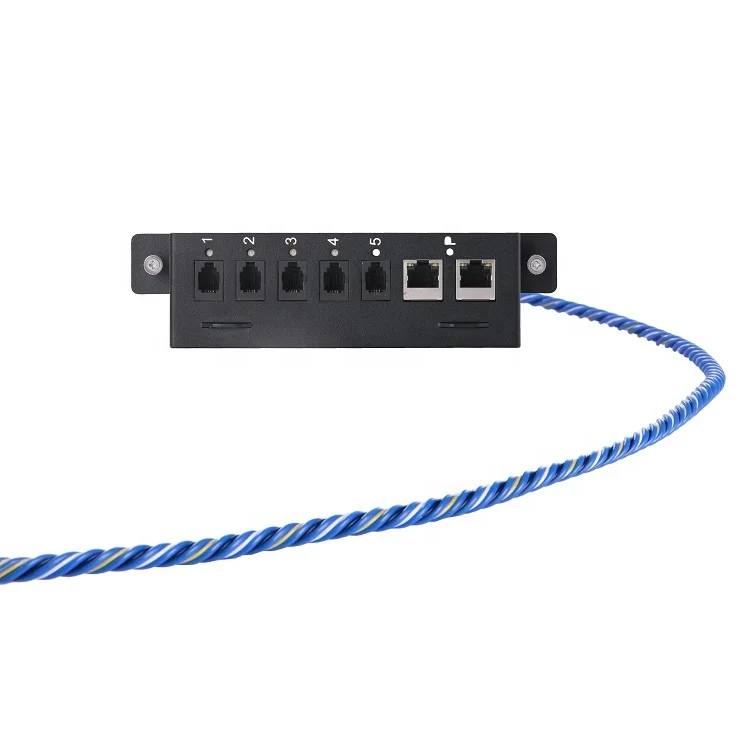

Five Channel RS485 Liquid Leakage Sensor Detectors Machine Water Leak Detector Monitoring System
- Category: >>>
- Supplier: Shenzhen Xiangwei Measurement And Control Technology Co. Ltd.
Share on (1600601025575):
Product Overview
Description
Product Description
Feature
1. Using industrial grade electronic components, can not only ensure high sensitivity, but also reduce the false alarm caused by various external factors. Adopt electromagnetic compatibility design,anti-surge, anti-static, anti-EFT and other protection functions.

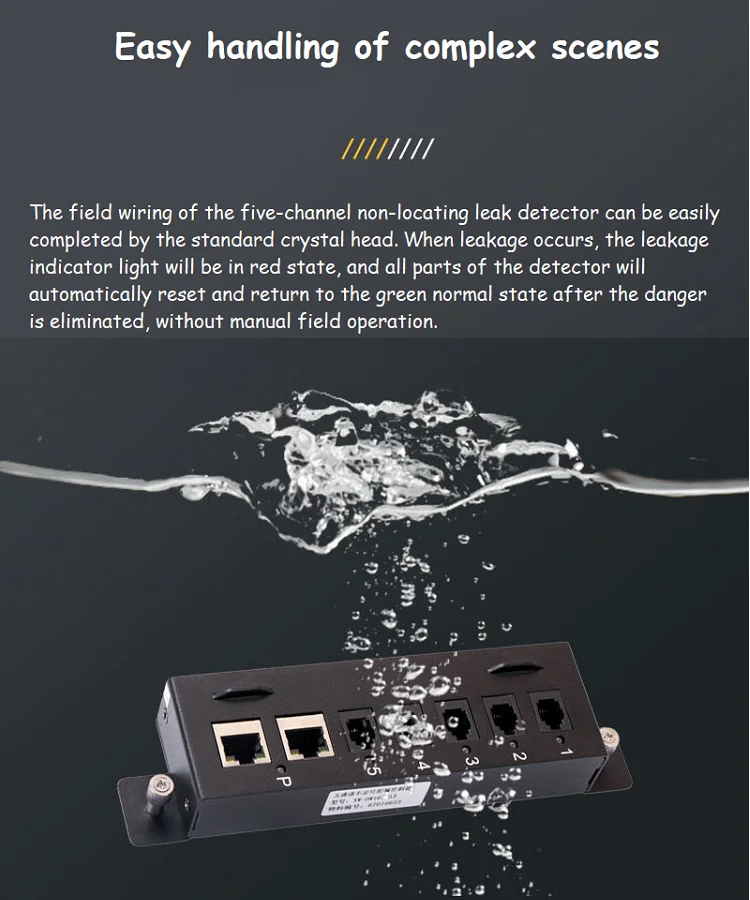

2. With spring screw for installation. When leakage occurs, the leakage indicator lights up, and returns to normal state
automatically after danger elimination, no need manual operation.

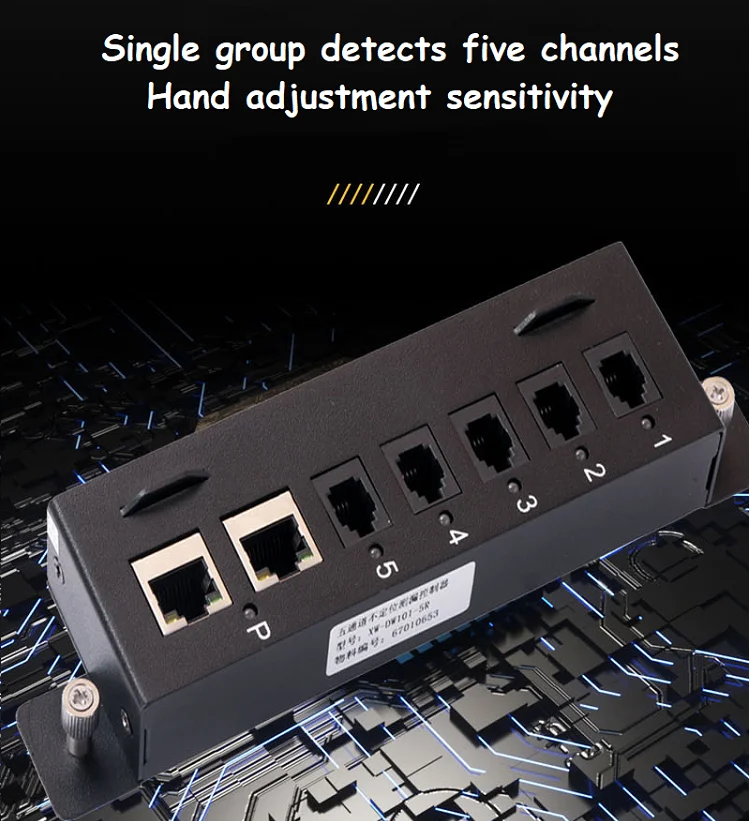

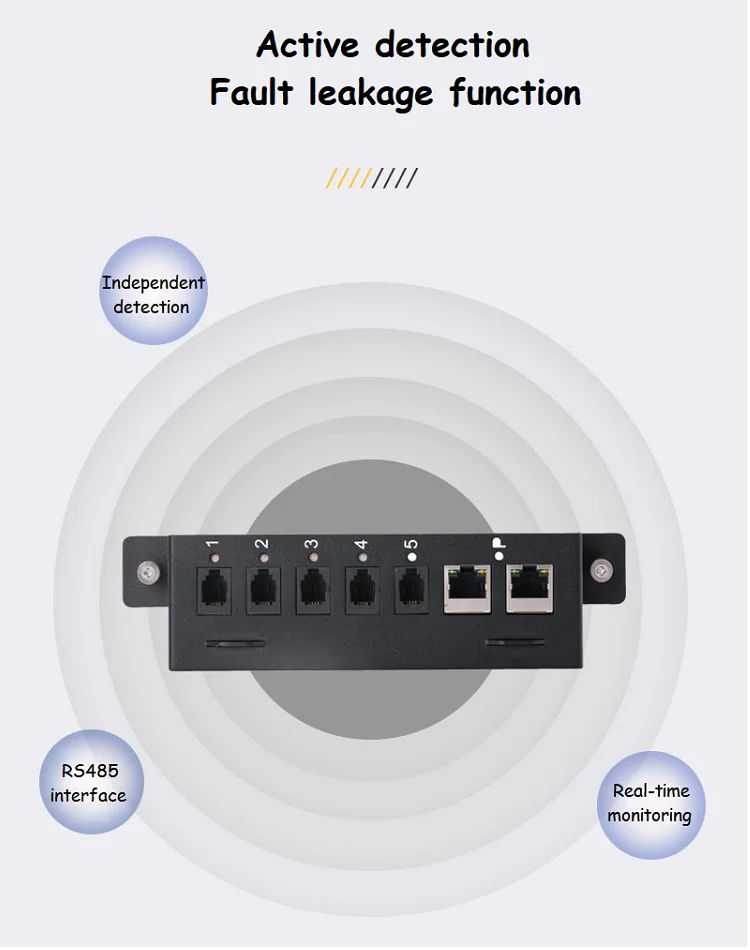

3. With five groups of independent detection channels, can connect five leakage detection cables as the same time. A single channels can connect 500 meter leak detection cable to monitor the leakage status of each area which suitable for multiple leak detection areas.
4. Can output RS485 signal and connect with monitoring platform, the maximum serial 128 devices, using the standard MODBUS protocol, easy to integrate the remote monitoring system.
5. Dual RJ45 interface. Power supply and communication are integrated into the RJ45 interface, and the devices can be connected in series through the dual RJ45 interface.
2. With spring screw for installation. When leakage occurs, the leakage indicator lights up, and returns to normal state
automatically after danger elimination, no need manual operation.
3. With five groups of independent detection channels, can connect five leakage detection cables as the same time. A single channels can connect 500 meter leak detection cable to monitor the leakage status of each area which suitable for multiple leak detection areas.
4. Can output RS485 signal and connect with monitoring platform, the maximum serial 128 devices, using the standard MODBUS protocol, easy to integrate the remote monitoring system.
5. Dual RJ45 interface. Power supply and communication are integrated into the RJ45 interface, and the devices can be connected in series through the dual RJ45 interface.
Applications
Specification
Technical Data
Size | 177*46*25.6mm |
Response time | ≤2s |
Detection distance | 500m |
Operating Temperature | -40℃~70℃ |
Operating humidity | 0~95%RH(No condensation) |
Supply voltage | DC 9~30V(recommend 12V DC) |
Power Consumption | ≤0.5W |
Relay | Dry Contact, 1 set, NO/NC |
Load capacity | 120VAC/2A, 24VDC/2A |
ESD | Contact discharge±8KV, Air discharge±15KV |
EFT | ±2KV |
Weight | 226.35g |
Communication | RS485 |
Protocol | MODBUS-RTU |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

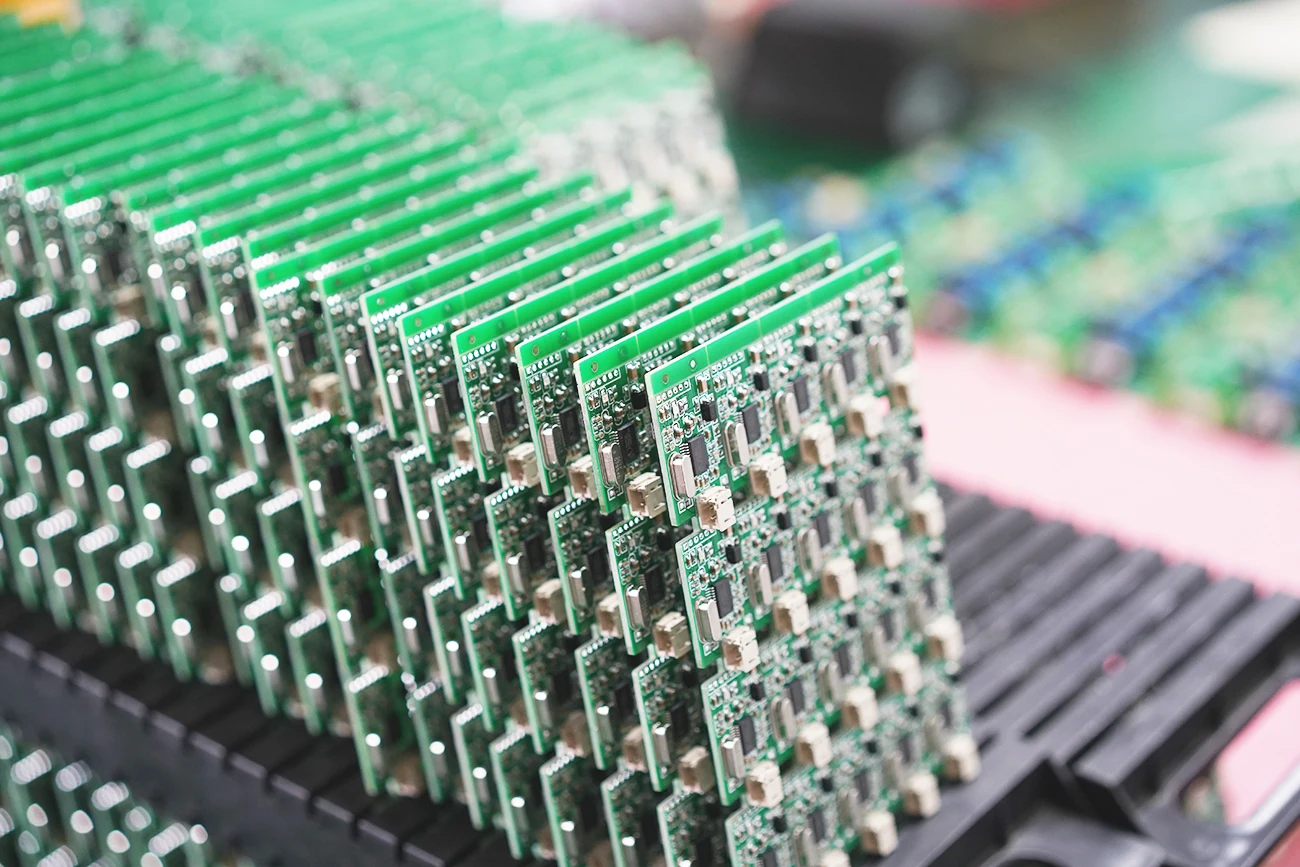

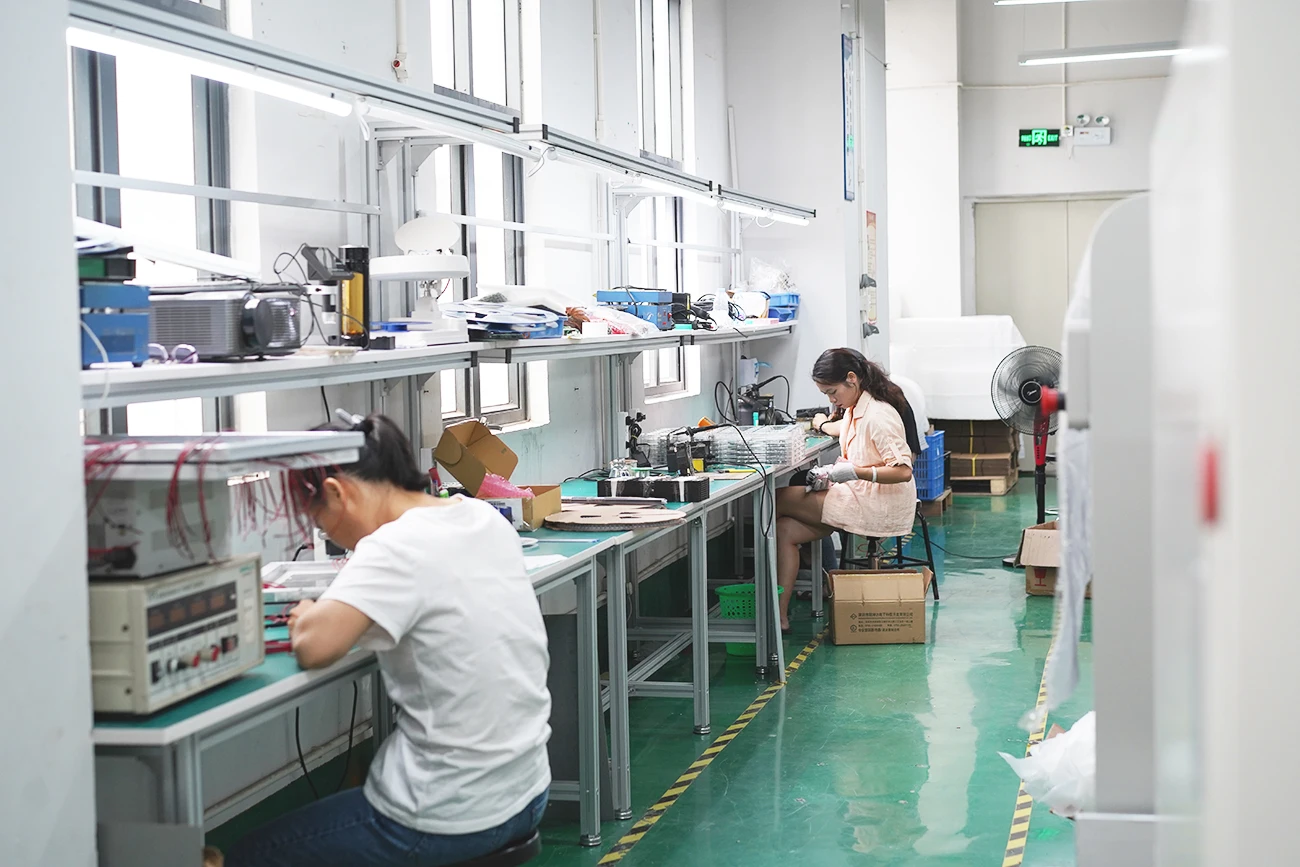

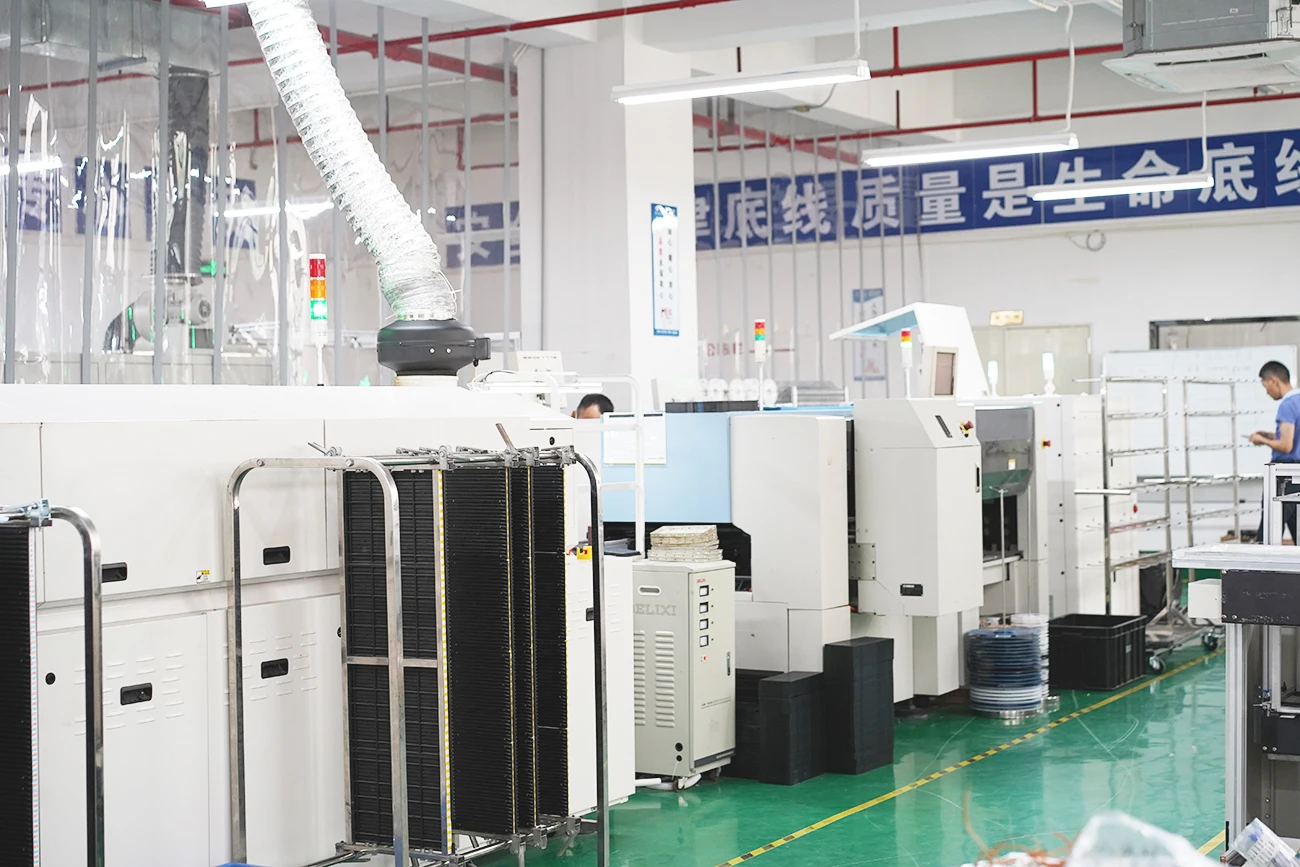

Company Profile
A leading manufacturer of Liquid Leak Detection Systems for commercial and industrial applications
Xiangwei mainly focus on Water Leak Detection and Oil Leak Detection (Fuel leak detection). Company now has controller, sensor cable, modules, sensors and other products, products can be widely used in various industries, including data centers, communications room, pharmaceutical, mechanical and electrical equipment, intelligent buildings, semiconductor plant, elevator equipment, heating and cooling plumbing, home and so on.
Certifications
FAQ
How long is the lead time?
Sample order: Within 3 working days. Bulk order: 5-15 working days
What is your MOQ?
Accept small order and trial order for standard products, the MOQ for customizable products should be negotiable.
What’s the warranty?
Warranty is 12 months.
I want to customize the appearance, parameters and model of the product according to my needs. Is it possible?
If you have a specific project and a certain amount of demand, our company is willing to customize the required products according to your needs, and can provide a series of services such as OEM, ODM.
Can the acid leakage sense cable be matched with Xiangwei's detector?
The performance of Xiangwei controller is stable and reliable, and it can be compatible with the same type of sense cable of various brands, and of course it can also be used in conjunction with the acid leak sense cable.
