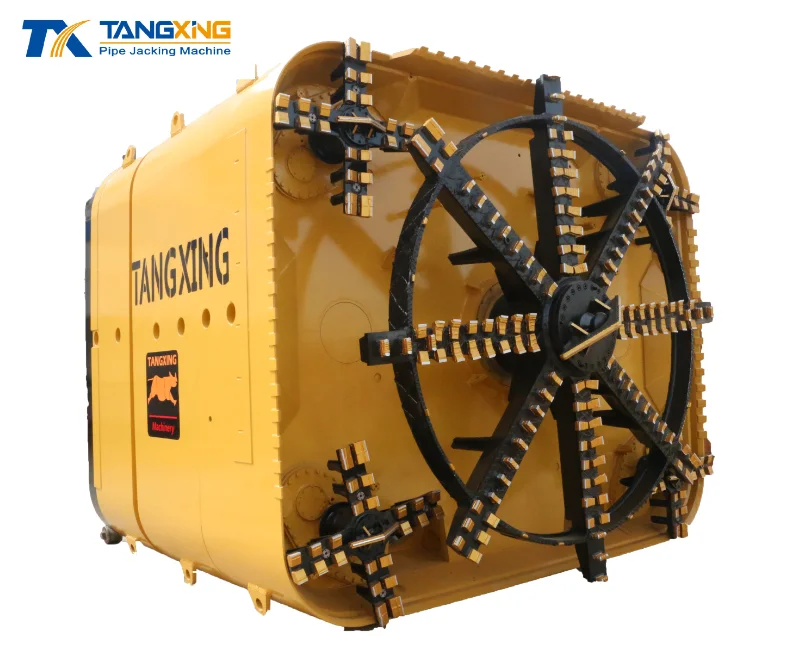

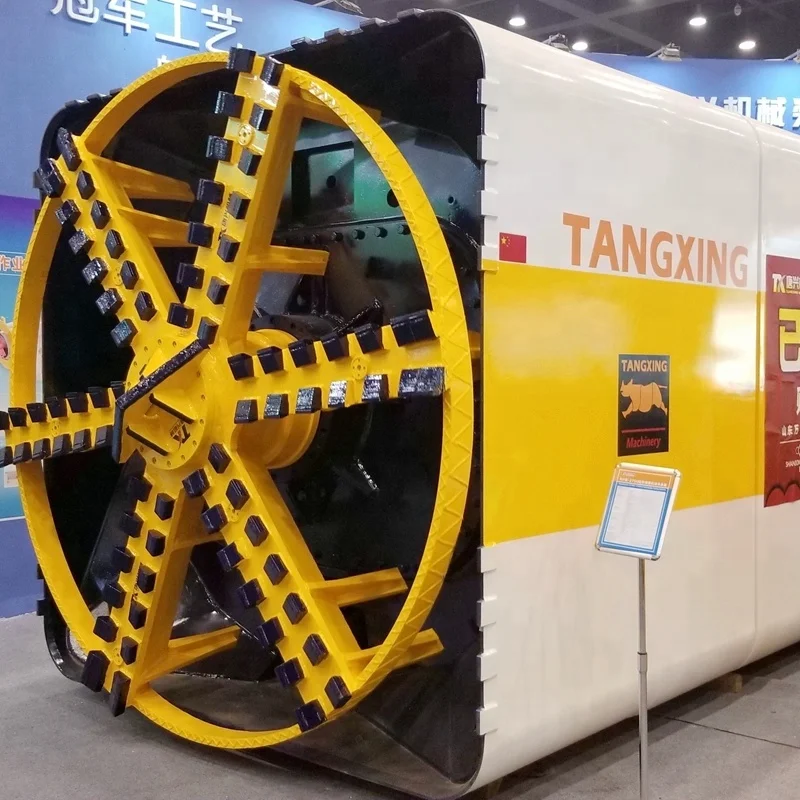

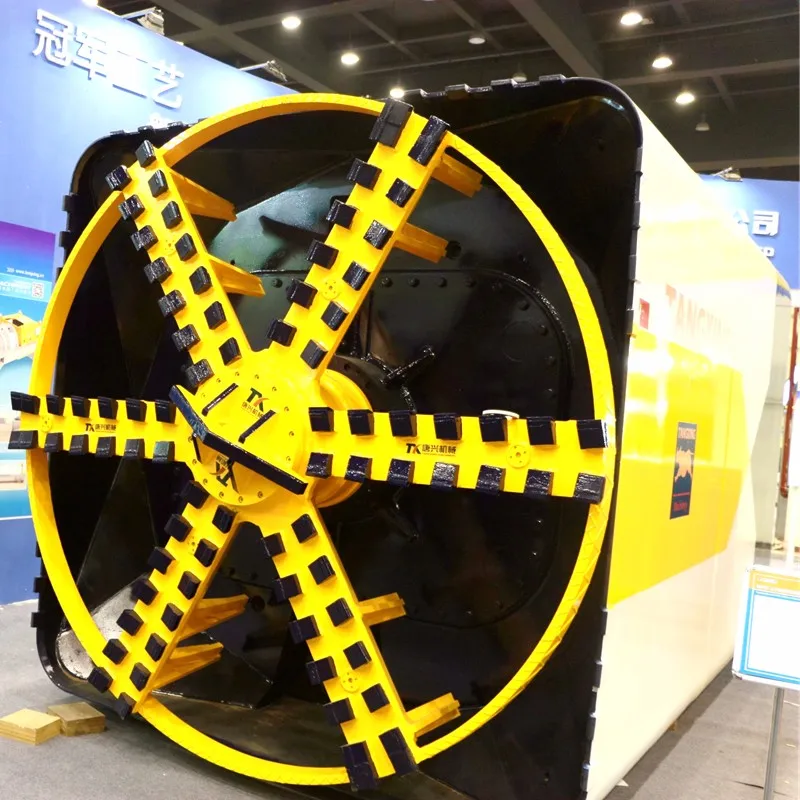

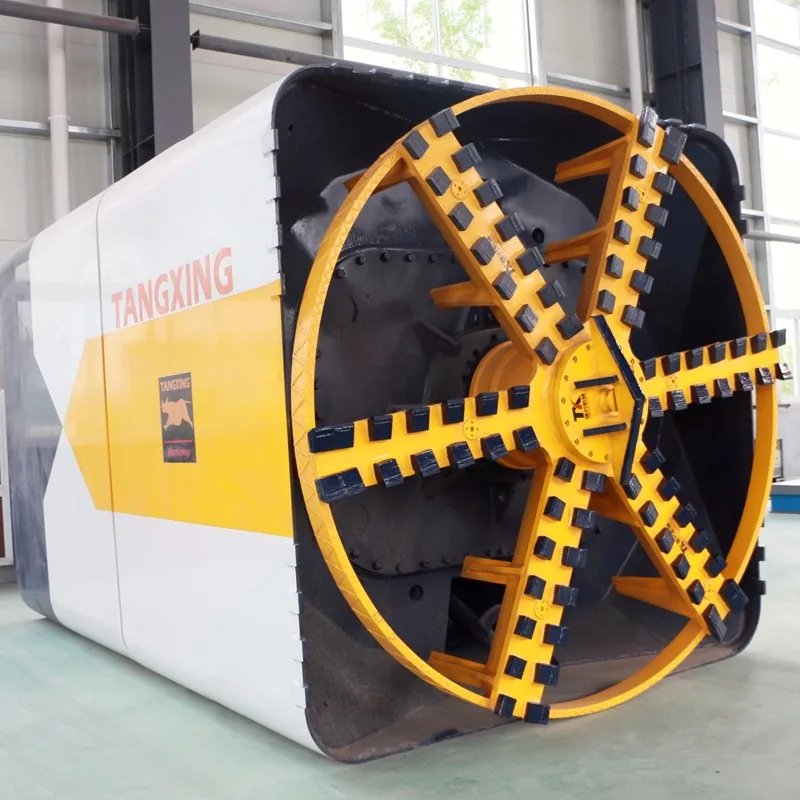

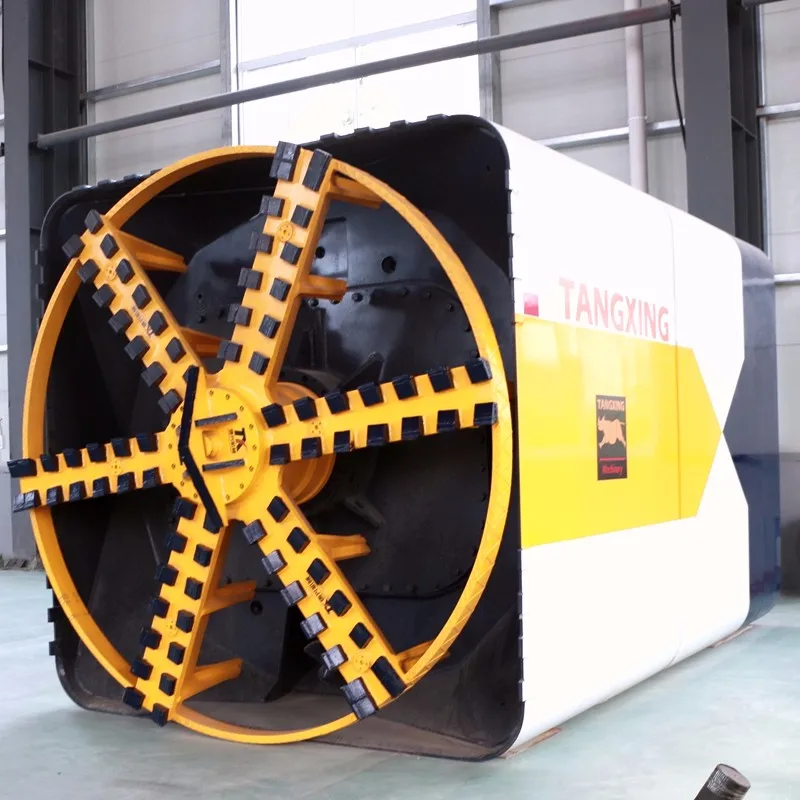

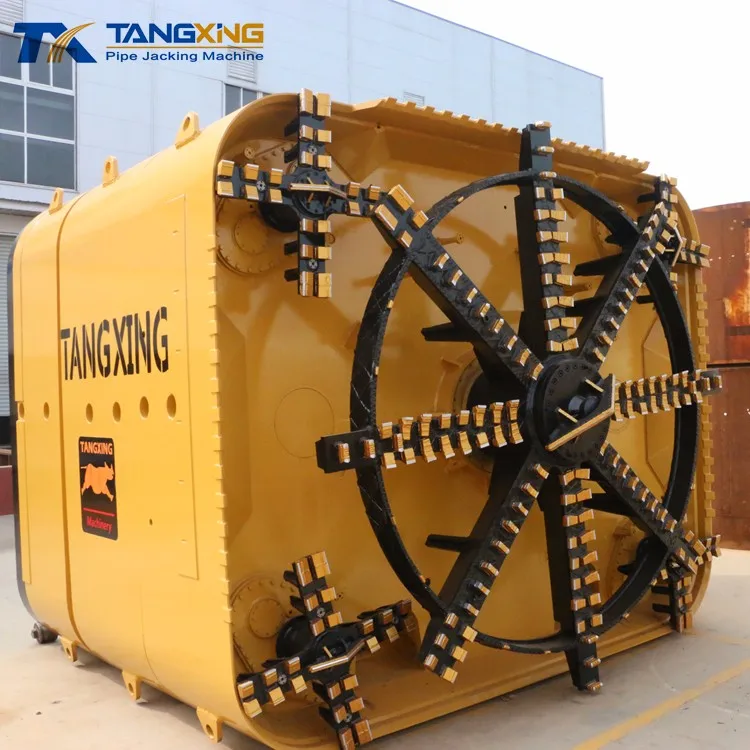

4650*6900mm rectangular pipe jacking machines jeep quad tbm
- Category: >>>
- Supplier: Anhui Tangxing Equipment Technology Co. Ltd.
Share on (1600601044998):
Product Overview
Description
Product Description
Main Features
1) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
2) Eco-friendly, less disturbtion to eviroment;
3) Applied for normal soil condition.
4)Designed for tunneling cross street,highway and downtown area,used for construction of subway station,gas and electrical power pipeline etc.
5)Full section cutting
Specifications
Dimensions | Pipe Jacking Machine OD | 4650*6900mm | |||||
Length | 5600mm | ||||||
Cutter Head | Cutter Head Motor Power | 30*3,30*6,30*9KW | |||||
Revolution Speed | 1.58 | ||||||
Torque | 90,180,270KW | ||||||
Steering System | Cylinder No. | 16 | |||||
Thrust | 200 | ||||||
Max. Steering Angle | up&down2.2 l&r1.4 | ||||||
Pump Station Max. Pressure | 31.5MPA | ||||||
Cylinder Stroke | 350 | ||||||
Pump Station Motor Power | 15KW | ||||||
Screw Conveyor | Diameter | 400mm | |||||
Motor Power | 30*2KW | ||||||
Speed | 16.3R/MIN | ||||||
Total Weight | 150T | ||||||
Total Power | 615 | ||||||
Control | Remote PLC Control(Touch Screen) | ||||||
Soil | Normal soil, sand, clay | ||||||
Certifications
Company Introduction
Our company was established in Jan,2005,which is a high-tech enterprise concentrates on manufacturing and designing trenchless pipe jacking machine and provides integral solutions of trenchless engineering technology and equipment.Tangxing Machinery integrates R&D,design,manufacturing and sales for variety types of pipe jacking machines or Tunnel Boring Machines:Slurry balance series,Earth balance series,compound with Slurry&Earth,Open-face,Hard rock series,Rectangular series and Microtunneling machines,of which diameter ranges from 250mm to 4500mm and applied to different kinds of soil condition.Our pipe jacking machines are widely applied to pipeline laying,traffic track ,pipeline reconstruction ,projects crossing river or highway,such as drinking water pipe network,sewage pipe network,natural gas pipe network reconstruction projects in China and overseas,and we also set up sales and service network in the Middle East,Africa,Australia,Singapore,Malaysia,Indonesia,Thailand,Philippines etc.Tangxing Machinery supply a higher quality service with more cautious attitude,advanced technology and better quality all the time,and we are all on the way all the times, aim to support you breakthrough every project, your success.
Our Service
Pre-Sales Service
* Detailed analysis for geological conditions of individual projects
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience
After-Sales Service
*Geo-technics advise and consultation
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse
After-sales service team in Thailand
After-sales service team in Malaysia
After-sales service team in Singapore
After-sales service team in Malaysia
After-sales service team in Singapore
After-sales service team in China
After-sales service team of Tangxing in construction site
Warranty service of pipe jacking machine
*One year repair for the main part of the power system at the normal use,excluding man-made damage
*Six months repair and replacement for hydraulic parts
*Six months replacement for electrical parts
*excluding vulnerable parts: displacement sensor, direct ball valve and cutter)
Training Institution
Anhui Tangxing Trenchless Technology Training Institution .
TANGXING is the only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT), special conduct pipe jacking operator expert training .
Institution
Overview
Professional theory & practice learning
Demo site practise learning
First semester operators graduate!
Second semester operators graduate!
Quotation Relevant
Good preparation saves work time.
"Please kindly offer below information before the quotation,
because the information is important for equip the suitable machine and effect the quotation."\t
1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?
2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.\t
3.The soil strata condition of project site.\t
4.The underground water level.\t
5.The length of single segment project,and the total length of project.\t
6.The dimention of working shaft ?
because the information is important for equip the suitable machine and effect the quotation."\t
1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?
2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.\t
3.The soil strata condition of project site.\t
4.The underground water level.\t
5.The length of single segment project,and the total length of project.\t
6.The dimention of working shaft ?
