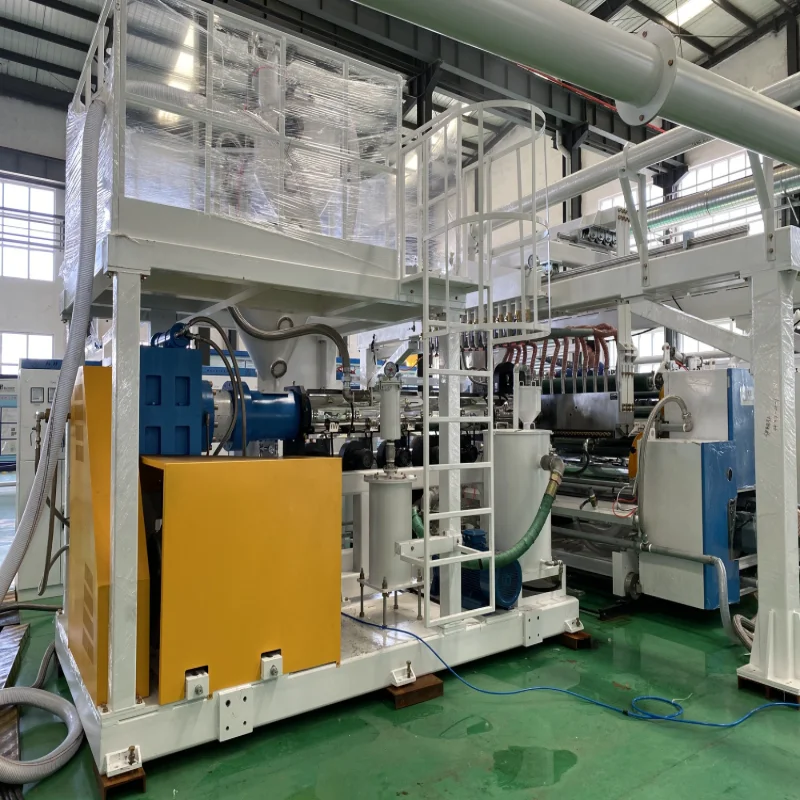

PVC Cling Film Making Machine for the production of food wrap PVC stretch cling filmHB

Product Overview

Description

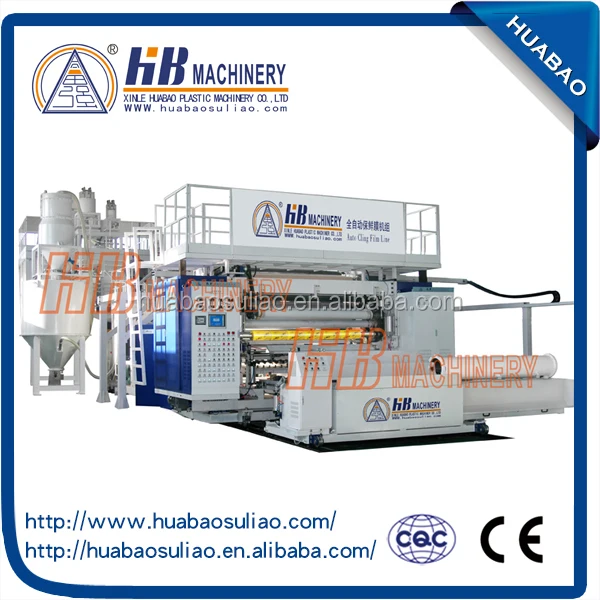

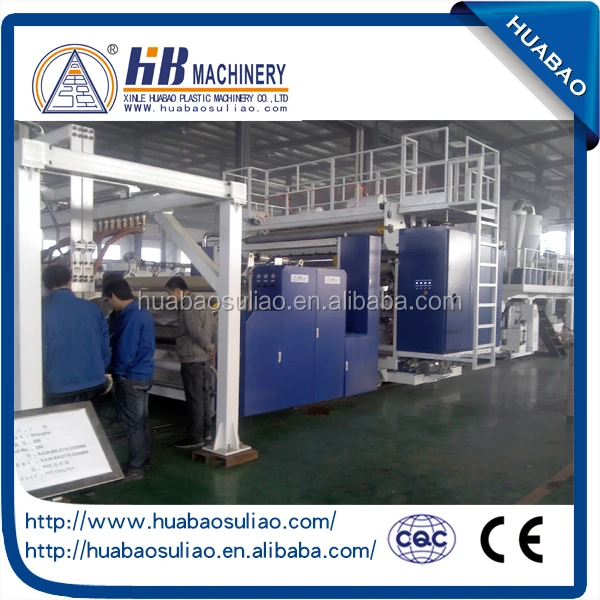

China Only One Manufactuer Cast PVC Cling Film Making Machine



This line is applied for producing self-adhesive PVC cling film by extruder with PVC resin powder and several kinds of additives.



 Features of Machine

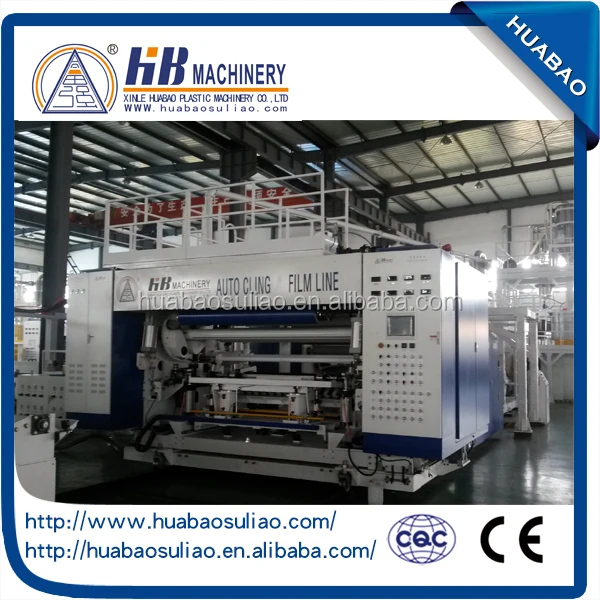

1. This line is equipped with most-advanced and highest automation three-shaft winder, with touch screen and PLC control.

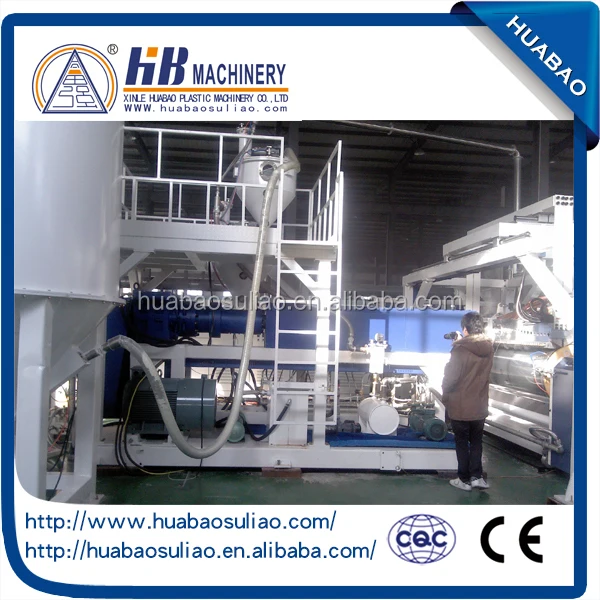

2. The high efficient plasticizing screw with the advanced production technology can eliminate the generation of gem effectively.


3. The special designed T-die and extrusion forming technology realized the stability and the product’s high qualified rate in the high speed production.

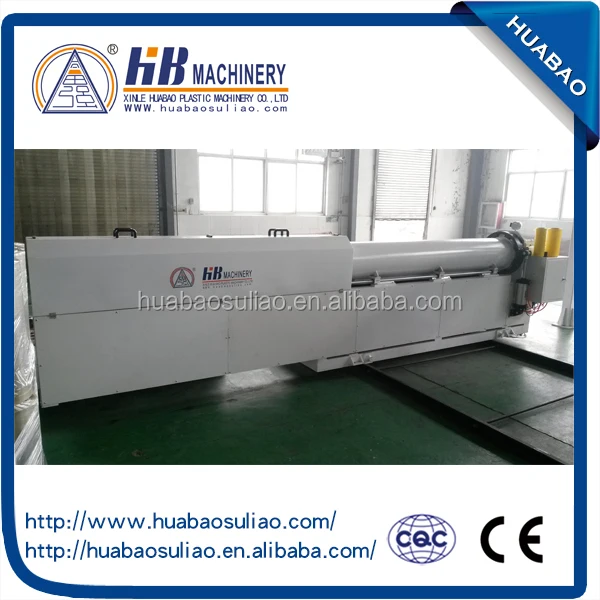

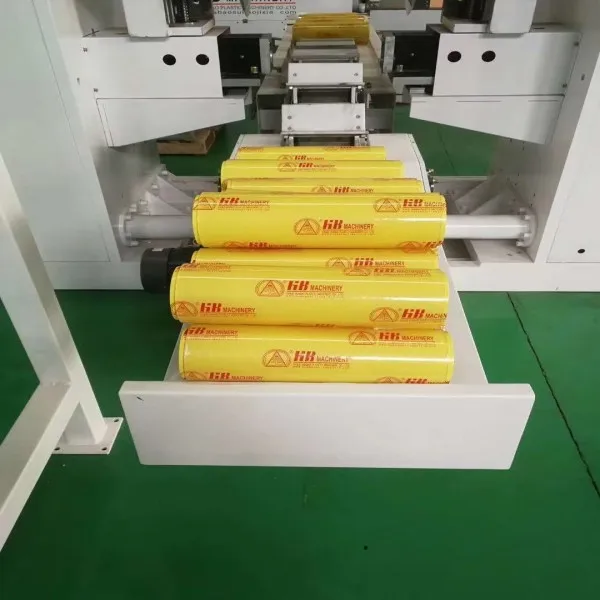

4. Comparing with two-shaft winder, this kind of winder has the advantages of automatic paper core loading, automatic finished roll unloading, automatic roll change, no tailing, less operators, highspeed, high automation and high efficiency.

 Characteristics of Product

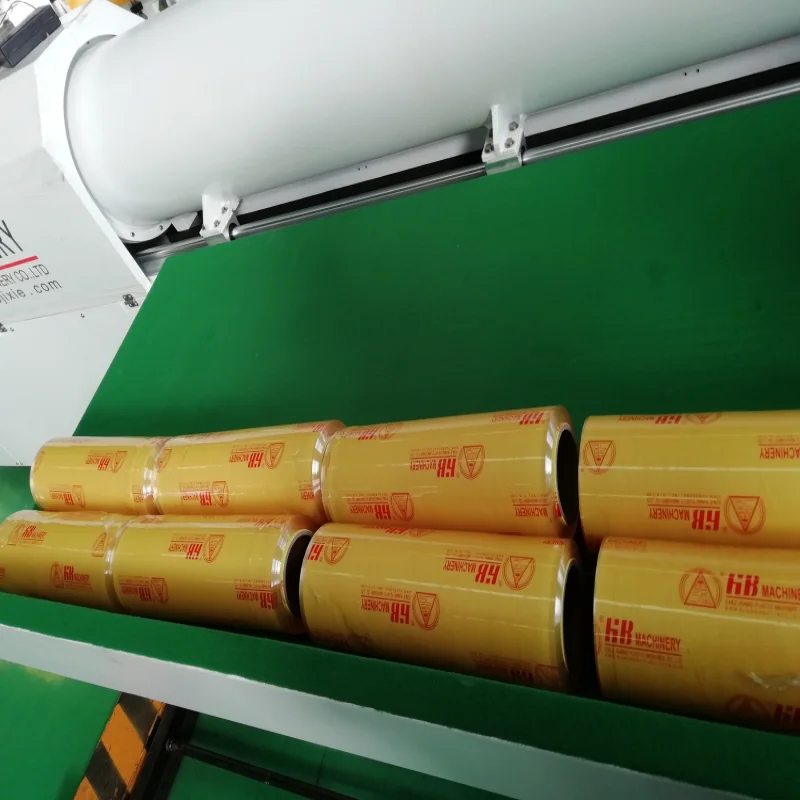

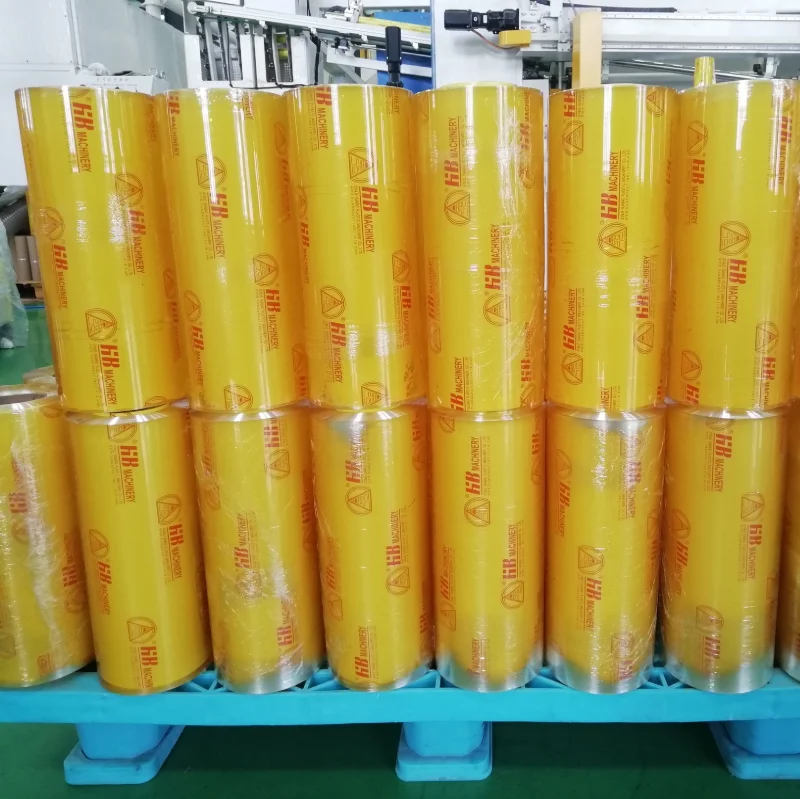

1. In the process of production, the raw materials will not be mixed with additives harmful for health and contaminative for environment. The film has high tensile strength, good fog drip performance, high transparency, good surface glossiness.


2. The commodities packaged could show original characteristics and glamour, more beautiful. The film can keep freshness of food, prevent the loss in quantity, dry and taste mixing, and be safe and hygiene.

Main Applications of Product



It is widely used for packaging and storing vegetable, cold dish, compote, raw and ripe meat, flour goods and so on in supermarket, guesthouse, restaurant, bakery and household etc.



Product Attributes



Model (mm) SJLM-BX-Z	1800	2100
Screw Diameter (mm)	115	130
L/D Ratio of Screw	28:1	28:1
Width of Die (mm)	2350	2700
Width of Finished Film (mm)	1800(300×6 rolls)	2100(300×7 rolls)
Thickness of Finished Film (mm)	0.01-0.015	0.01-0.015
Max. Extrusion Capacity (kg/h)	350	500
Design Line Speed (m/min)	250	250
Total Installed Power (not including mixing system) (kw)	260	320
Overall Dimensions(L×W×H) (m)	17×10×4	18×11×4.5
Weight (T)	40	45
