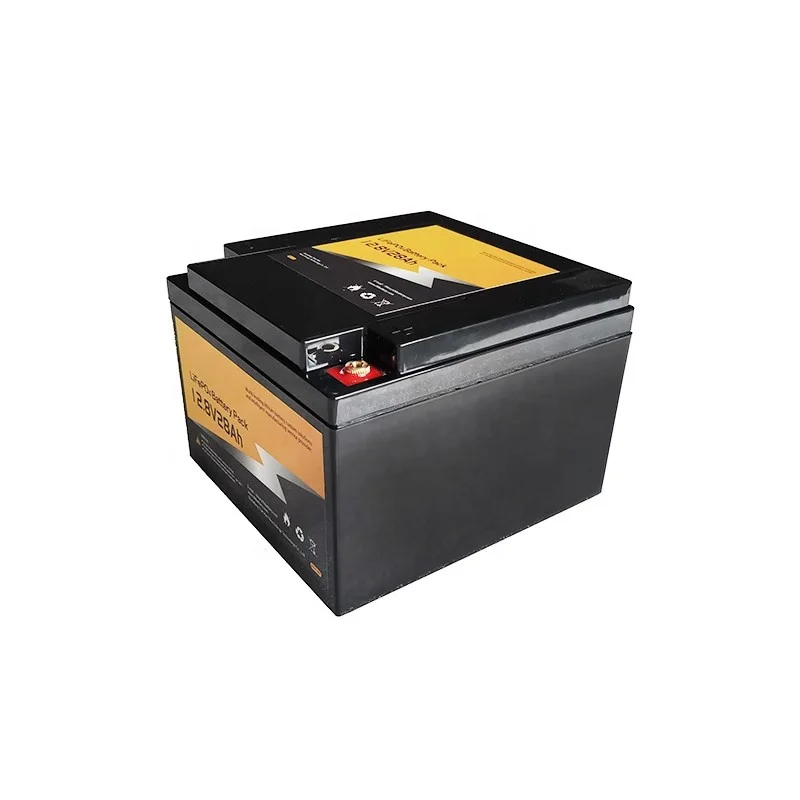

12.8v Lifepo4 36ah rechargeable batteries cells lithium ion batteries for EV car wind energy solar energy
- Category: >>>
- Supplier: Shandong Huigor International Trading Co. Ltd.
Share on (1600601056629):
Product Overview
Description
1. Specification
Item | Specification | ||
Electrical Characteristics | Nominal voltage | 12.8V | |
Rated Capacity | 12Ah | ||
Cycle Life | >2000@0.2C (100% DOD) >6000@0.2C (80% DOD) | ||
Protection function | Over charge protection, over discharge protection, temperature protection, balance etc. | ||
Standard Charge | Charge voltage | 14.4V | |
Charge mode | 0.2C to 14.4V then 14.4V, charge current to 0.01C | ||
Charge current | 6A | ||
Max. charge current | 12A | ||
Standard discharge | standard discharge current | 6A | |
max. continuous discharge current | 12A | ||
Discharge Cut-off voltage | about 10.0V | ||
Environmental | Charge temperature | 0~45℃ | |
Discharge temperature | -20~60℃ | ||
Storage temperature | -20~60℃ | ||
Mechanical | Material system | LiFePO4 | |
Material of case | Plastic | ||
Dimension | 151x99x95mm | ||
Weight | 1.7kg | ||
Terminal | T1/T2 | ||

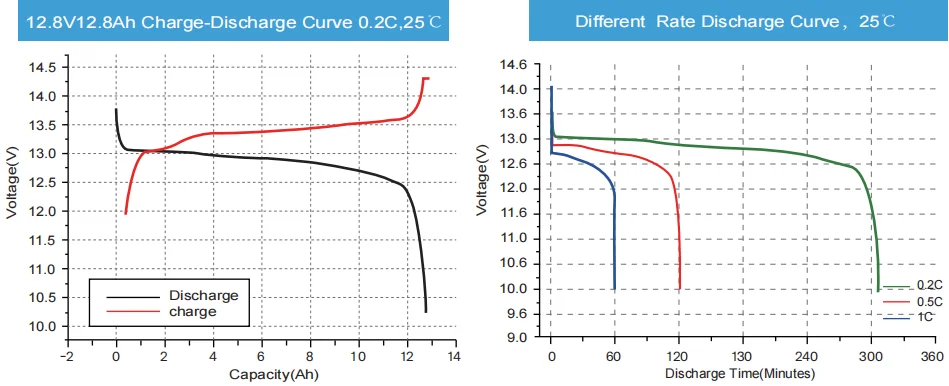

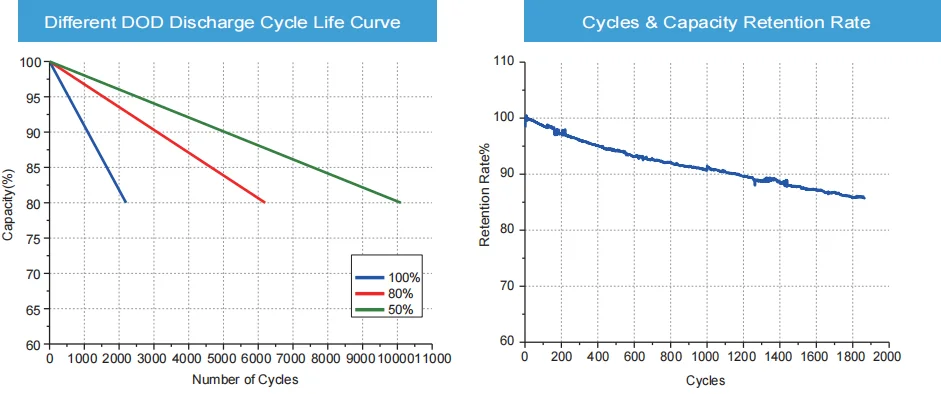

2. Performance Curve
3. Packaging
4. Certificate
Cell Workshop

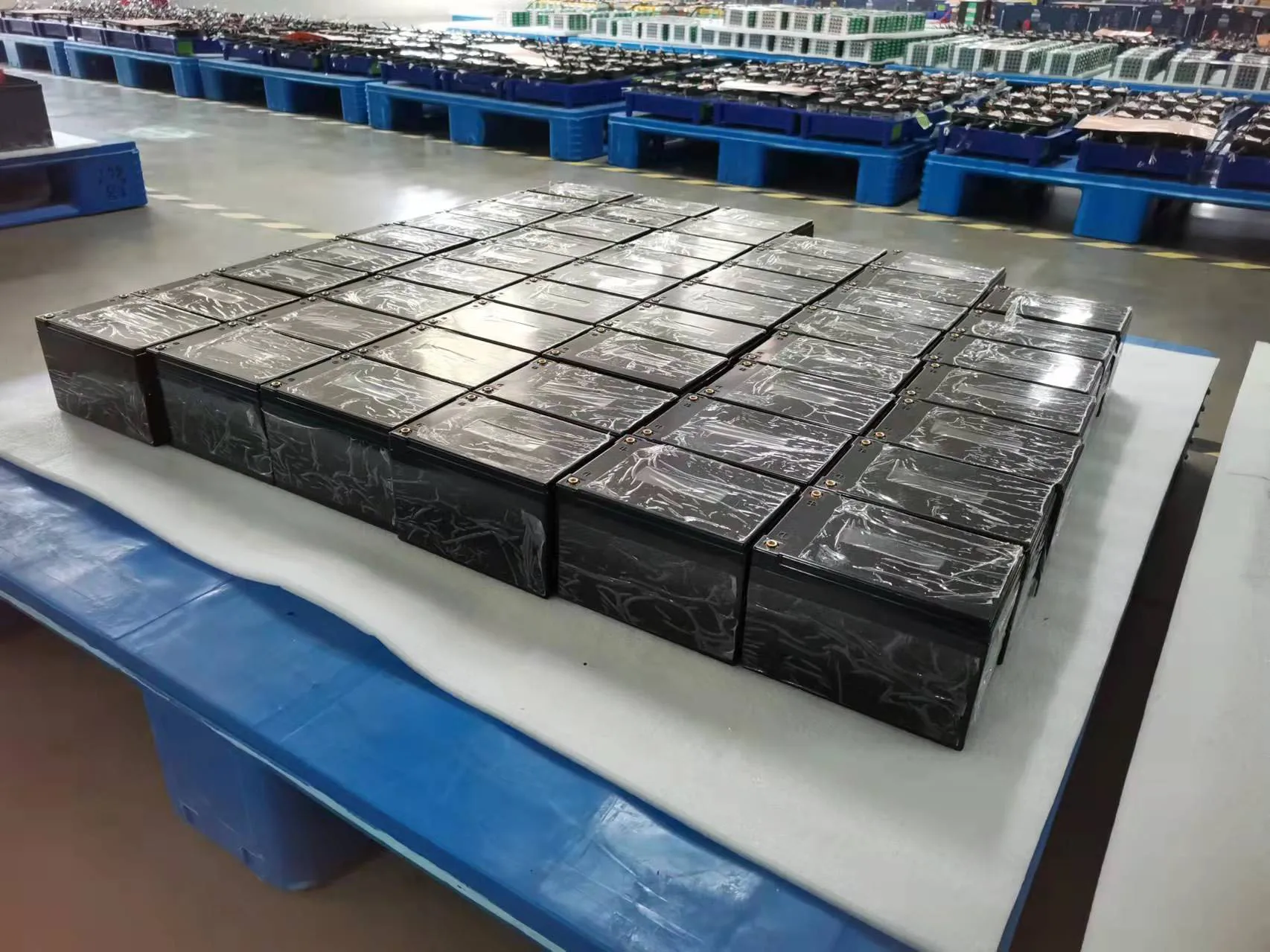

Pack Workshop
