Product Overview

Description



Product Description


Product introduction
PV String DC Combiner Boxes are key components in the solar power systems, which are placed between solar modules and the inverters.


Product features
1.Very high impact resistance
2.Easy machining with normal tools
3.IP65
4.Wide operation temperature range
5.Fire Resistance
6.Non-conductive
7.Good resistance to chemical corrosion
8.Light weight
9.Excellent insulating properties
10.Cost-effective material for harsh environments


Product functions
1.Simplify the physical between solar panel and inverter
2.Fault current protection for each String
3.Fault alarm
4.Easy installation and maintenance


Specification


Solar PV DC Combiner Box
4 in 1 out



Rated voltage of photovoltaic system
DC 600V
DC 600V
DC 1000V
DC 1000V
Max input amp for each string
15A



Input strings
4



Number of output strings
1



Waterproof grade ip65/ Lighting protection




Category of test
II grade protection



Nominal discharge amp
20KA



Max discharge amp
40KA



Volt protection level
3.2KV



SPD Max operation voltage
DC 600V
DC 600V
DC 1000V
DC 1000V
Poles
2P



Structure characteristic
Plug push module



System




Protection grade
IP65



Output switch
2P DC circuit breaker
2P DC circuit breaker
4P DC isolation switch
4P DC circuit breaker
Solar connector
Standard



Box material
ABS



Installation method
Wall mounting type



Operating temperature
-25℃-+60℃



Installation: indoors/outdoors
Yes



Mechanical parameter




Widh*high*Depth(mm)
170*220*110
215*210*115

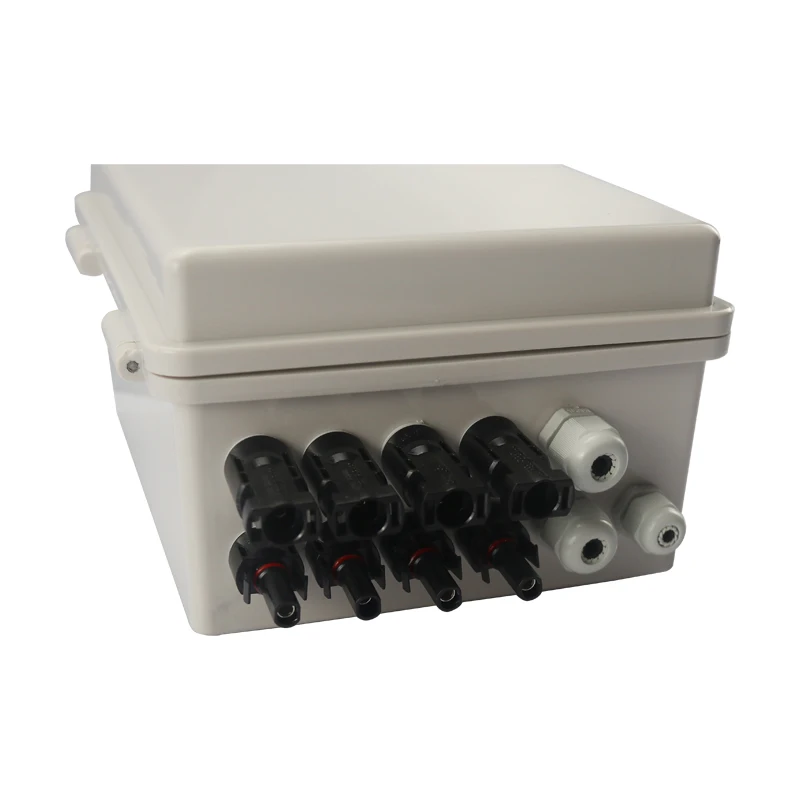

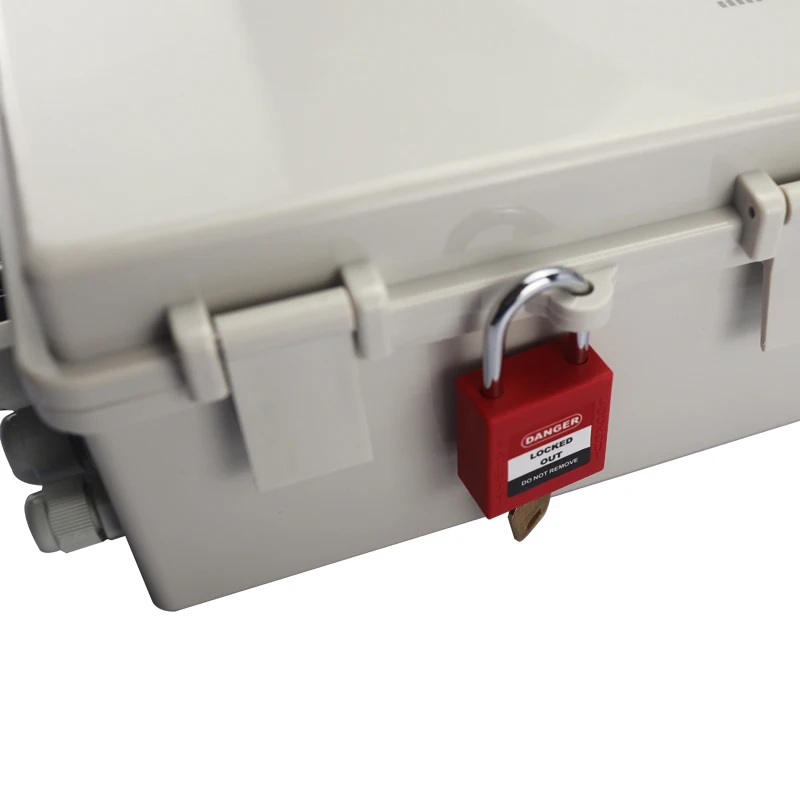

Details Images




Company Profile



ZHEJIANG YATAI INTELLIGENT ELECTRIC CO.,LTD is a professional solar PV electric components manufacturer located in Yueqing City, China. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.






Packing & Delivery




FAQ


Q: why should you buy from us not from other suppliers?
A:The product specifications are complete, the variety is rich, and the company has more than ten years of production, research and development and sales experience. The company's team is young and energetic.
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 48hours.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.


If you have another questions, pls feel free to contact us.
